dmorgan · #1 10-09-2019, 02:03 PM

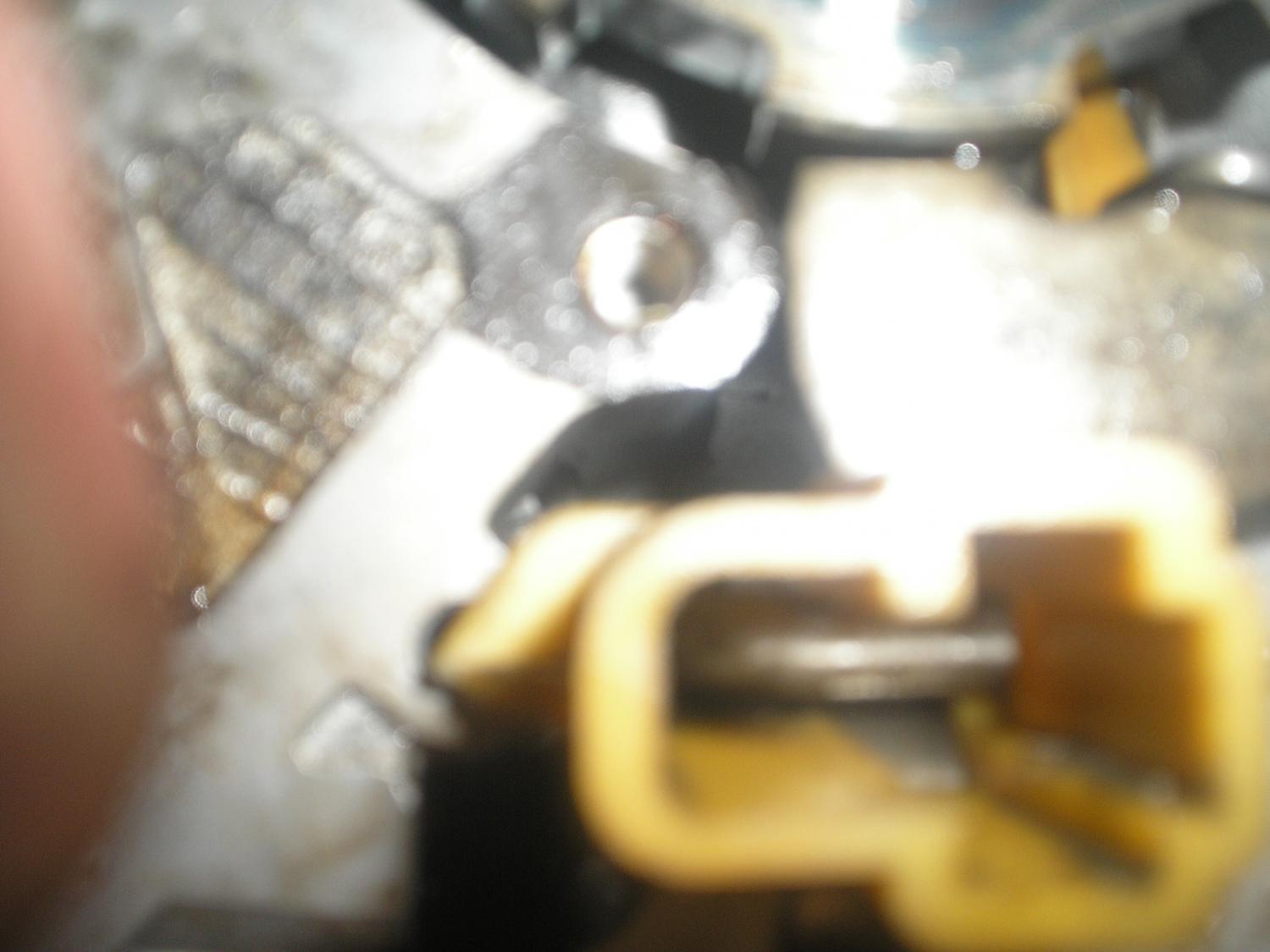

On my 1994 E320 wagon, 722.369 transmission, this yellow piece was on the transmission rear end after removing the rear transmission case housing. See the pictures. What is this yellow piece part name and number that need to be replace?Part of the piece is broken and I definitely will replace that. Anyone out there knows about this part? Thanks for reading.

dmorgan · #2 10-09-2019, 10:15 PM

I had been researching this part and so far nothing about it. Anyone out there knows about this part and its number? Are there additional parts connected to it? Thanks for reading.

dmorgan · #3 10-10-2019, 03:34 PM

After calling the Mercedes dealership, I finally got the correct name and part number. It is a called a parking interlock guide, part number A1262776077.

97 SL320 · #4 10-10-2019, 06:10 PM

It would be helpful if you kept all of your transmission repair related info in one post at this will help others in the future.

dmorgan · #5 10-11-2019, 11:36 AM

97 SL320, thanks for your post. I appreciated it.

dmorgan · #6 10-11-2019, 11:51 AM

The parking interlock guide, part number A1262776077,Item 348 is the part in the picture. There is the a parking interlocking rod (332) with a roller bearing (347). All separate parts. Are the parking interlocking rod and the roller bearing visible on the outside or inside of the transmission? I don't know where are these two rod and roller bearing located. how are both connected to the parking interlock guide? Does anyone out there knows about these 3 parts put together? Feedback, comments, advice is greatly appreciated.

dmorgan · #7 10-11-2019, 12:00 PM

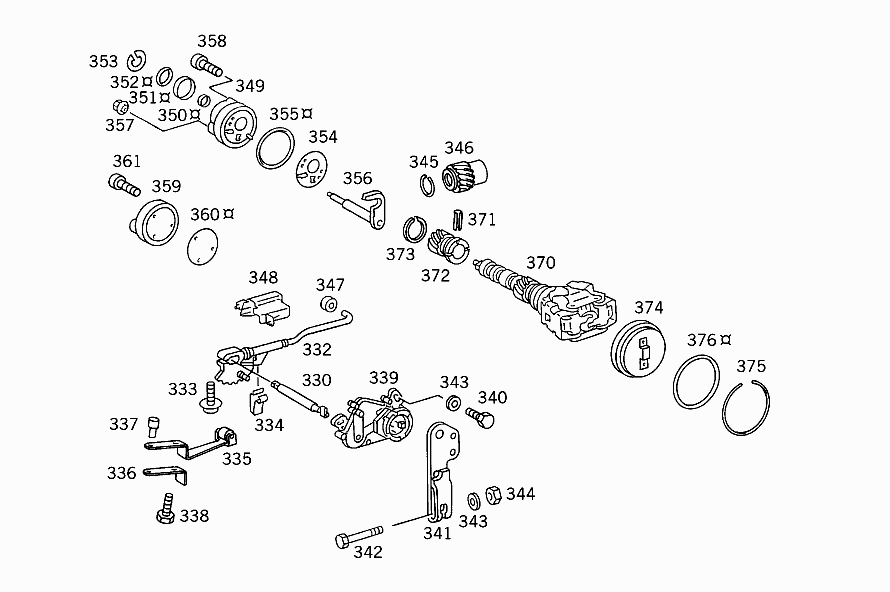

Here is the diagram/picture

Zulfiqar · #8 10-11-2019, 12:51 PM

Quote:

Originally Posted by dmorgan

The parking interlock guide, part number A1262776077,Item 348 is the part in the picture. There is the a parking interlocking rod (332) with a roller bearing (347). All separate parts. Are the parking interlocking rod and the roller bearing visible on the outside or inside of the transmission? I don't know where are these two rod and roller bearing located. how are both connected to the parking interlock guide? Does anyone out there knows about these 3 parts put together? Feedback, comments, advice is greatly appreciated.

The parking lock guide is connected to the valve body manual valve - you will need to remove the sump pan to see.

I would suggest you buy/download an ATSG service manual for this to somewhat guide you - its not a perfect one but can somewhat guide you correctly as different versions of the 722.3 have a lot of differences.

dmorgan · #9 10-11-2019, 01:46 PM

Zulfiqar Thank you very much for your excellent post!! Much appreciated!!! Will follow up on this issue and reported here on this post. Thanks again. Stay tune.

dmorgan · #10 10-12-2019, 01:09 PM

First, I did not removed the transmission sump (transmission pan?). I looked under the location of the Parking interlock guide (yellow piece in above photos. Notice the pictures of the parking interlocking rod sticking out and below that, I believed it is the roller bearing.

I have not got the parking interlock guide replacement yet. How does the parking interlock guide that goes inside connecting the interlocking rod tighten or some kind of support mechanism securely in place? Is there some kind of nut or something to keep the parking interlock guide from falling out? Does the interlocking rod need to move higher than it is in already in position right now to tighten or something connecting to the parking interlock guide? Any comments, feedback/advice is greatly appreciated.

dmorgan · #11 10-12-2019, 01:11 PM

more photos

dmorgan · #12 10-18-2019, 05:20 PM
