  #46
Old 03-09-2011, 03:50 PM
gsxr's Avatar
Unbanned...?

Join Date: Aug 2001
Location: USA
Posts: 7,996

Last edited by gsxr; 03-15-2011 at 01:46 AM.
Reply With Quote
  #47
Old 03-09-2011, 09:39 PM
Registered User

Join Date: Dec 2007
Location: NorCal
Posts: 1,332
Just put in a 120A S320 alternator a few months ago. Night and day difference. With my stock 65A alternator, my headlights used to dim slightly after 3000rpm, and at redline they were very very dim. After shifting the lights would go back to full brightness. Not very confidence inspiring.
__________________
http://i193.photobucket.com/albums/z...-RESIZED-1.jpg
1991 300E - 212K and rising fast...
Reply With Quote
  #48
Old 03-10-2011, 09:15 AM
abaddsm's Avatar
Registered User

Join Date: Mar 2011
Location: Mechanicsburg, PA
Posts: 64
Thanks for the info. The stock 94 E429 alternator is rated at 60-110 amps and I got it for $50 shipped on ebay! Nice wheels on that 91 300e. They look like Porsche turbo wheels in that small pic.
__________________
'88 300ce black/gray
'88 300e 3.0 5 Speed! gray/gray
Reply With Quote
  #49
Old 03-10-2011, 09:58 PM
Registered User

Join Date: Dec 2007
Location: NorCal
Posts: 1,332

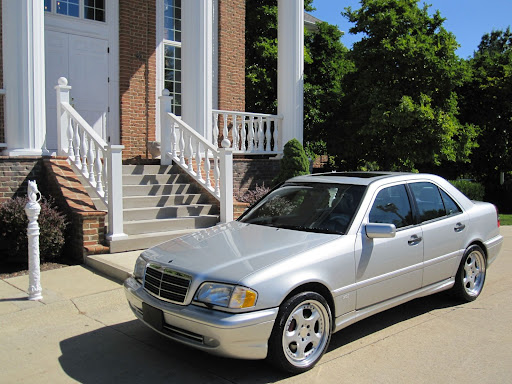

They are actually 17" replicas of the wheels found on the "C58 Brabus"

__________________
http://i193.photobucket.com/albums/z...-RESIZED-1.jpg
1991 300E - 212K and rising fast...
Reply With Quote
  #50
Old 11-07-2011, 11:55 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,243
Quote:
Originally Posted by Gravedigger View Post
Finally upgrades to 143 amp alternator. Ran a #2 ground to alternator bolt and 2 #6 to alternator output. and a # 10 to the for the small wire. All terminal ends are soldered on.

I can idle with headlights on high , fog lights on after-market driving lights on and my Fluke meter reads 13.98 volts. What an amazing upgrade.
... not sure of the need for this step.
the alternator is attached to a solid aluminum bracket, bolted to the block, and there is a large copper braid connecting the block to the body of the car.
this would eliminate the possibility of a voltage drop from the battery to the block through the body I suppose...
certainly if charging issues are happening, adding an additional ground to the alt frame could help. as could cleaning all the existing connections, and brackets.
Hmmm...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #51
Old 11-07-2011, 12:07 PM
amosfella's Avatar
Registered User

Join Date: Jun 2006
Location: Vulcan, AB, Canada
Posts: 787
Quote:
Originally Posted by vstech View Post
... not sure of the need for this step.
the alternator is attached to a solid aluminum bracket, bolted to the block, and there is a large copper braid connecting the block to the body of the car.
this would eliminate the possibility of a voltage drop from the battery to the block through the body I suppose...
certainly if charging issues are happening, adding an additional ground to the alt frame could help. as could cleaning all the existing connections, and brackets.
Hmmm...
a quick buzz with a dremel tool and a steel brush on the mounting holes for the alternator is always a good thing... and a dab of dielectric grease. solved a number of charging problems for me....
__________________
All it takes for evil to prevail is for good men to stand by and do nothing.

Too many people tip toe through life, never attempting or doing anything great, hoping to make it safely to death... Bob Proctor

'95 S320 LWB
'87 300SDL
'04 E500 wagon 4matic
Reply With Quote
  #52
Old 11-30-2011, 06:53 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
I did this upgrade about a month ago thanks to gsxr's posts. I can finally turn my stereo up without my amp shutting down.

Just FYI, the wires are about 1 foot too long for my 89 300e. I just coiled it once near the battery.
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #53
Old 12-31-2011, 10:24 PM
Registered User

Join Date: Mar 2010
Location: Egg Harbor Township, NJ
Posts: 72
Well after reading this thread way too many times and wanting to do the upgrade, I just purchased a 150amp unit on eBay for $100 shipped. Thanks to gsxr's pics, I was able to get the same part#. Now I have to wait for it to arrive. While waiting I will measure and make up the cables. I have tons of battery cable so that won't take long.
Reply With Quote
  #54
Old 01-01-2012, 10:26 PM
michakaveli's Avatar
Registered User

Join Date: Nov 2002
Location: Columbia, SC
Posts: 1,721
I sooooooo need this mod for my '97. The 65amp unit spec'd for my MY is pathetic.
__________________
#dieselFLEET
---------------
'97 E300
'99 E300
Reply With Quote
  #55
Old 04-17-2012, 01:31 PM
Registered User

Join Date: Aug 2011
Posts: 3
I did it too.

Thanks for the upgrade..I was wondering where this thread was... it is a no brainer. Years later..no issues.
Reply With Quote
  #56
Old 11-09-2012, 04:45 AM
cyberdyne's Avatar
Registered User

Join Date: Jul 2007
Location: Vancouver, BC, Canada
Posts: 13
Is this upgrade needed in my 1992 400E or does it have a larger output alternator already?

The battery is also in the trunk. Does this change the cables required?
__________________
1989 Mercedes-Benz 560SEC Euro (White Hot!)
1987 Mercedes-Benz 190E 2.3 Euro (For her!)
1988 Mercedes-Benz 560SEC Euro (RIP - Total Loss)
1994 Mercedes-Benz E320 Sedan (RIP - Total Loss)
1983 Mercedes-Benz 380SEL (Sold!)
1970 Mercedes-Benz 250/8 Sedan (Sold!)
Reply With Quote
  #57
Old 11-09-2012, 11:46 AM
gsxr's Avatar
Unbanned...?

Join Date: Aug 2001
Location: USA
Posts: 7,996
Quote:
Originally Posted by cyberdyne View Post
Is this upgrade needed in my 1992 400E or does it have a larger output alternator already?

The battery is also in the trunk. Does this change the cables required?
The 400E and 500E will have a 110A-120A alternator stock. If you have increased electrical loads (big stereo, overwatt lights, etc) then it would still be a good idea to upgrade to the 150A alternator.

The wiring on the 400E/500E is completely different. No wiring changes are necessary, although you can add an extra 4ga from the alternator to distribution block if you want... that's a bit overkill though.

__________________
Dave M.
Boise, ID

1997 E420 - 155kmi (Bugeyes)
1994 E420 - 145kmi (Blondie)
1993 500E - 193kmi (Lollipop)
1992 400E - 189kmi (Stinky Dirty)
Check out my website photos, documents, and movies!
Reply With Quote
  #58
Old 11-23-2012, 01:59 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,016
I just scored this beasty on ebay for $40. Its the 143a unit. Listing said it was in perfect working condition and everything.

I plan on installing it on my 300D 2.5 and was curious if I would have to do any pulley swapping or re-clocking of the alternator.

__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

82 300SD 145k
82 300SD 265k
87 420SEL 230k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #59
Old 11-23-2012, 04:29 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
on my 300e I had to swap the pulleys. it had a slightly different offset. I could not get it with the wrench, so I ran it up the street to the mechanic, and paid him 5 bucks to swap the pulleys with an impact wrench.
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #60
Old 11-23-2012, 05:12 PM
gsxr's Avatar
Unbanned...?

Join Date: Aug 2001
Location: USA
Posts: 7,996
You'll have to swap the pulley for sure, as the offset and diameter are different.

You can't tell if you need to re-clock until you compare the back of your 143A unit with the existing alternator & brackets. The new alternator doesn't need to have the terminals in the exact same location, they can be slightly different; as long as no brackets or pipes interfere with the wiring, AND the wiring is long enough to connect. Don't forget to replace the tiny stock B+ wires with larger cable similar to what is shown in my photos.

__________________
Dave M.
Boise, ID

1997 E420 - 155kmi (Bugeyes)
1994 E420 - 145kmi (Blondie)
1993 500E - 193kmi (Lollipop)
1992 400E - 189kmi (Stinky Dirty)
Check out my website photos, documents, and movies!
Reply With Quote
