617 engine, replacing the oil separator check valve in the upper oil pan.

As discussed in this post

Oil coming UP the cyclone drain tube!!!

My car has an annoying leak near the turbo and oil separator drain tubes. I replace the turbo drain tube grommets and gaskets in this post

617 Turbo oil return line. Replacing seals

I replaced the O rings in the oil separator drain tube and still had the leak.
My theory is that the check valve was remaining open allowing oil to be sucked up the drain tube, OR the valve was stuck closed and not allowing the oil in the tube to drain after engine shutdown. With the engine running I’m sure that there is always a vacuum, caused by the turbo, in the oil separator/drain tube area. To prevent the oil in the oil pan from being sucked up into the air filter assembly, the check valve shuts off the oil pan air going into the drain tube. Then all the air/oil from the PCV tube going into the oil separator accumulates in the cyclone bowl and drains down the tube. When the engine is shut off the check valve in the upper oil pan opens and allows the accumulated oil to drain. At least this is what I have concluded. Is this the way the system works?? Not 100% sure but the theory seems logical. If anyone else has a better idea please speak up.

Parts needed.
1. A new check valve.
2. A new holding sleeve.
3. A new lower oil pan gasket.
4. 8 quarts of oil.
5. A new oil drain plug washer
6. A new filter if you want to do this.

Torques for the bolts.
Drain plug 35-45 Nm (25-33 Ft Lbs)
Oil pan bolts 9-11 Nm (6-8 Ft Lbs 79-97 Inch Lb )


Photo#1. Is the oil separator setup in the 617 engine. Item number 7 is the check valve and the drain tube is highlighted in red.

Photo #2. This is the problem. The result of what I think is a failure of the check valve to operate correctly. After removing the check valve I found it to operate poorly and intermittently.

Photo #3. Another view of the area where the oil is leaking

Photo #4. These are the tools I used doing the job.

A. Lots of shop rags. The oil pump will continue to drip while the oil pan is off, annoying and messy
B. A inch Pound torque wrench to tighten the oil pan bolts. Attached to it are a ¼ drive extension and a 5MM allen head socket.
C. A paint scrapper to completely clean the upper oil pan matting surface for the power oil pan.
D. Pliers to remove the holding sleeve.
E. A 5MM allen T wrench to remove the oil pan bolts.
F. A 10MM socket set and extension to remove the air filter assembly.
G. A 13MM box wrench to remove the oil drain plug
H. Lots of degreaser.
I. A brass punch to drive the holding sleeve into the upper oil pan.
J. A hammer to, well you know what a hammer is for!!

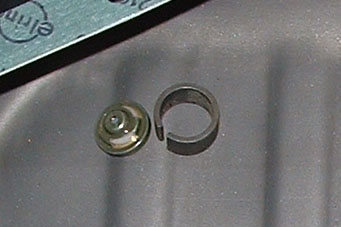

Photo #5. These are the 2 parts that you should buy to do the job. The new check valve to the left and a new holding sleeve on the right. The check valve looks a lot like the vacuum pump check valve. I would recommend a new holding sleeve. The old one might not spring back correctly when removing and you don’t want to go back in there to fix that.

continued

Dave

Attached Thumbnails
617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-1.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-2.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-3.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-4.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-5.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 04-29-2005 at 02:20 PM.
Reply With Quote
  #2
Old 04-29-2005, 02:12 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Photo #6. Now to get to work. I removed the air filter assembly so I could clean the drain tube out. I did not take a picture of that. This picture shows the car on 2 sturdy jack stand and you need to drain the oil. Once you remove the oil pan the engine, oil will continue to drip. Lots of rags and you will get oil on yourself.

Photo #7 This is the lower oil pan . Use a 5MM allen wrench setup to remove all the allen head bolts holding the oil pan. The oil pan is light and 1 allen head bolt will hold it in position but make sure you don’t bend or twist it. There will be an ounce of oil in the bottom of the pan when removing it.

Photo #8. 4 bolts are of a different length and should be kept track of. This, out of focus, picture shows the driver side transmission cooler line holding bracket. This bolt is longer that the others. Also on the transmission cooler lines are 2 spacers, don’t forget these.

Photo # 9. On the passengers side of the engine are the 3 other bolts that should be kept track of. The other transmission cooling line holding bolt ( and spacer) and the 2 bolts that hold the AC high pressure hose in position on the upper oil pan area. The AC hose bolts also have nuts that do the actual AC hose hold down. The 2 bolts that hold the oil cooler lines are longer that the AC hose bolts.

Photo #10 The culprit. The opening on the top that has the sleeve and check valve is the oil separator drain tube unit. The other large opening is the turbo oil drain line tube. Notice the amount of sludge in the check valve.

continued

Dave
Attached Thumbnails
617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-6.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-7.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-sepertor-fix-8.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-9.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-10.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #3
Old 04-29-2005, 02:14 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Photo #11. To remove the holding sleeve just use some standard pliers and squeeze the holding clamp so that it can be pulled out. I then sprayed degreaser down the drain tube to make sure nothing was blocking it. After it drained I blew air though it for a while to completely evaporate the degreaser.

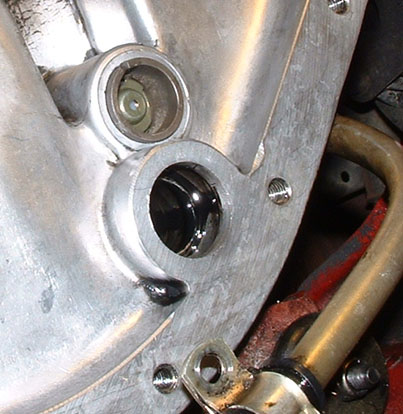

Photo #12 Here is the new check valve and holding sleeve installed. To install it. The nipple on the check valve MUST BE DOWN. While holding the clamping sleeve with your pliers place the check valve on the sleeve with the check valve nipple down. Position the combination in the hole and press it in. The clamping sleeve has a beveled edge and a non beveled edge. I placed the beveled edge at the top to assist in inserting the sleeve. I could only get the sleeve started using the pliers. I then drove the combination all the way using the brass punch and the hammer. Tap it lightly this is not a wheel bearing or such. You will know when it is seated by the change in sound while tapping as well as it not moving any further. Note the amount of exposed sleeve in the pictures.

Photo # 13. All the parts have been cleaned and are gathered together to reassemble. Notice the new oil pan gasket. Make sure you completely remove all of the old gasket from the matting surface. Photo # 12 shows the clean surface of the upper oil pan.

Photo # 14. The completely assembled oil pan with new gasket and check valve. I now have to degrease and pressure wash the engine and under carriage. This leak has made a mess.

Photo # 15. My personal reward.

I will let everyone know how the repair has gone and let you know if the has solved the problem.

Dave
Attached Thumbnails
617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-11.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-12.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-13.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-seperator-fix-14.jpg   617 engine, replacing the oil separator check valve in the upper oil pan.-oil-sepertaor-fix-15.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #4
Old 04-29-2005, 02:21 PM
Registered User

Join Date: Sep 2001
Location: central Texas
Posts: 17,290
So NOW I can post? I wish my 240 had a turbo down tube so I could take advantage of all the work you did....
Reply With Quote
  #5
Old 04-29-2005, 02:36 PM

Registered User

Join Date: Dec 2002
Location: RI shore
Posts: 2,937
Dave, very nicely done. A model how-to IMHO.
__________________
'82 300SD - 361K mi - "Blue"

"Good judgement comes from experience. Experience comes from bad judgement."

listen, look, .........and duck.
Reply With Quote
  #6
Old 04-29-2005, 11:46 PM
Registered User

Join Date: Jun 2004
Location: West of Ft. Worth. TX
Posts: 4,186
Quote:
Originally Posted by leathermang
........ I wish my 240 had a turbo down tube so I could take advantage of all the work you did....
OOPS! A slight slip there.
I believe that is for the oil separator drain.

Dave, did the old check valve look like it was damaged in any way? Or was it just a lot of sludge?

My oil separator seems to be draining better (less oil in air filter area) since I ran a little motor flush through it at the last oil change. (New air filter mounting and o-rings too)

BTW, great how-to.
__________________
Sam

84 300SD 350K+ miles ( Blue Belle )
Reply With Quote
  #7
Old 04-30-2005, 12:41 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
I think the check valve just got old and contaminated. Making the valve work by blowing and sucking on it (can you say bad taste). I did this without cleaning inside it, just wiped the oil away from the outer ring that the lips touched. I wanted it to be in the same condition as when it was installed. I found that it did not operate as smooth as the new one. It also seemed that small particles may have gotten in it. Those small particles were probably causing the valve to stick. I have not even driven the car since the "operation". It was a great day here so we drove the SL with the top down.

Dave
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 04-30-2005 at 11:34 AM.
Reply With Quote
  #8
Old 04-30-2005, 09:21 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Drove the car this morning around town. Had to bring 7-8 gallons of old paint to the Crud Wagon. Each year the town has it come by to collect all the bad chemicals. I also had about 4 gallons of old contaminated diesel in a large Pool Chlorine powder container. At the current cost of diesel, I though of trying to clean it but realized it was over 1 year old and had algae in it.
I then had the car sit in the garage for 4-5 hours. No oil leak. I then de-greased and pressure washed the engine and front suspension. I will let you know about the oil drip situation after a 100 miles or so.

So far so good.

Dave
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #9
Old 04-30-2005, 09:58 PM
McRoth's Avatar
Registered User

Join Date: May 2002
Location: Grafton, OH
Posts: 291
This seems to be exactly one of my problems!! One question though, where did you get the new check valve & holding sleeve? What are the part numbers? Were they from Fastlane?

Thanks for the tips/help!!!
__________________
Michael Roth

1982 300TDT Wagon
1982 240D Euro!, 4spd manual-Parts car now, dead engine
88 Jeep Grand Wagoneer-fixing up for offroading
1989 Ford F150 (rust bucket) For Sale!
1953 Dodge B-4F, 1 1/2 ton Stake Bed (new restoration project)
Reply With Quote
  #10
Old 05-03-2005, 12:44 PM
McRoth's Avatar
Registered User

Join Date: May 2002
Location: Grafton, OH
Posts: 291
Anyone have those part numbers or know where to get them from?
__________________
Michael Roth

1982 300TDT Wagon
1982 240D Euro!, 4spd manual-Parts car now, dead engine
88 Jeep Grand Wagoneer-fixing up for offroading
1989 Ford F150 (rust bucket) For Sale!
1953 Dodge B-4F, 1 1/2 ton Stake Bed (new restoration project)
Reply With Quote
  #11
Old 05-08-2005, 10:27 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
McRoth
I think?? the part number is

617-018-00-29 Check valve. Make sure it comes up as check valve.


It has now been a couple of weeks and driving the car has produced no oil leaks form this area. Lets not talk about the other leaks. So this was the cause of the leak around the upper oil pan area.

Dave
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #12
Old 05-08-2005, 11:10 PM
McRoth's Avatar
Registered User

Join Date: May 2002
Location: Grafton, OH
Posts: 291
Thanks Dave!
Glad it fixed your problem, hopefully it'll fix one of my leaks too!
__________________
Michael Roth

1982 300TDT Wagon
1982 240D Euro!, 4spd manual-Parts car now, dead engine
88 Jeep Grand Wagoneer-fixing up for offroading
1989 Ford F150 (rust bucket) For Sale!
1953 Dodge B-4F, 1 1/2 ton Stake Bed (new restoration project)
Reply With Quote
  #13
Old 04-02-2007, 09:23 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,424
Item Number: 6170180029
Main Category: MB
Sub Category: Engine Mechanical
Description: Oil return line "check valve"...OM617 turbo...
Weight: 0.100



Item Number: 007346020001
Main Category: MB
Sub Category: Engine Mechanical
Description: Clamping sleeve
Weight: 0.100





Have a great day.
__________________
ASE Master Mechanic
https://whunter.carrd.co/

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1985 300SD
1983 300D
2003 Volvo V70

https://www.boldegoist.com/
Reply With Quote
  #14
Old 05-30-2007, 11:54 AM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,245
Drain tube question

Dave,

Excellent writeup! My drain tube from my air cleaner housing is loose. I can wiggle it a few inches in all direction. Is the vertical tube in this pic the drain tube?

http://www.peachparts.com/shopforum/attachments/diesel-discussion/25845d1114794740-617-engine-replacing-oil-separator-check-valve-upper-oil-pan-oil-seperator-fix-9.jpg

Do you have the p/n of the o-rings and hardware I need to put the drain tube back into service? Any pics from the FSM would be helpful.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #15
Old 05-30-2007, 03:14 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Quote:
Originally Posted by funola View Post
Dave,

Excellent writeup! My drain tube from my air cleaner housing is loose. I can wiggle it a few inches in all direction. Is the vertical tube in this pic the drain tube?

http://www.peachparts.com/shopforum/attachment.php?attachmentid=25845&d=1114794740

Do you have the p/n of the o-rings and hardware I need to put the drain tube back into service? Any pics from the FSM would be helpful.
The tube visible is the turbo drain tube. The separator drain tube is behind the turbo drain tube.
If you can wiggle the tube check the mount bracket to the tube. It has been know to break. Otherwise it has just become unbolted.
Sorry I don't have the part numbers for the orings.

Dave

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
