Question 240D AC Tensioner Pulley Question

Ok is this thing supposed to be self-Tensioning or what?
The only way to apply any Tension to my AC belt is to put a pry bar on the Tensioner Pulley and tighten up the big bolt.
Is there supposed to be a spring in the Tensioner Pulley?
Here’s a pic, I would thing is there was a spring it would go in the area I circled in red

yes i did search
Attached Thumbnails
240D AC Tensioner Pulley Question-ac-pully.jpg
__________________
Jason Green
1977 240D AUTOMATIC the Beast
1974 Super Beetle



Suppose you were an idiot. And suppose you were a member of Congress. But I repeat myself.
- Mark Twain, a Biography
Reply With Quote
  #2
Old 12-16-2005, 10:04 PM
Tangent's Avatar
RERegistered User

Join Date: Oct 2005
Location: APOPKA FL
Posts: 70
Question

Bump
__________________
Jason Green
1977 240D AUTOMATIC the Beast
1974 Super Beetle



Suppose you were an idiot. And suppose you were a member of Congress. But I repeat myself.
- Mark Twain, a Biography
Reply With Quote
  #3
Old 12-16-2005, 11:15 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694

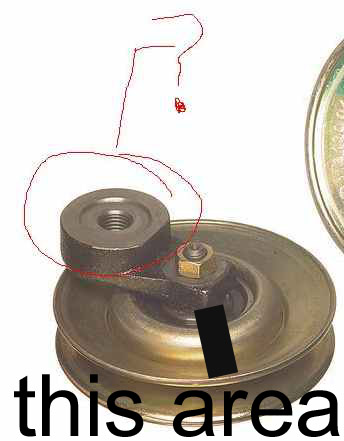

Look at the picture and see where the nut is attached to the pully/bracket assembly. Notice the shape of the bracket is such that a open end wrench will fit over it. Install the assembly with the belt on the pullies. Then use an open end wrench to apply tension on the belt pully assembly. Use another box wrench to tighten the bolt holding the whole pully assembly to the block/mounting bracket.
The area shown in the picture

Dave
Attached Thumbnails
240D AC Tensioner Pulley Question-pulley.jpg
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #4
Old 12-17-2005, 05:16 AM
Tangent's Avatar
RERegistered User

Join Date: Oct 2005
Location: APOPKA FL
Posts: 70
Red face

Iím sorry Dave but that was not my question
Maybe I did not make my question clear enough
Let me try to rephrase it
I simple want to know if that pulley is self-Tensioning or not
In addition, if it is self-Tensioning what dose the spring part look like?
__________________
Jason Green
1977 240D AUTOMATIC the Beast
1974 Super Beetle



Suppose you were an idiot. And suppose you were a member of Congress. But I repeat myself.
- Mark Twain, a Biography
Reply With Quote
  #5
Old 12-17-2005, 08:06 AM
Registered User

Join Date: Jan 2003
Location: Matthews, NC
Posts: 1,356
No the pully is not self tensioning. There is no spring. Adjust as discribed above by Dave. I don't believe the Self Tensioners came until the serpenteen (sp) belts came along.
__________________
84 500 SEL (307,xxx miles)
