Rear Window Seal Replacement Adventure!

I finally decided that I was tired of water drips in my trunk every time it rained and decided to tackle replacement of my rear window seal this weekend. I'd had the seal lying around for a few months, and my Dad agreed to help me with it this weekend, so I hit it.

I definately had some serious rust damage in there, though I don't think it was as bad as PawoSD's experience. I used his Patented Pawo Method for fixing it, namely, some small scraps of steal and a 10oz box of JB Industro Weld. Used a grinder and cut off wheel to cut out the bad pieces, then ground down everything else along the bottom to bare metal. I then JB'd in new metal and let dry overnight. While I was at it, I coated the entire bottom window ledge all along and up the sides part way with JB weld too. I figure that way, even If I do develop a leak in later years, it can't rust the metal that way! Then yesterday, we reinstalled the window. (What a job! )

So, enough of my blab, now for the onslaught of pictures!

Attached Thumbnails

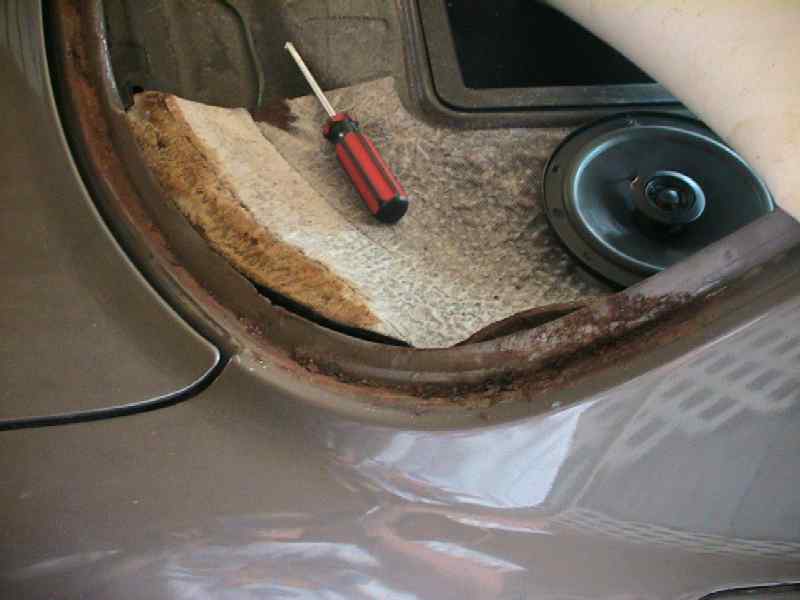

Rear Window Seal Replacement Adventure!-rust-damage-1.jpg   Rear Window Seal Replacement Adventure!-rust-damage-2.jpg   Rear Window Seal Replacement Adventure!-rust-damage-3.jpg   Rear Window Seal Replacement Adventure!-rust-damage-4.jpg
__________________
-Matt

EPA Section 609 Certified MVAC Technician
-----------------
Oil Burner Kartel Member #10

Ahh the smell of Diesel Fuel, it's like coffee in the morning!

My Car:

1982 300SD Turbo Diesel (231,500 miles!) RIP

1984 300SD Turbo Diesel Custom (235,500 mi on driveline.) - On Road!!

www.icsrepair.com

Reply With Quote
  #2
Old 08-07-2006, 08:55 AM
deerefanatic's Avatar
Diesel & John Deere Nut

Join Date: Jul 2005
Location: Sturgis, MI area
Posts: 849

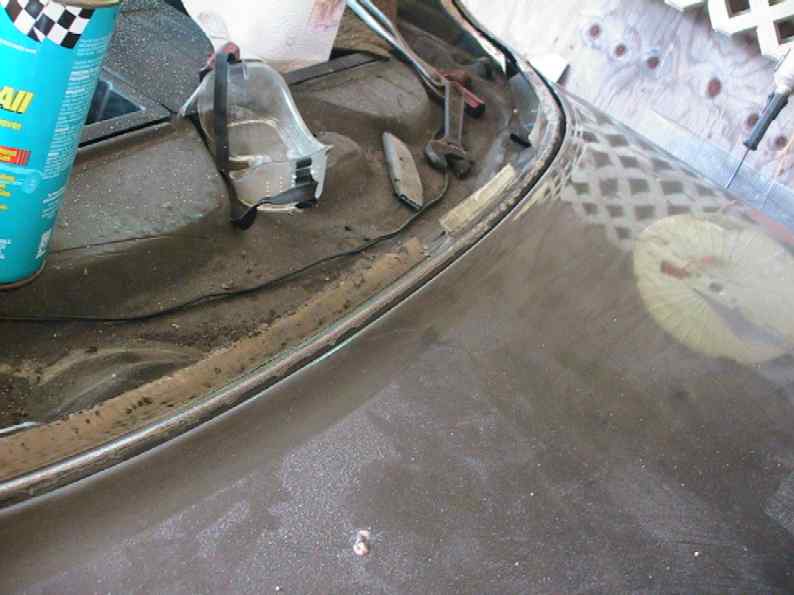

The Metal Get cleaned up:
Attached Thumbnails
Rear Window Seal Replacement Adventure!-cleaned-up-1.jpg   Rear Window Seal Replacement Adventure!-cleaned-up-2.jpg   Rear Window Seal Replacement Adventure!-cleaned-up-3.jpg   Rear Window Seal Replacement Adventure!-cleaned-up-4.jpg
__________________
-Matt

EPA Section 609 Certified MVAC Technician
-----------------
Oil Burner Kartel Member #10

Ahh the smell of Diesel Fuel, it's like coffee in the morning!

My Car:

1982 300SD Turbo Diesel (231,500 miles!) RIP

1984 300SD Turbo Diesel Custom (235,500 mi on driveline.) - On Road!!

www.icsrepair.com

Reply With Quote
  #3
Old 08-07-2006, 08:57 AM
deerefanatic's Avatar
Diesel & John Deere Nut

Join Date: Jul 2005
Location: Sturgis, MI area
Posts: 849
new metal glued in and clamped:
Attached Thumbnails
Rear Window Seal Replacement Adventure!-glued-1.jpg   Rear Window Seal Replacement Adventure!-glued-2.jpg   Rear Window Seal Replacement Adventure!-glued-3.jpg   Rear Window Seal Replacement Adventure!-glued-4.jpg
__________________
-Matt

EPA Section 609 Certified MVAC Technician
-----------------
Oil Burner Kartel Member #10

Ahh the smell of Diesel Fuel, it's like coffee in the morning!

My Car:

1982 300SD Turbo Diesel (231,500 miles!) RIP

1984 300SD Turbo Diesel Custom (235,500 mi on driveline.) - On Road!!

www.icsrepair.com

Reply With Quote
  #4
Old 08-07-2006, 08:59 AM
deerefanatic's Avatar
Diesel & John Deere Nut

Join Date: Jul 2005
Location: Sturgis, MI area
Posts: 849

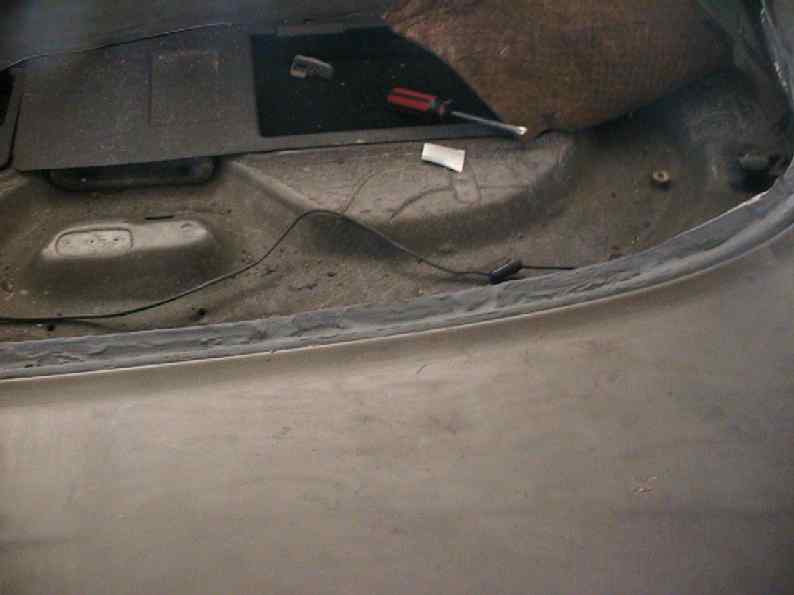

Glued Dried and ready to receive window:
Attached Thumbnails
Rear Window Seal Replacement Adventure!-glue-dried-1.jpg   Rear Window Seal Replacement Adventure!-glue-dried-2.jpg   Rear Window Seal Replacement Adventure!-glue-dried-3.jpg   Rear Window Seal Replacement Adventure!-glue-dried-4.jpg
__________________
-Matt

EPA Section 609 Certified MVAC Technician
-----------------
Oil Burner Kartel Member #10

Ahh the smell of Diesel Fuel, it's like coffee in the morning!

My Car:

1982 300SD Turbo Diesel (231,500 miles!) RIP

1984 300SD Turbo Diesel Custom (235,500 mi on driveline.) - On Road!!

www.icsrepair.com

Reply With Quote
  #5
Old 08-07-2006, 09:01 AM
deerefanatic's Avatar
Diesel & John Deere Nut

Join Date: Jul 2005
Location: Sturgis, MI area
Posts: 849
The Window with Trim & Seal reinstalled:
Attached Thumbnails
Rear Window Seal Replacement Adventure!-window-1.jpg   Rear Window Seal Replacement Adventure!-window-2.jpg
__________________
-Matt

EPA Section 609 Certified MVAC Technician
-----------------
Oil Burner Kartel Member #10

Ahh the smell of Diesel Fuel, it's like coffee in the morning!

My Car:

1982 300SD Turbo Diesel (231,500 miles!) RIP

1984 300SD Turbo Diesel Custom (235,500 mi on driveline.) - On Road!!

www.icsrepair.com

Reply With Quote
  #6
Old 08-07-2006, 09:07 AM
Registered User

Join Date: Aug 2005
Location: New Hampshire
Posts: 123
I am figuring that it took you most of the weekend? Also, did you do this because of the cost to get it done? Nice work

DK
__________________
1983 300sd 253,000 + 13,000 (10,000+ on veggie and biodiesel)= 266,000
1983 300sd 390,000 (Leaky windshield seal) Known to me as the shower car. Parts car now!
1 junk 300sd Watch out for the skunk that lives underneith it!
Reply With Quote
  #7
Old 08-07-2006, 09:11 AM
deerefanatic's Avatar
Diesel & John Deere Nut

Join Date: Jul 2005
Location: Sturgis, MI area
Posts: 849
Thumbs up The Finished Product!!!!

And finally, the window in the car!

After I got the window in, I took a tube of 3M Windo-Weld Urethane Adhesive sealant and ran all the way around the seal under the lip. I was told by a friend who is a glass guy that "you'll need a saw to break through that seal!"

So therefore, I shall hope to be rid of my water leaks! I'll test with a hose later, but since I've got the interior of the car officially filthy, I'm going to do some other work inside first........
Attached Thumbnails
Rear Window Seal Replacement Adventure!-car-1.jpg   Rear Window Seal Replacement Adventure!-car-2.jpg   Rear Window Seal Replacement Adventure!-car-3.jpg   Rear Window Seal Replacement Adventure!-car-4.jpg
__________________
-Matt

EPA Section 609 Certified MVAC Technician
-----------------
Oil Burner Kartel Member #10

Ahh the smell of Diesel Fuel, it's like coffee in the morning!

My Car:

1982 300SD Turbo Diesel (231,500 miles!) RIP

1984 300SD Turbo Diesel Custom (235,500 mi on driveline.) - On Road!!

www.icsrepair.com

Reply With Quote
  #8
Old 08-07-2006, 09:32 AM
deerefanatic's Avatar
Diesel & John Deere Nut

Join Date: Jul 2005
Location: Sturgis, MI area
Posts: 849
Quote:
Originally Posted by dougk View Post
I am figuring that it took you most of the weekend? Also, did you do this because of the cost to get it done? Nice work

DK
Ya, it took me most the weekend, because of the time factor involved in letting the JB weld dry overnight. Basically, all of Saturday afternoon and Sunday afternoon with drying time in between.

Cost to replace seal would have been $80 labor at the local glass place where my friend works, but if they'd have found the rust I had, they wouldn't have fixed it. In that case, I'd have been in a real jam trying to get the car home with no back window to fix it and then take it back. So, I did it myself.
__________________
-Matt

EPA Section 609 Certified MVAC Technician
-----------------
Oil Burner Kartel Member #10

Ahh the smell of Diesel Fuel, it's like coffee in the morning!

My Car:

1982 300SD Turbo Diesel (231,500 miles!) RIP

1984 300SD Turbo Diesel Custom (235,500 mi on driveline.) - On Road!!

www.icsrepair.com

Reply With Quote
  #9
Old 08-07-2006, 09:42 AM
Admiral-Third World Fleet

Join Date: Feb 2002
Location: Central FL
Posts: 3,068
...or if you had taken it to a glass place where your friend didn't work, you wouldn't have much of a car in a few years.
__________________
80 300SD (129k mi) 82 240D stick (193k mi)77 240D auto - stick to be (153k mi) 85 380SL (145k mi) 89 BMW 535i 82 Diesel Rabbit Pickup (374k mi) 91 Jetta IDI Diesel (155k mi) 81 VW Rabbit Convertible Diesel 70 Triumph Spitfire Mk III (63kmi)66 Triumph TR4a IRS (90k mi)67 Ford F-100 (??)
Reply With Quote
  #10
Old 08-07-2006, 10:28 AM
Registered User

Join Date: Jul 2005
Location: Ajax, Ontario, Canada
Posts: 120
Quote:
Originally Posted by deerefanatic View Post
new metal glued in and clamped:
I'm curious about the 'new metal'- would you explain that fully - where you got it, cut it, bent it, etc., etc.
__________________
1984 300SD TURBO DIESEL
Reply With Quote
  #11
Old 08-07-2006, 10:59 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,103
awesome! Thanks for the credit on the Patented Pawo Method! The car we did that way is still perfect and leak free.
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 83k - mine - (OC-85,500)
'17 Metris(VITO!) - 13k - wifes (OC-17k)
'01 E320 Wagon - 159k - mine (OC-160,000)
'01 E320 - 179k - dad's (OC-182,500)
'07 E350 Wagon - 131k - dad's (OC-132,500)
'01 SL500 - 51k - dad's (OC-52,000)
'16 E400 4matic Sedan - 57k - Brothers (OC-64,000)
Reply With Quote
  #12
Old 08-07-2006, 02:17 PM
deerefanatic's Avatar
Diesel & John Deere Nut

Join Date: Jul 2005
Location: Sturgis, MI area
Posts: 849
Quote:
Originally Posted by Padraig View Post
I'm curious about the 'new metal'- would you explain that fully - where you got it, cut it, bent it, etc., etc.
I just bought some off-cut scraps of galvanized metal from a local fabrication shop. Cuts easy with some tin snips. In fact, typically a fab shop will just charge you scrap price per pound for it.....

Basically, I just cut flat strips and glued them in......

P.S. Pawo, No problems, I truely believe in "Credit where credit is due....."
