OK...Still having trouble with my 1963 Jeep FC170 with a OM617 with auto (from a 1982-3? 300SD) to a divorced transfer case (the build: http://bb.bc4x4.com/showthread.php?t=123204).

First of my camper is parked in the bush (forestry student as is home so when I am in the bush no access to internet and 2 hours to get parts!!)

So originally my boost line to the pump blew off (forgot turbo made boost) now fixed (may still have problem with vacuum hose so I will change it later). wow great power again (on dirt roads with 8% grades)

Engine starts right up...with or without glow plugs (blows a little blue but sits 2 weeks between moves 5 miles).

Engine makes good power and lots of pull...then just makes no power???

I drove the 300sd for months and have not change pump timing..In the car the once in a while it would stumble at idle and make no power then run great...but only once acted up like..."am I going to have to walk home".

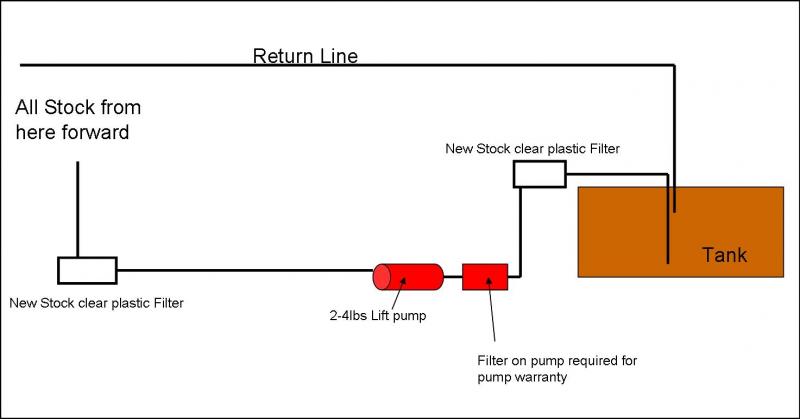

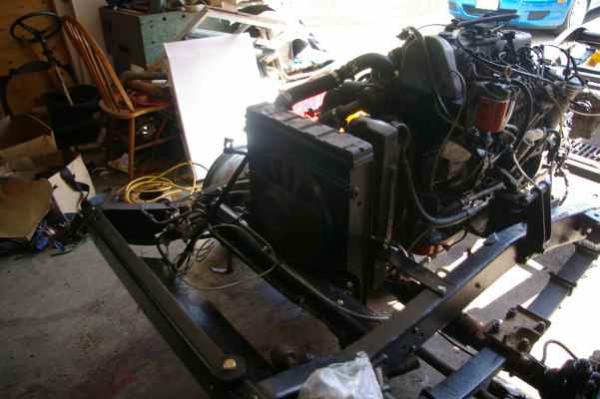

The whole engine was swapped in (with crossmember, engine and transmission)...I updated the primer pump, new fuel filters. From the fuel tank I have two filters then a lift pump, (2-4lbs) and all new lines.

I took the truck for a 15 mile drive (ran hot need more air flow under the cab, but with the dog house open it cools)... and had all the faith in the world then all of a sudden no power!!! By then it was pitch black and I could not see a thing...Idle fine but did not want to rev, once the turbo spooled it made power...So it now sits abandoned in the bush for 10 days till I get back up to get it to run.

Not sure were to start...Please help me from swapping a chev 350 in...

Attached Thumbnails



Could be bacteria colony in the tank. I would try a good dose of biocide.

YOu're barking up the wrong tree with timing, IMHO.

Tom W

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.

so the engine was 'acting up' like this before the swap?

is the lift pump a puller or pusher type?

What type of fuel tank did you use? Is it vented?

__________________
Cheers,
Robert

Probably a fuel delivery problem unless you have a non-standard air filtering system on there which is doing something odd once in a while. It's possible it's the tank vent, but if the problem solves itself without venting the tank, it could be something else.

__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13

Sounds like it could be suking air into the fuel lines.

__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

Engine did act up once before major when I pulled on a gravel road slow with a steep grade.

I was think tank vent. Right now I have a plastic tank that self drained the other day (about 10L due to parts guy selling me a tank plug that was not petro rated (ahhhhh). Tank will be swapped out in 3 months when I get it back to the shop, tank should be free of bacteria since it is all new fuel!!

I will check the tank vent or leave the cap loose for a while.

The lift pump I have is outside that tank and pulls through two filters (I was thinking of eliminating it from the system since it is not required)

Thanks for the ideas!!!! Cheers David

Where's the pickup in the tank? Is it possible you are sucking air in the tank? I know when the flat tank in my 300TD gets low and I take a sharp corner, I suck air.

__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13

I was thinking sucking air in the tank too. I have about 15L in it (about a 90L tank from a gas van).

It idles fine just will not rev in gear...If you neutral the transmission you can feather the rpm up then it revs once over about 2000rpm (no tach yet) once the turbo gets spooled (love the sound of the turbo since it is inside the cab with me)

Could be a problem with your lift pump too. So you're not using the lift pump attached to the IP?

__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13

The original factory style primer pump is notorious for leaking. It is white and mounted on the side of the injection pump. The new type is black and works much better. I t is almost defiantly a fuel supply problem. Why are you using an extra electric fuel pump?

__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

Could this be your problem:

http://www.peachparts.com/shopforum/showthread.php?t=229991

__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13

i still like the idea of isolating the engine or fuel tank problems by plumbing a smaller tank setup to the supply and return on the engine and seeing if that'll run it. Kerry's post above me would be the first thing i'd check if the new tank setup gives you the same problems, but if it runs fine on a different tank maybe the fancy lift pump setup you got is to blame

The link that Kerry supplied is not working for me?? I am at a wedding and using someone else laptop and internet....

«the little primer pump is replaced with the new style already (thanks to shopforum I upgraded when the motor was on the engine hoist (great access)

Anyone know the link to Kerry`s sudjestion

Thanks for the sudgestions. seems to be linked to steep grades (maybe my pick up gets air when the diesel is at the end of the tank)

That sounds plausible.
