lutzTD · #1 08-20-2008, 06:25 PM

there is a 300d euro parting out close to home. I scored a very nice triangle and clip. it has a different looking set of IP lines and the IP is very different. is this worth snagging? i will go get the bumpers this weekend, anything else I should look for? I was surprised to see it has a turbo, too bad its an auto which alos surprised me. the turbo had 2 plastic elbows instead of the normal accordian style connection to the air cleaner. also no EGR. is this stuff worth grabbing? turbo looked a little different too.

Oracle12345 · #2 08-20-2008, 06:42 PM

sure im sure someone would want it

DeliveryValve · #3 08-20-2008, 06:56 PM

The IP is most likely an M Pump. Considering it has a turbo, then the that M pump is definitely worth it to grab.

DeliveryValve · #4 08-20-2008, 07:10 PM

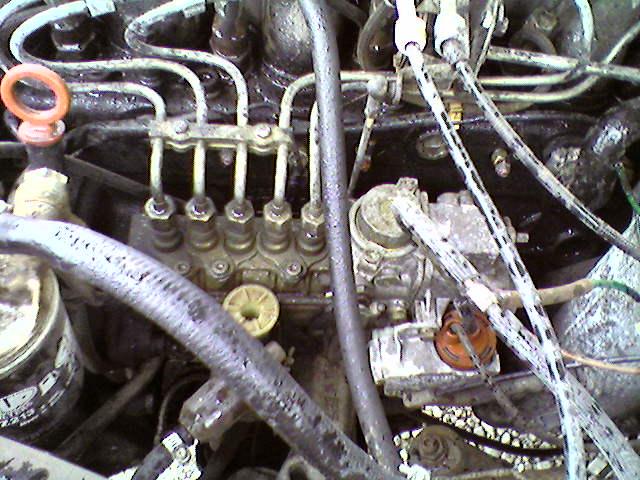

Here is some pics from FI that shows his M Pump find.

lutzTD · #5 08-20-2008, 07:36 PM

Quote:

Originally Posted by DeliveryValve

Here is some pics from FI that shows his M Pump find.

thats the pump I saw, I didnt check the manual sunroof. I guess I will go after work tomorrow and grab some more of it. how hard is it to remove the pump

lutzTD · #6 08-20-2008, 07:39 PM

tell me about the manual antenna? Should I look for that too. The front doors were power windows. I will get the vin tomorrow when I grab the pump.

daw_two · #7 08-20-2008, 07:10 PM

Quote:

Originally Posted by lutzTD

there is a 300d euro parting out close to home. I scored a very nice triangle and clip. it has a different looking set of IP lines and the IP is very different. is this worth snagging? i will go get the bumpers this weekend, anything else I should look for? I was surprised to see it has a turbo, too bad its an auto which alos surprised me. the turbo had 2 plastic elbows instead of the normal accordian style connection to the air cleaner. also no EGR. is this stuff worth grabbing? turbo looked a little different too.

If the cloth seats are in good condition, I would grab them. Also, sun visors, manual AC\Heat controls, MAYBE the manual windows --- at least the handles. Head lights? Definitely bumpers. Maybe the manual sunroof.

I try not to let any good parts go to the crusher.

lutzTD · #8 08-20-2008, 07:47 PM

Quote:

Originally Posted by daw_two

If the cloth seats are in good condition, I would grab them. Also, sun visors, manual AC\Heat controls, MAYBE the manual windows --- at least the handles. Head lights? Definitely bumpers. Maybe the manual sunroof.

I try not to let any good parts go to the crusher.

it had US headlights. but in a car 5 minutes before I got an ACC with Mercedes new part sticker dated 2005

, cleanest easiest moving buttons I have ever seen. Thats already in my car. woohoo

winmutt · #9 08-20-2008, 07:31 PM

No such thing as a turbo 300D euro. Get the VIN and the engine serial, that might be a euro 300TD engine. Now that would be a rare find.... Take pics if you can. I'd be interested in what kind of turbo as well.

winmutt · #10 08-20-2008, 07:45 PM

If the antenna is mounted on the front right quarter panel you might want it.

bgkast · #11 08-20-2008, 08:27 PM

Quote:

Originally Posted by lutzTD

I was surprised to see it has a turbo... the turbo had 2 plastic elbows instead of the normal accordian style connection to the air cleaner. also no EGR. is this stuff worth grabbing? turbo looked a little different too.

sounds like it could be an aftermarket turbo

daw_two · #12 08-20-2008, 08:44 PM

The hardest part I found in removing an IP from a 603 was that the nut holding the front part to the chain (?) was reverse thread; CW to loosen.

Odometer in Kilometers?

Rear end?

OH --- radio!!!! Is it a shortwave??? If it is a Becker, make sure you get the VIN of the car.

#13 08-25-2008, 05:55 AM

Quote:

Originally Posted by daw_two

The hardest part I found in removing an IP from a 603 was that the nut holding the front part to the chain (?) was reverse thread; CW to loosen.

No need to do that on the 61x. Remove the mounting bolts and fuel hardware and it slides straight out. Don't even need to remove the vacuum pump.

As winmutt pointed out, the m-pump has more performance parts available for it that can pump enough fuel to produce more than 140hp. You should be able to get at least $250 for a used M-pump, even up to $1000 if you find the right buyer that wants it bad enough.

That exhaust manifold can be valuable too since it does not have the EGR port.

lutzTD · #14 08-25-2008, 11:55 AM

Quote:

Originally Posted by ForcedInduction

No need to do that on the 61x. Remove the mounting bolts and fuel hardware and it slides straight out. Don't even need to remove the vacuum pump.

As winmutt pointed out, the m-pump has more performance parts available for it that can pump enough fuel to produce more than 140hp. You should be able to get at least $250 for a used M-pump, even up to $1000 if you find the right buyer that wants it bad enough.

That exhaust manifold can be valuable too since it does not have the EGR port.

yeh, I removed the radiator, fan, and then the vacuum pump, then removed the center bolt on the vacuum pump, (thoroughly confused since it was right hand thread) then couldnt find the bolts for the pump. so i looked again

and then removed the nuts and pulled it off. I will know next time........

ImBroke · #15 08-25-2008, 04:12 PM

Perfect timing for this thread. I'm here (undisclosed location.. lol) and I see these two different looking ip's. I wanted to know if I should pull them, and it appears I should pull at least the one that looks like an M pump. Any guesses at the other one? They are both 300d's, the M is on an 85 Euro, and the other one is on one that I don't remember. Thanks. Needed a 13mm wrench, and a 17mm.

The other one looks to be from a NA vehicle. Nevermind on that one, but I should definitely pull the other one, right?

Update. Got the M pump pulled, and shipped home. Hopefully I can beat UPS.
