OM603: Vacuum pump explosion, bearing intact! Injection Pump Timing device wrecked

While at the dyno this morning (more on those results in a different thread), after the second pull the dyno operator mentioned a light ticking noise from the engine. It was pretty faint so I said "nah, that's ok" and we did a third pull. After this pull, the noise was much worse - still couldn't tell what it was, but the engine was running ok. Upon backing it out of the shop, the power assist for the brakes went dead, then when I parked it the engine wouldn't shut off. D'oh... obvious vac pump failure. So I towed it home, pushed it into the garage (with some help from some sympathetic neighbors), and tore things apart for a look-see. Check out the photos below. OUCH!

I thought I had replaced this vac pump sometime during my ownership of the car, but after reviewing my records, it appears I had not... because it was replaced by the previous owner 2 years before I bought the car. Actually, the pump was first replaced in 1993 @ 117kmi, and replaced again in 1995 at 152kmi (not sure why the second pump failed in such a short period of time). I purchased the car in 1997 with 187kmi on the clock and a 2-year old Pierburg pump. Well, a mere 141kmi later, the pump kerploded magnificently. I'll have to drain the oil pan and pull the side sump to (hopefully) fish out the rest of the debris... there's a big chunk o' pump missing, that is nowhere to be found right now.

Worse yet... I had recently replaced the timing device with a shiny new one from the dealer ($300 list price) when my timing cover failed 3 years ago. I don't think I'll be able to re-use it. There goes another $250+ out the window. *sigh*

Anyway... has anyone seen a pump failure like this before? The bearing is fully intact, and the pump was not leaking one drop of oil externally. There was no signs of impending failure, just BOOM rattle rattle tinkle ping poof.

















Attached Thumbnails

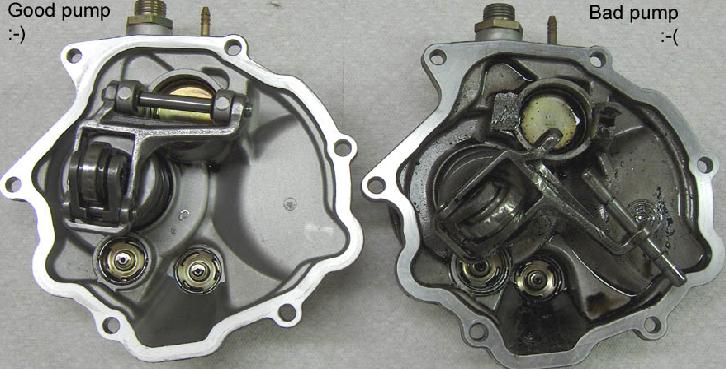

OM603: Vacuum pump explosion, bearing intact! Injection Pump Timing device wrecked-vac_pump_failure01.jpg   OM603: Vacuum pump explosion, bearing intact! Injection Pump Timing device wrecked-vac_pump_failure02.jpg   OM603: Vacuum pump explosion, bearing intact! Injection Pump Timing device wrecked-vac_pump_failure03.jpg   OM603: Vacuum pump explosion, bearing intact! Injection Pump Timing device wrecked-vac_pump_failure07.jpg   OM603: Vacuum pump explosion, bearing intact! Injection Pump Timing device wrecked-vac_pump_failure17.jpg

__________________
Dave M.
Boise, ID

1997 E420 - 155kmi (Bugeyes)
1994 E420 - 145kmi (Blondie)
1993 500E - 193kmi (Lollipop)
1992 400E - 189kmi (Stinky Dirty)
Check out my website photos, documents, and movies!

Last edited by whunter; 09-19-2008 at 12:42 PM. Reason: critical tech data, attached pictures
Reply With Quote
  #2
Old 08-24-2008, 08:56 PM
Banned

Join Date: Jul 2008
Posts: 146
Wow! I am so glad you guys "strongly suggested" that I replace my original pump. Next weekend.
Reply With Quote
  #3
Old 08-24-2008, 09:01 PM
Unofficial wormcan opener

Join Date: Dec 2005
Location: Ashland, MA
Posts: 2,602
Wow!

So I guess there is more to worry about than just the ball bearings coming out.

I have new squeak in the last week, but can't seem to locate a source I guess I'll listen to the vacuum pump in the morning.

Good luck find all the pieces.

Chris
__________________
1987 300TD 309, xxx 2.8.2014 10,000 mile OCI


Be careful of the toes you step on today, as they may be connected to the ass you have to kiss tomorrow. anonymous

“Be who you are and say what you feel, because those who mind don’t matter, and those who matter won’t mind.” Dr. Seuss
Reply With Quote
  #4
Old 08-24-2008, 09:04 PM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,035
Makes you wonder if just putting an electric vacuum pump on these cars is more safe/reliable....just slap a cover/gasket over the pump's former location, and upgrade the alternator....slap in an electric pump, and go. It almost seems worth it!
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 78k - mine - (OC-80,500)
'17 Metris(VITO!) - 8k - wifes (OC-10k)
'01 E320 Wagon - 159k - mine (OC-160,000)
'89 420SEL 166k - mine (OC-167,000)
'01 E320 - 171k - dad's (OC-171,500)
'07 E350 Wagon - 131k - dad's (OC-132,500)
'01 SL500 - 49k - dad's (OC-52,000)
'09 E350 4matic Sedan - 129k - Brothers (OC-128,000)
Reply With Quote
  #5
Old 08-24-2008, 09:17 PM
gsxr's Avatar
Unbanned...?

Join Date: Aug 2001
Location: USA
Posts: 8,005
Quote:
Originally Posted by pawoSD View Post
Makes you wonder if just putting an electric vacuum pump on these cars is more safe/reliable....just slap a cover/gasket over the pump's former location, and upgrade the alternator....slap in an electric pump, and go. It almost seems worth it!
Sure is tempting, that's for sure. I wonder what's available in the aftermarket that would supply an appropriate amount of vacuum.

Reply With Quote
  #6
Old 08-24-2008, 09:25 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,791
Dave, is plunger seized? Can you compare the force required to compress the plunger in the two pumps in front of you?

Looks like the pivot shaft is retained by a couple of circlips. I'm surpised they used circlips in a situation where one part can move relative to the other.

Did the dam gasket catch anything?

GM 6.5 IDIs have a belt driven vacuum pump. Maybe one can be grafted inplace of a wagon tandem pump for non-SLS applications.

Sixto
87 300D
Reply With Quote
  #7
Old 08-24-2008, 09:27 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,791
Electric pump for an EV conversion should do the trick.

Sixto
87 300D
Reply With Quote
  #8
Old 08-24-2008, 09:52 PM
gsxr's Avatar
Unbanned...?

Join Date: Aug 2001
Location: USA
Posts: 8,005
Sixto, I haven't tried to compare the plunger pressure, but on a new/good pump it takes pretty massive pressure to budge it at all. I found one of the circlips, but not the other. I also need to locate the large piece of missing bracket (left side), I found the small piece (right side). The dam gasket had some shavings in it, but that's about it. There's a fair amount of shavings all over the place right now.

I was debating trying to salvage the oil (3kmi on Delvac-1) but I think it would be better to toss it due to the amount of metal lost. OTOH, I'm half tempted to strain it and re-use it for another 100 miles as a "flush" before changing the oil & filter. I suspect there are a lot of metal bits floating inside the timing cover area.
Reply With Quote
  #9
Old 08-24-2008, 09:59 PM
Zeitgeist's Avatar
Banned

Join Date: Aug 2003
Location: Cascadia
Posts: 2,304
Years ago I had a '73 220D with a VP that experienced a very similar failure mode--everything just sorta lost interest in remaining intact.

I think I'd pull the side cover off the pan, and then run kerosene down that chain vault until all the shavings washed out. Bummer dude. Now I have another paranoia vector
Reply With Quote
  #10
Old 08-24-2008, 10:02 PM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,035
Quote:
Originally Posted by sixto View Post
Electric pump for an EV conversion should do the trick.

Sixto
87 300D
Thats what I was thinking, then the worst that can happen if it fails is a loss of vacuum and maybe a blown fuse.
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 78k - mine - (OC-80,500)
'17 Metris(VITO!) - 8k - wifes (OC-10k)
'01 E320 Wagon - 159k - mine (OC-160,000)
'89 420SEL 166k - mine (OC-167,000)
'01 E320 - 171k - dad's (OC-171,500)
'07 E350 Wagon - 131k - dad's (OC-132,500)
'01 SL500 - 49k - dad's (OC-52,000)
'09 E350 4matic Sedan - 129k - Brothers (OC-128,000)
Reply With Quote
  #11
Old 08-25-2008, 12:10 AM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Sixto,

Quote:
Originally Posted by sixto View Post
Electric pump for an EV conversion should do the trick.

Sixto
87 300D
Please elongate the short hand "EV", Thanks!
(I don't know what you're referring to)

GSXR,

Scary,Scary.Scary. How many RPMs was the engine subjected to?

My 100K miles,"replace" list just grew.
Chains,Sprockets,Tensioner,Timer,VP.

I wonder if Pierburg is saving money on castings? (or if it was the C-clip?)
__________________
'84 300SD sold
124.128

Last edited by compress ignite; 03-12-2010 at 08:20 PM.
Reply With Quote
  #12
Old 08-25-2008, 01:24 AM
gsxr's Avatar
Unbanned...?

Join Date: Aug 2001
Location: USA
Posts: 8,005
Indicated max RPM on the tach, and dyno sheet, was approx 5400rpm. That's within factory specs (on the high side, but still within spec). The Crazy Finns have pushed these engines past 5500 without pump failures, so I don't think it was necessarily the RPM at fault. But if my pump was on the way out (hairline fracture in the casting?), the high RPM likely hastened its demise.

Reply With Quote
  #13
Old 08-25-2008, 01:44 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,035
Hmmm....are the 617 pumps more durable than the 603 pumps? There seem to be less reports of them failing, and many more people here have 617's than 603's.....not to mention the only ones I've heard of failing were on engines with like 400k+ on them....

5400rpm!? Wow.....Even to the floor between shifts my 617 never likes to go much over 4000-4200 or so....if I really push it I can get to 4500 in third before it wants to shift (unless I keep it from doing it with the shifter)....I'd never make my poor engine go much higher than that though, too paranoid. I am usually pretty gentle (and don't go much over 3500)
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 78k - mine - (OC-80,500)
'17 Metris(VITO!) - 8k - wifes (OC-10k)
'01 E320 Wagon - 159k - mine (OC-160,000)
'89 420SEL 166k - mine (OC-167,000)
'01 E320 - 171k - dad's (OC-171,500)
'07 E350 Wagon - 131k - dad's (OC-132,500)
'01 SL500 - 49k - dad's (OC-52,000)
'09 E350 4matic Sedan - 129k - Brothers (OC-128,000)
Reply With Quote
  #14
Old 08-25-2008, 02:03 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 27,835
Ebay has several types of electric Vacuum Pumps for vehicles selling on Ebay. But you need to be careful as some of the Ford type vacuum pumps people are selling are not rated for Power Brake Boosters.
The one that are sell for close to $300 and have a pressure sensitive relay to shut the pump of when the highest vacuum is reached.

Also, member Stevo believes his vacuum pump failure was caused by too much play from a worn IP Timer Bushing. When you replace the IP Timer you might want to check the Bushing clearances.

Excellent photography.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #15
Old 08-25-2008, 02:31 AM
turbobenz's Avatar
Registered User

Join Date: Nov 2007
Location: Cameron Park CA
Posts: 1,863
long live the 617
__________________
1981 300SD 512k OM603
