  #16
Old 06-17-2009, 12:49 AM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,042
Quote:
Originally Posted by jasonleefreeman View Post
Just when I decide not to touch the AC evap core, someone else suggests replacing or cleaning. Now I feel guilty for leaving it alone. I am adding some sound deadening material where the old stuff was crumbling out and probably elsewhere as well. I checked all of the vacuum pods with vacuum (me sucking on a hose to be precise), and they all hold as long as I don't let go. Should I replace them anyway? Maybe I shouldn't ask. Thanks for the suggestions, I promise to seriously reconsider the evaporator.
Definitely invest in a mity vac :-) and definitely rebuild those pods if you intend on keeping this car long term. its not a big deal right now to get to them, compared to really tough. at least replace the center vent pod - you cant get to that one easily with the dash in.

__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #17
Old 06-17-2009, 02:34 PM
unkl300d's Avatar
Registered User

Join Date: Jul 1999
Location: San Francisco, Ca
Posts: 2,490
Odd that it is glued.
(talking about the window 'gasket' i.e. squeegie rubber that presses against the door window panes)

Of course the door surround gasket (door seal) is glued onto the door frame.
__________________
1979 300D 220 K miles
1995 C280 109 K miles
1992 Cadillac Eldorado Touring Coupe 57K miles SOLD
********************
1979 240D 140Kmiles (bought for parents) *SOLD.
SAN FRANCISCO/(*San Diego)
1989 300SE 148 K miles *SOLD
Reply With Quote
  #18
Old 06-17-2009, 07:52 PM
Registered User

Join Date: Feb 2008
Location: DFW area (north side)
Posts: 1,288
Quote:
Originally Posted by unkl300d View Post
Odd that it is glued.
(talking about the window 'gasket' i.e. squeegie rubber that presses against the door window panes)

Of course the door surround gasket (door seal) is glued onto the door frame.
I was talking about the surround gasket. That's the one that must come off to get the trim pieces around the windows off. The dew wiper (squeegie) clips to the trim piece and they both pop off pretty easy.
__________________
Charles
1983 300D, bought new, 215k+ miles, donated to Purple Hearts veterans charity but I have parts for sale: http://www.peachparts.com/shopforum/mercedes-benz-cars-sale/296386-fs-1-owner-83-mb-300d-turbo-rebuild-parts.html
Reply With Quote
  #19
Old 06-17-2009, 08:03 PM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,346
Heater core. Without a doubt. New not used.


Quote:
Originally Posted by jasonleefreeman View Post
This started as a quick re-paint, now it's a major project (to me anyway). I found a parts car with almost a perfect blue interior so while the dash is out to be replaced, the heater core is getting replaced too. I got the parts car for the same $$ I'll pay for the heater core. It runs, but poorly, and is badly rusted but the interior is what I needed.

Questions:

1. What else should I consider replacing while the dash and heater box is out?
2. Anyone have experience with or have any suggestions for fixing or replacing the material that is cracking and coming off of the firewall (presumably a sound/heat insulation)?

I'll try to keep documenting the project as is progresses. Sorry if this is posted in the wrong spot, I almost put it in interior and detailing.

Thanks for the help.
Jason
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1995 E420 Schwarz
1995 E300 Weiss
#1987 300D Sturmmachine
#1991 300D Nearly Perfect
#1994 E320 Cabriolet
#1995 E320 Touring
#1985 300D Sedan
OBK #42
Reply With Quote
  #20
Old 06-17-2009, 10:29 PM
Registered User

Join Date: Dec 2005
Location: Hayden ID
Posts: 36
Got the new heater core today. I took the rest of the box apart and got the evaporator out. I will have it cleaned and pressure tested tomorrow.

Anyone know where I can get new window gaskets for the doors, the one that the edge of the glass fits into when rolled up? I will replace these too if I can find them.
__________________

1979 240D with 4 spd. (project)
1980 240D with 4 spd. (parts)
Reply With Quote
  #21
Old 06-23-2009, 02:06 PM
unkl300d's Avatar
Registered User

Join Date: Jul 1999
Location: San Francisco, Ca
Posts: 2,490
I think I got mine years ago at fastlane.
Ask Phil if its not in the online catalog.
(gaskets for windows)
__________________
1979 300D 220 K miles
1995 C280 109 K miles
1992 Cadillac Eldorado Touring Coupe 57K miles SOLD
********************
1979 240D 140Kmiles (bought for parents) *SOLD.
SAN FRANCISCO/(*San Diego)
1989 300SE 148 K miles *SOLD
Reply With Quote
  #22
Old 10-02-2010, 09:56 PM
Registered User

Join Date: Dec 2005
Location: Hayden ID
Posts: 36
Wow. Over a year ago that I posted to this. Just after I got the evap core tested (tested ok), work went wild and I had to shelve this project. After that I realized I was in over my head to try and paint this thing myself. Fortunately, a friend bailed me out. I expect this will be another year before I get the car on the road. I will update as often as I can. The car is now painted and I'm just starting to put it back together.
__________________

1979 240D with 4 spd. (project)
1980 240D with 4 spd. (parts)
Reply With Quote
  #23
Old 10-02-2010, 10:05 PM
Registered User

Join Date: Dec 2005
Location: Hayden ID
Posts: 36

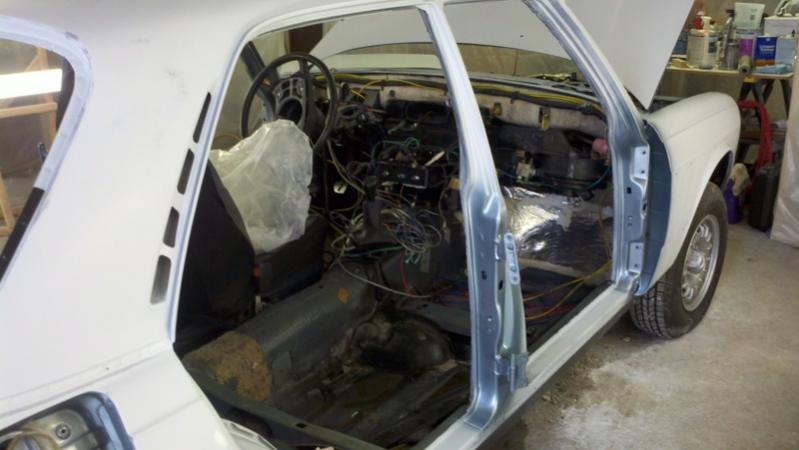

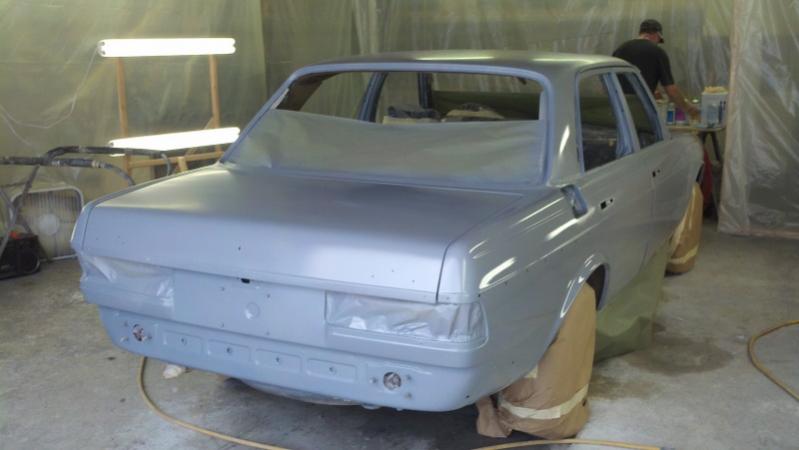

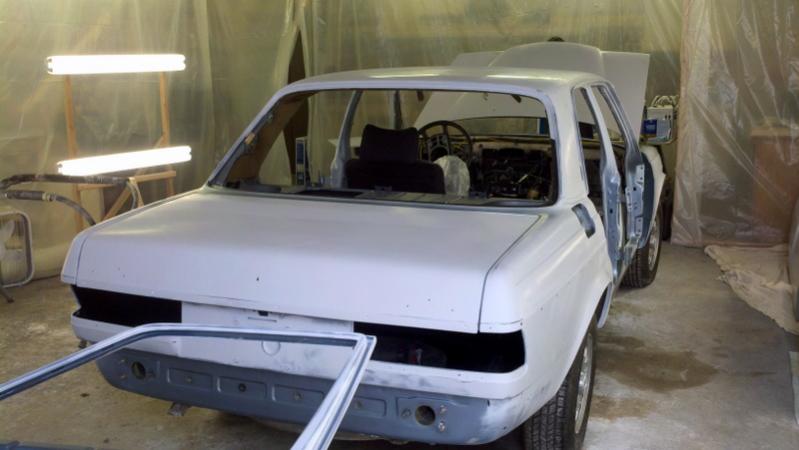

The car was moved to another shop where there was more room to work. Here are some pics of the painting day. We shot color in the jambs before hanging the doors. Also shown is the sealer coat, the color coat and the clear coat. The clear coat pic was taken after the 1200 wet sand and cut/buff.
Attached Thumbnails
Dash is out, what should I replace?-2010-08-07_12-13-60.jpg   Dash is out, what should I replace?-2010-08-07_12-14-19.jpg   Dash is out, what should I replace?-2010-08-07_16-37-5.jpg   Dash is out, what should I replace?-2010-08-07_18-32-55.jpg   Dash is out, what should I replace?-2010-08-15_19-49-17.jpg

__________________

1979 240D with 4 spd. (project)
1980 240D with 4 spd. (parts)
Reply With Quote
  #24
Old 10-02-2010, 10:11 PM
Registered User

Join Date: Dec 2005
Location: Hayden ID
Posts: 36

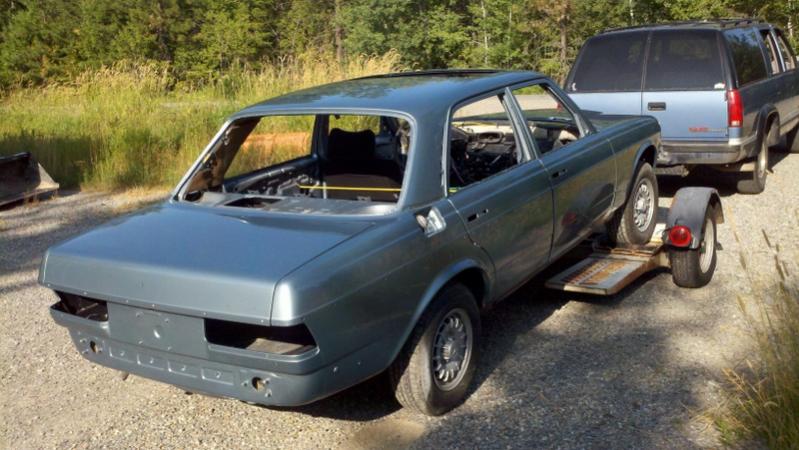

Car comes home

Here are a couple pictures of the day the car came home. It was almost as exciting as.... come to think of it, I didn't take pictures when my kids came home from the hospital. My wife probably did though. That's my '69 firebird in the background. It's next, but not until I have a shop.
Attached Thumbnails
Dash is out, what should I replace?-2010-08-16_17-25-21.jpg   Dash is out, what should I replace?-2010-08-16_18-34-33.jpg
__________________

1979 240D with 4 spd. (project)
1980 240D with 4 spd. (parts)
Reply With Quote
  #25
Old 10-02-2010, 10:29 PM
Registered User

Join Date: Dec 2005
Location: Hayden ID
Posts: 36

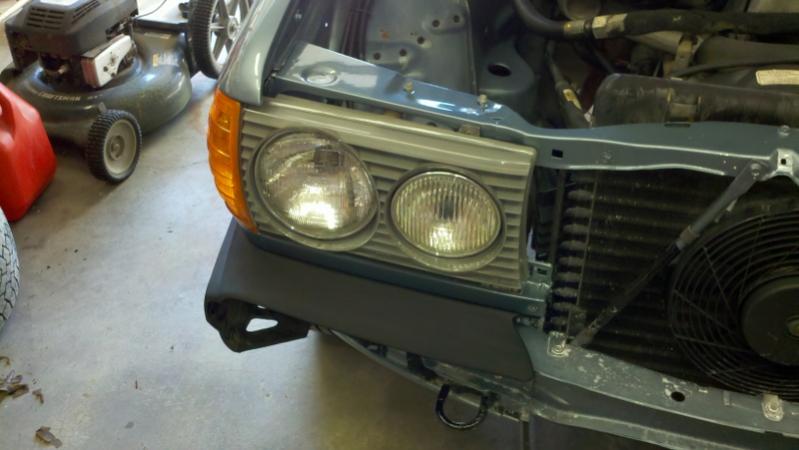

This is the first of the re-assembly. Probably to the tail or the sunroof next. I suspect this is really going to slow down when its time to start assembling the doors. My biggest concerns right now are... 1) getting the dash in and everything working properly. 2) getting the headliner in correctly. I'll probably take it to a shop for that.
Attached Thumbnails
Dash is out, what should I replace?-2010-09-29_19-43-8.jpg   Dash is out, what should I replace?-2010-10-02_14-59-16.jpg   Dash is out, what should I replace?-2010-10-02_15-39-60.jpg   Dash is out, what should I replace?-2010-10-02_17-25-58.jpg   Dash is out, what should I replace?-2010-10-02_17-26-57.jpg

__________________

1979 240D with 4 spd. (project)
1980 240D with 4 spd. (parts)
Reply With Quote
  #26
Old 10-03-2010, 12:27 PM
unkl300d's Avatar
Registered User

Join Date: Jul 1999
Location: San Francisco, Ca
Posts: 2,490
Quite an admirable project !

Shocking to see a w123 in bare bones... its the thought of putting it all together....

Well, you have yourself a nice looking ride.
__________________
1979 300D 220 K miles
1995 C280 109 K miles
1992 Cadillac Eldorado Touring Coupe 57K miles SOLD
********************
1979 240D 140Kmiles (bought for parents) *SOLD.
SAN FRANCISCO/(*San Diego)
1989 300SE 148 K miles *SOLD
Reply With Quote
  #27
Old 10-03-2010, 02:05 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Wow what a nice job.

My car is in similar disarray - I hope we can both remember where everything goes back together!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #28
Old 10-03-2010, 03:43 PM
KAdams4458's Avatar
Mmm! Diesel!

Join Date: Apr 2007
Location: Snohomish, WA
Posts: 1,420
Quote:
Originally Posted by Army View Post
Wow what a nice job.

My car is in similar disarray - I hope we can both remember where everything goes back together!
I agree. Excellent work so far! These little projects always take longer, and involve far more than we ever expect in the beginning, eh?

I have to admit that my '77 300D is in a similar state of disassembly, and parts are scattered from one end of my shop to the other. Luckily, I have excellent memory, and can usually pull up a mental snapshot of how everything goes together, even years after taking something apart. I'm sure a few things will stump me, though.

Hey, maybe there should be a club for those of us that only have disassembled Mercs.
__________________
- K.C.Adams

'77 300D Euro Delivery
OM617 turbo / 4-speed swap
404 Milanbraun Metallic / 134 Dattel MB-Tex

Current status:
* Undergoing body work


My '77 300D progress thread

Reply With Quote
  #29
Old 10-04-2010, 03:10 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by KAdams4458 View Post
I agree. Excellent work so far! These little projects always take longer, and involve far more than we ever expect in the beginning, eh?

I have to admit that my '77 300D is in a similar state of disassembly, and parts are scattered from one end of my shop to the other. Luckily, I have excellent memory, and can usually pull up a mental snapshot of how everything goes together, even years after taking something apart. I'm sure a few things will stump me, though.

Hey, maybe there should be a club for those of us that only have disassembled Mercs.
My memory isn't always too hot so I have filled my hard drive up with many many digital photographs to try and remember where it all fits (they come in handy for making threads / helping out with posts too).

Even so despite ???GB of hi-res photographs I've suffered from Murphy's Law on several occasions - no photo - no idea!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #30
Old 10-05-2010, 11:22 AM
Registered User

Join Date: Dec 2005
Location: Hayden ID
Posts: 36
Quote:
Originally Posted by Army View Post
My memory isn't always too hot so I have filled my hard drive up with many many digital photographs to try and remember where it all fits (they come in handy for making threads / helping out with posts too).

Even so despite ???GB of hi-res photographs I've suffered from Murphy's Law on several occasions - no photo - no idea!
My fall back is the parts car. I have organized parts and fasteners in such a way that I think I can get it back together. If not, I'll pull the parts car apart enough to see. The only place I expect to be challenging is the dash. All those wires and heater controls need to work right when it's done. The headliner is also on my worry list, even if a shop does it.
