Quote:
Originally Posted by whunter View Post
Remove the aluminum engine support arm.
You will have no issue removing the engine mount on a work bench.
Are you referring to the crossmember? I have a similar problem at the moment...in the middle of taking the engine out and the only thing stopping me is the darn M12 bolt, someone before me tried to take it out and stripped it. I didn't want to touch the crossmember since it supports at least one suspension component (LCA? memory not working).
__________________
TC
Current stable:
- 2004 Mazda RALLYWANKEL
- 2007 Saturn sky redline
- 2004 Explorer...under surgery.

Past: 135i, GTI, 300E, 300SD, 300SD, Stealth
Reply With Quote
  #2
Old 08-03-2010, 07:08 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038
No, I believe he is referring to the arm that comes off the engine and sits down onto the motor mount.

As for your situation, you could try the same thing...unbolt the support arm and take the engine out that way you could deal with the shoddy M12 with more space.
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #3
Old 08-03-2010, 10:53 PM
tbomachines's Avatar
ಠ_ಠ

Join Date: Mar 2009
Location: Philadelphia
Posts: 8,338
Quote:
Originally Posted by JamesDean View Post
No, I believe he is referring to the arm that comes off the engine and sits down onto the motor mount.

As for your situation, you could try the same thing...unbolt the support arm and take the engine out that way you could deal with the shoddy M12 with more space.
Ah that makes much more sense than taking a sawsall to a load-bearing crossmember. I didn't realize that the bolt on the block was accessible, guess I will have to look harder tomorrow morning when I get out to lift it out--should make the job MUCH easier. Thanks!
__________________
TC
Current stable:
- 2004 Mazda RALLYWANKEL
- 2007 Saturn sky redline
- 2004 Explorer...under surgery.

Past: 135i, GTI, 300E, 300SD, 300SD, Stealth
Reply With Quote
  #4
Old 08-03-2010, 10:53 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,432
Answer

Quote:
Originally Posted by tbomachines View Post
Are you referring to the crossmember? I have a similar problem at the moment...in the middle of taking the engine out and the only thing stopping me is the darn M12 bolt, someone before me tried to take it out and stripped it. I didn't want to touch the crossmember since it supports at least one suspension component (LCA? memory not working).
The cross-member is welded to the body...

The silver (aluminum) arm bolted to the engine block, going to the engine mount.

Removal of the engine support arm is not difficult, and the M12 bolt comes out with it..
Note: it also makes engine oil cooler line removal/install easy.
Reply With Quote
  #5
Old 08-03-2010, 11:58 PM
tbomachines's Avatar
ಠ_ಠ

Join Date: Mar 2009
Location: Philadelphia
Posts: 8,338
Quote:
Originally Posted by whunter View Post
The cross-member is welded to the body...
I was thinking a cutoff wheel or sawsall and was going to call out the obvious safety issue, but no worries--thanks for the clarification!
__________________
TC
Current stable:
- 2004 Mazda RALLYWANKEL
- 2007 Saturn sky redline
- 2004 Explorer...under surgery.

Past: 135i, GTI, 300E, 300SD, 300SD, Stealth
Reply With Quote
  #6
Old 08-03-2010, 11:09 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038
Roy, is it easier to get them from up top or down below? I wasn't all that keen on doing that because I wasn't sure if I was gonna tackle the oil cooler lines or just throw them to my local shop. I was eying them oil filter housing connections wondering how I'd get a wrench down there...
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #7
Old 08-04-2010, 09:38 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038
SUCCESS. Engine Mounts Installed.

My dad doesn't want me messing with the oil cooler lines, I dont have any tools that size other than a pipe wrench.

I still have to put the engine shocks on. I'm waiting for some of the rubber pieces from the dealer.


Passenger Next to Replacement:


Driver Side Next to Replacement:


Remains of Drivers:


Theres more rubber on the floor under my car too.
Attached Thumbnails
Is this bad? [617 Motor Mounts/Leak]-tl6q4l.jpg   Is this bad? [617 Motor Mounts/Leak]-vpq1wl.jpg   Is this bad? [617 Motor Mounts/Leak]-yoh6bl.jpg
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k

Last edited by whunter; 08-05-2010 at 12:33 PM. Reason: attached pictures
Reply With Quote
  #8
Old 08-06-2010, 07:37 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038

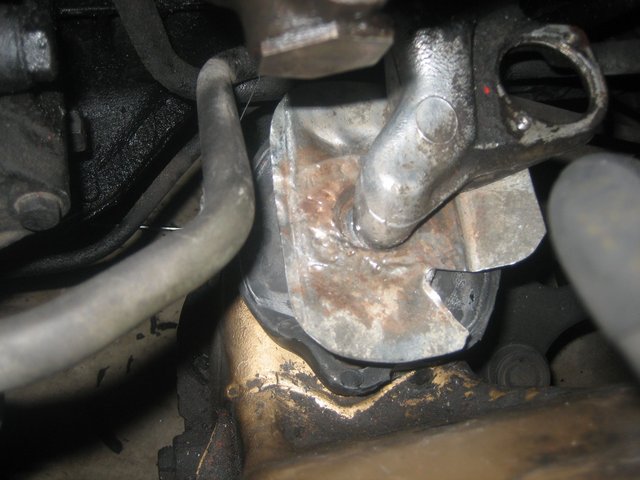

Is this the correct orientation for the heat shield?



I looked the one diagram and thats what I came up with.
Attached Thumbnails
Is this bad? [617 Motor Mounts/Leak]-ddqfrl.jpg
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k

Last edited by whunter; 08-07-2010 at 09:51 AM. Reason: attached picture
Reply With Quote
  #9
Old 08-06-2010, 10:34 PM
Registered User

Join Date: Dec 2009
Location: Northwest Ohio
Posts: 605
Your heat shield looks pretty mangled up. At any rate, I believe the long axis of the heat shield is perpendicular to the axis drawn between the mounting bolts. The "flip" of the shield should be to the rear. At least this is how I've always seen it.

I searched around and couldn't find a picture for you.
Reply With Quote
  #10
Old 09-28-2010, 06:15 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038
I took a look at my engine mounts today as I was checking oil and cleaning the windshield (damn you trees)

Do they still look good? (They'd better, they are only a little over a month old, under 500 miles on them)

http://imgur.com/mioyb.jpg
http://imgur.com/yMIz9.jpg
http://imgur.com/pOwj4.jpg
