Old 09-11-2010, 02:54 PM
Registered User
Join Date: Dec 2007
Location: Stone County, Arkansas
Posts: 40
Need serpentine belt diagram for '87 190D

Help!! My 190D threw it's old belt and I can't figure out how to route the new one!! Thanks!!

Reply With Quote
Old 09-11-2010, 03:26 PM
Registered Hack
Join Date: Mar 2008
Posts: 4,634
the general rule is: every ribbed pulley meets the ribbed section of the belt.

the tensioner pulls the belt up from below the alternator and the crank.

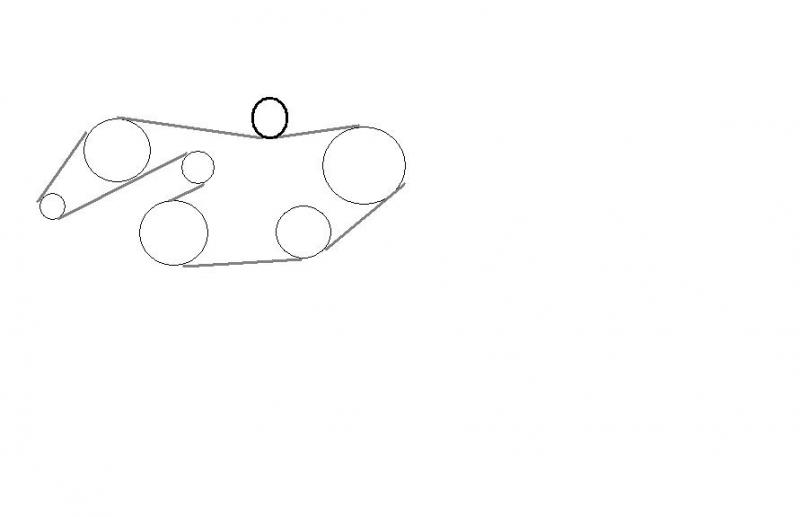

in the pic below, ignore the small circle on the very top that is emboldened.

see this thread:

Reply With Quote
