Trying to fit an aluminium W126 / 107 trailing arm to a W123 - a question of compatib

Dear All,

I've stumbled upon some reasonably priced W126 aluminum trailing arms that I would like to fit to my W123 300D... I read on this forum that it is possible to fit them but:-

Has anyone here actually done the job?

Has anyone here got W126 aluminum trailing arms on their W123?

I've found this thread but it seems as though the poster was being messed about by people. The verdict is that it can't be done:-

Upgrading w123 rear trailing arms to aluminum w126 ones possible???

I'm not satisfied by this just yet (sorry!)

The seller does say that I need a different shaped anti-roll / anti-sway bar. This to my mind does indicate some different geometry if that is the case.

As usual any help will be greatly appreciated - particularly from those who have done the job.

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 12-04-2010 at 01:51 PM. Reason: Missed off an important word!
Reply With Quote
  #2
Old 12-05-2010, 01:49 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
A desperate Sunday evening (well afternoon where most of you are) bump!

I'm not getting a warm wet feeling about this one... perhaps it isn't possible after all?
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #3
Old 12-05-2010, 02:27 PM
Banned

Join Date: Nov 2001
Location: Cape Cod Massachusetts
Posts: 1,427
Quote:
Originally Posted by Army View Post
A desperate Sunday evening (well afternoon where most of you are) bump!

I'm not getting a warm wet feeling about this one... perhaps it isn't possible after all?
At the rear, outboard end of the swingarm there is a design difference described as "anti-squat", it can be found described in the 126 Body and Chassis FSM. I suspect that is the fundemental basic difference between the standard swing arm and the aluminum versions found on 126 coupes. How does this difference manifest itself as far as what will fit and what limitations on parts that connect are not known to me other than the differences exist. Good luck!
Reply With Quote
  #4
Old 12-05-2010, 02:31 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by Billybob View Post
At the rear, outboard end of the swingarm there is a design difference described as "anti-squat", it can be found described in the 126 Body and Chassis FSM. I suspect that is the fundemental basic difference between the standard swing arm and the aluminum versions found on 126 coupes. How does this difference manifest itself as far as what will fit and what limitations on parts that connect are not known to me other than the differences exist. Good luck!
Yet again - thanks for your help Billybob - a good shove in the right direction. The seller won't ship the parts so as I've got to go and see them, I'll take a W123 trailing arm for comparison, a camera, and a tape measure. And in the meantime I'll leaf through the FSM. Cheers!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 12-05-2010 at 02:32 PM. Reason: a comma
Reply With Quote
  #5
Old 12-06-2010, 03:13 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Update - finding information

Hmmm I thought I'd find more information on this. It seems to be common knowledge that the steel trailing arms are interchangeable... but I can't find much information about the aluminum versions.

I've read through chapter 35 in the W126 FSM and I can't make out for sure if the trailing arms with the anti-squat geometry were aluminum or not - I guess so...

It looks like I'll have to see these parts in the flesh.

To be continued...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #6
Old 12-07-2010, 01:00 PM
Admiral-Third World Fleet

Join Date: Feb 2002
Location: Central FL
Posts: 3,069
Did you try looking at part numbers in the EPC?
__________________
80 300SD (129k mi) 82 240D stick (193k mi)77 240D auto - stick to be (153k mi) 85 380SL (145k mi) 89 BMW 535i 82 Diesel Rabbit Pickup (374k mi) 91 Jetta IDI Diesel (155k mi) 81 VW Rabbit Convertible Diesel 70 Triumph Spitfire Mk III (63kmi)66 Triumph TR4a IRS (90k mi)67 Ford F-100 (??)
Reply With Quote
  #7
Old 12-07-2010, 02:44 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by rs899 View Post
Did you try looking at part numbers in the EPC?
Nope - I don't have it - I'll have a chat with the friendly dealer and see if he can help out.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #8
Old 12-07-2010, 06:30 PM
JimFreeh's Avatar
Benz addict

Join Date: Mar 2007
Location: Hampton Roads, Virginia
Posts: 3,366
My memory is foggy....

..... but I recall looking into this....

I recall the cast arms were titanium, and were issued on the 500 and 560 models. Diesels and smaller engined cars had the stamped steel like the W123. My 85 500SEL euro car had these cast arms, so I don't think they are exclusive to the 86 and up redesign.

From what I could see, it appeared the cast arms (forged?) were interchangeable with the stamped steel.

I also recall this may involve a change in the way the disk caliper mounts, but it certainly looked like the cast W126 arms would xfer to the W123, if the different parts were also changed over.

Jim
__________________
14 E250 BlueTEC black. 45k miles
95 E320 Cabriolet Emerald green 66k miles
94 E320 Cabriolet Emerald green 152k miles
85 300TD 4 spd man, euro bumpers and lights, 15" Pentas dark blue 274k miles
Reply With Quote
  #9
Old 12-08-2010, 03:35 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by JimFreeh View Post
..... but I recall looking into this....

I recall the cast arms were titanium, and were issued on the 500 and 560 models. Diesels and smaller engined cars had the stamped steel like the W123. My 85 500SEL euro car had these cast arms, so I don't think they are exclusive to the 86 and up redesign.

From what I could see, it appeared the cast arms (forged?) were interchangeable with the stamped steel.

I also recall this may involve a change in the way the disk caliper mounts, but it certainly looked like the cast W126 arms would xfer to the W123, if the different parts were also changed over.

Jim
Thanks for your input Jim. I got that impression from the FSM as well - but I need to check out the geometry of the trailing arm to make sure all of the (redundant) anti-squat stuff isn't necessary. I'm also a bit concerned about dissimilar metal corrosion... so I'll have to look into that too. (Clarification:- bunging the old W123 steel bits onto the luxurious alloy casting may not be so smart - I don't know - I'll have to see).
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #10
Old 12-08-2010, 09:01 AM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038
http://viewer.zoho.com/docs/rackve

Cross Reference List, 300d as source for pn

Hope this is useful
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #11
Old 12-08-2010, 09:36 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by JamesDean View Post
http://viewer.zoho.com/docs/rackve

Cross Reference List, 300d as source for pn

Hope this is useful
Wow thank you very much

1263503205 seems to be the steel one according to http://www.german-spob.de/start.php?seite=gebrauchtteile&seite_gebr=suchergebnis&suche=&language=eng
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #12
Old 12-08-2010, 11:01 AM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038
Quote:
Originally Posted by Army View Post
Wow thank you very much

1263503205 seems to be the steel one according to http://www.german-spob.de/start.php?seite=gebrauchtteile&seite_gebr=suchergebnis&suche=&language=eng
I'm not sure of the material used however, I do know that theres a right side and left side. I used those are the basis of my parts search.
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #13
Old 12-08-2010, 11:06 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by JamesDean View Post
I'm not sure of the material used however, I do know that theres a right side and left side. I used those are the basis of my parts search.
Oh great - this is a great help - this more or less confirms that the alloy (well non steel - whether it is aluminum or titanium remains to be seen) is with the anti-squat gubbins.

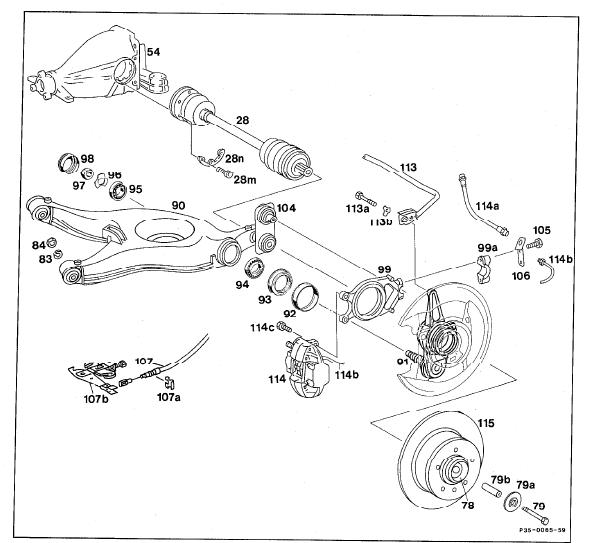

I've found these pictures in the FSM:-




You can see there are extra bits by the hubs
Attached Thumbnails
Trying to fit an aluminium W126 / 107 trailing arm to a W123 - a question of compatib-w126-anti-squat.jpeg   Trying to fit an aluminium W126 / 107 trailing arm to a W123 - a question of compatib-w126-anti-squat2.jpeg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #14
Old 10-11-2011, 01:14 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Well it has been a long time...

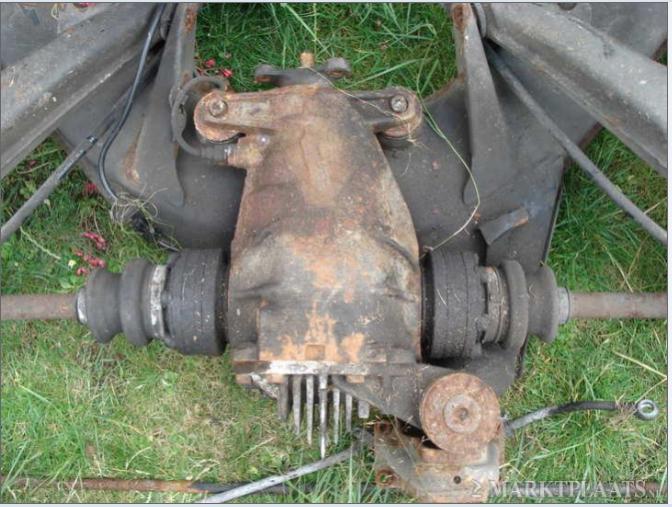

...since I've thought about this but this picture prompted me to think again

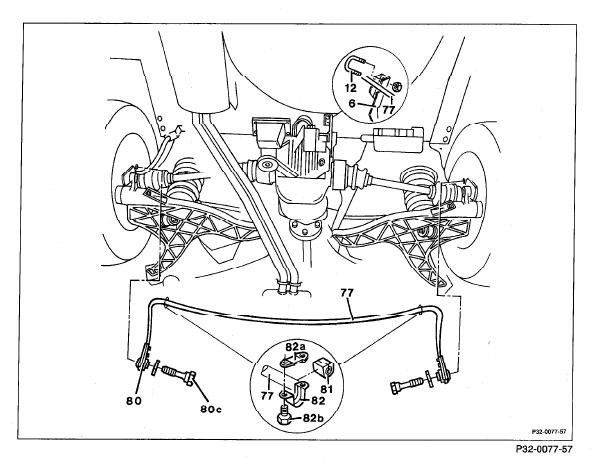

This is actually a second generation W126 sub frame and trailing arm assembly... but it got be scuttling off to the Russian EPC site (EverythingBenz - Mercedes-Benz Forum and Web Search Using Google) to have a look at those lovely aluminum trailing arms.

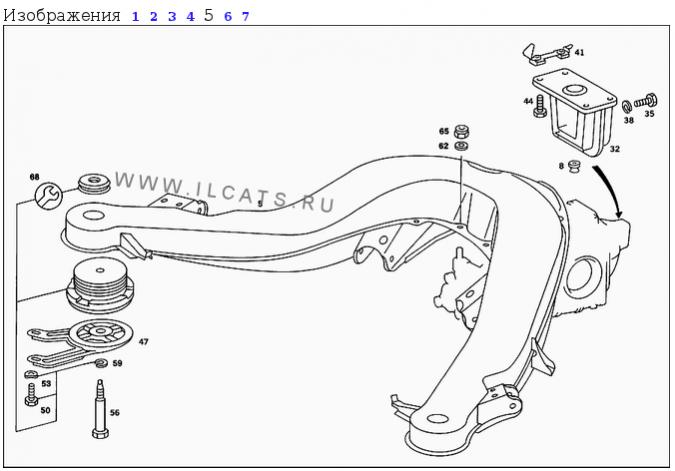

Here's the first generation W126 sub frame

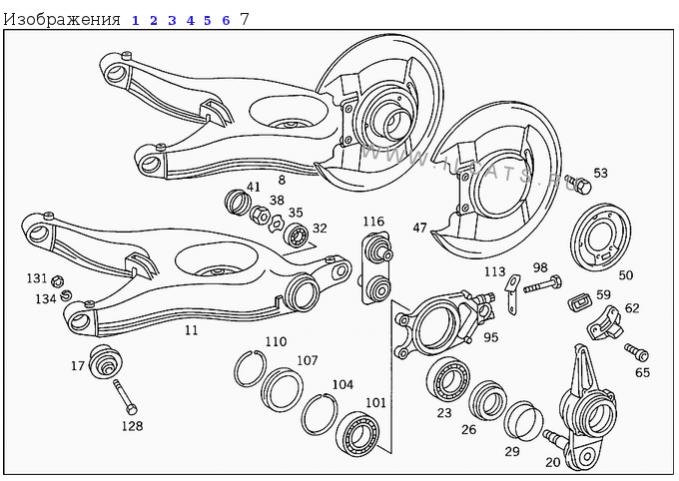

And these are the aluminum trailing arms



Part 116 must be a big bit of the anti-dive mechanism. There must be a big bit that goes across the back of the car there...

I said ages ago I'd go and make some measurements - I never did... but I might have the chance to see some real ones soon. Stay tuned!
Attached Thumbnails
Trying to fit an aluminium W126 / 107 trailing arm to a W123 - a question of compatib-snapshot8.jpg   Trying to fit an aluminium W126 / 107 trailing arm to a W123 - a question of compatib-snapshot9.jpg   Trying to fit an aluminium W126 / 107 trailing arm to a W123 - a question of compatib-snapshot11.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #15
Old 10-11-2011, 02:29 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461

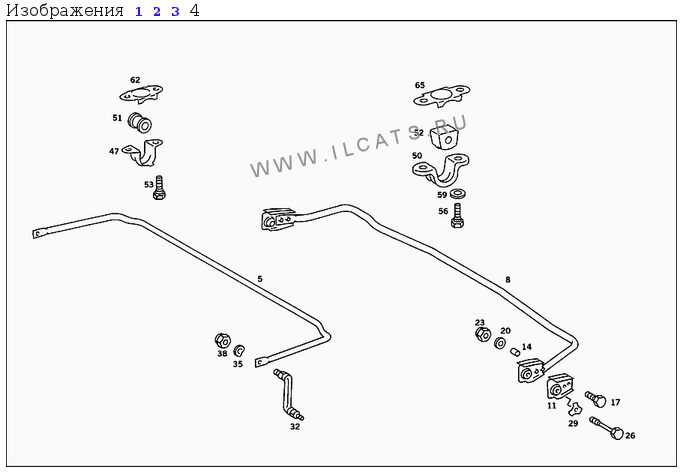

And here's the rear anti-roll bar

It looks very similar to the W123 set up...

Attached Thumbnails
Trying to fit an aluminium W126 / 107 trailing arm to a W123 - a question of compatib-snapshot17.png

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 12:46 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2022, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
