Stretch · #16 10-17-2011, 08:33 AM

Here's a start of the week bump (now it has been rehoused to DD - thanks mbdoc!)

t walgamuth · #17 10-17-2011, 08:58 AM

It looks like if you use the compatible anti sway bar and the entire a arm plus hub assembley you will be good. My queston though is the mounting bolts for the aluminum assembly. The anti squat parts look like they will stress the sway bar with for and aft loads which the original standard steel parts would not do.

I am guessing there will be modification necessary there to make them work.

Stretch · #18 10-17-2011, 12:18 PM

Quote:

Originally Posted by t walgamuth

It looks like if you use the compatible anti sway bar and the entire a arm plus hub assembley you will be good. My queston though is the mounting bolts for the aluminum assembly. The anti squat parts look like they will stress the sway bar with for and aft loads which the original standard steel parts would not do.

I am guessing there will be modification necessary there to make them work.

Thanks for the input.

I don't know for sure but the anti-roll bar in the picture below (number 5)...

...looks very similar to a W123 one. It even has the kinks in the corners. Number 8 looks a bit different and beefier at the mounting points (that's the bit for the anti-squat variation).

According to wikipedia the width of the SEC was 1828mm instead of 1820mm for the other W126s - I guessing the extra 8mm was in wheel arch flares though!

Mercedes-Benz W126 - Wikipedia, the free encyclopedia

The W123 has a width of 1784mm

Mercedes-Benz W123 - Wikipedia, the free encyclopedia

So I think the anti-squat anti roll bar from a W126 would have to be cut / modified or perhaps the anti-squat fittings added to a W123 anti roll bar...

andydiesel · #19 12-09-2011, 07:33 PM

I'm planning on fiting the alloy arms to my 350sdl - have both steel and alloy arms in my workshop.
My guess is that the anti squat suspension is heavier than the standard one - despite the alloy arms.
Keep in mind any used parts will be at least 20 years old and will likely need rebuild. There are 5 bearings per side. A bearing supplier has quoted me $560 (CAD) for two radial bearings...you may want to change the linkage bushings - likely MB exclusive parts. There are some throwaway parts in the hub assembly...Emerg. brake cables appear different, ditto for the calipers which are mounted forward of the axle...

Tip for buying used: stay away if the steel sleeves sealing the joint connecting the arm to the hub yoke have rusted thru....The alloy will likely be pitted...also check for corrosion at the shock absorber mounting studs.
The brake shield and the emergency brake mounting base may be corroded beyond repair...

Stretch · #20 12-10-2011, 04:35 AM

Quote:

Originally Posted by andydiesel

I'm planning on fiting the alloy arms to my 350sdl - have both steel and alloy arms in my workshop.
My guess is that the anti squat suspension is heavier than the standard one - despite the alloy arms.
Keep in mind any used parts will be at least 20 years old and will likely need rebuild. There are 5 bearings per side. A bearing supplier has quoted me $560 (CAD) for two radial bearings...you may want to change the linkage bushings - likely MB exclusive parts. There are some throwaway parts in the hub assembly...Emerg. brake cables appear different, ditto for the calipers which are mounted forward of the axle...

Tip for buying used: stay away if the steel sleeves sealing the joint connecting the arm to the hub yoke have rusted thru....The alloy will likely be pitted...also check for corrosion at the shock absorber mounting studs.
The brake shield and the emergency brake mounting base may be corroded beyond repair...

Thanks for the info - you must however be fitting second generation W126 trailing arms - aren't you?

I was under the impression that the second generator rear end on a W126 was more akin to the W124 than the W123 - or have I got that wrong?

Even so if you have the time I'd appreciate a photograph or two of your trailing arms and what you are doing.

Have you checked out the prices for the radial bearings at the dealer yet? $560 sounds like a lot for bearings - but hey dealer prices can be a bit strange too!

andydiesel · #21 12-10-2011, 04:25 PM

Here's a photo showing both W126 steel and alloy arms. Note the difference in wheel carriers.
Surprise - the dealer's list price on the radial bearing was abut 30% less - still expensive.
Army - please send PM with your email address - will share full size photos etc.

Stretch · #22 06-01-2012, 08:09 AM

If you sit by the river long enough you'll see the body of your enemy float by.

If you sit behind your computer for long enough you might stumble on a bargain or two.

Last week I bought two W126 aluminium trailing arms for a very reasonable price. They took ages to get here - so long that I thought I'd have to go and fill out a form at the police station - but they got here in the end. If only people would be honest and say that they hadn't gotten to the post office just yet... oh well...

Just after ordering them I found a link (that I can't post here because it will only end up with the *****.com effect) where this guy called Kent says they don't fit! Apparently it is a case of close but no cigar - we'll have to see. At the price I paid I'm quite sure I can get my money back in the worse case scenario otherwise I'm still hopeful at this stage that I can come up with a solution.

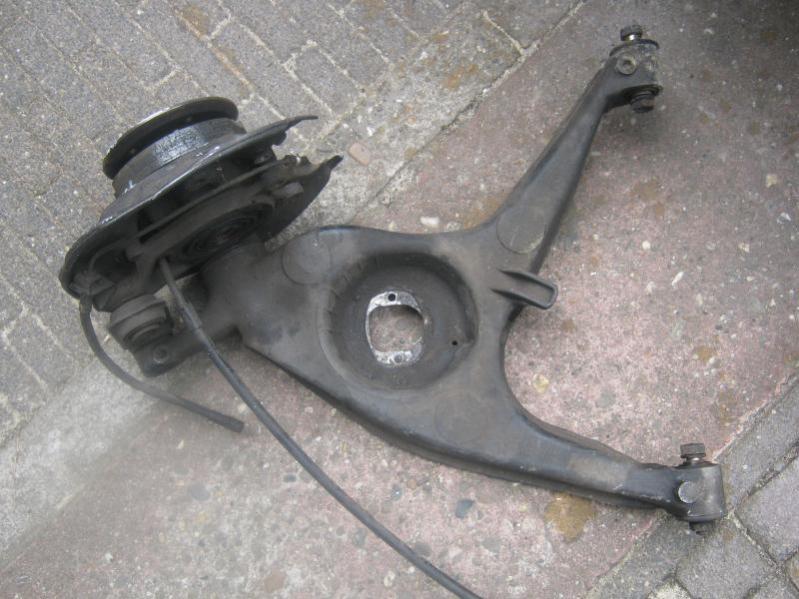

They look almost the same from this view - except for the chunky circular casting "blobs"

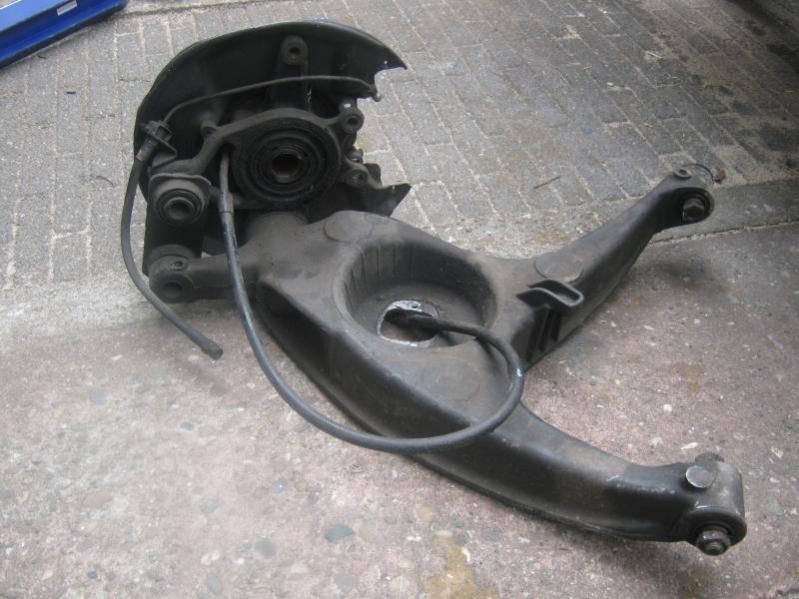

Extra stuff on the back though

Notable important for fitting them differences so far

1) Caliper is in a different place - I don't know if the W123 caliper will fit yet

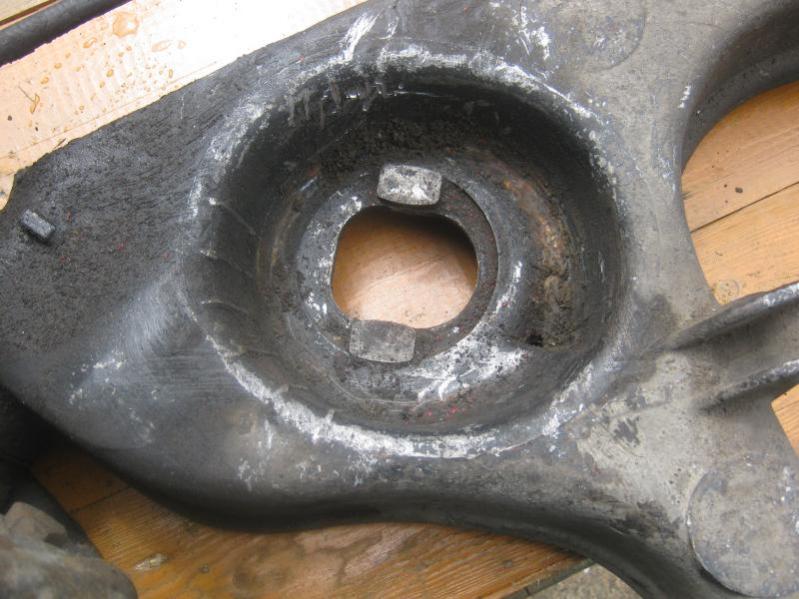

2) Shock mounting point is different from the steel trailing arms

Expect an update next week sometime when I make some measurements.

I'm so excited! Something new to play with!

daw_two · #23 06-01-2012, 11:20 AM

I had a set of the anti-squat non steel trailing arms. I sold/shipped them to a guy over in Little Rock but they wouldn't work for his w123 as I recall. I asked him to hang onto them and I'd pick them up sometime when I was in that neck of the woods. I didn't want to pay for return shipment.

Naturally, I refunded his money.

Stretch · #24 06-01-2012, 12:45 PM

Quote:

Originally Posted by daw_two

I had a set of the anti-squat non steel trailing arms. I sold/shipped them to a guy over in Little Rock but they wouldn't work for his w123 as I recall. I asked him to hang onto them and I'd pick them up sometime when I was in that neck of the woods. I didn't want to pay for return shipment.

Naturally, I refunded his money.

I'd like to know what the problem was - may be it will become apparent next week.

Stretch · #25 06-05-2012, 01:02 PM

Well sucess!

Hardly any problems (well as far as I can see anyway).

The aluminium version of the W126 (actually it's a 107 part according to the part number) trailing arm most definitely fits in a W123 sub frame. Here's a picture to prove it.

I've only done a rough check by measuring between the back edges of the rims (I used the same W123 disc brake and steel wheel that was fitted to the W123 parts) but there seems to be no difference between the two trailing arms in the way they fit into the sub frame. Here's a picture of where I was making my rough measurements for comparison =>

All is not 100% straight forward though.

Problem #1

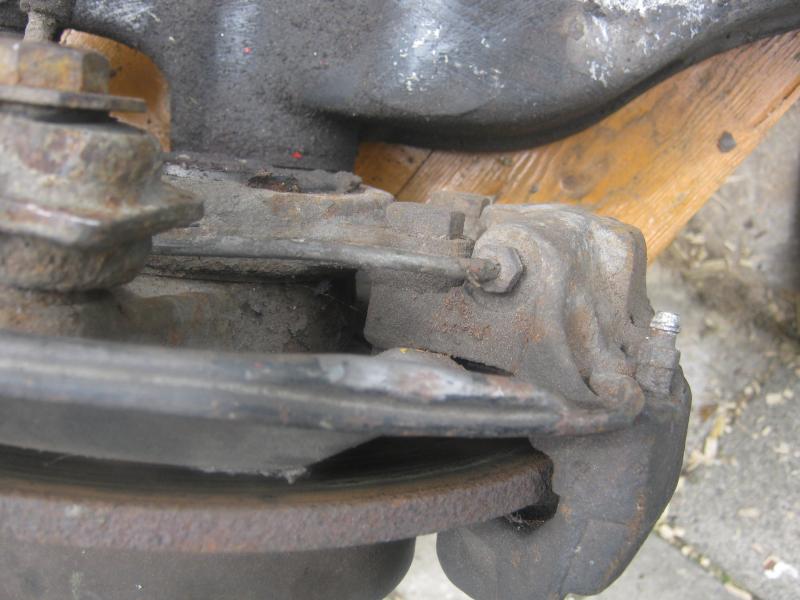

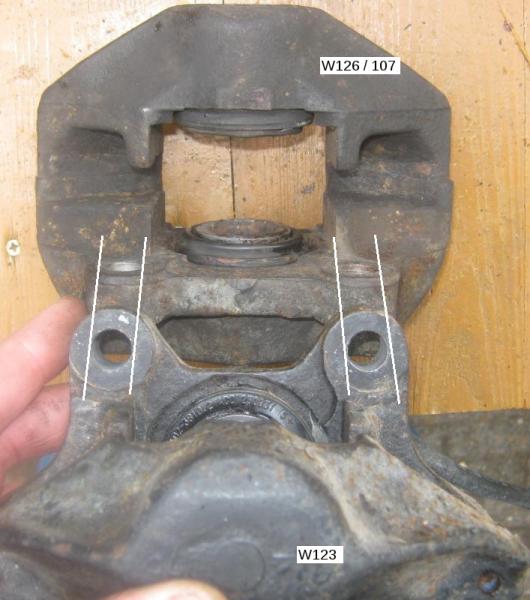

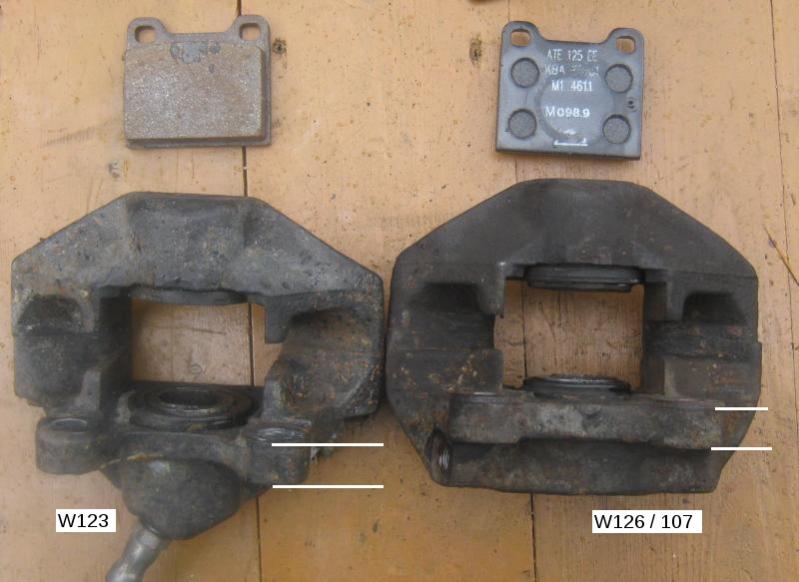

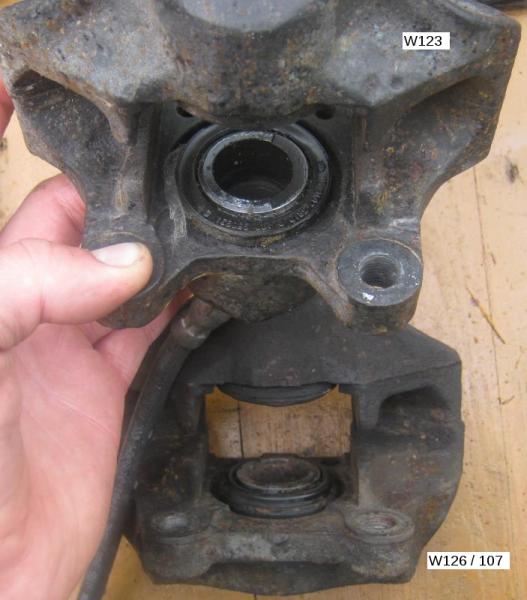

W123 brake caliper does not fit on 107 / 126 aluminium trailing arms

Problem #2

Hand brake cable looks slightly different on the aluminium trailing arm. W126 cable is shorter than W123 sedan equivalent (even though they are obviously of a very similar system).

But these are pretty trivial problems - they could very easily be remedied.

Please note - the car is still in bits at the time of writing this post. I have not fitted the sub frame to the car and put the springs and shocks in place just yet - there could be another hitch...

...you have been warned (if you fancy doing this yourself).

Stretch · #26 06-05-2012, 01:12 PM

And there is a but!

I'm not really sure if it is worth it now!

I measured the weight of the two trailing arms. The W123 steel version is lighter than the aluminium one. The W123 one comes in at a gnat's cock lighter than 16 kg and the W126 / 107 aluminium version weighs in at 21 kg.

I'm going to have to do some unsprung weight / suspension calculations to see if I need to change the rear springs as well.

I had the feeling that the aluminium trailing arms were going to be lighter than the steel as well as being more corrosion resistant. Unfortunately with all of the anti-dive gubbins on there it seems as though the reason why the large proportion of these trailing arms were made out of aluminium was probably more to do with stiffness...

...well that's my guess anyway.

Is there any point in fitting ant-dive to the rear end of a W123 300D non turbo?

I think not.

Do I want the warm wet feeling of having corrosion resistant aluminium trailing arms rather than the steel ones?

Yes - kind of

Is it worth the extra 10kg in weight?

Well that's not really what I wanted to discover...

...what do you guys think?

Would it be a cool upgrade?

Would it even count as an upgrade?

kerry · #27 06-05-2012, 02:49 PM

Well those rear trailing arms, at least on the 126, seem highly subject to corrosion. Avoiding that problem may be worth it.

Stretch · #28 06-06-2012, 03:15 AM

Quote:

Originally Posted by kerry

Well those rear trailing arms, at least on the 126, seem highly subject to corrosion. Avoiding that problem may be worth it.

That's the only benefit I can see with them.

Now if I go ahead with my OM648 conversion then I'd probably have the torque needed for the anti-dive otherwise with only a N/A OM617...

t walgamuth · #29 06-06-2012, 06:06 AM

The rear calipers on the aluminum setup are floating caliper, similar to the 124 chassis. It looks to me like the conversion is way too complicated for the value offered. (Sorry)

I was very high on the idea originally but after seeing all the differences it looks impractical to me.

the extra weight would be a deal killer for me too.

Stretch · #30 06-06-2012, 08:57 AM

I think I'm going to get some prices for the bits that I would need to make these trailing arms totally new and post up that information before I make a final decision. At least that sort of information might be of use to others...

It doesn't look like I'll be going ahead with it at the moment though.
