rebalancing driveshaft?

i replaced the front goetze(flex disc) and center support for the driveshaft in my 85 300d a while back. my memory is a little foggy but i think i remember the drive shaft having splines somewhere In the middle by the center support? or at the back of the trans? and despite my attempts at matchmarking it has been off a spline or two. the car is running well except for the slight vibration and resonance. im sure this is what the problem is as it started right afterward. anyway to correct this without guessing or taking the whole thing out to have it rebalanced?

Reply With Quote
  #2
Old 03-20-2011, 01:34 PM
Registered User

Join Date: Sep 2001
Location: central Texas
Posts: 17,281
If you think you simply did not put it back in the same relative position as it was ok running in...
Then , while a lot of work, you could just mark the sections....and carefully move it one slot at a time and re test...
Finding a place which can do a good job of balancing these has been a problem for many people... so I would go with the " Get back to where I started" rather than balancing anew...
Reply With Quote
  #3
Old 03-20-2011, 01:51 PM
Stevo's Avatar
Registered User

Join Date: Apr 2002
Location: NW WA
Posts: 6,299
Your D/S should be factory marked. The earlier ones were not but in 85 there should be marks. They my be very hard to see but I think they should be there.
__________________


1985 Euro 240D 5 spd 140K
1979 240D 5 spd, 40K on engine rebuild
1994 Dodge/Cummins, 5 spd, 121K
1964 Allice Chalmers D15 tractor
2014 Kubota L3800 tractor
1964 VW bug

"Lifes too short to drive a boring car"
Reply With Quote
  #4
Old 03-20-2011, 01:55 PM
Registered User

Join Date: Aug 2005
Location: Palmdale/Ventura, CA
Posts: 813
At some point Mercedes started marking the shafts when assembled.
I want to say 1983 on, for sure your 1985 has the marks where the
splined shafts come together. Not sure what they look like.
Which means you should be able to separate it and re-connect using the marks.

I just found this searching on "driveshaft alignment":
If it's like the 124, at the base of the splines and the end of the socket there are marks, one has 1 raised ridge, the other two, line 'em up.

Second: leathermang's advice.

Third: I found a driveshaft shop that does truck multi-piece driveshafts.
This is the kind of place to go.

One important thing the shop guy told me as a tip of sorts was that the
Mercedes shaft should have the ends (the triangles) aligned.
He felt that almost any orientation of the triangles being aligned would work.
__________________
80 300D 340K Owned 30 yrs
83 300SD 440K Owned 9 yrs - Daily Driver 150mi/day
02 Z71 Suburban 117,000
15 Toyota Prius 2600 miles
00 Harley Sportster 24k
09 Yamaha R6
03 Ninja 250
Reply With Quote
  #5
Old 03-20-2011, 02:00 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Check for factory marks for sure. Sometimes, however, you fix one but only to find another bit vibrates... may be you'll need to move on to something else like motor mounts...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #6
Old 03-20-2011, 02:38 PM
Registered User

Join Date: Sep 2001
Location: central Texas
Posts: 17,281
If they marked them that would be super... get you a good set of goggles...and a hand wire brush and clean them up...
For those years they were not marked....or if someone has changed stuff in the decades since they left the factory... the FSM is very specific about the 'advantage' of putting paint on them before taking them apart...
Reply With Quote
  #7
Old 03-20-2011, 04:41 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,038

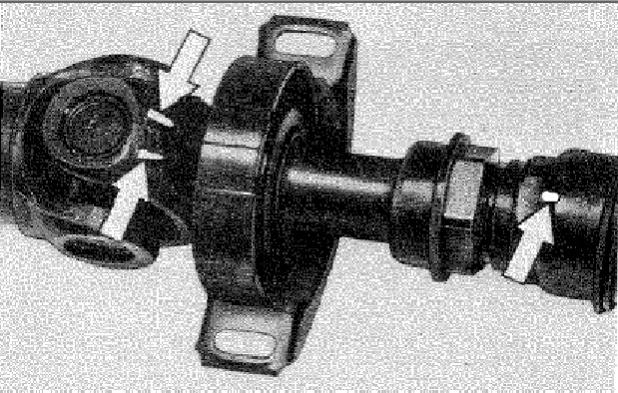

When I saw this pic in the Manual and how far apart the factory match marks were I made sure I marked my Shaft well.

The Match Marks were not painted on mine but there are raised portions of the casting where those marks are.

For me the factory marks are too far apart for me to "eye ball" and get them back together correctly.
Attached Thumbnails
rebalancing driveshaft?-drive-shaft-alignment-marks.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #8
Old 03-20-2011, 10:07 PM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,346
Quote:
Originally Posted by Diesel911 View Post
When I saw this pic in the Manual and how far apart the factory match marks were I made sure I marked my Shaft well.

The Match Marks were not painted on mine but there are raised portions of the casting where those marks are.

For me the factory marks are too far apart for me to "eye ball" and get them back together correctly.
On the 85 they should be raised portions. Try a straight edge next time...
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1995 E420 Schwarz
1995 E300 Weiss
#1987 300D Sturmmachine
#1991 300D Nearly Perfect
#1994 E320 Cabriolet
#1995 E320 Touring
#1985 300D Sedan
OBK #42
Reply With Quote
  #9
Old 03-20-2011, 10:26 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,038
Quote:
Originally Posted by winmutt View Post
On the 85 they should be raised portions. Try a straight edge next time...
How does the staright edge get around the Driveshaft Support?

I suppose it is possible use a piece of Cardboard with an area cut out so it fits around the Drive Shaft Support.

In my case I just pealed back the Rubber Sleeve and put a Puch mark on the Long end of the Drive shaft and used a Carbide Scribe to scratch a mark a spline that the Punch Mark Lined up with. (The splined portion of is made of hardened metal; you cannot punch it.)

__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
