where does this turbo support bracket go?
I bypassed the original cat on my om617 and unfortunately I don't remember the original mounting location for the longer support bracket :p thanks, manny
__________________
toyota fj40 landcruiser with a mercedes om617 3.0L turbo diesel |
#2
|
||||
|
||||
Wild guess - from the turbo to a bolt coming off of the manifolds?
(Why the wild guess? I don't have a turbo on my OM617 but it reminds me of the manifold support bracket that runs from under the manifolds to a bolt that holds on the beautiful casting that connects to the engine mounts)
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! Last edited by Stretch; 05-21-2011 at 02:09 PM. Reason: I missed off an S |
#3
|
||||
|
||||
Brace

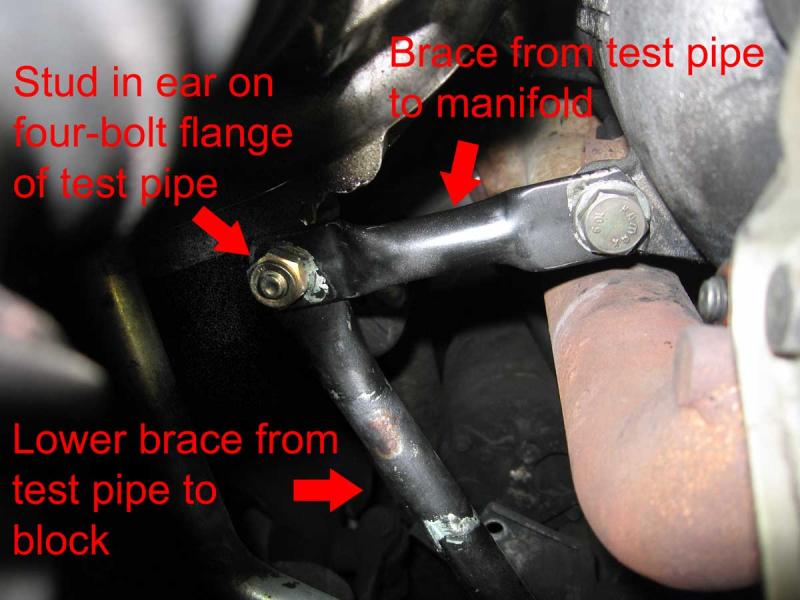

The longer brace goes diagonally down to the block. I don't have a picture showing the connection at the block and I no longer own the car but you should be able to figure it out from my picture. There's also a brace at the rear of the trap cat (where it connects to the exhaust manifold) as the second picture shows. The references to "test pipe" are because I removed the trap cat and temporarily replaced it with a bypass pipe for testing purposes only.
Here is the second picture, which I had attached to another forum thread. http://www.peachparts.com/shopforum/attachments/diesel-discussion/55641d1212446443-trap-cat-test-pipe-finished-1985-300d-ca-w123-om617-rear-brace.jpg Jeremy
