i took the wheel off again, and pushed/pulled on the hub and it seems tight, doesnt move towards or away from the other rear wheel. the bolt seems to be in place as well.
i guess its something actually in the axle? is there any way to grease the parts rather than replacing the whole thing? i sprayed a bunch of DW40 on that joint and was able to drive 5min away from the house to run an errand without the screech , but im sure WD40 wont last long on there...

__________________
1981 240D ... 265k
1977 240D ... 265k
1977 240D ... 250k

I think you need to remove the axle to see what's up. Take a look at the link to see if you want to do it yourself or get someone else to do it for you.

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

anti-squat? google translated its "settlement without permission" in my lingo

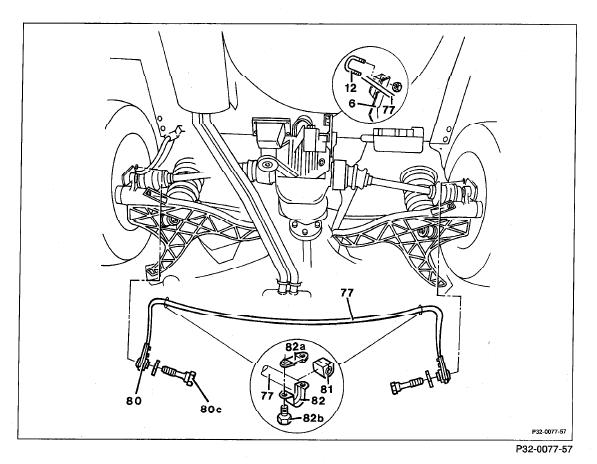

I have that metal thing pointed by red arrow in pic attachment.
(sway bar....extensions??)
and I wanted to renew it with plastic ones .... but indy refuses as they
dont look same ....

but vstech stated that they are expected to be different
as new part is nothing like the old one....


cheers


.

__________________
w126 500SEC gen II euro, powered by OM617 turbo stolen from 84 300SD 2.88 diff,EGR blinded
next wish/project: w114 coupe OM603 powered

"Settlement without permission" - now that sounds a bit viking!

If it turns out that you've got the anti-squat then I'd agree with your indy... take a look at this thread to determine what is already fitted =>

http://www.peachparts.com/shopforum/diesel-discussion/289638-w123-w126-trailing-arm-compatibility-question.html

Essentially the aluminium trailing arms look like this from the underside of the car


They've got that kind of webbed under surface - whereas the steel version (which isn't anti-squat) is all solid.

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

your pics clearly show the standard steel trailing arms... just put the plastic ones on.

__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!

yeap... it's me Eric the Red..parking on my wife's parking spot




wilburtual,sorry for off

.

__________________
w126 500SEC gen II euro, powered by OM617 turbo stolen from 84 300SD 2.88 diff,EGR blinded
next wish/project: w114 coupe OM603 powered
