w123 FireWall Grommet Part Number

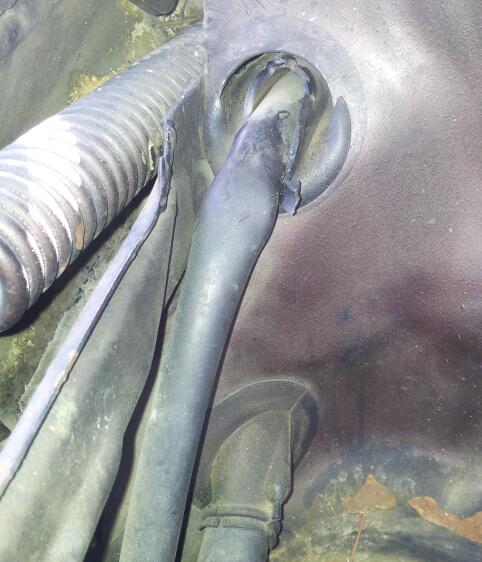

I'm looking for the part number of these grommets located on the passenger side firewall near the battery and Hood hinge. This is for a 1983 300d. Any help would be appreciated.




.

Attached Thumbnails
w123 FireWall Grommet Part Number-20130508_085820-1.jpg
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #2
Old 05-08-2013, 05:11 PM
NC-Diesel's Avatar
Registered User

Join Date: Jul 2012
Location: Chapel Hill, NC
Posts: 402
I just ordered one of these. I'll get the part# when I get home. I know they are a available through the stealership.
__________________
1978 Mercedes 240D
1981 Mercedes 240D
1982 Mercedes 240D
Reply With Quote
  #3
Old 05-08-2013, 09:55 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,143
Quote:
Originally Posted by NC-Diesel View Post
I just ordered one of these. I'll get the part# when I get home. I know they are a available through the stealership.
Thanks!

A BW member gave me this part number. 123 997 32 81. Hopefully it is the same number you ordered.


.
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #4
Old 05-20-2013, 06:39 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,143
Just to update. I've determined that I have to replace four additional grommets and have so ordered them.

For informational purposes, I am listing the part numbers of the rubber pieces that can deteriorate and should be replaced for a water tight firewall. The picture and part numbers have been taken off my 1983 300D.

A) 123 997 32 81 Main Electrical Right grommet
B) 123 997 12 81 A/C Refrigerant Line grommet
C) 123 832 36 94 Cowl Drain Tubes
D) 007 997 58 81 or 110 997 14 81 Speedometer Cable grommet
E) 123 997 11 81 Oil pressure Gauge line and vacuum line grommet
F-1) 123 301 04 97 Accelerator Pedal linkage boot
F-2) 123 462 13 96 Steering shaft boot with power steering
G) 123 997 07 81 main electrical cable left grommet - (below the fuse box)
H) 123 880 01 59 Hood release cable assembly - grommet is not sold separately.




.
Attached Thumbnails
w123 FireWall Grommet Part Number-w123firegrommet-boot_locati1.jpg
__________________
1983 123.133 California
- GreaseCar Veg System



Last edited by DeliveryValve; 05-20-2013 at 08:11 PM.
Reply With Quote
  #5
Old 06-13-2013, 09:23 AM
Registered User

Join Date: Jul 2011
Location: Marietta GA
Posts: 184
wow thanks for the picture with ID's.

Do you know for non AC cars if there is a different grommet for B? Im doing a temporary AC delete
__________________
1978 300D
Reply With Quote
  #6
Old 06-13-2013, 09:52 AM
daw_two's Avatar
diesel enthusiast

Join Date: Jan 2007
Location: Germantown, TN
Posts: 5,445
Quote:
Originally Posted by DeliveryValve View Post
Just to update. I've determined that I have to replace four additional grommets and have so ordered them.

For informational purposes, I am listing the part numbers of the rubber pieces that can deteriorate and should be replaced for a water tight firewall. The picture and part numbers have been taken off my 1983 300D.


A) 123 997 32 81 Main Electrical Right grommet

B) 123 997 12 81 A/C Refrigerant Line grommet

C) 123 832 36 94 Cowl Drain Tubes

D) 007 997 58 81 or 110 997 14 81 Speedometer Cable grommet

E) 123 997 11 81 Oil pressure Gauge line and vacuum line grommet

F-1) 123 301 04 97 Accelerator Pedal linkage boot

F-2) 123 462 13 96 Steering shaft boot with power steering

G) 123 997 07 81 main electrical cable left grommet - (below the fuse box)

H) 123 880 01 59 Hood release cable assembly - grommet is not sold separately.

.

Thanks for posting !!!!


Quote:
Originally Posted by Madmax55 View Post
wow thanks for the picture with ID's. Do you know for non AC cars if there is a different grommet for B? Im doing a temporary AC delete
You live in GA and are doing a temporary AC delete? Can I have your cold air while you aren't using it?
__________________
daw_two
Germantown, TN

Links:
Current Car --- 05/2012 1984 300D Light Ivory, Red interior
Cluster Needles Paint
New Old Stock (NOS) parts

Past:
3/2008 1986 300SDL "Coda"
04/2010 1965 190D(c) "Ben"
& many more
Reply With Quote
  #7
Old 06-13-2013, 10:07 AM
Registered User

Join Date: Jul 2011
Location: Marietta GA
Posts: 184
Quote:
Originally Posted by daw_two View Post
Thanks for posting !!!!




You live in GA and are doing a temporary AC delete? Can I have your cold air while you aren't using it?

haha if I had it I would be using it believe me! I just swapped the evil servo system for a 240d manual system that's been in my garage for 6+months.

I figured out all the heat and vent wires/connections but the AC wires were sliced and I have no compressor, dryer etc. Im just trying to get the car drivable without engine bay air coming inside
__________________
1978 300D
Reply With Quote
  #8
Old 06-15-2013, 06:46 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,143
Quote:
Originally Posted by Madmax55 View Post
wow thanks for the picture with ID's.

Do you know for non AC cars if there is a different grommet for B? Im doing a temporary AC delete
I don't really know if there is a different grommet, but I assume there is because the A/C hose grommet has three pre-cut holes in them. It would be unusual for the factory to use that grommet on a non-A/C car.
I tried searching for a part number, but I haven't been able to find one. The firewall grommet parts number in the EPC are associated with the wire/hose/line that passes through it. There is no separate firewall grommet lookup. Perhaps someone with a non-A/C care can do us a favor, and look and post the numbers on the grommet for us all.


.
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #9
Old 06-15-2013, 06:54 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,143



Here are some up close pictures associated with some of these grommets.

A) 123 997 32 81 Main Electrical Right grommet






B) 123 997 12 81 A/C Refrigerant Line grommet

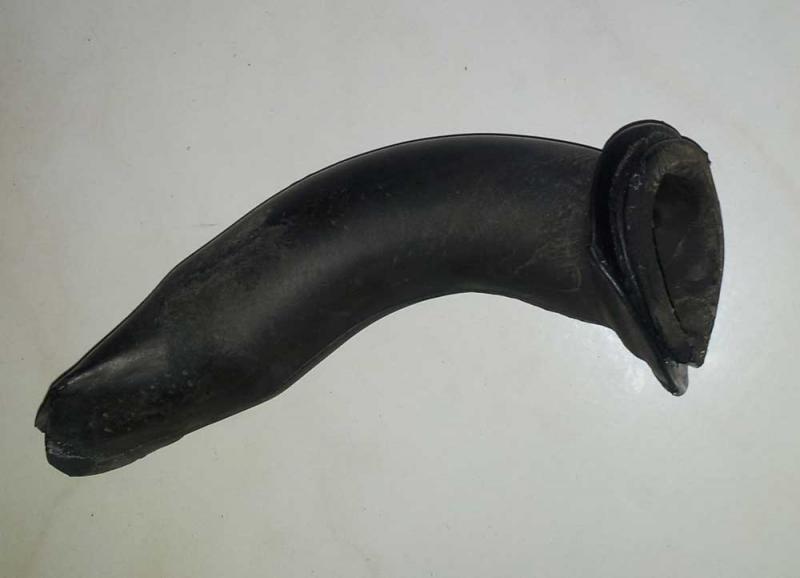

C) 123 832 36 94 Cowl Drain Tubes ( It used to be different part numbers for each right and left. Now one part number and the drain is red in color.)

Attached Thumbnails
w123 FireWall Grommet Part Number-123-997-32-81_a.jpg   w123 FireWall Grommet Part Number-123-997-32-81_b.jpg   w123 FireWall Grommet Part Number-123-997-12-81_a.jpg   w123 FireWall Grommet Part Number-123-997-12-81_b.jpg   w123 FireWall Grommet Part Number-123-832-36-94.jpg

__________________
1983 123.133 California
- GreaseCar Veg System



Last edited by DeliveryValve; 06-15-2013 at 07:49 PM.
Reply With Quote
  #10
Old 06-15-2013, 06:58 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,143
D) 007 997 58 81 or 110 997 14 81 Speedometer Cable grommet

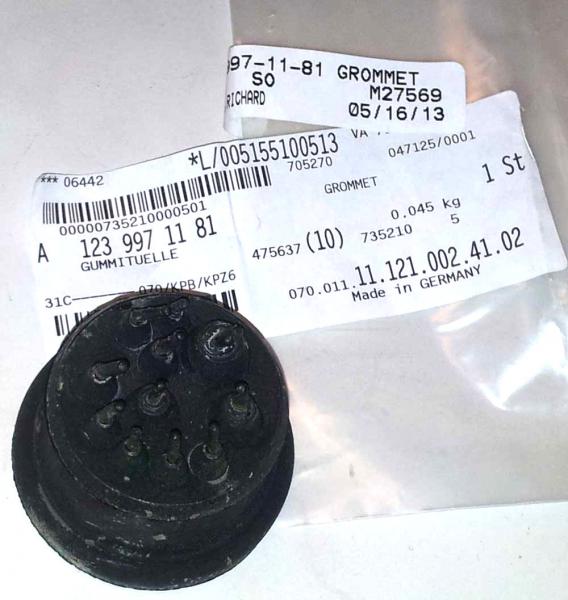

E) 123 997 11 81 Oil pressure Gauge line and vacuum lines grommet






.
Attached Thumbnails
w123 FireWall Grommet Part Number-007-997-58-81_a.jpg   w123 FireWall Grommet Part Number-007-997-58-81_b.jpg   w123 FireWall Grommet Part Number-123-997-11-81_a.jpg   w123 FireWall Grommet Part Number-123-997-11-81_b.jpg
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #11
Old 06-15-2013, 07:00 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,143

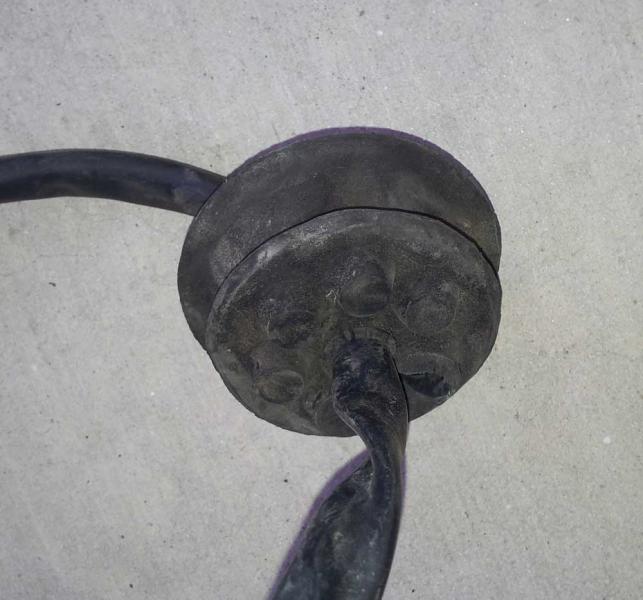

G) 123 997 07 81 main electrical cable left grommet - (below the fuse box and in this particular picture, wire is still passing through it )






.
Attached Thumbnails
w123 FireWall Grommet Part Number-123-997-07-81_a.jpg   w123 FireWall Grommet Part Number-123-997-07-81_b.jpg

__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
