Removing lower trim above rocker panels

I have a little rust showing on one rear door sill, just above the lower black trim.

How do I remove that trim?

Do I have to first remove the end trim that lines up with the door trim?

Attached Thumbnails
Removing lower trim above rocker panels-img_1905.jpg
__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5
Reply With Quote
  #2
Old 07-12-2013, 01:49 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
In principle is clicks off - however, I've found it is best to try and pull it along the length of the car so that it pings off the clips.

You'll see that the clips are another bayonet affair like those bits on the windscreen wiper motor cover.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #3
Old 07-12-2013, 04:13 PM
Graham's Avatar
Registered User

Join Date: Nov 2004
Location: Ontario, Canada
Posts: 4,171
Quote:
Originally Posted by Stretch View Post
In principle is clicks off - however, I've found it is best to try and pull it along the length of the car so that it pings off the clips.

You'll see that the clips are another bayonet affair like those bits on the windscreen wiper motor cover.
To slide it of, presumably I would need to remove the trim piece on the rear (or front) fender that would be in way. There also seems to be a metal clamping piece over the rubber seal in question. Maybe it is also part of those end pieces. As I understand it, those end pieces pry off from bottom.

I wish i could find a picture of the inside of the seal with the clips in place - would perhaps avoid me from destroying clips and having yet another job to do

The rubber seal is split for last foot or so, but I think I could repair that. So at least I am not in for several hundreds of $$ for new seals.
__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5
Reply With Quote
  #4
Old 07-12-2013, 07:01 PM
Graham's Avatar
Registered User

Join Date: Nov 2004
Location: Ontario, Canada
Posts: 4,171
OK - Decided to have a go at it.

The end trim piece comes off easily, by prying it off from bottom up. And so does the trim. I used a claw hammer Actually it worked well! Just pull it up under trim in vicinity of clip and clip comes off easily with no damage.

Lots of crud in there - I think I will take both sides off, clean up and give a coat of paint.

OK - They are off! I tested putting them back, and all it takes is hanging the metal channel on top of clip and give bottom a firm tap with a mallet. I found a small rust spot up front driver side, so just as well I took them off.

Will probably take off the front trim pieces too (between front wheel well and door.) Any special trick to those ?
Attached Thumbnails

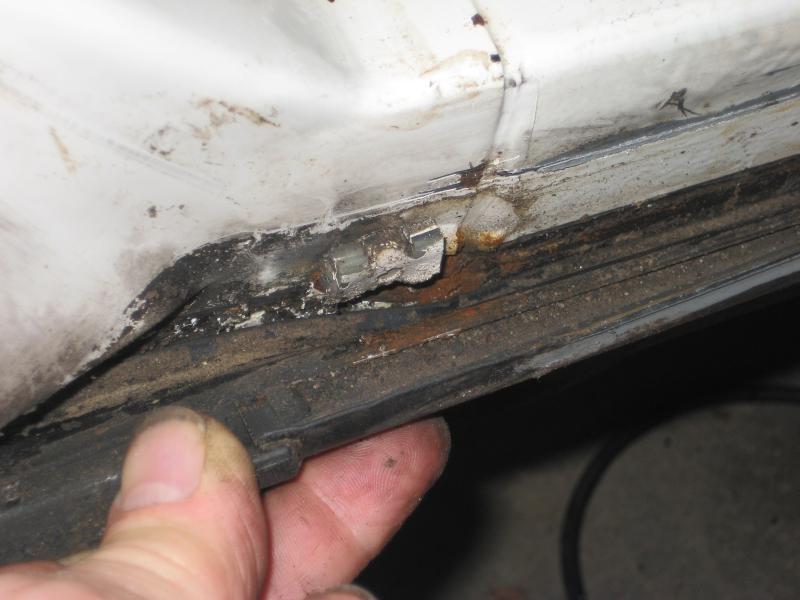

Removing lower trim above rocker panels-img_1906.jpg   Removing lower trim above rocker panels-img_1907.jpg
__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5

Last edited by Graham; 07-12-2013 at 08:52 PM.
Reply With Quote
  #5
Old 07-13-2013, 02:53 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
You describe exactly how it is meant to be done - and yes to slide along you need to unclick the first bit a bit if I remember correctly. As for the other trim - same system. On the doors however there is a bolt and a nut - so don't have a go at everything with your claw hammer!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #6
Old 07-13-2013, 09:59 AM
Graham's Avatar
Registered User

Join Date: Nov 2004
Location: Ontario, Canada
Posts: 4,171
Quote:
Originally Posted by Stretch View Post
You describe exactly how it is meant to be done - and yes to slide along you need to unclick the first bit a bit if I remember correctly. As for the other trim - same system. On the doors however there is a bolt and a nut - so don't have a go at everything with your claw hammer!
It's great having someone on line who knows how to take these cars to bits

I did slide the trim off, but had to unclip about 50% first because there was so much crud restricting movement.

I seem to recall there being some sort of a spring clip that required the front fender trim pieces to slid out rather than just unclipped. But that might have been on one of the other cars. Checked 123 and you can see the plastic rivets on inside of fender. Just pries off just like you said. Found rust on driver side front. Easily fixed, so pleased I took those pieces off. Just a couple more items for the never ending job
__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5

Last edited by Graham; 07-13-2013 at 11:07 AM.
Reply With Quote
  #7
Old 07-13-2013, 11:29 AM
Registered User

Join Date: Sep 2006
Location: Middle TN
Posts: 4,131
You will want to remove the trim that covers the bottom of the exterire door also. Bottom of my SD doors had surface rust that was easily treated woth POR. Ignoring would lead to replacing door or metal.
