#1
|
||||
|
||||
190D Won't turn off and no Stop Lever!
Not mine, but the one I sold to a friend. They called and said the '87 190D won't stop. I said not to worry, but fill up and meet us at soccer.
Long story short: It won't stop and there is NOT a shut down lever at the IP. Now yes, I know what one looks like. I've used it many times before on my old '75 300D. There is nothing here to shut off. We finally got it to shut down by stalling it by shifting from reverse to forward quickly. Help! I've told them I can help them find a way to shut it off untill we get it fixed.
__________________
Michael LaFleur '05 E320 CDI - 86,000 miles '86 300SDL - 360,000 miles '85 300SD - 150,000 miles (sold) '89 190D - 120,000 miles (sold) '85 300SD - 317,000 miles (sold) '98 ML320 - 270,000 miles (sold) '75 300D - 170,000 miles (sold) '83 Harley Davidson FLTC (Broken again) :-( '61 Plymouth Valiant - 60k mikes 2004 Papillon (Oliver) 2005 Tzitzu (Griffon) 2009 Welsh Corgi (Buba) |
#2
|
|||
|
|||
Block off the intake air with a board or something similar. Starving it of either air or fuel is the only way to shut it down, and since there is no Stop lever, you're left with only one option... air.
Be sure to check all of the vacuum lines to and from the injection pump. The shut-off feature is vacuum controlled, and it is likely that one of the vacuum lines has either come off, or is leaking severely. Last edited by VeeDubTDI; 02-28-2004 at 10:24 PM. |
#3
|
||||
|
||||
Duh!
I didn't think of air. Is there not a shut off lever on the OM602?
__________________
Michael LaFleur '05 E320 CDI - 86,000 miles '86 300SDL - 360,000 miles '85 300SD - 150,000 miles (sold) '89 190D - 120,000 miles (sold) '85 300SD - 317,000 miles (sold) '98 ML320 - 270,000 miles (sold) '75 300D - 170,000 miles (sold) '83 Harley Davidson FLTC (Broken again) :-( '61 Plymouth Valiant - 60k mikes 2004 Papillon (Oliver) 2005 Tzitzu (Griffon) 2009 Welsh Corgi (Buba) |
#4
|
|||
|
|||
My OM602 turbo had a shutoff lever, but I guess the non-turbo doesn't. Very interesting.
|
#5
|
||||
|
||||
It has to have one. My 601's stop lever is deep in there below the intake manifold. I can barely reach it with my bare fingers, using a screw driver or such would make it much easier. The picture in the owners manual shows a stop lever from a 617 that clearly says STOP on it. The actual lever on the car is just a black one with no STOP printed on it. It was 2 years after I got the car that I found the damn thing and tried it out... IT WORKS! So maybe this 2.5 NA is the same way?
__________________
1984 190D 2.2 Auto 220k 2001 Jeep Cherokee Sport 70K 2004 Lexus RX-330 ??K 2005 Chrylser Crossfire LTD 6K Play guitar? Go to www.cyberfret.com for free online lessons! |
#6
|
|||
|
|||
190D22, I just remembered that the owners manual for my 2.5 Turbo showed two different styles of stop levers. One that was red and clearly marked STOP (what my engine had), and one that you described... black and not marked. My owner's manual covered the 2.5 NA and the 2.5 Turbo.
So... I think that mplafleur's friend does in fact have a stop lever, it's just hidden somewhere. But then again, maybe not. |
#7
|
||||
|
||||
OK, so where to look? I would guess between the IP and the block. I didn't see anything. I'll go over and take pictures tomorrow.
__________________
Michael LaFleur '05 E320 CDI - 86,000 miles '86 300SDL - 360,000 miles '85 300SD - 150,000 miles (sold) '89 190D - 120,000 miles (sold) '85 300SD - 317,000 miles (sold) '98 ML320 - 270,000 miles (sold) '75 300D - 170,000 miles (sold) '83 Harley Davidson FLTC (Broken again) :-( '61 Plymouth Valiant - 60k mikes 2004 Papillon (Oliver) 2005 Tzitzu (Griffon) 2009 Welsh Corgi (Buba) |
#8
|
||||
|
||||
I don't know how the intake headers are shaped on the 2.5... but where mine splits in half and the big opening is where my button is. I can take a pic if ya like.
__________________
1984 190D 2.2 Auto 220k 2001 Jeep Cherokee Sport 70K 2004 Lexus RX-330 ??K 2005 Chrylser Crossfire LTD 6K Play guitar? Go to www.cyberfret.com for free online lessons! |
#9
|
||||
|
||||
Quote:
Roy, I will try to send them your way for the permanent fix.
__________________
Michael LaFleur '05 E320 CDI - 86,000 miles '86 300SDL - 360,000 miles '85 300SD - 150,000 miles (sold) '89 190D - 120,000 miles (sold) '85 300SD - 317,000 miles (sold) '98 ML320 - 270,000 miles (sold) '75 300D - 170,000 miles (sold) '83 Harley Davidson FLTC (Broken again) :-( '61 Plymouth Valiant - 60k mikes 2004 Papillon (Oliver) 2005 Tzitzu (Griffon) 2009 Welsh Corgi (Buba) |
#10
|
|||
|
|||
I wish I still had the owner's manual for my 190D... I would have taken pictures of both stop levers.
Maybe someone with their owners manual can take pictures of the description, and of their engine. |
#11
|
|||
|
|||
Its there (2.5 non-turbo), hidden by the injector lines ,
__________________
1982 300SD (214 k, excellent shape) kidmobile running mostly biodiesel, gets 31 mpg hwy with 2.82 rear from a euro 500SEL 1976 115 body 240D 4-speed (traded for Jeep parts) - Engine lives on in my CJ7 |
#12
|
||||
|
||||
Here is mine...
__________________
1984 190D 2.2 Auto 220k 2001 Jeep Cherokee Sport 70K 2004 Lexus RX-330 ??K 2005 Chrylser Crossfire LTD 6K Play guitar? Go to www.cyberfret.com for free online lessons! |
#13
|
||||
|
||||

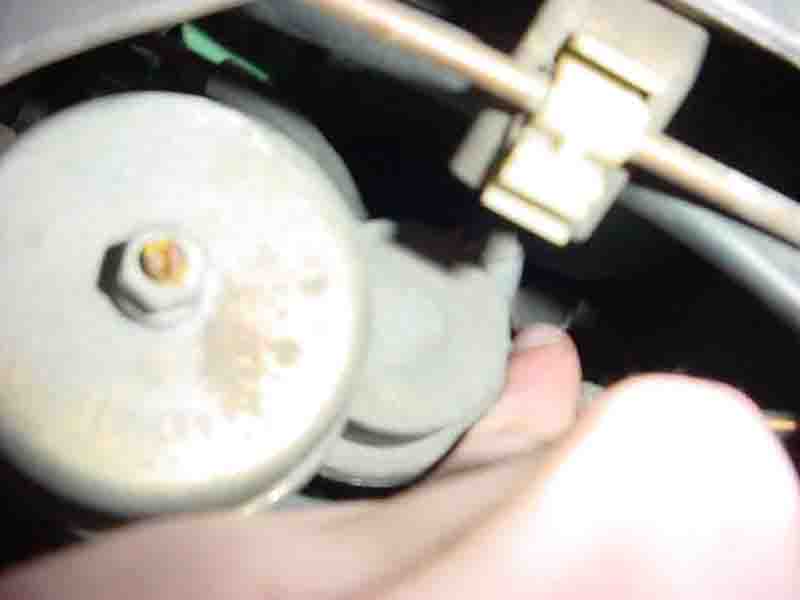

Here you can see I can just barely reach the thing...
__________________
1984 190D 2.2 Auto 220k 2001 Jeep Cherokee Sport 70K 2004 Lexus RX-330 ??K 2005 Chrylser Crossfire LTD 6K Play guitar? Go to www.cyberfret.com for free online lessons! |
#14
|
||||
|
||||
That looks fairly obvious. If I missed that, I'm blind or it's not there.
__________________
Michael LaFleur '05 E320 CDI - 86,000 miles '86 300SDL - 360,000 miles '85 300SD - 150,000 miles (sold) '89 190D - 120,000 miles (sold) '85 300SD - 317,000 miles (sold) '98 ML320 - 270,000 miles (sold) '75 300D - 170,000 miles (sold) '83 Harley Davidson FLTC (Broken again) :-( '61 Plymouth Valiant - 60k mikes 2004 Papillon (Oliver) 2005 Tzitzu (Griffon) 2009 Welsh Corgi (Buba) |
#15
|
||||
|
||||
It took me a bit to find it even today! It's tucked away deep in there.
__________________
1984 190D 2.2 Auto 220k 2001 Jeep Cherokee Sport 70K 2004 Lexus RX-330 ??K 2005 Chrylser Crossfire LTD 6K Play guitar? Go to www.cyberfret.com for free online lessons! |
