#1
03-21-2004, 09:19 PM
|
||||
|
||||
|
an object graphic lesson
My only excuse for posting this junk Jaguar here is as an object graphic lesson.

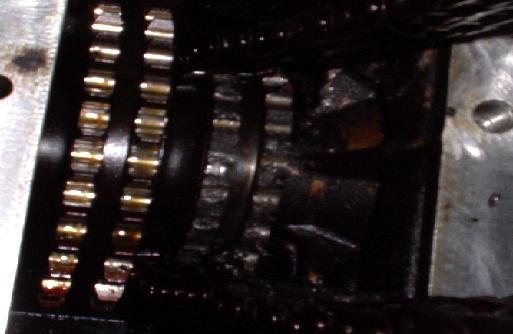

If you do not understand what you are doing; do not touch it. The previous owner was a young man. He decided to DIY change the head gasket; to save money. The following pictures show what happened.
__________________
ASE Master Mechanic https://whunter.carrd.co/ Prototype R&D/testing: Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician. Noise Vibration and Harshness (NVH). Dynamometer. Heat exchanger durability. HV-A/C Climate Control. Vehicle build. Fleet Durability Technical Quality Auditor. Automotive Technical Writer 1985 300SD 1983 300D 2003 Volvo V70 https://www.boldegoist.com/ Last edited by whunter; 05-06-2008 at 10:31 PM.
|
|
#2
03-21-2004, 09:24 PM
|
||||
|
||||
|
an object graphic lesson pic 6
an object graphic lesson pic 6
Last edited by whunter; 05-06-2008 at 10:31 PM.
|
|
#5
03-22-2004, 07:20 AM
|
||||
|
||||
|
set the cam timing wrong
Quote:
He set the cam timing wrong and junked the engine. Last edited by whunter; 03-22-2004 at 07:28 AM.
|
|
#6
03-22-2004, 09:01 AM
|
||||
|
||||
|
Ouch! What year Jag?
__________________
2016 Corvette Stingray 2LT 1969 280SE 2023 Ram 1500 2007 Tiara 3200
|
|
#7
03-22-2004, 10:05 AM
|
|||
|
|||
|
An (EXPENSIVE) object graphic lesson.
Louis
|
|
#8
03-22-2004, 10:30 AM
|
|||
|
|||
|
Always turn an engine by hand after any timing components are R&R. Thus will show any interferences before anything is damaged.
P E H
|
|
#9
03-22-2004, 12:26 PM
|
||||
|
||||
|
1994 XJ6
Quote:
|
|
#10
03-22-2004, 01:26 PM
|
||||
|
||||
|
Why is it junk? My grandparents had one of those, other than needing a valve job at like 60k miles it seemed to be a good car. It was nicer than there 86' but no match for the XJ8.
__________________
2016 Corvette Stingray 2LT 1969 280SE 2023 Ram 1500 2007 Tiara 3200
|
|
#11
03-22-2004, 03:22 PM
|
||||
|
||||
|
the car body is OK but
the engine is junked.
The young man who did this damage kept cranking until the battery was dead, recharged battery, and repeated the process at least fifteen minutes total. The oil pump is seized with metal fragments. The crank shaft makes a grinding sound as you turn it with a ratchet, and it binds with cylinder #4 at TDC. Two valves are naked eye visibly bent. The head has a naked eye visible warp from end to end. The cam lobes are coated with heavy pitting rust. Last edited by whunter; 05-06-2008 at 10:26 PM.
|
|
#12
03-22-2004, 03:47 PM
|
||||
|
||||
|
Open hood, insert tuned port injected LT-1 from a dead corvette.
Car suddenly becomes something other than a pretty paper weight.  Seriously, it's amazing what some people do to motors, it's as if there are no books to be read or advice to be sought. I put a timing chain on my 78 Honda Z50 when I was eight years old, adjusted the valves, and had many years of service from it, this stuff isnt that complicated, people are just ignorant.
__________________
One more Radar Lover gone... 1982 VW Caddy diesel 406K 1.9L AAZ 1994 E320 195K
|
|
#13
09-06-2011, 05:24 PM
|
||||
|
||||
|
Quote:
 I did take my own training wheels off. But I don't like to brag.
__________________
 I LOVE CATS....AND FRIES 1981 300sd 1983 300sd 1985 300d 1983 300cd 1991 350sdl
|
|
#14
09-06-2011, 07:34 PM
|
||||
|
||||
|
Quote:
As a kid I was great at taking stuff apart. Not so hot at putting it back together, though.
