722.xxx transmission vacuum modulators

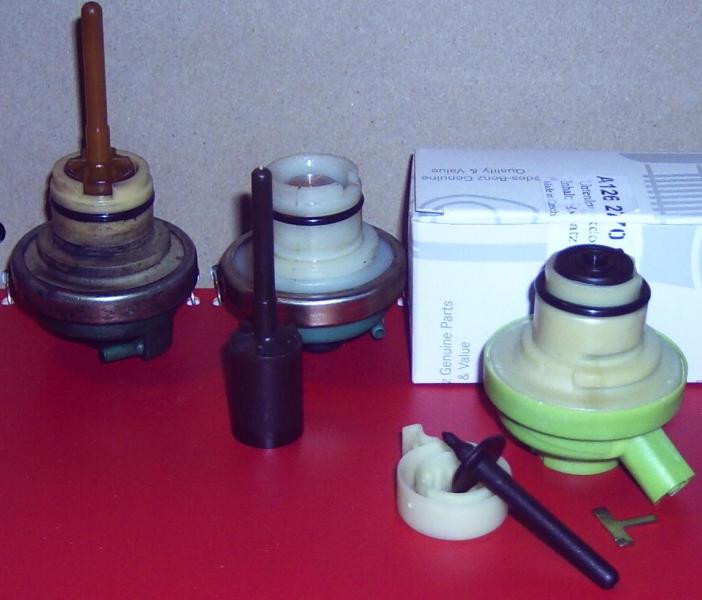

There are three revisions of the 722.xxx transmission vacuum modulator.

Factory build unit = the car was sold factory NEW with this one.

Update #1.

Update #2

Here are pictures of them explaining (best possible) the visible variation in design.

.
Attached Thumbnails
722.xxx transmission vacuum modulators-superseded-levels-722.xxx-vacuum-modulator_z8w5y1h2qkp_1.jpg

Last edited by whunter; 03-08-2013 at 01:26 PM.
Reply With Quote
  #2
Old 03-11-2012, 12:33 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357

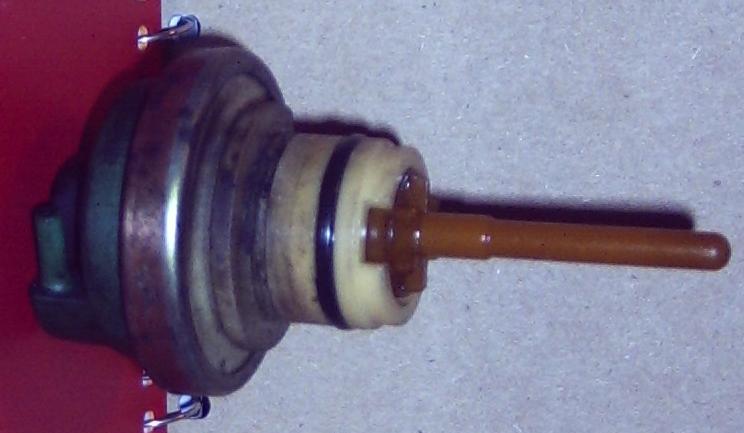

Factory build unit = the car was sold factory NEW with this one.

Most of these fail from use - old age.

.
Attached Thumbnails
722.xxx transmission vacuum modulators-original-factory-722.xxx-vacuum-modulator_z8w5y1h2qkp_1.jpg
Reply With Quote
  #3
Old 03-11-2012, 12:33 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Update #1.

The technology of plastic/rubber advanced.
Daimler looked at parts proliferation, and set engineers the task of reducing duplicate components where possible.

The W126 vacuum modulator was more robust/advanced + the tooling was newer = more cost effective to drop the earlier unit.

EPC makes note of the fact that the pin/cup MUST change to use the W126 part.
More on that later.

.
Attached Thumbnails
722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_revision-2_z8w5y1h2qkp_1.jpg
Reply With Quote
  #4
Old 03-11-2012, 12:33 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Update #2.

Daimler reduces cost/increases profitability by continuously looking at parts proliferation, and keeps engineers busy eliminating duplicate components where possible.

The latest vacuum modulator is totally re-designed-engineered.
Using the most advanced minimalist - simple design possible.
The technology of plastic/rubber have advanced substantially.

Engineers tweaked the new design for backward compatibility, and superseded all other units.

.
Attached Thumbnails
722.xxx transmission vacuum modulators-latest-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_1.jpg
Reply With Quote
  #5
Old 03-11-2012, 01:21 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
What changed that matters to YOU when replacing this unit?

The factory original unit had a smaller diameter piston, and the cup bore was a perfect fit.

Revision #1 had a LARGER diameter piston, and the ORIGINAL cup bore is to SMALL, if you try to force fit these, the plastic pin/cup will break.

Revision #1 requires the (BLACK) NEW/superseded pin/cup, for proper fit - function.

Revision #2 is a radical design change/complete kit, requires removal - discard ( as not needed) the old style pin/cup.

******************************************************************

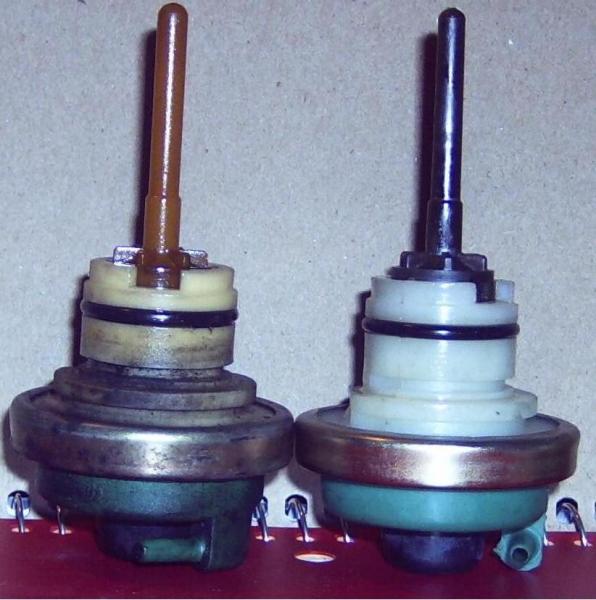

Picture #1.

Shows the factory unit with the factory pin/cup, and revision #1 with the (BLACK) NEW/superseded pin/cup.


******************************************************************

Picture #2.

Shows revision #1 with the factory pin/cup pressed firmly in place, just short of breaking.


********************************************************************

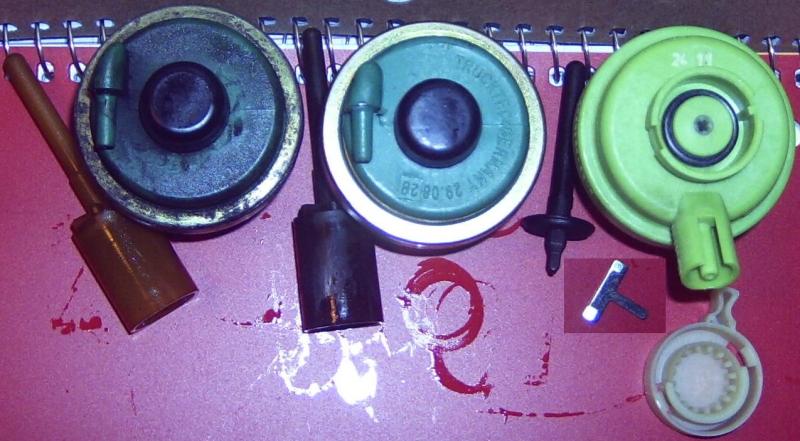

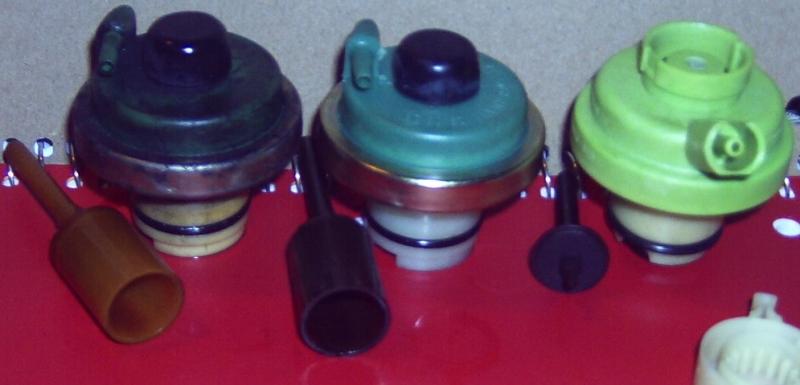

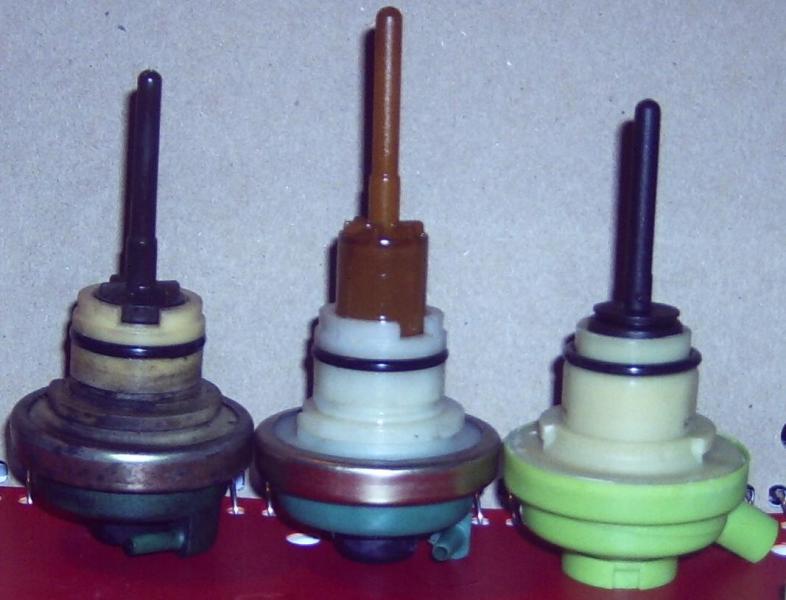

Picture #3. shows

the factory unit with the (BLACK) NEW/superseded pin/cup installed.

Revision #1 with the factory pin/cup pressed firmly in place, just short of breaking.

Revision #2 with the pin stub installed.

*****************************************************************

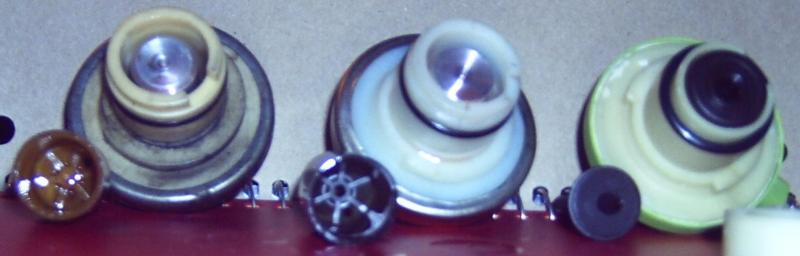

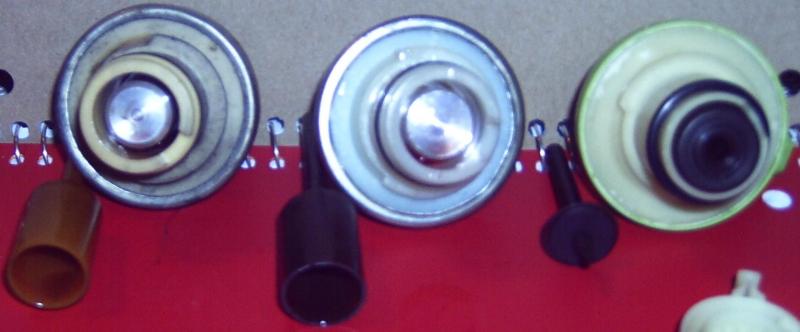

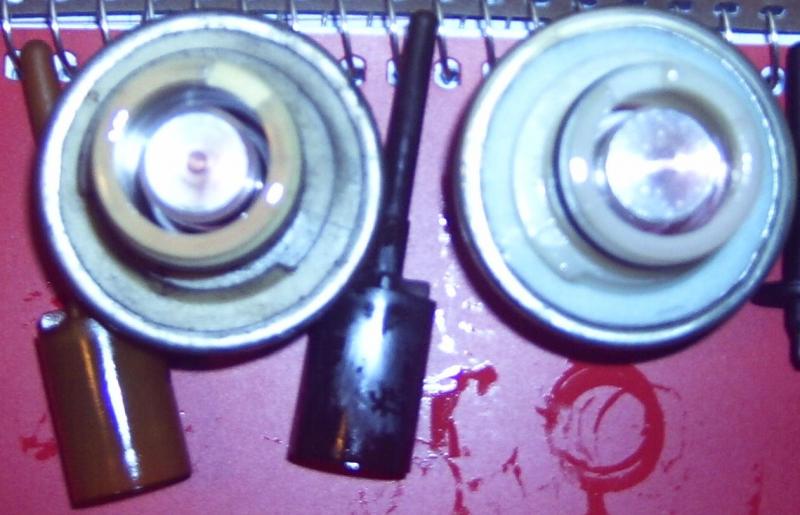

Picture #4 and #5.

Shows you the piston face.


.
Attached Thumbnails
722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_1.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_2.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_3.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_5.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_6.jpg

Reply With Quote
  #6
Old 03-11-2012, 01:22 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
More pictures_1
Attached Thumbnails
722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_7.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_8.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_9.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_10.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_11.jpg

Reply With Quote
  #7
Old 03-11-2012, 01:22 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
More pictures_2
Attached Thumbnails
722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_12.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_13.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_14.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_15.jpg   722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_16.jpg

Reply With Quote
  #8
Old 03-11-2012, 01:23 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
More pictures_3
Attached Thumbnails
722.xxx transmission vacuum modulators-warning-earlier-revision-722.xxx-vacuum-modulator_z8w5y1h2qkp_17.jpg
Reply With Quote
  #9
Old 03-11-2012, 04:55 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Nice thread! Can you put in image tags to make the pictures BIG?
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #10
Old 03-12-2012, 08:52 AM
Registered User

Join Date: Dec 2009
Posts: 427

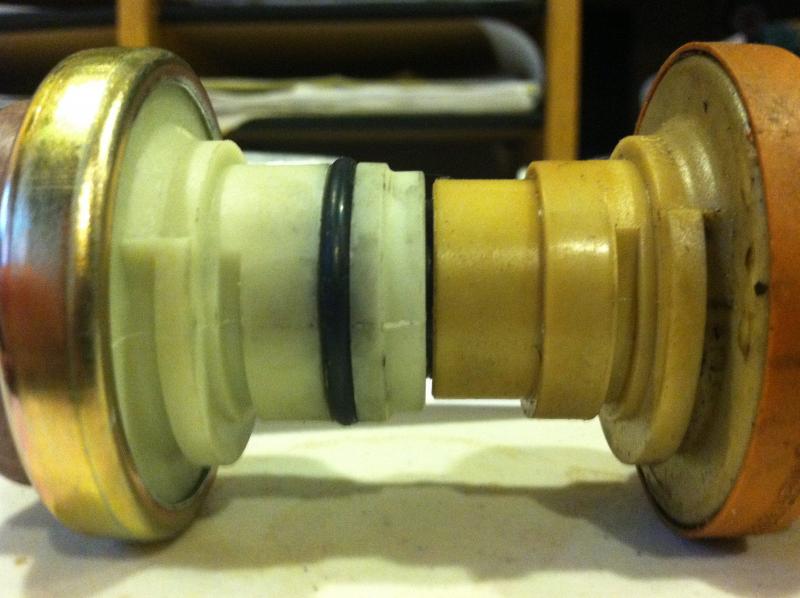

Whunter, could you measure the nozzle of these? The part that gets inserted into the transmission. I swear one of these models could not be inserted into the transmission body.
Attached Thumbnails
722.xxx transmission vacuum modulators-img_0737a.jpg
Reply With Quote
  #11
Old 03-12-2012, 10:26 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Hmm

Quote:
Originally Posted by jmbeam View Post
Whunter, could you measure the nozzle of these? The part that gets inserted into the transmission. I swear one of these models could not be inserted into the transmission body.
Here is a graphic to explain the transmission bore.

.
Attached Thumbnails
722.xxx transmission vacuum modulators-722.xxx-vacuum-modulator_bore_1.jpg
Reply With Quote
  #12
Old 03-12-2012, 11:45 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Done

Quote:
Originally Posted by Army View Post
Nice thread! Can you put in image tags to make the pictures BIG?






































Reply With Quote
  #13
Old 03-12-2012, 12:35 PM
cho's Avatar
cho cho is offline
diesel power

Join Date: Dec 2011
Location: Europe
Posts: 933
RESPECT!
__________________
w126 500SEC gen II euro, powered by OM617 turbo stolen from 84 300SD 2.88 diff,EGR blinded
next wish/project: w114 coupe OM603 powered
Reply With Quote
  #14
Old 11-28-2012, 10:15 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Bump

for customer
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Prototype Vehicle build.
Prototype Fleet Durability
Prototype vehicle instrumentation.
Technical Quality Auditor.
Automotive Technical Writer

1973 300D
1973 309D - stolen
1978 280SE
1980 240D
1983 300D
1984 190D
Reply With Quote
  #15
Old 11-28-2012, 11:36 AM
Registered User

Join Date: Mar 2005
Location: SoCal
Posts: 658
thats for the 722.3? 722.4s are black ?
__________________
'85 300D Cal 280,000 miles
'07 C230 37,000 miles
Reply With Quote
