  #1
Old 03-30-2005, 10:25 AM
WGonzalez2's Avatar
WilsonF

Join Date: Mar 2005
Location: Texas-Austin
Posts: 12
This shows what tranys can do

1976 MB with 59K miles 5 cyl 3 speed. After no drive or reverse this was what I found: Converter lugs broken and worn out main pump.

Reply With Quote
  #2
Old 03-30-2005, 10:29 AM
WGonzalez2's Avatar
WilsonF

Join Date: Mar 2005
Location: Texas-Austin
Posts: 12
Ooooopss...... pics did not come on....

Now here are the pics.
Attached Thumbnails

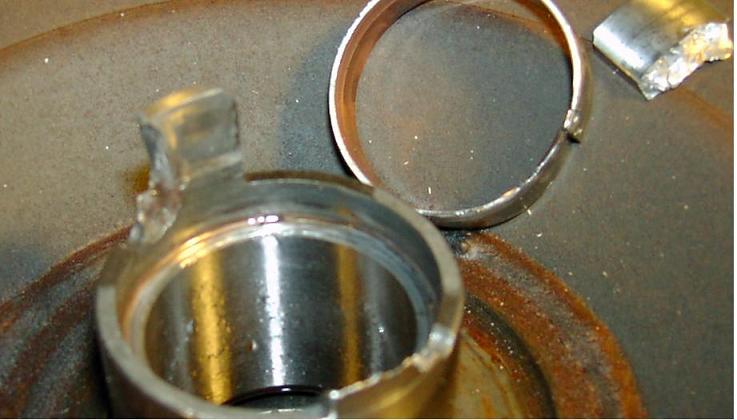

This shows what tranys can do-broken_converter_lips.jpg   This shows what tranys can do-main_pump_gears.jpg
Reply With Quote
  #3
Old 03-30-2005, 11:37 AM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
Wow, what a mess.

What do you think caused this with so low miles?

Haasman
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #4
Old 03-30-2005, 08:04 PM
Registered User

Join Date: Feb 2005
Location: Columbia, MD
Posts: 82
That'sretty bad. Takes some force or lesser force over a long time to do that.
Reply With Quote
  #5
Old 03-30-2005, 08:17 PM
boneheaddoctor's Avatar
Senior Benz fanatic

Join Date: May 2004
Location: Hells half acre (Great Falls, Virginia)
Posts: 16,007
I would bet someone was drop shifting that transmission......basicly reving the engine and then dropping it into drive from neutral....
__________________
Proud owner of ....
1971 280SE W108
1979 300SD W116
1983 300D W123
1975 Ironhead Sportster chopper
1987 GMC 3/4 ton 4X4 Diesel
1989 Honda Civic (Heavily modified)
---------------------
Section 609 MVAC Certified
---------------------
"He who fights with monsters might take care lest he thereby become a monster. And if you gaze for long into an abyss, the abyss gazes also into you." - Friedrich Nietzsche
Reply With Quote
  #6
Old 03-30-2005, 08:33 PM
88Black560SL

Join Date: Oct 2004
Location: CT
Posts: 3,510
Quote:
Originally Posted by boneheaddoctor
I would bet someone was drop shifting that transmission......basicly reving the engine and then dropping it into drive from neutral....
The pump lugs would not get severly loaded that way (neutral drop). My bet is a small piece of debis got in the pump and sized it. I have seen a neutral drop shear the input shaft, but at most the pump lugs only see pump loads.

John Roncallo
Reply With Quote
  #7
Old 03-30-2005, 08:38 PM
1991300SEL's Avatar
Registered User

Join Date: May 2003
Posts: 545
Quote:
Originally Posted by WGonzalez2
1976 MB with 59K miles
29 year old car with 59,000 miles???

I doubt it.
__________________
'91 300-SEL
Reply With Quote
  #8
Old 03-30-2005, 09:16 PM
Rahulio1989300E's Avatar
V10s & V8s FTW!

Join Date: Jan 2005
Posts: 1,147
Unf****** Believable!!!!!
__________________
2006 BMW M5 "Heidi" @ 109,000 miles
2005 MBZ C55 AMG "Lorelai" @ 165,000 miles
1991 MBZ 300E "Benzachino II" @ 165,000 miles
1990 MBZ 500SL "Shoshanna" @ 118,000 miles

(On the hunt for a good used M103 engine as of 6/10/23, PM me if you have one to sell!)
Reply With Quote
  #9
Old 03-30-2005, 10:52 PM
WGonzalez2's Avatar
WilsonF

Join Date: Mar 2005
Location: Texas-Austin
Posts: 12
Causes were......

I do not think the loading / unloading caused that, since the lugs drive only the main oil pump and have no idea of what horsepower is the engine pulling. As for anything getting inside there is very dificult to happen. I saw the pump cresent worn out badly, so my opinion is the the converter was maybe "pushed" not in alignment sometime when "they" worked on the engine or trany and bent a little the lugs. These in term worn out the bushing and the rotor (gear) part of the pump rubbed often against the cresent. With time the bushing wore out more and one lug broke remaining basicaly "in place" helping the pump gear to be "off center" and wore it more to the point there was no working pressure.
I have better pictures but cannot load them on the board. If interested send an e-mail to me and I will return 2 o 3 pictures. (WFGonzalez2@cs.com)
Right now I swapped the trany for an 1983 240D trany with vaccum modulation. (Bad luck, I have no vaccum modulation in my 1976 since the engine "load" is conveyed to the trany via a physical linkage from the gas pedal. So.... I am driving around with a hand pump utilized for testing vaccum systems in gas engines to simulate the engine load, basically 6 to 20 inches of mercury.
I am still happy with my "new" puppy, I just bought it with a brokent trany, but learning to deal with diesels for the first time in 66 years.
The unsolicited story (after I purchased it) about the mileage from the previous owner was that he bought it in Florida from the 1st. owner just a while ago and drove it to Texas. The engine has a lot of pep even on uphills, but burns a little something that I cannot figure out what it is (smells like diesel), so trying to see what to do with it. My best guess is that I will take the engine apart, file a little the rods and mains to get the proper bearing clearances and with new rings and chain see what happens !!! WHAT IS YOUR GUESS WILL HAPPEN?
Back at the ranch, the original trany still on the bench (a piece of 3/4 playwood) with new set of gaskets and debating where to pay the nearly $600 they ask for a new main pump, or just braze the cressent (inside) then get it on the lathe and machine it to take the original gears (seem in good shape yet) and get the baby back on the road with the original mechanical linkage modulation, stopping the driving with one hand on the steering wheel and another on the hand pump !
Reply With Quote
  #10
Old 03-31-2005, 12:40 AM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
Wow, you are an industrious man.

Post us a picture of you driving with the vacuum pump in hand! Classic.

Maybe a good used trans may be the most cost effective way to get the old girl back on the road.

Haasman
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #11
Old 03-31-2005, 05:45 AM
wbain5280's Avatar
Registered User

Join Date: May 2001
Location: Northern Va.
Posts: 3,386
What out where you do that pumping! People might get suspicious!
__________________
Regards

Warren

Currently 1965 220Sb, 2002 FORD Crown Vic Police Interceptor

Had 1965 220SEb, 1967 230S, 280SE 4.5, 300SE (W126), 420SEL

ENTER > = (HP RPN)

Not part of the in-crowd since 1952.
Reply With Quote
  #12
Old 03-31-2005, 10:59 AM
Registered User

Join Date: Aug 2002
Location: La Quinta, CA
Posts: 271
29 year old car with 59,000 miles???
_________________________________________________________________
Not unusual at all.....I own a '73 450SL with just 86K miles.

__________________
1986 560 SEL (159K miles)
Reply With Quote
