  #1
Old 05-14-2005, 08:41 PM
Robert Ryan

Join Date: Mar 2005
Location: Bay Area, CA
Posts: 222
Question Should I write-up a DIY article on W124 blower R&R?

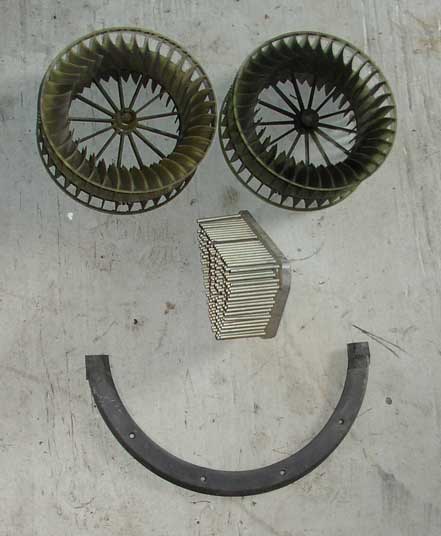

I spent the last couple of hours removing the blower from my 89 300TE. I managed to successfully remove the plastic squirrel cages from the motor shaft as well. Those in the market for a new blower know that saving the cages is saving $150.

I also removed the blower motor regulator and redid the thermal compound that lives between the transistor and the heatsink.

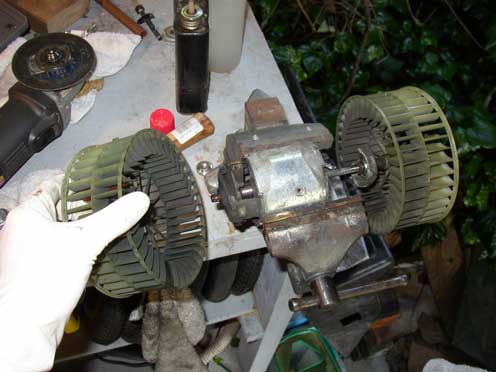

Basically I took a 4 1/2" angle grinder and cut up the motor, then used a drift to tap the shaft out of the plastic cage, backed up by a large socket. I photographed the entire thing, so if there's demand out there I'll put together a DIY article.

Robert

Attached Thumbnails
Should I write-up a DIY article on W124 blower R&R?-happyfan.jpg   Should I write-up a DIY article on W124 blower R&R?-cutshaft.jpg   Should I write-up a DIY article on W124 blower R&R?-cutshaft2.jpg
__________________
89 300te 222,222
92 300e 190,000
Reply With Quote
  #2
Old 05-15-2005, 01:25 AM
1991300SEL's Avatar
Registered User

Join Date: May 2003
Posts: 545
Robert:

Your previous contributions to this sites DIY section were very well done.

I suspect you'd do another fine job with this task.

Go for it if you can spare the time.
__________________
'91 300-SEL
Reply With Quote
  #3
Old 05-15-2005, 01:59 PM
Registered User

Join Date: Feb 2003
Location: roslyn, LI,NY
Posts: 445
blower motor repair

Dear Robert: If you begin on this excellent idea, maybe you can suppliment with notes on sl (107) models. Note no regulator, reostadt instead of chips. good luckAbe G
Reply With Quote
  #4
Old 05-15-2005, 02:05 PM
Robert Ryan

Join Date: Mar 2005
Location: Bay Area, CA
Posts: 222
If somebody will donate a 280SL I'll donate the article Actually I've never even been in an SL.

I've always liked the SL but I much prefer the M103 motors. Has anybody seen a 107 with a M103 motor?
__________________
89 300te 222,222
92 300e 190,000
Reply With Quote
  #5
Old 05-15-2005, 02:06 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
107 has blower resistor not reostat and the blower is too simple. What would you describe... remove screws, remove blower.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #6
Old 05-15-2005, 06:22 PM
Registered User

Join Date: Dec 2000
Location: AL
Posts: 1,219
I'm impressed that you got the squirrel cages off.

About five years ago the blower in my '90 300E quit. I bought a new motor intending to move the fans over to the new motor like you did. Well, I couldn't get them off and didn't want to chance breaking them.

The problem with the old motor was that it was locked up. Well, I worked it loose and put some oil on the shafts/bearings and reinstalled it.

Amazingly, it has worked perfectly ever since.

BTW, I enjoyed your article about replacing the U gasket. Except that you posted it about a month after I did that job on my car!
__________________
2012 E350
2006 Callaway SC560
Reply With Quote
  #7
Old 05-17-2005, 11:25 AM
Registered User

Join Date: Feb 2003
Location: roslyn, LI,NY
Posts: 445
replacing bloweer & motor on 107 450SL 1977

Finally got junkyeard motor into my blower. following cautions: 1) Be sure to remove small screw (s) from firewall side from Resistance plug. No DIY instructions advise this, and if not done will cause pigtail plug to break. (found this the hard way even after lots of research). Most plastic housing from original cars are age rotten! Be sure replacement housing is free from cracks and missing parts. I salvaged and used epoxy where ever needed, and frankly although everyhing is working NOW, I dont have much faith in longevity. Good luck to all, Abe g

Reply With Quote
