DIY article...W126 rear pads and rotors with pics...

Forgive me if I took alot of pics but I couldn't help myself. This is how easy it was.

PIC 1 Use a proper jack to jack up the vehicle.
PIC 2 Use proper jack stands.
PIC 3 Remove lug nuts. (bet your not as quick as my son)

Attached Thumbnails
DIY article...W126 rear pads and rotors with pics...-proper-jack-1.jpg   DIY article...W126 rear pads and rotors with pics...-jack-stand-2.jpg   DIY article...W126 rear pads and rotors with pics...-take-off-lug-nuts-3.jpg
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #2
Old 03-20-2008, 08:48 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,116
After the wheel is removed.

PIC 4 Remove two caliper bolts.
PIC 5 Remove caliper.
PIC 6 Remove rotor.

Note: It may be required to bang on the rotor a little to make it loose. If you plan on reusing the rotor be careful not to hit the shiny part.
(Swing away Orazio)
Attached Thumbnails
DIY article...W126 rear pads and rotors with pics...-bolts-caliper-off-4.jpg   DIY article...W126 rear pads and rotors with pics...-take-off-caliper-5.jpg   DIY article...W126 rear pads and rotors with pics...-bang-rotor-6.jpg
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #3
Old 03-20-2008, 08:51 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,116
Now that the rotor is loose.

PIC 7 Take off the rotor.

While your there spray everything with some brake clean. Those smaller shoes inside the rear caliper are your parking brake shoes. Adjust while you are there if necessary.

PIC 8 Spray brakes clean.

Now grab the caliper and tap out the retaining pins.

PIC 9 Tapping out the pins.
Attached Thumbnails
DIY article...W126 rear pads and rotors with pics...-take-off-rotor-7.jpg   DIY article...W126 rear pads and rotors with pics...-spray-brakes-clean-8.jpg   DIY article...W126 rear pads and rotors with pics...-tap-out-pins-9.jpg
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #4
Old 03-20-2008, 08:53 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,116
PIC 10 grab the pins on the other side and pull them out.

When pulling the pins be sure to take note of the retainer clip position.

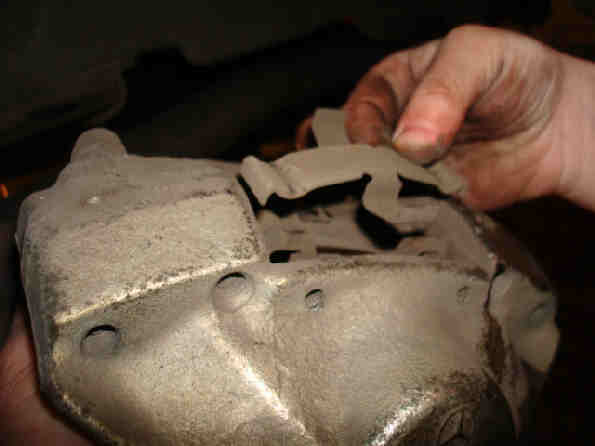

PIC 11 retainer clip position.

PIC 12 Be sure not to lose the clip.
Attached Thumbnails
DIY article...W126 rear pads and rotors with pics...-pull-pins-out-10.jpg   DIY article...W126 rear pads and rotors with pics...-retainer-clip-positon-11.jpg   DIY article...W126 rear pads and rotors with pics...-dont-lose-clip-12.jpg
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #5
Old 03-20-2008, 08:59 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,116
Now grab the caliper and an old pad. Put one of the old pads back in and use it to even out the pressure put on the piston. Grab a pair of channel locks and squeeze the piston back in. You may have to do the either piston as you hold the other from coming out. Alternate between the two, you'll get it. It was easy enough that my son actually did it himself.

PIC 13 Squeeze the pistons back in.

After the pistons are the ENTIRE way in slide new pads in place.

PIC 14 Slide new pads in place.

Now grab your new pins and retainer clip. LIGHTLY grease the pins to slide back in.

PIC 15 LIGHTLY grease the pins.
Attached Thumbnails
DIY article...W126 rear pads and rotors with pics...-pistons-back-13.jpg   DIY article...W126 rear pads and rotors with pics...-new-pads-place-14.jpg   DIY article...W126 rear pads and rotors with pics...-lightly-grease-pins-15.jpg
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #6
Old 03-20-2008, 09:01 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,116
PIC 16 This is how it should look.

Time to put the new rotor into place. Don't forget to spray the backside clean.
(Those look heavy)

PIC 17 New rotor and ready for spray.

PIC 18 When you put the rotor on be sure to hit the alignment pin with the proper hole in the rotor.
Attached Thumbnails
DIY article...W126 rear pads and rotors with pics...-pins-retainer-back-place-16.jpg   DIY article...W126 rear pads and rotors with pics...-new-rotor-going-17.jpg   DIY article...W126 rear pads and rotors with pics...-new-rotor-align-pin-18.jpg
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #7
Old 03-20-2008, 09:04 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,116

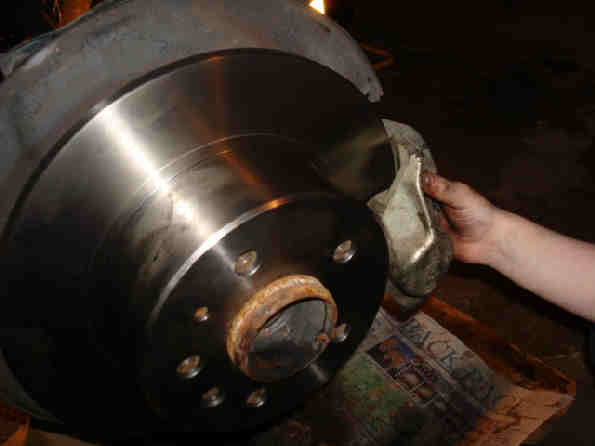

PIC 19 Time to slide the caliper into place.

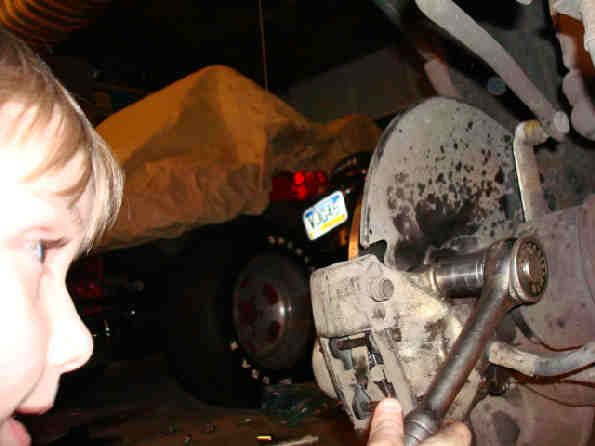

PIC 20 Align the two bolts on the backside and tighten down.
PIC 21 Put the wheel back on.

Don't forget to spray everything down with brake clean to get the film off of your new rotor.
Attached Thumbnails
DIY article...W126 rear pads and rotors with pics...-slide-caliper-into-place-19.jpg   DIY article...W126 rear pads and rotors with pics...-tighten-down-caliper-bolts-20.jpg   DIY article...W126 rear pads and rotors with pics...-put-wheel-back-21.jpg
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #8
Old 03-20-2008, 09:06 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,116
After you wheel is back on you can tighten the lug nuts as tight as you can get them with a wrench. Put the car back on the ground and tighten them again.

PIC 22 Time to wash up.
PIC 23 I DIDN'T EVEN GET DIRTY !!!!!
Attached Thumbnails
DIY article...W126 rear pads and rotors with pics...-time-wash-up-21.jpg   DIY article...W126 rear pads and rotors with pics...-i-never-got-dirty-22.jpg
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #9
Old 03-20-2008, 11:07 PM
Chris Bell's Avatar
Registered User

Join Date: Oct 2003
Location: Earth
Posts: 901
Good stuff

Just great.
__________________
I'm sick of .sig files
Reply With Quote
  #10
Old 03-21-2008, 12:28 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,438
Doesn't that violate child labor laws or something.... J/K!

That was neat to look through. I hope to do that someday when I have kids.

Maybe on my car too....if it survives its rust....
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)
Reply With Quote
  #11
Old 03-21-2008, 01:06 AM
wbain5280's Avatar
Registered User

Join Date: May 2001
Location: Northern Va.
Posts: 3,386
That's nice, but personally I wouldn't let my son near all that brake dust. There isn't any asbestos in the brake material anymore, but all that dust. YUK!
__________________
Regards

Warren

Currently 1965 220Sb, 2002 FORD Crown Vic Police Interceptor

Had 1965 220SEb, 1967 230S, 280SE 4.5, 300SE (W126), 420SEL

ENTER > = (HP RPN)

Not part of the in-crowd since 1952.
Reply With Quote
  #12
Old 03-21-2008, 08:44 AM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,116
Quote:
Originally Posted by wbain5280 View Post
That's nice, but personally I wouldn't let my son near all that brake dust. There isn't any asbestos in the brake material anymore, but all that dust. YUK!
Don't worry, I made him hold his breath the entire time.
__________________
'85 300SD (formerly california emissions)
'08 Chevy Tahoe
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'88 Kawasaki KDX200
'71 Hodaka Ace 100
'72 Triumph T100R
Reply With Quote
  #13
Old 03-21-2008, 08:47 AM
TheDon's Avatar
Ghost of Diesels Past

Join Date: Oct 2005
Posts: 13,285
and he didnt turn purple


Aespestos schemstos.. it grows hair on your chest

jk of course
Reply With Quote
  #14
Old 03-21-2008, 09:26 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: The People's Republic of Arlington, VA
Posts: 7,193
That's great, VW. Nice touch using your son in the pictures, too. It was both entertaining AND informative.
__________________
" We have nothing to fear but the main stream media itself . . . ."- Adapted from Franklin D Roosevelt for the 21st century

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 90,000 miles
2002 C320 Wagon 122,000 miles
2016 AMG GTS 12,000 miles
Reply With Quote
  #15
Old 03-21-2008, 09:31 AM
Chad300tdt's Avatar
Benzless Scoutmaster

Join Date: May 2007
Location: North Wales, PA
Posts: 4,001
That's great! I can't wait to have my son repair our wagon.

Nice write up.
