Can anyone tell me what this is

As I was pulling the cylinder head on my '91 300CE I bent a pipe that I had not noticed that was still attached. The pipe goes from the water pump, under the intake manifold, where it was bolted, to what I think is part of the cruise control. The pipe might be salavageable, but I thought that I wouldn't take the chance. I ordered the coolant pipe from the heater exchange to the coolant pump but that was the wrong one. Can anyone tell what I need?

Reply With Quote
  #2
Old 01-06-2009, 11:56 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
PIcture??
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #3
Old 01-06-2009, 12:00 PM
Registered User

Join Date: Aug 2008
Location: North TN
Posts: 118
I'll try to get some soon.
Reply With Quote
  #4
Old 01-06-2009, 05:19 PM
Registered User

Join Date: Aug 2002
Location: Southeastern PA
Posts: 3,030
jmerc6, the line you bent is a coolant line which runs under the intake manifold to the oil cooler, according to my Haynes Manual. Be sure to replace the O-ring where it attaches to the water pump.
__________________
Fred Hoelzle
Reply With Quote
  #5
Old 01-06-2009, 05:50 PM
865sp300e's Avatar
Talent Scout

Join Date: Feb 2005
Location: Yardley, PA
Posts: 318
Quote:
Originally Posted by Ferdman View Post
jmerc6, the line you bent is a coolant line which runs under the intake manifold to the oil cooler, according to my Haynes Manual. Be sure to replace the O-ring where it attaches to the water pump.
I agree from your description, there is a coolant pipe from the water pump to the oil filter/cooler. Whats odd is that my manual states its only for Australia (code 625).
__________________
'86 300E 5 speed
'71 Triumph TR6
'46 Cushman Scooter
'41 Ford 9N tractor
Reply With Quote
  #6
Old 01-06-2009, 09:28 PM
Registered User

Join Date: Aug 2008
Location: North TN
Posts: 118
Okay. I've got the picture, but I don't know how to load from my computer to the message board.
Reply With Quote
  #7
Old 01-07-2009, 02:49 AM
Registered User

Join Date: Sep 2004
Location: Seattle
Posts: 1,936
When you hit reply to thread, underneath the text box are "Additional Options".

The second option is "Attach Files", click on "manage attachments"
__________________
1998 C230 330,000 miles (currently dead of second failed EIS, yours will fail too, turning you into the dealer's personal human cash machine)
1988 F150 144,000 miles (leaks all the colors of the rainbow)
Previous stars: 1981 Brava 210,000 miles, 1978 128 150,000 miles, 1977 B200 Van 175,000 miles, 1972 Vega (great, if rusty, car), 1972 Celica, 1986.5 Supra
Reply With Quote
  #8
Old 01-07-2009, 10:30 AM
Registered User

Join Date: Aug 2008
Location: North TN
Posts: 118

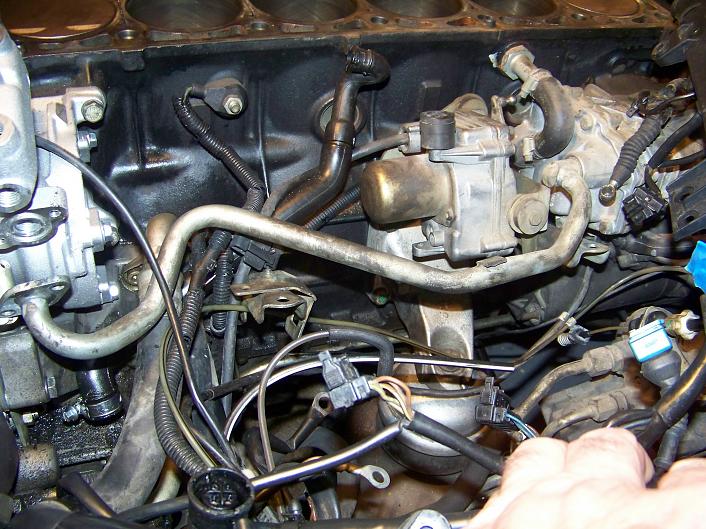

Can anyone tell me what this is-coolant-pipe.jpg
Thanks for the guidance. Here's the pic. When I looked that the coolant pipe at Allexpress, it doesn't look like the same pipe.
Reply With Quote
  #9
Old 01-07-2009, 01:36 PM
865sp300e's Avatar
Talent Scout

Join Date: Feb 2005
Location: Yardley, PA
Posts: 318
Quote:
Originally Posted by jmerc6 View Post
Attachment 62861
Thanks for the guidance. Here's the pic. When I looked that the coolant pipe at Allexpress, it doesn't look like the same pipe.
Cooling water line return from oil filter to water pump

Part# 104 200 05 52 (old part# 104 200 03 52)
__________________
'86 300E 5 speed
'71 Triumph TR6
'46 Cushman Scooter
'41 Ford 9N tractor
Reply With Quote
  #10
Old 01-07-2009, 05:24 PM
Registered User

Join Date: Aug 2008
Location: North TN
Posts: 118
Thanks, I'll call and order the part today!
Reply With Quote
  #11
Old 01-07-2009, 07:10 PM
Registered User

Join Date: Jul 2008
Posts: 1,236
That's a beefy steel pipe, and coolant pressures don't get above 16psi. I seriously doubt you have damaged it enough to really need a replacement. As long as you can get it back to its original shape and the ends mate properly, I'd say keep it.

-tp
Reply With Quote
  #12
Old 01-07-2009, 10:49 PM
Registered User

Join Date: Aug 2008
Location: North TN
Posts: 118
I had to cut off the intake mounting bracket. Do you think that there would be a vibration problem?
Reply With Quote
  #13
Old 01-07-2009, 11:34 PM
Registered User

Join Date: Jul 2008
Posts: 1,236
Oh, I didn't realize you had to cut the mounting bracket. I can't really say if there would be too much vibration or not. As long as there wasn't enough movement to unseat the O-ring, then you should be okay, but I am less sure of this now than I was before I knew the mounting bracket was history.

At this point you really would want to weigh the cost of a new one versus the pain of having to re-do it later.....

If in doubt, get a new one unless it is big $$. That might be a junkyard part... How hard to weld a new bracket on?

-tp
Reply With Quote
  #14
Old 01-08-2009, 04:07 PM
Registered User

Join Date: Aug 2008
Location: North TN
Posts: 118
I just got a price on a new pipe $200!! I think I'll try to fix the old one.
Reply With Quote
  #15
Old 01-08-2009, 08:25 PM
865sp300e's Avatar
Talent Scout

Join Date: Feb 2005
Location: Yardley, PA
Posts: 318
Quote:
Originally Posted by jmerc6 View Post
I just got a price on a new pipe $200!! I think I'll try to fix the old one.
Try Phil, click on "Buy Parts" at the top of this page and phone or email him. He also helped me locate used parts.

__________________
'86 300E 5 speed
'71 Triumph TR6
'46 Cushman Scooter
'41 Ford 9N tractor
