euro headlights 4 dummies....

Here we go. After nearly a year lusting after eurolights and clear corners for my benz I finally did it. I asked many, many questions along the way. Thank you all for your input. What follows is a few pictures of my installation. I hope it helps someone. If anyone has any questions I will gladly take more pictures and walk you through it.

The first picture is the old harness which I unplugged from the back of my lights. It is shown with the cover off next to the new harness.

Attached Thumbnails
euro headlights 4 dummies....-lights-011.jpg
__________________
'85 300SD (formerly california emissions)
'02 Jeep Grand Cherokee Limited
'04 VW Passat W8 (6spd manual) SOLD!!
'68/'69 Empi Imp body on '65 Beetle pan
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'72 Triumph T100R
'70 Yamaha R5 Rat Bike
Reply With Quote
  #2
Old 04-22-2003, 07:18 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,101
This is the pins installed in the new 6-pin harness.
Attached Thumbnails
euro headlights 4 dummies....-new-harness.jpg
__________________
'85 300SD (formerly california emissions)
'02 Jeep Grand Cherokee Limited
'04 VW Passat W8 (6spd manual) SOLD!!
'68/'69 Empi Imp body on '65 Beetle pan
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'72 Triumph T100R
'70 Yamaha R5 Rat Bike
Reply With Quote
  #3
Old 04-22-2003, 07:21 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,101
That new harness just simply plugs into the new lights. Actual installation of the lights is very straightforward. Three bolts each side.

The old look........
Attached Thumbnails
euro headlights 4 dummies....-frnt-right-b4.jpg
__________________
'85 300SD (formerly california emissions)
'02 Jeep Grand Cherokee Limited
'04 VW Passat W8 (6spd manual) SOLD!!
'68/'69 Empi Imp body on '65 Beetle pan
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'72 Triumph T100R
'70 Yamaha R5 Rat Bike
Reply With Quote
  #4
Old 04-22-2003, 07:24 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,101
Total of about $300 and an hour of my time. What a difference!!!
If anyone has any questions whatsoever either post them here or e-mail me and I will take more pics.

vwbuge@charter.net


FINISHED!!!!!!!!!!!!!!!!!!!!!!!!!
Attached Thumbnails
euro headlights 4 dummies....-frnt-right-after.jpg
__________________
'85 300SD (formerly california emissions)
'02 Jeep Grand Cherokee Limited
'04 VW Passat W8 (6spd manual) SOLD!!
'68/'69 Empi Imp body on '65 Beetle pan
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'72 Triumph T100R
'70 Yamaha R5 Rat Bike
Reply With Quote
  #5
Old 04-22-2003, 07:27 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,101

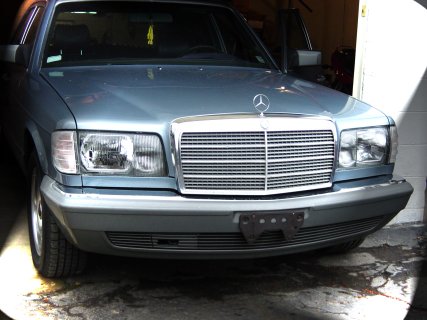

Full frontal.
Attached Thumbnails
euro headlights 4 dummies....-front.jpg
__________________
'85 300SD (formerly california emissions)
'02 Jeep Grand Cherokee Limited
'04 VW Passat W8 (6spd manual) SOLD!!
'68/'69 Empi Imp body on '65 Beetle pan
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'72 Triumph T100R
'70 Yamaha R5 Rat Bike
Reply With Quote
  #6
Old 04-22-2003, 07:33 PM
Holson Adi's Avatar
Registered User

Join Date: Jul 2001
Location: Boston, MA
Posts: 2,561
That looks sweet man!

Check out those silver'd out orange blinkers from powerbulbs.com

I like it orange though but that's just me.

I really like the diamond blue color on the body. If I was you, I'd source some Euro bumpers or later style bumpers and paint them the darker shade of blue (factory color to complement the diamond blue body color)

That'd look really sharp!

Are you going to do the rims too? I really like 17" AMG monoblocks or 16" 8-holes on W126's...
__________________
2008 BMW 335i Coupe
Reply With Quote
  #7
Old 04-22-2003, 07:41 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,101
I'm waiting until I get some tint for final pictures. I did just put on new wheels. I went with 16" wheels from a 2002 CLK. They are a tremendous upgrade from the stock 14".
__________________
'85 300SD (formerly california emissions)
'02 Jeep Grand Cherokee Limited
'04 VW Passat W8 (6spd manual) SOLD!!
'68/'69 Empi Imp body on '65 Beetle pan
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'72 Triumph T100R
'70 Yamaha R5 Rat Bike
Reply With Quote
  #8
Old 04-22-2003, 07:50 PM
ebennz's Avatar
Fire/Medic

Join Date: Nov 2000
Location: Hurricane, West Virginia
Posts: 878
vwbuge

WOW!!!!

they look GREAT!!

you took about 10 years off your car.

if you ever change bumpers, get a w126c [coupe] front bumper.
they have the fog lights in the bumper. i've seen this done and it looks good.

also check out member 'mattman's' w126 rhd australian spec.
it's very nice.

amg monblocks
lowered

peter
__________________
*92 400e 124.034, SOLD

*92 300e 124.030, SOLD
Reply With Quote
  #9
Old 04-22-2003, 07:54 PM
dakota's Avatar
Moof !

Join Date: Jul 2000
Location: Seattle WA USA
Posts: 469
Very nice, vwbuge. If your headlights have city light bulbs, a jumper wire from each corner light to headlight Pin #3 should power them up.
__________________
Steve
1992 300CE Sportline Sophie
1990 300E Emma - in the family
1979 240D Josephine - sold, but not forgotten
2004 Pacifica AWD
http://web.mac.com/dakota/Mercedes/Home.html
Reply With Quote
  #10
Old 04-22-2003, 08:07 PM
Registered User

Join Date: Dec 2002
Location: Houston
Posts: 131
Looks great, vwbuge. My 89 300SE has slightly different headlights. Is the conversion the same process?
__________________
RH

16 GLC300
12 C250
98 E300D
89 300SE
84 300SD sold
Reply With Quote
  #11
Old 04-23-2003, 01:30 AM
MikeTangas's Avatar
Senior Member

Join Date: Apr 2000
Location: So. Cal
Posts: 4,430
Conversion is the same.
__________________
Mike Tangas
'73 280SEL 4.5 (9/72)- RIP
Only 8,173 units built from 5/71 thru 11/72

'02 CLK320 Cabriolet - wifey's mid-life crisis

2012 VW Jetta Sportwagon TDI...at least its a diesel

Non illegitemae carborundum.
Reply With Quote
  #12
Old 04-23-2003, 02:58 AM
Mattman
Guest

Posts: n/a
That's a very tidy looking W126. I imagine that those CLK wheels really suit the look.

Have you looked at rear clear lenses? What about painting the grill?

Matt.
Reply With Quote
  #13
Old 04-23-2003, 09:58 AM
Benzman500
Guest

Posts: n/a
You left the best part of job out though Installing the aim for the lights
Looks very nice congrats
Reply With Quote
  #14
Old 04-25-2003, 04:12 PM
vwbuge's Avatar
Registered User

Join Date: Sep 2001
Location: Johnstown, Pennsylvania
Posts: 2,101
Aiming was pretty straightforward also. Just a matter of judgement. I looked at the clear taillights and didn't care for the look. I will have to fool around with paint shop to see if I like the grille painted blue. I can't wait to throw on a light coat of tint and take some final pictures. I will post B4 and after.
__________________
'85 300SD (formerly california emissions)
'02 Jeep Grand Cherokee Limited
'04 VW Passat W8 (6spd manual) SOLD!!
'68/'69 Empi Imp body on '65 Beetle pan
'93 Ducati 900 SS
'79 Kawasaki KZ 650
'86 Kawasaki KX 250
'72 Triumph T100R
'70 Yamaha R5 Rat Bike
Reply With Quote
  #15
Old 04-25-2003, 09:10 PM
MTI's Avatar
MTI MTI is offline
Registered User

Join Date: Nov 2002
Location: Scottsdale, Arizona
Posts: 10,626
I think Benzman was refering to the headlight adjuster that euro cars have. A vacuum switch allows the reflector to be aimed lower when the car has weight in the rear.
