W123 Wagon Differential change

Hey - I have a UK 230TE 1985. 82k miles!

It runs at 3,300 rpm for 70mph! Is that usual?! It does not have ABS.

I'd like to get the revs and therefore noise down at cruising speeds, so am looking at swapping out the diff.

1. What is the diff ratio on my car? Where is it indicated?
2. What ratio should /could I swap it out to?
3. Which bits do I need from a which donor car? (I have a good source of components - so just tell me what I'd need!!)

Has anyone done this - how long a job is it?!

cheers!:p

__________________
>Joe

http://www.bonnemay.co.uk/pics/W123_48.gif
1984 W123 230E Saloon/Sedan! (82k miles - Ice Blue as new)
1985 W123 230TE (96K miles - stinkingly nice!)
1995 W124 E320 Wagon (130k miles)
Future projects:
Sportline Suspension W124, W123 TE restoration, A/C, cruise & powered seats retrofit!

>Based in the UK!
Reply With Quote
  #2
Old 08-08-2003, 01:33 PM
Registered Diesel Burner

Join Date: Aug 2001
Location: Northern Virginia
Posts: 2,911

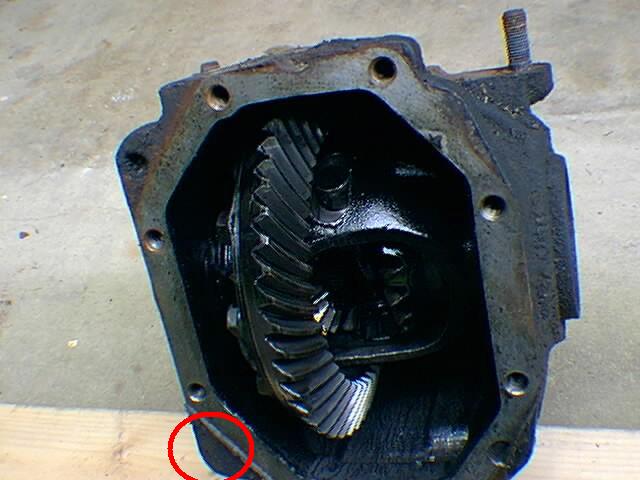

On most of the differentials, the ratio is stamped into the differential case in the lower left hand flange area, looking at the differential from the back of the car.

I can give you an idea of where to look from this picture, modified with a red circle to show where the stamp is normally located.


Ken300D
Attached Thumbnails
W123 Wagon Differential change-diff.jpg
__________________
--------------------------
1982 300D at 351K miles
1984 300SD at 217K miles
1987 300D at 370K miles
Reply With Quote
  #3
Old 08-08-2003, 03:08 PM
Registered User

Join Date: Feb 2001
Posts: 162
Thanks I will have a look, once I know what it is I'd really appreciate you opinion on the options I have!

cheers

>Joe
__________________
>Joe

http://www.bonnemay.co.uk/pics/W123_48.gif
1984 W123 230E Saloon/Sedan! (82k miles - Ice Blue as new)
1985 W123 230TE (96K miles - stinkingly nice!)
1995 W124 E320 Wagon (130k miles)
Future projects:
Sportline Suspension W124, W123 TE restoration, A/C, cruise & powered seats retrofit!

>Based in the UK!
Reply With Quote
  #4
Old 08-21-2003, 06:01 PM
daviddonalson
Guest

Posts: n/a
Mine too

It feels like it should have another gear to shift to.
Reply With Quote
  #5
Old 01-10-2004, 07:43 AM
Registered User

Join Date: Sep 1999
Location: Atlanta, GA USA
Posts: 281
Dude, tell us more about your engine swap in the CE. If it is already posted somewhere send me a link.

Sounds fast

Cardude,

Last edited by Cardude; 01-13-2004 at 05:50 AM.
Reply With Quote
  #6
Old 01-10-2004, 12:43 PM
daviddonalson
Guest

Posts: n/a
It is posted somewhere but I dont remember where. Long story short - I bought a Renegade Hybrids engine swap kit for my Porsche 944 and oh my god, instant supercar. With my extensive welding and fabrication skills I decided to make the kit myself as
I went along doing a swap on a retired 300CE. Was not easy. Took a very long time. All black, Wald body kit, ungodly huge AMG wheels, springs and sway bars, less than ten grand total. Totally smoking a $160,000 Ferrari-- priceless. Tag reads PUREVIL. Sorry I dont have a camera or scanner (not much of a computer person) my friend did the pics on the other site.
Reply With Quote
  #7
Old 01-10-2004, 01:17 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
It looks like the ratios were 3.69 or 3.58 with the first being the later version. Amazingly enough the 280 and 240D both use the 3.69 or 3.58 ratios also. There is a 3.46 in some 300TDs.

I don't think it would be worth the work to go from 3.69 to 3.58 or from 3.58 to 3.46. Now if you can find a 300TD turbodiesel it should have a 3.07 and if you can get an 85 US turbo diesel I think they had 2.88 ratio.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #8
Old 01-10-2004, 01:27 PM
daviddonalson
Guest

Posts: n/a
Kind of looks like this.

http://www.waldusa.com/W124_V4_coupe_(90-95).html


Mine has different grill, lights and wheels and dual mufflers.
A friend helped me get this kit, he says its very hard to find.

Last edited by daviddonalson; 01-10-2004 at 01:38 PM.
Reply With Quote
  #9
Old 01-10-2004, 08:00 PM
Registered User

Join Date: Sep 1999
Location: Atlanta, GA USA
Posts: 281
Other Site, hmmmm that would be great to see some actual pictures of it. What part of the world are you located in.


Cardude,
Reply With Quote
  #10
Old 01-10-2004, 10:00 PM
Registered User

Join Date: May 2003
Location: Boonville Indiana
Posts: 2,342
307

I would go with the 307 from a 300D-Turbo Diesel...and then if you wanted a little more I would run 15 or 16 inch rims with taller tires..just an idea...Jim

__________________
James A. Harris
Reply With Quote
