bent wheel

I have a W126 300SDL.

I encountered a friendly forest creature in the middle of the road, scrambling across it, just a few minutes from my house. I locked up the brakes and tried to swerve around it. I heard a clunk, like the type of clunk you get when vaccuum pressure is too low in a transmission. The car started pulling WAY off to the left, and the steering wheel followed. When I tried to center the steering wheel, it would still pull dangerously sharp to the left.

I got out of the car and inspected the driver's side wheel (as that's where the clunk came from). Didn't notice much, until I went to the front of the car and compared the two front wheels. The bottom of the wheel on the driver's side was bent outward about 15 - 20 degrees, and the one on the passenger side was perfectly straight.

What could it be?

I will drive the SE for now.

__________________
1987 300SDL (324000)

1986 Porsche 951 (944 Turbo) (166000)

1978 Porsche 924 (99000)

1996 Nissan Pathfinder R50 (201000)
Reply With Quote
  #2
Old 09-29-2003, 04:19 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694
Something is definately broken.
It's either your lower ball joint ( number 10), your Lower control arm bushing ( number 7 )or possibly your track rod mount (number 20 and 21). It is possible that it could be your spindle, but highly unlikely ( number 9).
Do not drive the car. Have it towed to a suspension shop, Dealer or an independent that you like. Or if you are a DIY your looking at some suspension work.
Attached Thumbnails
bent wheel-126-front-suspension.gif
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 09-29-2003 at 04:28 PM.
Reply With Quote
  #3
Old 09-29-2003, 06:27 PM
Registered User

Join Date: May 2003
Posts: 2,220
What does the trailing arm look like? I think that is what snapped. Help me guys, my baby is down and out (the same one in the avatar).
__________________
1987 300SDL (324000)

1986 Porsche 951 (944 Turbo) (166000)

1978 Porsche 924 (99000)

1996 Nissan Pathfinder R50 (201000)
Reply With Quote
  #4
Old 09-29-2003, 07:03 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694
Jack the car up and place it on some jack stands. Just the left side.
If you don't have any jacks and jackstands use the Mercedes jack. Just don't go under the car while it is jacked up. remove the tire. This will allow you to view the area better. Look at the assembly. Let us know what looks broken. With the wheel the way you discribed something will not look right. The attached image is for the SDL that you have. the previous picture was for the SD.

You do not have a trailing arm in the front suspension. So lets go through each one.

Item #13 and #14, this is your track rod mount and track rod. item 13 will be screwed into item 14 which is the rod. The rod is inserted into the lower control arm, Item # 6. this shoul dbe a solid instalation and connection.

Item #6 This is the Lower control arm. It is attached to the frame of the car at the bushing which are #7. That bolt and rubber bushing go throu the hole at the end of the control arm and that is bolted to the fram of the car. the other end of the LCA should be attached to the steering spindle #11. It is attached by a ball joint #12. the ball joint is pressed into the LCA and then a bolt attaches it to the steering spindle.

Item # 11 is your steering spinlde which is attached to the Upper control arm (UCA) at the ball joint #3. The other side of the UCA is attached to the frame of the car by a bolt and bushings #5.

#4 is your sway bar attachment that goes thru the UCA. Don't worry about this.

Broken pieces. Are any of the following broken. # 6 the lower control arm. #11 the streering spindle. #3 that upper control arm.
#14 the track rod. Are any of them disconnected. Your track arm may have released form the track rod mount, #13.

Are the subframe bushings #16 still attached to the car body?

Your going to have to get the car up on a lift or on jacks to be able to tell us what is broken in the car.

Dave

PS If you can place the car on 2 front jackstands. Remove both front tires and start comparing the 2 front sides. The car is built symetrically, only a mirror image. Compare both sides and tell us what looks different. Remember there mirror images, but each component should look the same left side to right side.
Attached Thumbnails
bent wheel-300sdl-suspension.gif
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #5
Old 09-29-2003, 07:35 PM
Registered User

Join Date: May 2003
Posts: 2,220
this is what broke off,

__________________
1987 300SDL (324000)

1986 Porsche 951 (944 Turbo) (166000)

1978 Porsche 924 (99000)

1996 Nissan Pathfinder R50 (201000)
Reply With Quote
  #6
Old 09-29-2003, 07:43 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694

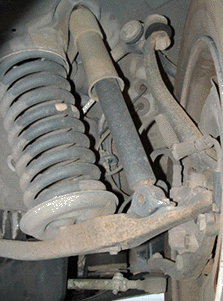

My 1986 300SDL front end. Us it to compare your sus pension. this is the driver side.

Dave

PS Now compare what you see here and what is on your car. Match the parts you see assemled to the diagrams I posted.
Attached Thumbnails
bent wheel-300sdl-front-sus-1-gif-.gif
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #7
Old 09-29-2003, 07:44 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694
More

Dave
Attached Thumbnails
bent wheel-300sdl-front-sus-3-gif.gif
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #8
Old 09-29-2003, 07:46 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694

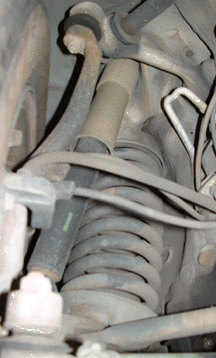

More. This is from the rear of the tire.
