Is this ignition harness new?

Bought the car in December, and now with warmer weather, I'm looking under the hood.

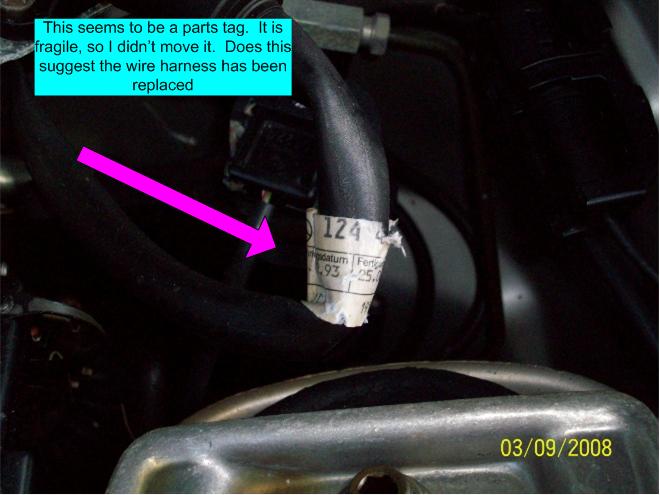

Do these pictures suggest the wiring harness has been replaced? The one picture shows a parts tag.

Could I be so lucky?

13 year old car with 198,000 miles - guess it had to have a replacement to last that long.

Your thoughts are appreciated

Attached Thumbnails
Is this ignition harness new?-wire3a.jpg   Is this ignition harness new?-wire2a.jpg   Is this ignition harness new?-wire1a.jpg   Is this ignition harness new?-part-taga.jpg
__________________
Thanks for the help
Bill Fisher

'86 560SL (186K) - Now a 'classic' : Registered as an Historic Vehicle
02 E430 in the stable
'14 LS460 (Lexus)
- - - - -
'95 E420 (198K) found a new home
'99 E320 (80K) (gave it's life for me as we hit a bumper)
'95 E420 (231K) Sold to a happy buyer, new to Mercedes
'90 300E (65K) Sold to an Mercedes Lover
'92 190E (215K) - retired to the salvage yard
'93 500SEL (214K) - Moved to another family, still runs like a young pup
Reply With Quote
  #2
Old 03-09-2008, 11:04 PM
Larry Delor's Avatar
What, Me Worry?

Join Date: Jun 1999
Location: Sarasota, Fl.
Posts: 3,114
I'm not sure - the last pic, shows a date of '93.
The second pic, has vacuum lines - why the ends of the vacuum hoses get brown, is a mystery to me.
__________________
It is a truism that almost any sect, cult, or religion will legislate its creed into law if it acquires the political power to do so. Robert A. Heinlein


09 Jetta TDI
1985 300D
Reply With Quote
  #3
Old 03-10-2008, 10:54 PM
Registered User

Join Date: Sep 2002
Location: Allentown, PA
Posts: 482
For piks & info go here
http://www.peachparts.com/Wikka/M104WireHarness

First pik is at thermostat. Second pik is coil connector. Easy to id bad insulation. Cable to computer behind battery has the id tag you need.

Also check battery "B" harness. Small wires from solenoid and oil pressure also have same problem as main engine harness.
Reply With Quote
  #4
Old 03-11-2008, 05:30 PM
Registered User

Join Date: Feb 2007
Posts: 176
Look for a white plastic tag

On the harness at the battery area should be a small white plastic tag with a build date for the harness. Note: MB had all the new harnesses built by a different firm (begins with a D as I recall). The tag is a held on with a zip tie.

Quote:
Originally Posted by tivoliman View Post
Bought the car in December, and now with warmer weather, I'm looking under the hood.

Do these pictures suggest the wiring harness has been replaced? The one picture shows a parts tag.

Could I be so lucky?

13 year old car with 198,000 miles - guess it had to have a replacement to last that long.

Your thoughts are appreciated
Reply With Quote
  #5
Old 03-16-2008, 09:43 PM
tivoliman's Avatar
Happy with Mercedes

Join Date: Dec 2002
Location: New Jersey
Posts: 396
Thanks - pictures to come

I took a look at "battery Area" for the tag. Don't think I saw it. I'll post pictures for others when it come back from the independent shop.

Getting the error codes read - among other things - may need the ETA.

__________________
Thanks for the help
Bill Fisher

'86 560SL (186K) - Now a 'classic' : Registered as an Historic Vehicle
02 E430 in the stable
'14 LS460 (Lexus)
- - - - -
'95 E420 (198K) found a new home
'99 E320 (80K) (gave it's life for me as we hit a bumper)
'95 E420 (231K) Sold to a happy buyer, new to Mercedes
'90 300E (65K) Sold to an Mercedes Lover
'92 190E (215K) - retired to the salvage yard
'93 500SEL (214K) - Moved to another family, still runs like a young pup
Reply With Quote
  #6
Old 03-29-2008, 12:31 PM
tivoliman's Avatar
Happy with Mercedes

Join Date: Dec 2002
Location: New Jersey
Posts: 396
Took it to the mechanic

Well - the wiring harness is "old"

There is no tag on the cable near the control box - thanks for the suggestion.

Up by the thermostat - the mechanic showed me some broken wire shields. Yep needs replaced.

Will replace myself (or try to) and will post pictures - this will be months in the execution - weekends are mostly booked with family outings.
__________________
Thanks for the help
Bill Fisher

'86 560SL (186K) - Now a 'classic' : Registered as an Historic Vehicle
02 E430 in the stable
'14 LS460 (Lexus)
- - - - -
'95 E420 (198K) found a new home
'99 E320 (80K) (gave it's life for me as we hit a bumper)
'95 E420 (231K) Sold to a happy buyer, new to Mercedes
'90 300E (65K) Sold to an Mercedes Lover
'92 190E (215K) - retired to the salvage yard
'93 500SEL (214K) - Moved to another family, still runs like a young pup
Reply With Quote
  #7
Old 03-29-2008, 11:22 PM
Registered User

Join Date: Sep 2002
Location: Allentown, PA
Posts: 482
A March 2008 thread on the http://mbca.cartama.net/ forum indicates the harness can be purchased for about $500. You should also check with Phil here at Fastlane.

Although I didn't have to R&R my harness there was a time I thought I might have to do it and read many posts regarding the diy. It appears to require patience and a long afternoon, but is not technically difficult or requiring special tools.

Bob
PS R&Ring a Benz wiring harness gives new meaning to "Plug & play".
Reply With Quote
  #8
Old 03-30-2008, 10:24 AM
BMG BMG is offline
Registered User

Join Date: Jan 2008
Location: Eastern PA
Posts: 87
The cost of the harness depends on the model. Mine was listed at 890. Not having the money at the time, I rebuilt mine. Took three plus days to unwrap, build, test, and reinstall.

The actual install was fairly straightforward and easy. If you purchased a harness and removed / replaced at the same time, it would probably take 2-3 hours. Key is to start at the ECM plug by the battery and work to the ends. Simply unplug one connection, move out of the way, reinstall portion of the new harness and replug new connection all the time working to the various loose ends last. Make sure the attery is disconnected first.

Take lots of BEFORE pictures incase you get interrupted and forget what is where.

As to the ETA, it is plagued by the same wiring problems. You can either by a rebuilt/new, send yours out for rebuilding (requires car to be idle for several days), or rebuild the short harness yourself. There is a DIY article on it somewhere in the forums. In addition, you can order the ETA pigtail from MB for roughly $20. Its an overseas order so it takes some shipping time.
