Help needed finding a part / solution

G'day Folks,

I get the feeling I'm half way up **** creek with out a paddle!

Throttle valve position sensor is bust. It is meant to give a signal of less than one ohm when it is either in the closed or open (WOT) position. It doesn't - it gives more than 2 ohms and this generates an ECU error signal.

The switch has part number 126 540 59 45 on it but this is NLA

The other numbers (LK <= seems to be Hella) 04 8062 67 and the VDO number 90 003 081 also give me no joy.

The diameter of the throttle housing is 60mm. I get the impression the majority of the second hand throttle housing with the switch on the second hand market are of a larger diameter which I assume would mean they won't fit my inlet manifold...

...besides all that is wrong with the mechanism is the switch.

Has anyone got any alternative numbers for this switch?

The number starting with a 126 gives me the impression it was used with larger engines in the W126 s-class series (although that isn't always the case).





Attached Thumbnails
Help needed finding a part / solution-m102_910-throttle-valve-sensor1.jpg   Help needed finding a part / solution-m102_910-throttle-valve-sensor2.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #2
Old 01-11-2016, 09:56 AM
slk230red's Avatar
WECO Installer

Join Date: Jul 2006
Location: Tampa, FL
Posts: 820
I hate it when parts are discontinued. I can get just about any part for my 1971 Corvette, but the '93 190E is getting tougher.

Here's one used on eBay.....

W124 W201 M102 Drosselklappe 1265405945 | eBay
__________________

1993 190E 2.3
2001 SLK230
1971 LS5 (454) Corvette Convertible
Reply With Quote
  #3
Old 01-11-2016, 10:00 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by slk230red View Post
I hate it when parts are discontinued. I can get just about any part for my 1971 Corvette, but the '93 190E is getting tougher.

Here's one used on eBay.....

W124 W201 M102 Drosselklappe 1265405945 | eBay
Thank you I have seen that one.

If I have to spend that much I will have to do so. The problem is that I doubt very much if the sensor has been tested. If that also gives an error then I'm sending stuff back...

...I'd rather have a new sensor.

Still thanks for your help. That page is bookmarked.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #4
Old 01-11-2016, 11:04 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461

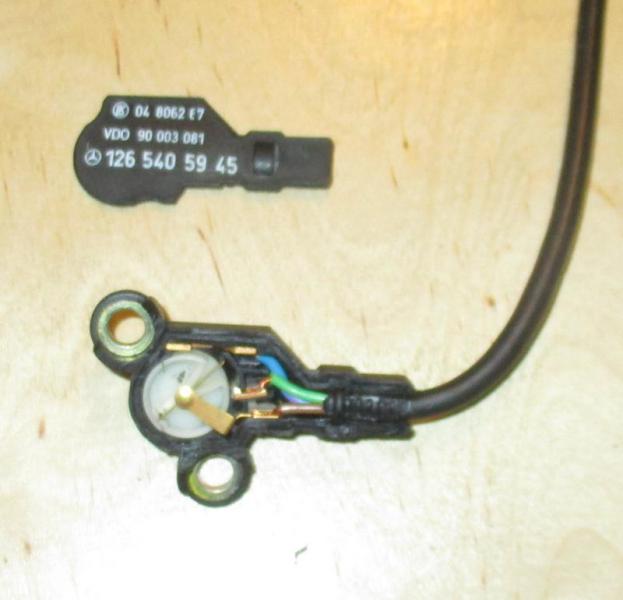

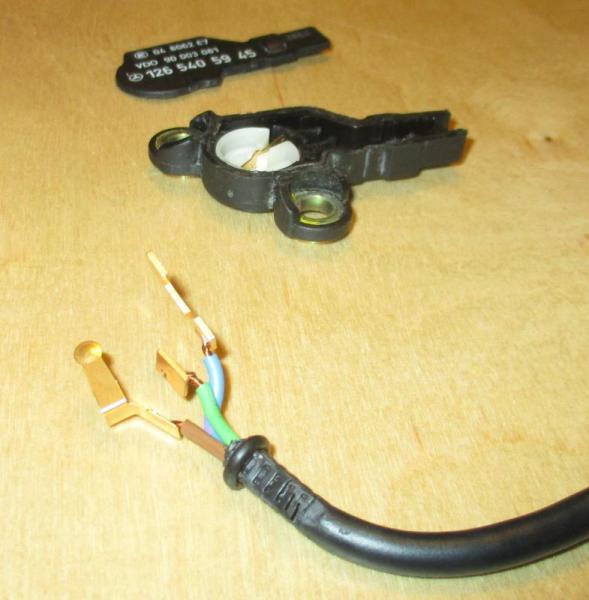

15 minutes with a stanley knife...

...and I cut off the lid to see how complicated the switch is









Bloody rocket science (again).

I'm going to try some contact spray and see if I can get the main contact that spins under a bit more pressure.

I've buggered the top a bit cutting it off but I guess a bit of glue will make that kind of OK again (perhaps)
Attached Thumbnails
Help needed finding a part / solution-m102_910-throttle-position-switch-126-540-59-45-bits1.jpg   Help needed finding a part / solution-m102_910-throttle-position-switch-126-540-59-45-bits2.jpg   Help needed finding a part / solution-m102_910-throttle-position-switch-126-540-59-45-bits3.jpg   Help needed finding a part / solution-m102_910-throttle-position-switch-126-540-59-45-bits4.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #5
Old 01-11-2016, 01:25 PM
Dr. Sternschnuppe's Avatar
Registered User

Join Date: May 2012
Location: CH
Posts: 574
Arrow

Available only with throttle valve, p/n 001 140 90 53.

126 540 59 45 = 201 540 42 45.
Reply With Quote
  #6
Old 01-11-2016, 01:37 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by Dr. Sternschnuppe View Post
Available only with throttle valve, p/n 001 140 90 53.

126 540 59 45 = 201 540 42 45.
Thank you very much for your help with this.

The classic parts site lists the price for 0011409053 for about 200 euros. Seeing the cost / asking price of the second hand ones at more than half this price I think I'd rather splurge for the new part.

Still I'm hoping a bit of contact spray and glue will be all that is needed for now!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #7
Old 01-12-2016, 07:05 AM
Hirnbeiss's Avatar
ich fahre, also bin ich

Join Date: Mar 2002
Location: South Florida
Posts: 1,671
If that doesn't work, try this:

Drosselklappe 0011409053 1265405945mercedes W201 190E | eBay
__________________
Prost!
Reply With Quote
  #8
Old 01-12-2016, 10:40 AM
Registered User

Join Date: Aug 2006
Posts: 726
You should be able to clean the contacts and glue it back together.
I use a black epoxy for jobs like this. Makes an almost invisible repair.
Loctite 11C Hysol part number 1373435.
If you get a used replacement, you could drill a small hole and spray some contact cleaner in it. Now that you have one apart you will be able to tell where not to drill.
Reply With Quote
  #9
Old 01-12-2016, 11:02 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by Hirnbeiss View Post
Thanks.


Quote:
Originally Posted by Rick76 View Post
You should be able to clean the contacts and glue it back together.
I use a black epoxy for jobs like this. Makes an almost invisible repair.
Loctite 11C Hysol part number 1373435.
If you get a used replacement, you could drill a small hole and spray some contact cleaner in it. Now that you have one apart you will be able to tell where not to drill.
Just the man Rick!

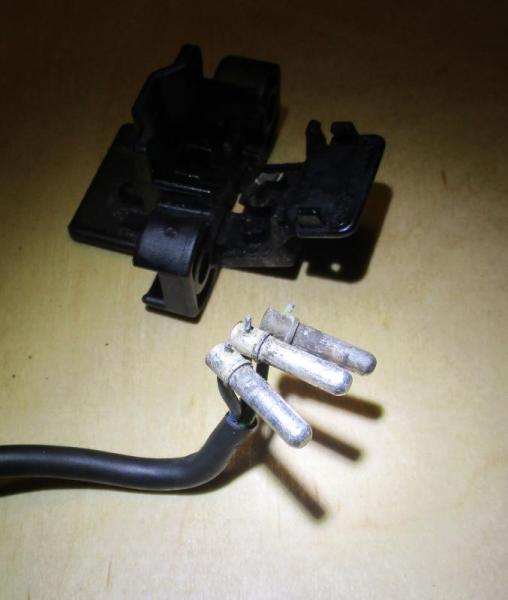

I was about to PM you about a part number for pins. You helped me before with a part number for the smaller 1.6mm (?) diameter pins that fit in the X11 diagnostic socket - I was wondering if you have the part number for the larger 4mm diameter pins too...

...because...

...I think summit's up with the wire and the connections at the other end of the sensor.

The parts inside the switch are so clean - and have now been even more cleaned! But the other end is just grotty. I think that's where the resistance in the system is =>

Attached Thumbnails
Help needed finding a part / solution-m102_910-throttle-valve-switch-problem-connection-pins.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #10
Old 01-12-2016, 11:29 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
I must correct myself. Pin for x11 diagnostic socket is 2.5mm

http://www.peachparts.com/shopforum/tech-help/363890-plug-small-x11-diagnostic-socket.html

2.5 mm pin P/N = 011 545 16 28
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #11
Old 01-12-2016, 01:23 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
I think I've got it!

Mercedes-benz | iAUTO.lt

0135457928

One euro 50 a pop at the dealership
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #12
Old 01-12-2016, 01:45 PM
Registered User

Join Date: Aug 2006
Posts: 726
I also found 003 545 44 26 and a 001 545 38 26 but I don't know which would fit your connector. The female looks like 003 545 26 26. I've never bought the 4mm contacts. I usually pick up a supply at the wrecker taking them from inside the cabin or trunk where they are not corroded.
They might clean up OK with a little Brasso or Silvero on a Q tip and then dielectric grease or one of the specialty greases for electrical connectors.
Tighten the female contact after cleaning if not replacing.

I believe that connector is also used for the blower on a 124 (above the brake booster) and from wires coming from the oil level sensor and starter. Also in blower circuit of MY87 and beyond 126's. These connectors are mounted in the dual firewall so should be corrosion free.

Last edited by Rick76; 01-12-2016 at 01:55 PM.
Reply With Quote
  #13
Old 01-12-2016, 06:16 PM
Registered User

Join Date: Jan 2012
Posts: 7,534
That is more of a throttle switch than a throttle position sensor since it turns on and off rather than a variable resistance.

The round connector pins are silver plated, this was MB's solution for making reliable connectors before someone decided to make sealed connectors.

These can be cleaned and a bit of grease put on to seal.
Reply With Quote
  #14
Old 01-13-2016, 08:56 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by Rick76 View Post
I also found 003 545 44 26 and a 001 545 38 26 but I don't know which would fit your connector. The female looks like 003 545 26 26. I've never bought the 4mm contacts. I usually pick up a supply at the wrecker taking them from inside the cabin or trunk where they are not corroded.
They might clean up OK with a little Brasso or Silvero on a Q tip and then dielectric grease or one of the specialty greases for electrical connectors.
Tighten the female contact after cleaning if not replacing.

I believe that connector is also used for the blower on a 124 (above the brake booster) and from wires coming from the oil level sensor and starter. Also in blower circuit of MY87 and beyond 126's. These connectors are mounted in the dual firewall so should be corrosion free.
Thanks again Rick. I'll see how I get on with the pins I have already ordered. They should arrive tomorrow.

Quote:
Originally Posted by 97 SL320 View Post
That is more of a throttle switch than a throttle position sensor since it turns on and off rather than a variable resistance.

The round connector pins are silver plated, this was MB's solution for making reliable connectors before someone decided to make sealed connectors.

These can be cleaned and a bit of grease put on to seal.
I'm going to see how I get on with de-soldering as I'm pretty sure the joints are buggered.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #15
Old 01-13-2016, 09:40 PM
Registered User

Join Date: Jan 2012
Posts: 7,534
If for some reason you can't get this switch going again / can't get another one, a couple of micro switches / industrial limit switches would do the job.

Reply With Quote
