More existential rust crises for Bodhi (and me)

Bodhi and I are having another existential crisis and I could use a little advice and/or encouragement. Or a lot of it.
The car has been going fantastic lately and I haven't really had to do anything but oil changes and an aux water pump swap. I was actually itching for a project so I decided to take off the passenger front fender and clean up some lumpy old rust repair on the fender itself. While I had it off I decided I might as well clean up the wheel well, where, with the fender off, I could spot some of what I thought was surface rust. I should know by now what to expect from "surface rust." The pictures tell the story. Now I have a giant hole, plus the air cleaner mount is barely attached and the two front bolts that hole the wheel well lining on are gone (that's where the rust started, obviously). It is obvious to me patches need to be welded in. I have a part clip with the area of the big hole, but I'm not sure about the two rear areas because the mounting is different on the diesel.
I was wondering if anyone else has had an issue with rust in this area, and how did you deal with it? On the bright side, I am more motivated to learn to weld than ever, so maybe after seven years I can finally get over my fears and actually do it. It's kind of my white whale in terms of overcoming apprehensions. On the other hand I'm looking at the positioning of this job and getting overwhelmed. I think it would take me months to get to the skill level to attempt welding in the engine compartment, and I don't want my car out of commission that long. Could I rivet in a couple patches, POR the heck out of it, and come back to it when I reach that skill level? Or would that just be asking for worse rust?
If I did weld it ... I understand from previous advice and Googling that an arc welder would not be suitable for the job. I guess I need a MIG? I don't care if it's ugly but I don't want slag flying all over or to end up slicing the fender up. Also, would I want to weld smaller patches in at each rust point (assuming the metal between is OK ... I haven't scraped all the paint off yet), or just cut out that entire front area of the wheel well?
I guess those are kind of vague questions, but I'm really just fishing for what other people would do, and I know there's a lot of experience AND imagination on here. I do realize a lot of you would just put the engine in a cleaner car, but I am not considering that as an option at this point. Too much of this car is too nice to do that.
Pictures:
Attached Thumbnails

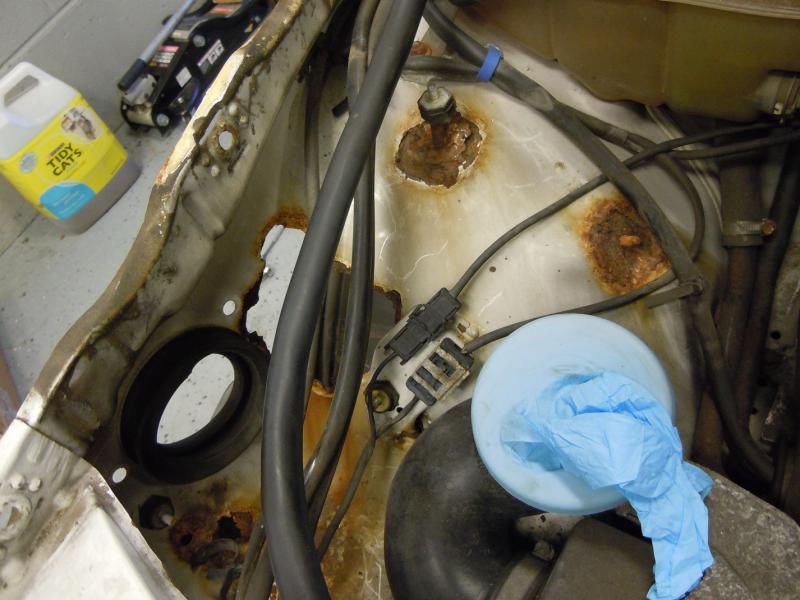

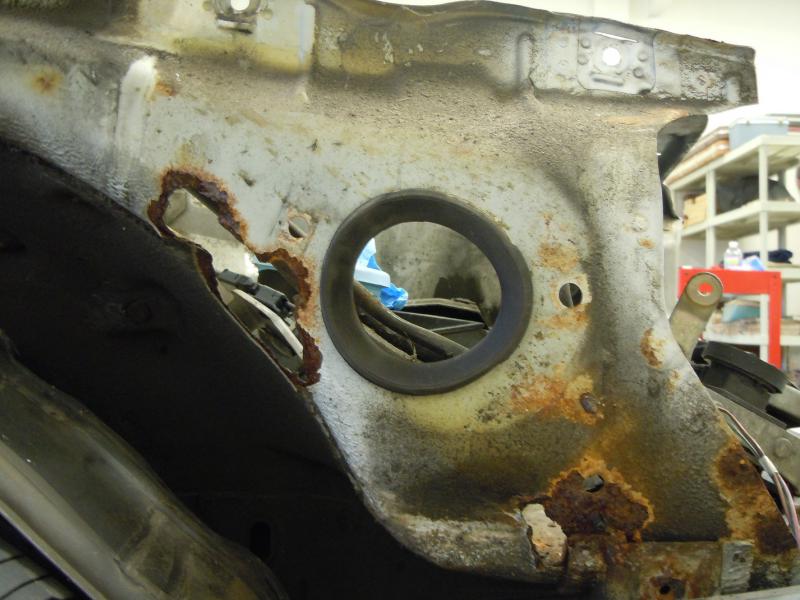

More existential rust crises for Bodhi (and me)-pp1.jpg   More existential rust crises for Bodhi (and me)-pp2.jpg   More existential rust crises for Bodhi (and me)-pp3.jpg   More existential rust crises for Bodhi (and me)-pp4.jpg
__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--369,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--14,500 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
  #2
Old 06-24-2013, 12:07 AM
Registered User

Join Date: Apr 2003
Location: Phoenix Arizona. Ex Durban R.S.A.
Posts: 3,582
I'm afraid I can't be of much help to you on the specifics of welding etc. But I will offer the following encouragement for what it's worth.

Assuming the metal between the holes is sound I believe new patches can be welded in place. I also think you have the capability to learn to weld. I am in a similar position to you with regards to it being something of a mental block for me. But you know what. Probably hundreds of thousands of people thruout history have learned to do it including some I know who simply taught themselves by reading up on it and doing it.

I'm sure with the collective wisdom and encouragement of folks on this forum you will be able to do it and if that car is otherwise as good as it seems I think it's worth doing.

- Peter.
__________________
81 240D stick. 316000 miles at purchase. 342000 now
2000 GMC Sonoma
Formerly...
2002 Kia Rio. Worst crap on four wheels
1981 240D 4spd stick. 389000 miles. Deceased Jan 08
1984 123 200
1979 116 280S
1972 Cadillac Sedan DeVille
1971 108 280S
Reply With Quote
  #3
Old 06-24-2013, 01:17 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
I've been in a similar position. I still haven't finished the job yet! But here's some information that might encourage you

http://www.peachparts.com/shopforum/body-repair-restoration/309677-fun-games-welding-sheet-metal-arc-welder-learning-weld.html

Once you've got the hang of your buzz box you'll then need to to start learning again on the car! Welding in different positions is a new skill.

Essentially welding is all about penetration - you want to have had enough fusion / melting through out the joint but not so much that you melt it all away.

If anything the job that you want to go and do on the car is ideal. There's lots of space to reach the area where you need to weld - though you need to remove that electrical wiring well away from the area you are going to fix.

The next problem you'll have is bashin' metal. You'll want to make some new pieces that fit I guess...

...if you leave great big gaps between new metal and old you'll struggle with any welder but particularly a stick welder to fill them.

Go to MetalMeet - for Metalshaping Enthusiasts & Professional Metalshapers for tips on how to shape and weld metal.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #4
Old 06-24-2013, 01:40 AM
Registered User

Join Date: Apr 2004
Location: Wisconsin
Posts: 1,004
If I had rust like that, I would clean it out thoroughly with abrasives and chemicals like Naval Jelly. Then I'd apply multiple coats of POR-15 or a similar moisture-cure coating to rebuild the areas structurally. Cured POR-15 will certainly support an air filter housing -- I've used it to restore battery trays. In fact, I used it to rebuild a floor rust-out just forward of the rear subframe mount on my '82 300 TD. After 9 years it's still quite solid, with the support of the nylon fabric I got from the POR-15 folks. It didn't stop rust from progressing elsewhere, of course. And yes, I can't vouch for its structural strength in a collision.
Reply With Quote
  #5
Old 06-24-2013, 01:56 AM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,117
Those of us who followed Bodhi's story through the years know how much this car means to you. With that said, you are most likely to find more rust surprises in the future, so it is time for you to invest in a good MIG welder setup and start practicing your welding skills on scrap metal. It seems you have time to practice and once you are happy with your ability to create, form and weld in patch metal, go to town on Bodhi. These new experiences will serve you for a lifetime and will keep Bodhi on the road for a long time.


.
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #6
Old 06-24-2013, 03:18 AM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,585
Body shops are a good source for metal to practice on. they always have bent fenders, hoods etc... they will gladly give you. better to burn holes in scrap pieces first to get your techniques down.

Some times the local Jr colleges have welding night courses.

Would a TIG welder be better on this thin sheet metal than a MIG welder?

Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
Reply With Quote
  #7
Old 06-24-2013, 07:31 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,043
Is this the only rust on the vehicle? Or does the rest of the car have similar issues?

My 300SD is very rusty too...I've battled it over 10 years at this point and the car means a lot to me, but I finally decided that this summer is to be its last before retirement...
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 79k - mine - (OC-80,500)
'17 Metris(VITO!) - 9k - wifes (OC-10k)
'01 E320 Wagon - 159k - mine (OC-160,000)
'89 420SEL 166k - mine (OC-167,000)
'01 E320 - 172k - dad's (OC-171,500)
'07 E350 Wagon - 131k - dad's (OC-132,500)
'01 SL500 - 49k - dad's (OC-52,000)
'09 E350 4matic Sedan - 137k - Brothers (OC-141,500)
Reply With Quote
  #8
Old 06-24-2013, 08:47 AM
Graham's Avatar
Registered User

Join Date: Nov 2004
Location: Ontario, Canada
Posts: 3,409
Quote:
Originally Posted by BodhiBenz1987 View Post
Could I rivet in a couple patches, POR the heck out of it, and come back to it when I reach that skill level? Or would that just be asking for worse rust?
I have been going through a similar, but probably much more extensive rust repair on my 85 300D. (It is documented in the Bodywork Forum)

The approach I chose, was to have structural metal weld repaired by a local shop. Non-structural repairs were left for me to complete and I am in middle of that process right now.

A rust hole that lets water in just needs to be closed up. Similarly, a hole around a bolt or screw hole just needs to be repaired in a way that it will accept and hold the bolt/screw.

POR15 (or in my case DOM16) work well as a resin for laying up fibreglass. Small holes can be easily repaired by laying up glass cloth on both sides of holes up to say 1 or 2" diameter. Larger than that, using a combination of a riveted or screwed in place patch along with POR will provide a sturdy repair.

How long will the POR repairs last? On my 72 350SL, I have a low section in the trunk that was completely rusted out - nothing but rust remained. I cleaned that out exposing the original undercoating. I laid up a fiberglass bottom for that section using POR as the resin. That was 21 years ago, and it is still perfect.

There are some repairs where POR/fiberglass is in my view preferable to welding. For example, where heat will damage other components or adjacent coatings.

Based on my current experience, I would recommend you check the hinge pockets - leaks there were likely the main cause of my firewall and floorpan rust.

Good Luck with it whatever you decide.
__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5

Last edited by Graham; 06-24-2013 at 09:01 AM.
Reply With Quote
  #9
Old 06-24-2013, 12:54 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,021
For most of those rust holes I would pop-rivet patch it. Thats non-structural area. I did a similar repair on my 300D a while ago.
http://www.peachparts.com/shopforum/diesel-discussion/326451-300d-2-5-rust-repair-some-areas-watch-out.html

I also have some more extensive welding work on my 300SD's..
http://www.peachparts.com/shopforum/body-repair-restoration/288453-300sd-rust-restoration-project.html

http://www.peachparts.com/shopforum/body-repair-restoration/304380-300sd-rust-restoration-project-2-a.html
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

82 300SD 145k
82 300SD 265k
87 420SEL 230k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #10
Old 06-24-2013, 01:14 PM
Alastair's Avatar
Registered User

Join Date: Mar 2002
Location: South Wales U.K.
Posts: 1,064
MIG Welding.

If you are going to buy a MIG--Dont skimp and get the cheapest thing out there.
Trouble with the cheapos is the wire-feed system often isnt up to the job, will jam, cause uneven wire feed (And horrible welds) as well as the quality of the torch and liner will give you issues.

For car-body welding, you'll need a MIG with a current range from 25A to say, 140A, and able to use 0.6 and 0.8mm wires. Its best to use an Argon based MIG welding-gas rather than the 'gassless' wires, as this gives a nicer (and for a newcomer) easier weld.
My MIG is a 'Cebora' Autostar 190, perhaps a little overkill for autobody work, but as its pretty robust is an easy machine to set and use.

Here-- MIG Welding Forum

is a MIG welding (and other types of welding) Forum that has tutorials etc to help a newcomer to welding and how to. There's loads of advice/help on there...
--Like everything, Practice makes perfect but the best tip I can give--Make sure the steel surfaces where the weld is to actually be laid down are as Spotless of rust and paint as possible--A few minutes with a grinder to polish up make a Huge difference to the finished welds....
__________________
http://i190.photobucket.com/albums/z...0TDnoplate.jpg

Alastair AKA H.C.II South Wales, U.K. based member

W123, 1985 300TD Wagon, 256K,
-Most recent M.B. purchase, Cost-a-plenty, Gulps BioDiesel extravagantly, and I love it like an old dog.

W114, 1975 280E Custard Yellow,
-Great above decks needs chassis welding--Really will do it this year....
Reply With Quote
  #11
Old 06-24-2013, 01:23 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,021
Quote:
Originally Posted by Alastair View Post
If you are going to buy a MIG--Dont skimp and get the cheapest thing out there.
Trouble with the cheapos is the wire-feed system often isnt up to the job, will jam, cause uneven wire feed (And horrible welds) as well as the quality of the torch and liner will give you issues.

For car-body welding, you'll need a MIG with a current range from 25A to say, 140A, and able to use 0.6 and 0.8mm wires. Its best to use an Argon based MIG welding-gas rather than the 'gassless' wires, as this gives a nicer (and for a newcomer) easier weld.
My MIG is a 'Cebora' Autostar 190, perhaps a little overkill for autobody work, but as its pretty robust is an easy machine to set and use.

Here-- MIG Welding Forum

is a MIG welding (and other types of welding) Forum that has tutorials etc to help a newcomer to welding and how to. There's loads of advice/help on there...
--Like everything, Practice makes perfect but the best tip I can give--Make sure the steel surfaces where the weld is to actually be laid down are as Spotless of rust and paint as possible--A few minutes with a grinder to polish up make a Huge difference to the finished welds....
I've had great luck with my little welder guy.

MIG Welder | MIG Welders | MIG Welding

I do not use the gassless wire stuff. I went out and bought a small tank. It was like $120 or something I think. Refills are only $25.

It did well enough on my dad's 300SD.
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

82 300SD 145k
82 300SD 265k
87 420SEL 230k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #12
Old 06-24-2013, 03:52 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 28,250
Quote:
Originally Posted by JamesDean View Post
I've had great luck with my little welder guy.

MIG Welder | MIG Welders | MIG Welding

I do not use the gassless wire stuff. I went out and bought a small tank. It was like $120 or something I think. Refills are only $25.

It did well enough on my dad's 300SD.
The Tank refills will be cheap until the Tank needs to be pressure checked. That is done about every 5 years. I don't know what the pressure test will cost that will cost.

Also if you are taking a Tank back to be refilled be sure to look up the meaning of the Code Stamping Date on the Tank on the internet so they don't stick you with the Pressure Test charge when the Tank is still with in the time limit.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #13
Old 06-24-2013, 03:56 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,021
Quote:
Originally Posted by Diesel911 View Post
The Tank refills will be cheap until the Tank needs to be pressure checked. That is done about every 5 years. I don't know what the pressure test will cost that will cost.

Also if you are taking a Tank back to be refilled be sure to look up the meaning of the Code Stamping Date on the Tank on the internet so they don't stick you with the Pressure Test charge when the Tank is still with in the time limit.
Hrmm this is interesting. I think I've only refilled it about a half dozen times so far. Next time I'm there I'll inquire.
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

82 300SD 145k
82 300SD 265k
87 420SEL 230k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #14
Old 06-24-2013, 10:18 PM
BodhiBenz1987's Avatar
Registered User

Join Date: Dec 2004
Location: East Coast
Posts: 3,005
Thanks so much, guys. Seeing other people's projects really helps both informatively and morale-wise. I think my plan of attack for this particular problem will be in two steps ... for the short run, so I can drive it, I will rivet in a sheet-metal patch on the large hole like JamesDean did, and just POR15-coat everything. For the long run, I will start working on welding. I'm a little worried about the equipment cost since I'm unemployed, but I'm keeping in mind all the value it would give me to have this skill at my disposal. I am going to poke around locally and see if someone has a used MIG setup, or one I could borrow ... my brother in law seems to be really good at finding auctions where you can get various shop equipment, so I'll ask him. In the meantime all the links you guys have supplied will keep me busy. Also surely it wouldn't hurt to practice on the arc welder I already have. At the very least it would get me over the initial hurdle of the intimidation of welding in general.
A question on patches, whether it's riveted on or welded. Would it be better to use a cut out from a parts car, or fabricate one from clean new sheet metal? I have a front frame from a 1988 300E that looks mostly clean, but I have no idea how to cleanly cut out that section ... a sawzall then hand shears? A plasma cutter is not in my budget. I'm wondering if I should use that for my rivet patch, or save it for when I am ready to weld in a permanent repair.
__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--369,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--14,500 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
  #15
Old 06-24-2013, 10:43 PM
gerkebi's Avatar
Registered User

Join Date: Sep 2006
Location: Northern OH
Posts: 159
Cut out from a parts car is preferable. IMO you need a buddy that can weld and learn from him/her. You definitely have the aptitude and attitude to learn welding. Maybe a tech school nearby? Good luck!
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 03:23 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2019, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
