Replacing the rear wheel bearings on a W123, W126

My son’s new 85 300D had the rear left wheel hub loose and required replacing. I was quoted $400-435 from 2 independent shops and $775 from the dealer. I wanted to learn how to do this job (35-130 ) The MB service manual calls for 11 specialty tools to complete this job. I had a good conversation with the old Mercedes specialist at the dealer and asked what “specialty” tools are really required. He said Just the Special castle socket . MB 115 589 02 07 00.
All the races can be removed and installed with conventional tool. So here is the write up of the job. The most difficult task was removing the outer bearing/race assembly off the hub. I destroyed the bearing holder and totaled the race. I would suggest bring the hub to an independent or the dealer and pay a few bucks to have then do this. They should not charge much. I figure $25-30. If it’s over $50 I would do it myself. I did not get a price for doing it.


Dave

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #2
Old 12-01-2007, 10:59 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #1
Tools and parts needed for the job on a 1985 300D
˝ inch drive ratchet.
Special socket. MB tool 115 589 02 07 00
Brass drift.
Hammer
Dead blow hammer
3 jaw puller
Large flat washer or plate ( used with the 3 jaw puller over the hub opening)
Dial gauge, Metric preferred, SAE OK ( it's what I have)
Large flat screwdriver
Flat chisels, 2 small, 2 large
Dial gauge base holder
Wheel bearing kit MB part number 123 350 00 68 ( 1985 300D)
MB wheel grease MB part number 002 989 51 10

Picture #2
Remove the center bolt holding the axle to the hub. You may have to use the brass drift to remove the axle.
Unbolt the caliper.

Picture #3
Hang the axle and caliper with wire , out of the way. Do not
Allow the caliper to hang on its rubber hose. Do not allow the axle to drop.

Picture #4
Remove the rotor. Parking brake must be released to remove the rotor.

Picture #5
The slotted nut and inner bearings.

Dave
Attached Thumbnails
Replacing the rear wheel bearings on a W123, W126-picture-1.jpg   Replacing the rear wheel bearings on a W123, W126-picture-2.jpg   Replacing the rear wheel bearings on a W123, W126-picture-3.jpg   Replacing the rear wheel bearings on a W123, W126-picture-4.jpg   Replacing the rear wheel bearings on a W123, W126-picture-5.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 12-01-2007 at 11:20 PM.
Reply With Quote
  #3
Old 12-01-2007, 10:59 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #6
Purchase 2 lug bolts or 2 bolts to be sacrificial bolts for the job. M12 X 1.5 . Install them as shown

Picture #7
The “special” tool needed for this job on a ˝" drive ratchet.

Picture #8

I used a black pipe clamp since I have a wood shop. Any strong and long ( about 4 foot long ) bar will do. The setup shown will allow you to loosen the slotted nut.

Picture #9

Install the socket and ratchet as shown. This will allow you to loosen the nut on the outside with the back pipe.

Picture #10

Using the black pipe I loosened the slot nut.

Dave
Attached Thumbnails
Replacing the rear wheel bearings on a W123, W126-picture-6.jpg   Replacing the rear wheel bearings on a W123, W126-picture-7.jpg   Replacing the rear wheel bearings on a W123, W126-picture-8.jpg   Replacing the rear wheel bearings on a W123, W126-picture-9.jpg   Replacing the rear wheel bearings on a W123, W126-picture-10.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 12-01-2007 at 11:22 PM.
Reply With Quote
  #4
Old 12-01-2007, 10:59 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #11

Remove the seal on the inside of the hub from underneath the car. I used a large screwdriver.

Picture #12

I did not have a slide hammer to remove the hub. I did the
Following, I Used a brass drift to hammer out the hub from under the car. I hammered it out about ˝ inch. I then installed the rotor as shown and used it as a slide hammer to get the hub to release from the inner bearings.

Picture #13

This is the hub removed and attached to the rotor.

Picture #14

Now for the most difficult part, removing the outer bearings and race assembly. As you can see I destroyed the bearing cage in the process and tore up the inner race.
To do the job Use a wide flat chisel and force it between he inner race and the hub. ( I forgot to mark the picture, page 8 of the post has a photo of where to force the chisel ) ). As the race starts to separate from the seat you can use a 3 jaw puller
And a flat washer to pull the bearings/race assembly off the hub.
If you try to pound away at the bearing cage it will come apart, as shown. Then if you try and chisel at the lip that is left. It will break apart and fly everywhere ( wear safety glasses ).
So the solution is to use the flat chisel between the race and the hub shoulder.
Another suggestion would be to bring the hub and new bearings to an indy or the dealer and pay them a few bucks to do this part.

Picture #15

The wheel area needs to be cleaned of all grease and the races removed.

Dave
Attached Thumbnails
Replacing the rear wheel bearings on a W123, W126-picture-11.jpg   Replacing the rear wheel bearings on a W123, W126-picture-12.jpg   Replacing the rear wheel bearings on a W123, W126-picture-13.jpg   Replacing the rear wheel bearings on a W123, W126-picture-14.jpg   Replacing the rear wheel bearings on a W123, W126-picture-15.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 12-01-2007 at 11:36 PM.
Reply With Quote
  #5
Old 12-01-2007, 10:59 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #16

Use a BRASS drift to remove the outside and inside outer races. Using a steel drift will scar the metal and you don’t want that. This picture shows me removing the inside outer race. You remove the outside outer race from under the car

Picture #17

Clean the interior completely of all grease and brass bits that will come off the drift. Use a degreaser, dry it and then blow it out with compressed air.

Picture #18

A clean and dry wheel carrier section.

Picture #19

Another view.

Now install the new races. A technique to use is to use the old race to hit with the hammer as you are installing it. The old race will receive all the blows and the new one will have a solid matting against the old one eliminating damage to the new race. Drive them until they are seated completely.

Picture #20

Install the new outside bearing on the hub. I used a chisel as shown and ONLY strike the inner race not the bearing cage. Slowly drive it onto the hub until seated. Continuously tap the race rotating all around its circumference.

Grease the bearings as best you can, install grease into the wheel carrier. Total grease installed in the assembly is 50G. This is split between the outside and inside bearings.
Place the crush washer on the hub.
Install the hub into the wheel carrier.

Dave
Attached Thumbnails
Replacing the rear wheel bearings on a W123, W126-picture-16.jpg   Replacing the rear wheel bearings on a W123, W126-picture-17.jpg   Replacing the rear wheel bearings on a W123, W126-picture-18.jpg   Replacing the rear wheel bearings on a W123, W126-picture-19.jpg   Replacing the rear wheel bearings on a W123, W126-picture-20.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 12-01-2007 at 11:30 PM.
Reply With Quote
  #6
Old 12-01-2007, 11:00 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #21

Grease the inside bearings
To drive the inside bearings into position the MB service manual uses a press. I used the old spacer section and hammered the bearing onto the hub shaft. You will need to hold the hub against the wheel carrier as you hammer. It will not completely set the bearing on the hub shaft. But it allows you to then attach the slotted nut and then tighten the assembly.

Picture #22

Apply the remainder of the 50G’s of grease as shown..

Picture #23

Install the outer seal and new inner spacer. I then use a dead blow hammer ( its made out of rubber) and drove the seals into the carrier.

Picture #24

Driving the seals into the carrier.

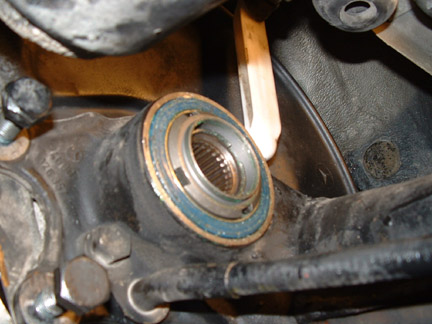

Picture # 25

Attach the slotted nut and tighten.

Dave
Attached Thumbnails
Replacing the rear wheel bearings on a W123, W126-picture-21.jpg   Replacing the rear wheel bearings on a W123, W126-picture-22.jpg   Replacing the rear wheel bearings on a W123, W126-picture-23.jpg   Replacing the rear wheel bearings on a W123, W126-picture-24.jpg   Replacing the rear wheel bearings on a W123, W126-picture-25.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 12-01-2007 at 11:16 PM.
Reply With Quote
  #7
Old 12-01-2007, 11:00 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #26
Here the socket is installed and the ratchet attached. I found it necessary to use the dead blow hammer to seat the socket all the way in. I tightened them as much as I could without the black pipe pry bar.

Notes on tightening the assembly.

Hammer the socket into the nut after each tightening of the assembly. THIS IS VERY IMPORTANT or you can break the socket tabs, don’t ask how I know.
Now with the socket installed and the ratchet against the lower control arm. Use the black pipe and the 2 lug bolts to tighten the assembly about 1/8th of a turn.. Measure the tolerance of the hub with a dial set up on a base. Hammer in the socket again and then turn the assembly with the black pipe another 1/8th of a turn. Do this until you have tighten it to within limits.

The limits are 0.04-0.06 mm
SAE .0015-.0023Inch
Or 1 mark on my dial gauge is .001 Inch

If you over tighten the assembly. YOU MUST REMOVE THE CRUSH WASHER AND INSIDE SEAL AND START OVER AGAIN. You will have to buy a new crush washer and inner seal.

Picture #27

This shows the dial gauge tolerance I achieved. One is pushing on the hub and other is pulling on it. I have about a .0015 setting.

Picture #28

How to set up the dial gauge for your reading. I have the dial gauge and base I bought from Harbor Freight.

Dial
http://www.harborfreight.com/cpi/ctaf/displayitem.taf?Itemnumber=33675

Base

http://www.harborfreight.com/cpi/ctaf/displayitem.taf?Itemnumber=5645


Picture #29

After tightening the hub to tolerance. You “lock” the nut in position by punching the nut flange into the openings in the hub shaft.

Picture #30

Shows the nut flange punched.

Install the drive axle into the hub and tighten the nut to the specified torque for your type axle. ( M12- 95Nm, M8-30Nm )

Install the rotor on the hub.

Install the calipers over the rotor and bolt onto the wheel carrier using loctite.

Enjoy.

Dave
Attached Thumbnails
Replacing the rear wheel bearings on a W123, W126-picture-26.jpg   Replacing the rear wheel bearings on a W123, W126-picture-27.jpg   Replacing the rear wheel bearings on a W123, W126-picture-28.jpg   Replacing the rear wheel bearings on a W123, W126-picture-29.jpg   Replacing the rear wheel bearings on a W123, W126-picture-30.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 12-01-2007 at 11:34 PM.
Reply With Quote
  #8
Old 12-01-2007, 11:28 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Here is the location to drive the chisel to remove the outer bearing assembly off the hub.

Dave
Attached Thumbnails
Replacing the rear wheel bearings on a W123, W126-picture-31.jpg
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #9
Old 12-02-2007, 01:25 AM
JimmyL's Avatar
Rogue T Intolerant!!!

Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,673
Dave, you are becoming the Gold standard of write-ups!
We are all going to be faced with this job on our cars at some point, and you have literally saved some of us hundreds of dollars if we DIY. Thanks so much!!
I'm not totally sure I understand the setting of the hub via the dial calipers. Is it .0015" of "wiggle"?
I guess I will be sure and pick up the dial guage and base at HF next time it's on sale.
Nice job Dave!
__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John
Reply With Quote
  #10
Old 12-02-2007, 05:11 AM
ForcedInduction
Guest

Posts: n/a
Excellent! I've bookmarked this for future reference.
Reply With Quote
  #11
Old 12-02-2007, 08:41 AM
SW SW is offline
Registered User

Join Date: Aug 2000
Location: Houston, TX. USA
Posts: 590
You DA MAN! Thanks for taking the time and effort to document your work.
__________________
2001 Dodge Ram 2500 Cummins Turbo Diesel - 4x4, auto, 3.54 gears, long bed
-------------------------------------
'92 300D 2.5 Turbodiesel - sold
'83 300D Turbodiesel - 4 speed manual/2.88 diff - sold
'87 300D Turbodiesel - sold
'82 300D Turbodiesel - sold
Reply With Quote
  #12
Old 12-02-2007, 10:05 AM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,157
True to form, another great write up on a DIY Dave!



Quote:
Originally Posted by dmorrison View Post
.....Picture #27

This shows the dial gauge tolerance I achieved. One is pushing on the hub and other is pulling on it. I have about a .0015 setting.....
Dave
I take it you are pushing and pulling with your hands (or with something else). I am always not sure how force to do this with. Can you elaborate on the technique a little.. i.e. hand placement and etc.
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #13
Old 12-02-2007, 10:13 AM
junqueyardjim's Avatar
Registered User

Join Date: Apr 2005
Location: Cicero, Hamilton County, Indiana about 30 miles north of downtown Indianapolis
Posts: 2,623
Great writeup

Thanks Dave for all the extra work to get this all on a picture format. I knew it had to be a difficult and tough job. Many thanks! Jim
__________________
Junqueyardjim
Christianity, if false, is of no importance, and if true, of infinite importance. The only thing it cannot be is moderately important. C.S. Lewis



1983 Mercedes W123 240D 4 Speed 285,000 on the road with a 617 turbo, beautiful butter yellow, license plate # 83 240D INDIANA

2003 Jaguar Type X, AWD. beautiful, good mileage,
Mom's car, but I won't let her drive it!
Reply With Quote
  #14
Old 12-02-2007, 10:37 AM
R Leo's Avatar
Stella!

Join Date: Mar 2003
Location: En te l'eau Rant
Posts: 5,393
Dave,
Excellent write up!!!

What were the symptoms of the bearing failure? Clunking? Squealing?

I have an undefined, intermittent light clunking in the RR of my SDL that no amount of banging on underside parts will reproduce. I haven't lifted the car to wiggle the trailing arm/hub yet but, I wonder if the hub is it?
__________________
Never a dull moment at Berry Hill Farm.
Reply With Quote
  #15
Old 12-02-2007, 12:25 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Quote:
Originally Posted by JimmyL View Post
Dave, you are becoming the Gold standard of write-ups!
We are all going to be faced with this job on our cars at some point, and you have literally saved some of us hundreds of dollars if we DIY. Thanks so much!!
I'm not totally sure I understand the setting of the hub via the dial calipers. Is it .0015" of "wiggle"?
I guess I will be sure and pick up the dial guage and base at HF next time it's on sale.
Nice job Dave!
Your looking for a movement in and out of the hub. It is very small and usually noticeable on the dial gauge not really by hand.
Place the dial gauge on the hub as pictured and pull it in and out and watch the movement of the dial gauge. As you start tightening it will rotate 1-2 complete revolutions. As you tighten it it will become a smaller and smaller rotation of the dial needle. To the point where you will get only a small arc of movement. On the dial gauge I have, your looking at the needle swinging 1.5 marks. If you go to tight then you start over.

R Leo


Symptoms??

I did not really have bearing failure there actually in fairly nice shape, except for the one I destroyed. I moved the hub against the outer bearings and rotated it, It was smooth. Then I pulled the hub against the inside bearings and again it was smooth. I found it difficult tightening it and actually broke the special socket tabs. So I figured I would just do the whole job so I could learn it, make this post and know that it was done right.
The initial problem was when I put the tire on the hub The whole tire moved in and out about 1/8th of an inch. Definitely not good.

Dave

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 06-02-2008 at 02:21 AM.
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 01:18 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2021, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
