Correct locations for yellow vacuum restrictors on W124 OM603 engine?

Hi guys,

Vehicle: 87 300D turbo, CA spec.

I took the weekend to take care of a seemingly easy job of refreshing all the critical vacuum tubes and connectors on the driver's side of the engine. Don't let anyone fool you: it's a long, tedious job! Whether needed or not, I replaced the dash pots as well. I am doing this in preparation for vacuum testing and corrections (if needed)

What's difficult to tell though, is where the yellow restrictors are located on either of the MBZ or the Performance products diagrams. Here's a picture of how I routed them with the restrictors (image attached).

Do I have the correctly positioned?

Thanks,
Bob
Attached Thumbnails
Correct locations for yellow vacuum restrictors on W124 OM603 engine?-aaa.jpg
Reply With Quote
  #2
Old 10-27-2008, 03:54 PM
Registered User

Join Date: Jul 2007
Posts: 517
Bump for the afternoon. Or can someone take a picture of their blue vac amplifier and post up?

Thanks,
Bob
Reply With Quote
  #3
Old 10-27-2008, 04:35 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,273
The difference in mine is the splitter off the top of the VCV is reversed - your Y splits upwards, mine splits downward. Otherwise routing is the same and the restrictors are in the same place. I don't know if there is restrictors are directional.

Is it possible to use the transmission modulator hardware off a 90-up 60x which doesn't have a tranny vacuum amp?

Sixto
87 300D
Reply With Quote
  #4
Old 10-29-2008, 11:37 AM
Registered User

Join Date: Jul 2007
Posts: 517
Hey Six,

You have a CA spec 87 right? Just to make 100% sure, CA spec 87s have two VCVs, right? One on the firewall and one located as you see in the picture, right?
Reply With Quote
  #5
Old 10-29-2008, 01:40 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,273
I don't think California Diesels are different for 87. Mine was purchased new in Dallas. I thought yours was from out-of-state. How did a 124 gets that rusty in California?

Two VCVs - one for the ALDA, one for the transmission. Neither serves an emissions fucntion.

Sixto
87 300D
Reply With Quote
  #6
Old 10-29-2008, 10:10 PM
Registered User

Join Date: Jul 2007
Posts: 517
Six,

yes, it was bought from out of state, but the plate says it is spec'd for CA emissions. There's a vac diagram for the 603 engine that has 3 VCVs...or maybe the 3rd is not a VCV. anyways, thanks for the confirmation.

bob
Reply With Quote
  #7
Old 10-30-2008, 01:24 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,273
Bob,

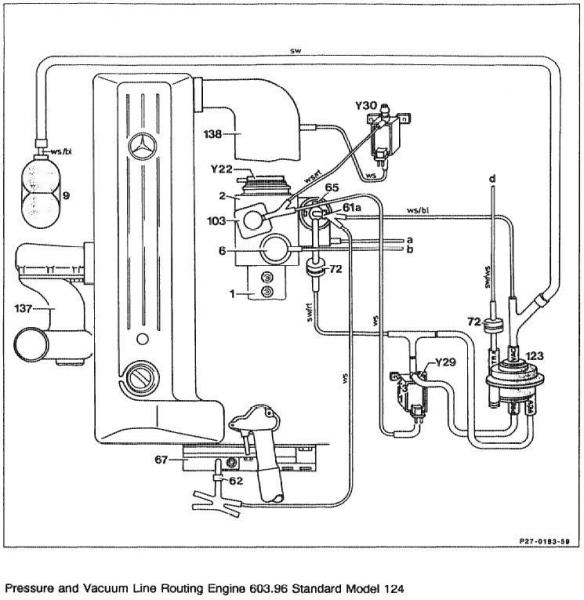

I only see 2 VSVs on the useful side of the vacuum map. Where does your diagram show another VSV?

Sixto
87 300D
Attached Thumbnails
Correct locations for yellow vacuum restrictors on W124 OM603 engine?-gabe.jpg
