What would you name these parts?

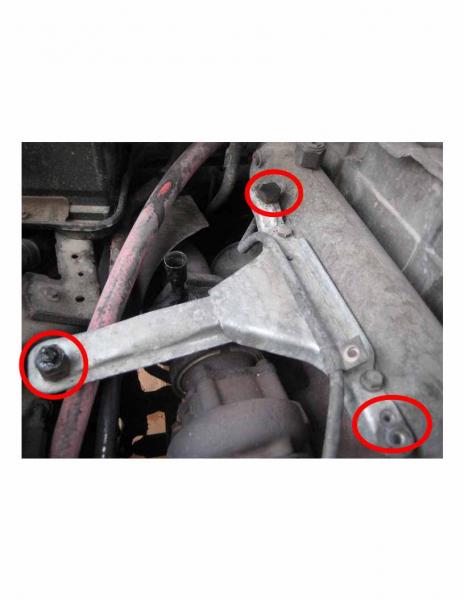

Hi There, Ive discovered the source of a rattling problem on my 85 300TD wagon due to a couple of bolts with rubber that attach the air filter housing to the bracket in the engine. Im trying to find replacements for these bolts but cant figure out what the proper name for them. Any Ideas?
Also I noticed a small o-ring missing on what looks like a drain that leaves the air filter housing (see attached pics) is this important? and what would I call this to be able to order a replacement.
and the one other question is how much oil is considered to be acceptable in the air filter housing?
Thanks for any help in advance
Michael

Attached Thumbnails
What would you name these parts?-img_2473.jpg   What would you name these parts?-img_2474.jpg
Reply With Quote
  #2
Old 03-13-2010, 06:10 PM
compu_85's Avatar
Cruisin on Electric Ave.

Join Date: May 2008
Location: Springfield VA
Posts: 5,212
They are air filter mounts. PN is 6179880111. You might also want to pick up heat shields for them, 6170940220. All in all new parts should cost under $10 to your door. There should be an O ring there, I don't have the PN in front of me but I could look it up.

If you remove the oil filter cap with the motor running how much smoke comes out?

-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000).

Tesla Model 3. 136,000 miles. Been to 48 states!
Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels.
2014 Cadillac ELR
2013 Fiat 500E.

Last edited by compu_85; 03-13-2010 at 06:18 PM.
Reply With Quote
  #3
Old 03-13-2010, 06:10 PM
Biodiesel300TD's Avatar
|3iodiesel300T|)

Join Date: Dec 2004
Location: Albany, OR
Posts: 4,845
They are called air cleaner mounts -
http://catalog.peachparts.com/ShopByVehicle.epc?q=&yearid=1985@@1985&makeid=63@@MERCEDES+BENZ@@X&modelid=6193%3AMBC%7C1504%3AED%7C10000135@@300D&keyword=mount@@mount&catid=All@@All&subcatid=P%3A240503@@Air+Cleaner+Mount&applicationid=W0133-1642930&mode=PA
__________________
Andrew
'04 Jetta TDI Wagon
'82 300TD ~ Winnie ~ Sold
'77 300D ~ Sold
Reply With Quote
  #4
Old 03-13-2010, 06:16 PM
compu_85's Avatar
Cruisin on Electric Ave.

Join Date: May 2008
Location: Springfield VA
Posts: 5,212
Fastlane want's 4.26 each! Hmm...

-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000).

Tesla Model 3. 136,000 miles. Been to 48 states!
Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels.
2014 Cadillac ELR
2013 Fiat 500E.
Reply With Quote
  #5
Old 03-13-2010, 06:21 PM
azitizz's Avatar
MB 1985 300TD Wagon

Join Date: Apr 2009
Location: Winnipeg, Canada
Posts: 422
Great thanks! I found them on my "local" online order shop. they called it an air cleaner buffer. one from URO was 4.99 and another generic one was 1.99. i think Ill go Generic.

Any Ideas what size or name of the o-ring part would be?
Thanks again
Michael
Reply With Quote
  #6
Old 03-13-2010, 09:44 PM
Registered User

Join Date: Nov 2008
Location: Houston, Texas
Posts: 295
Quote:
Originally Posted by azitizz View Post
Hi There, Ive discovered the source of a rattling problem on my 85 300TD wagon due to a couple of bolts with rubber that attach the air filter housing to the bracket in the engine. Im trying to find replacements for these bolts but cant figure out what the proper name for them. Any Ideas?
Also I noticed a small o-ring missing on what looks like a drain that leaves the air filter housing (see attached pics) is this important? and what would I call this to be able to order a replacement.
and the one other question is how much oil is considered to be acceptable in the air filter housing?
Thanks for any help in advance
Michael
Hi
The blowby from the valve cover is directed into the oil seperator which sends the oil back to the oil pan and the vapor into the intake. Its a good idea to clean the filter housing up now and then - but the main thing is to replace the paper filter before it become blinded by oil and affects performance by restricting air flow to the engine.
Joseph
Reply With Quote
  #7
Old 03-13-2010, 11:17 PM
Registered User

Join Date: Jun 2008
Location: Rochester, NY
Posts: 180
Air filter mounts

May want to double check the bracket the mounts screw into as well...it seems common that the threads strip out...meaning you'll want the bracket also (about 18.00)
Reply With Quote
  #8
Old 03-14-2010, 04:24 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,380
Answer

Quote:
Originally Posted by compu_85 View Post
Fastlane want's 4.26 each! Hmm...

-J
Here is a better price from another supplier.

MB# 617 988 01 11
Fastlane: Air Cleaner Mount
http://catalog.peachparts.com/item.wws?sku=6179880111





Have a great day.
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1985 300SD
1983 300D
1984 190D
2003 Volvo V70
2002 Honda Civic

https://www.boldegoist.com/

Last edited by whunter; 06-07-2011 at 04:44 PM.
Reply With Quote
  #9
Old 03-14-2010, 11:47 AM
compu_85's Avatar
Cruisin on Electric Ave.

Join Date: May 2008
Location: Springfield VA
Posts: 5,212
So what is the difference between FL and APE? Different desks in the same wharehouse?

-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000).

Tesla Model 3. 136,000 miles. Been to 48 states!
Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels.
2014 Cadillac ELR
2013 Fiat 500E.
Reply With Quote
  #10
Old 03-14-2010, 12:37 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Quote:
Originally Posted by azitizz View Post
Also I noticed a small o-ring missing on what looks like a drain that leaves the air filter housing (see attached pics) is this important? and what would I call this to be able to order a replacement.
and the one other question is how much oil is considered to be acceptable in the air filter housing?
Thanks for any help in advance
Michael
That's a 12x16 "O" ring, available at many places. It forms a seal, so it's a good idea to have it there.
You're going to have "some" oil in the housing. Make sure the top rubber bushing is in good shape too, part #617 098 02 65. Also the breather hose.
Attached Thumbnails
What would you name these parts?-cd-engine-020.jpg
__________________
83 SD

84 CD
Reply With Quote
  #11
Old 03-14-2010, 01:30 PM
azitizz's Avatar
MB 1985 300TD Wagon

Join Date: Apr 2009
Location: Winnipeg, Canada
Posts: 422
Quote:
Originally Posted by toomany MBZ View Post
That's a 12x16 "O" ring, available at many places. It forms a seal, so it's a good idea to have it there.
You're going to have "some" oil in the housing. Make sure the top rubber bushing is in good shape too, part #617 098 02 65. Also the breather hose.
the part number you quoted doesnt come up in a catalogue search through my supplier. are you talking about the rubber part that fits into the air filter lid? I did notice a sizable crack on the part that curves out from the engine head and lads into the pipe that leads into the air filter housing. Is this what your talking bout? Im trying to get used to the specific names for these parts. It seems they differ slightly from supplier to supplier but the general jist is the same.
Reply With Quote
  #12
Old 03-14-2010, 01:54 PM
Biodiesel300TD's Avatar
|3iodiesel300T|)

Join Date: Dec 2004
Location: Albany, OR
Posts: 4,845
Worked for me. YOu have to take the spaces out.
http://catalog.peachparts.com/item.wws?sku=6170980265&itempk=14223&mfr=TYS:OES&weight=0.09
__________________
Andrew
'04 Jetta TDI Wagon
'82 300TD ~ Winnie ~ Sold
'77 300D ~ Sold
Reply With Quote
  #13
Old 03-14-2010, 03:28 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Yeah, the spaces make it easier to read, but I would think to save space on the order form, they delete 'em.
Attached Thumbnails
What would you name these parts?-turbo-seal-top.jpg
__________________
83 SD

84 CD
Reply With Quote
  #14
Old 03-14-2010, 04:10 PM
Renntag's Avatar
User Especial

Join Date: Jul 2008
Location: Kona, Hi
Posts: 1,396
Quote:
Originally Posted by compu_85 View Post
. All in all new parts should cost under $10 to your door.
I tried and I was quoted 12$ for shipping on a 15$ order. I bought mine from my local MB indie shop.

Did I miss something? (ie: shipping cost?)
__________________
83 300TD (need rear wiper assembly dead or alive)
84 300SD Daily driver
85 300TD almost 400k miles and driven daily.
98 E300D *sold
86 300SDL *sold and made flawless 10 hour journey to new home.
Reply With Quote
  #15
Old 03-14-2010, 04:22 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,380
Thumbs up Answer

Quote:
Originally Posted by compu_85 View Post
They are air filter mounts. PN is 6179880111. You might also want to pick up heat shields for them, 6170940220. All in all new parts should cost under $10 to your door. There should be an O ring there, I don't have the PN in front of me but I could look it up.

If you remove the oil filter cap with the motor running how much smoke comes out?

-J
O-ring, air cleaner oil accumulator return fitting
MB# 006 997 26 45


397 Piece Metric O-Ring Assortment
Item #67580
Only:$9.99
http://www.harborfreight.com/397-piece-metric-o-ring-assortment-67580.html


Last edited by whunter; 08-23-2010 at 01:43 PM.
