Arrow Pictorial: W123 300D Turbo Starter Motor Replacement

[I humbly submit this for peer review and hopefully to be included in the DIY section. I have a PDF with pics embedded as well if anyone wants that, or to make it easier to publish on the DIY article part of the site.]

Application notes:

This article is written specifically for the W123 300D turbo. Some of the techniques will apply to W116 and W126 chassis with the 617 turbo motor, as well as an NA 300D. Starter replacement on a 240D is significantly easier because of the extra room.

Time required:

Count on approximately 6 hours for a hobbyist mechanic working on the floor of a garage taking on the task for the first time.

Sourcing a new starter:

A remanufactured Bosch unit is approximately $175+core as of this writing (available from this site). California models use a different starter, be mindful of your specific model and getting the correct part. A note: If sourcing an ‘off brand’ starter at a chain parts store - be sure to have the store test it before you install into your vehicle. You will not be happy to do this twice if the starter is DOA.

Tools required:
  • Self-Made tool: 7/8” long piece of allen key (see step #8)
  • 20” 1/2” drive extension (Sears Craftsman makes a 20” extension)
  • 1/2” drive socket wrench and 18” 1/2” drive breaker bar
  • 1/2” drive universal joint
  • 1/2” drive 10mm socket, 6 point preferred
  • 2 - 10mm right angle allen sockets
  • 27mm deep well socket to rotate engine
  • Floor Jack
  • 2 Jack stands (use jack stands instead of ramps - being able to move the front wheels is required later in the job)
  • Wheel Chocks
  • Aero-Kroil, PB Blaster etc.
  • Dielectric grease and sandpaper to clean electrical contacts (optional)
  • Brake cleaner
  • Propane torch
  • Standard metric sockets and hand tools

Step by step:
  1. Remove negative lead from battery and cover securely to ensure it does not make contact with the battery post. For extra security, also remove the positive lead. The wires that lead to the starter are designed to deliver a very large amount of power and are directly connected to the battery's positive terminal.
  2. Remove air cleaner assembly. Cover turbo air intake and air cleaner oil return to prevent dirt/tools/fasteners from finding their way into the engine
  3. Remove 13mm bolt from back of ATF fill/dipstick tube. A 13mm ratcheting gear wrench is useful here. See pic #1.
  4. Securely chock rear wheels. Put car on jack stands placed under front body rails. See pic #2.
  5. Remove starter electrical connections from underneath the vehicle. To loosen, I applied Aero-Kroil to ensure easy removal. The bolt that holds the main starter electrical connection is 17mm. The other connection is a phillips-head screw. See pic #3
  6. Remove the starter brace at the front of the starter (towards from of engine). 10mm bolts hold it to the block and starter. A 10mm ratcheting gear wrench is helpful. They should come out easily. Place in bag off to the side.
  7. The starter is now held to the block by two 10mm allen head bolts. This is the hard part of the job. The bolt heads face the rear of the vehicle and are difficult to remove both in terms of access and force required to be broken free. See pic #4
    • Clean heads of 10mm allen starter bolts thoroughly with a toothpick, dental pick etc. It is important to seat the allen key completely into the bolt.
    • Spray out bolt heads with brake cleaner. Use the straw to direct the spray directly into the bolt head. Repeat.
    • Spray bolt heads liberally with PB Blaster/Aero-Kroil etc. Spray Bolt #2 from the top-side.

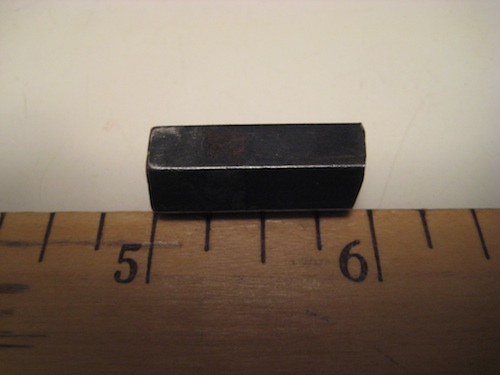

  8. While the bolt loosening solvents are working, take one of the 10mm allen keys and cut a straight section of approximately 7/8” off the end using a dremel tool, angle grinder etc. This will be used on Bolt #2. See pic #5.
  9. To loosen bolt #1:
    • Place allen key with short end into M10 allen Bolt #1. Be sure wrench is engaged fully (about 1/4”) into the bolt head to prevent stripping.
    • Heat bolt head with propane torch for 2 minutes to loosen bolt.
    • Attempt to loosen allen wrench by hand. If unsuccessful, place a floor jack underneath wrench with a piece of wood. Use jack to put upward force on end of allen key; this will break allen bolt free. See pics #6 and 7
    • Once broken free, do not remove bolt yet. You will remove bolt #2 fully first.
  10. Now to remove bolt #2. The hard part of the job. Assemble the following combination of tools (See pic #8):
    • 1/2” drive 10mm 6 pt socket
    • 1/2”drive universal socket
    • 1/2” drive 20” extension bar
    • 1/2” drive breaker bar
  11. From top side, place 7/8” self made allen bit piece into head of Bolt #2. Be sure bolt fully engages into allen head approximately 1/4”.
  12. Heat bolt head from below with a propane torch for two minutes. A helper looking from the top side is very helpful to verify that the flame is directed at the bolt head - you can not see bolt head easily from below.
  13. Thread tool assembly made in step #10 up to bolt from between exhaust and transmission pan. It is very helpful to have an assistant move the transmission dipstick tube out of the way. Engage 10mm socket to end of 10mm 7/8” piece of allen bolt. See pic #9.
  14. Break bolt free (may take a lot of force). Remove bolt #2.
  15. Remove bolt #1 while holding starter. After bolt #1 is removed, starter will fall free. It’s heavy, be careful. You can gently lower the starter out of position and rest it on the idler arm and tie rods.
  16. Extract starter from between the frame and steering linkages by doing the following:
    • Turn front wheels to approximately 30 degrees to the right (as if you were turning right). This allows extra clearance between the tie rod and frame.
    • Rotate starter and remove as shown in picture #10
  17. Inspect flywheel for damaged or missing teeth. Rotate engine clockwise by means of 27mm socket attached to crankshaft bolt at front of engine. If missing teeth are noted, it will need to be replaced: Consult forum for assistance. See picture #11.
  18. Clean sealing surfaces around starter mount of accumulated dirt and grime with brake cleaner and rag.
  19. Clean starter mounting bolts with a brass brush of rust. Apply a drop of engine oil or other light oil to prevent further corrosion and rust.
  20. Clean starter electrical contacts with sandpaper or brass brush and rinse with brake cleaner.
  21. Install new starter. Assembly is reverse of removal.
    • Be sure to install starter flush to housing, hold in place while threading and tightening bolts.
    • Torque for starter bolts is 50nm. There is no easy way to use a torque wrench - an estimate of this torque will need to be used.
    • Place dielectric grease over starter connections once they are made and tightened.
    • Make sure your 27mm socket + wrench are off the crankshaft bolt
    • Don’t forget to re-secure the 13mm bolt that attached the transmission dipstick tube.
  22. Enjoy your new starter! If you had an old tired one, the power of the new unit will be surprising.

Pics #1,2,3,4,5 attached.

Attached Thumbnails
Pictorial: W123 300D Turbo Starter Motor Replacement-fig1_atftube.jpg   Pictorial: W123 300D Turbo Starter Motor Replacement-starter_jackstands.jpg   Pictorial: W123 300D Turbo Starter Motor Replacement-starter_electrical.jpg   Pictorial: W123 300D Turbo Starter Motor Replacement-starter_bolts.jpg   Pictorial: W123 300D Turbo Starter Motor Replacement-starter_allentool.jpg

__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car

Last edited by dieseldan44; 12-28-2010 at 02:26 PM.
Reply With Quote
  #2
Old 12-27-2010, 04:50 PM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,041
Continued...

Pics #6,7,8 attached.
Attached Thumbnails
Pictorial: W123 300D Turbo Starter Motor Replacement-starter_bolt1_allen.jpg   Pictorial: W123 300D Turbo Starter Motor Replacement-starter_jackbolt1.jpg   Pictorial: W123 300D Turbo Starter Motor Replacement-starter_toolsetup.jpg
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car

Last edited by dieseldan44; 12-27-2010 at 06:14 PM.
Reply With Quote
  #3
Old 12-27-2010, 04:59 PM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,041
Continued...

Pics #9,10,11 attached.
Attached Thumbnails
Pictorial: W123 300D Turbo Starter Motor Replacement-starter_breakerbar.jpg   Pictorial: W123 300D Turbo Starter Motor Replacement-starter_exit.jpg   Pictorial: W123 300D Turbo Starter Motor Replacement-starter_flywheelcloseup.jpg
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car

Last edited by dieseldan44; 12-27-2010 at 06:17 PM.
Reply With Quote
  #4
Old 12-27-2010, 06:11 PM
Scott98's Avatar
Registered User

Join Date: Aug 2003
Location: Weston, FL
Posts: 1,254
Nice write up! See if the Moderators will post this in the DIY Articles section.

Scott
__________________
Scott
1982 Mercedes 240D, 4 speed, 275,000
1988 Porsche 944 Turbo S (70,000)
1987 Porsche 911 Coupe 109,000 (sold)
1998 Mercedes E300 TurboDiesel 147,000 (sold)
1985 Mercedes 300D 227,000 (totaled by inattentive driver with no insurance!)
1997 Mercedes E300 Diesel 236,000 (sold)
1995 Ducati 900SS (sold)
1987 VW Jetta GLI 157,000 (sold)
1986 Camaro 125,000 (sold - P.O.S.)
1977 Corvette L82 125,000 (sold)
1965 Pontiac GTO 15,000 restored (sold)
Reply With Quote
  #5
Old 12-28-2010, 01:44 AM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Excellent DIY instructions

'Might I suggest removing/disconnecting BOTH Negative and Positive Battery
cables from the Battery Terminals?
(AND covering the ends so no possibility of contact with terminals.)
The Positive Feed Cable for the Starter is a Direct connect to The Battery's
Positive Terminal.
__________________
'84 300SD sold
124.128
Reply With Quote
  #6
Old 12-28-2010, 09:23 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,557
very nice write up! thank you very much!
I'll see what I can do about getting it published into the DIY section pronto!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #7
Old 12-28-2010, 01:23 PM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,243
Thanks for the nice DIY! May I suggest the following?

1. Lable them bottom bolt and top bolt instead of #1 bolt and #2 bolt.

2. Even though you used an L allen key on the bottom bolt and it worked with the floor jack, it is not the best tool to use. A 3/8" drive 10 mm allen bit with a 3/8 breaker bar and a 12" pipe for extra leverage is a better tool and gives better control than the floor jack and less likely to cock and strip the bolt head. I know this works because I have used it on the bottom bolt. You may be able to also use the 3/8 drive 10 mm allen bit on the top bolt (with a 1/2" to 3/8" adapter) instead of the improvised 10 mm allen key cutoff mated to a 10 mm socket. A purpose made, stronger tool instead of an improvised tool. I understand you already have photos of tools used so it is hard to change your DIY but I thought I should still mention it.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #8
Old 12-28-2010, 01:52 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Very nice DIY - boy am I glad I don't have a turbo! (Well sometimes I'm glad - however, other times at the traffic lights...)
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #9
Old 12-28-2010, 02:15 PM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,041
Quote:
Originally Posted by funola View Post
Thanks for the nice DIY! May I suggest the following?

1. Lable them bottom bolt and top bolt instead of #1 bolt and #2 bolt.

2. Even though you used an L allen key on the bottom bolt and it worked with the floor jack, it is not the best tool to use. A 3/8" drive 10 mm allen bit with a 3/8 breaker bar and a 12" pipe for extra leverage is a better tool and gives better control than the floor jack and less likely to cock and strip the bolt head. I know this works because I have used it on the bottom bolt. You may be able to also use the 3/8 drive 10 mm allen bit on the top bolt (with a 1/2" to 3/8" adapter) instead of the improvised 10 mm allen key cutoff mated to a 10 mm socket. A purpose made, stronger tool instead of an improvised tool. I understand you already have photos of tools used so it is hard to change your DIY but I thought I should still mention it.
RE: Bolt #1/#2: I'll re-label to make it clearer.

RE:3/8" allen socket

I tried to use a 3/8" 10mm allen socket and it would not make it onto either bolt. The combination of socket+wrench was too long for the lower bolt and interfered with the transmission dipstick tube. For upper bolt, the cut off piece of allen key is easier because you can more easily ensure you have fully seated it. The piece of allen key+the 6pt 10mm socket was way stronger than the 3/8" allen socket (craftsman) I had as well.

I didn't see any sort of way to use a breaker bar on the lower bolt. I tried to get something to work in there for hours. The jack method seemed like the best solution after all my trials and tribulations. As long as you line it up and make sure everything is fully seated, it should not be a problem.

Other forum members (I believe it was charmalu) suggested the cut-off 10mm allen bit method. It is a fast, cheap tool to make and it works quite well.
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #10
Old 12-28-2010, 02:24 PM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,041
Quote:
Originally Posted by compress ignite View Post
'Might I suggest removing/disconnecting BOTH Negative and Positive Battery
cables from the Battery Terminals?
(AND covering the ends so no possibility of contact with terminals.)
The Positive Feed Cable for the Starter is a Direct connect to The Battery's
Positive Terminal.
OK, good point.
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #11
Old 12-28-2010, 02:55 PM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,243
Quote:
Originally Posted by dieseldan44 View Post
RE: Bolt #1/#2: I'll re-label to make it clearer.

RE:3/8" allen socket

I tried to use a 3/8" 10mm allen socket and it would not make it onto either bolt. The combination of socket+wrench was too long for the lower bolt and interfered with the transmission dipstick tube. For upper bolt, the cut off piece of allen key is easier because you can more easily ensure you have fully seated it. The piece of allen key+the 6pt 10mm socket was way stronger than the 3/8" allen socket (craftsman) I had as well.

I didn't see any sort of way to use a breaker bar on the lower bolt. I tried to get something to work in there for hours. The jack method seemed like the best solution after all my trials and tribulations. As long as you line it up and make sure everything is fully seated, it should not be a problem.

Other forum members (I believe it was charmalu) suggested the cut-off 10mm allen bit method. It is a fast, cheap tool to make and it works quite well.
You're probably right. I'm just going by memory of what I used on the lower bolt.
Whose starter did you end up buying? Do you have an inductive ammeter and a photo tach by chance? It would be good to know the cranking RPM and amperage of a fresh Bosch reman starter.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #12
Old 12-28-2010, 03:30 PM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,041
Quote:
Originally Posted by funola View Post
You're probably right. I'm just going by memory of what I used on the lower bolt.
Whose starter did you end up buying? Do you have an inductive ammeter and a photo tach by chance? It would be good to know the cranking RPM and amperage of a fresh Bosch reman starter.
I purchased a Bosch reman through Worldpac.

I dont have either a photo tach or a clamp meter. Ill see if I can borrow them - it'd be nice to know.

It's not so much the full cranking speed thats different as the 'acceleration' of the starter from rest to full crank. It really 'kicks' the engine over on the first crank quite fast.
Attached Thumbnails
Pictorial: W123 300D Turbo Starter Motor Replacement-reman_bosch_unit.jpg
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #13
Old 12-28-2010, 04:29 PM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,243
Quote:
Originally Posted by dieseldan44 View Post
I purchased a Bosch reman through Worldpac.

I dont have either a photo tach or a clamp meter. Ill see if I can borrow them - it'd be nice to know.

It's not so much the full cranking speed thats different as the 'acceleration' of the starter from rest to full crank. It really 'kicks' the engine over on the first crank quite fast.
If you are undable to borrow them I have both. If you ever come through CT we can hook up to do the amps and photo tach tests which takes minutes.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #14
Old 12-28-2010, 04:51 PM
Registered User

Join Date: Jan 2002
Posts: 18,350
This thread contains the description of my removal of a starter from a 123 617NA. I used extensions and a socket on both bolts. Took me less than 2 hours. Probably closer to one hour:

starter removal 77 300d
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #15
Old 01-08-2011, 08:59 PM
Bill Wood's Avatar
Retired Webmaster

Join Date: Mar 1999
Location: Johns Creek, GA, USA
Posts: 5,013
Thumbs up It's in the Wiki!

This DIY is now in the Wiki HERE.

__________________
Bill Wood - Retired Webmaster
My Personal Website
1998 Mercedes E430
2010 Toyota Sequoia
My Photo Albums
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 02:58 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2022, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
