Refreshing the alternator on an OM617

Having recently written a DIY for a starter motor I thought I'd post the following for an alternator. I'd like to point out that much like a starter motor, these units can be refreshed / rebuilt / overhauled with comparative ease.

I found the following useful information on the internet:-

http://www.digitalcorvettes.com/forums/showthread.php?t=95761 this is good for general rebuild advice,

http://ezinearticles.com/?Mercedes-Benz-Alternator-Parts-Replacement&id=345576 which is good for electrical testing information (though I suspect some of the numbers are a bit out!)

Bosch alternator varnish / paint experts required! for information concerning air drying varnish.

My alternator turned out to be a re-manufactured Bosch unit. Sorry I don't know the part number for the whole assembly, and I don't even know how much current it is meant to produce. Perhaps someone will be able to identify it for me?

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 05:13 AM.
Reply With Quote
  #2
Old 02-24-2011, 04:36 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Taking it apart (1)

Once you've got the alternator off of the engine – which I understand some people find difficult – the chances are you'll have found out that some bolts and nuts are not meant to move! If you are struggling with alternator removal take a look at the pictures below. Perhaps they will help.

Start by removing the nut from the pulley. It is a good idea to leave the adjustable mounting bracket on the side of the alternator in place for this, as you can use it to stop the fan from rotating whilst undoing the nut (22mm socket).



If this doesn't work then I recommend trying to stop the pulley from turning with a strap wrench before resorting to clamping it in a vice. Whatever you do don't damage the pulley – if you have a knackered pulley then you are better off replacing it. A pulley needs to be straight and true otherwise you'll have trouble with V belt tension, vibration, bearings, V belt durability etc etc etc...

Under the nut on the pulley you'll find a split washer. Remove this, a thick spacer, the pulley, a thin spacer,



...and the fan from the alternator.

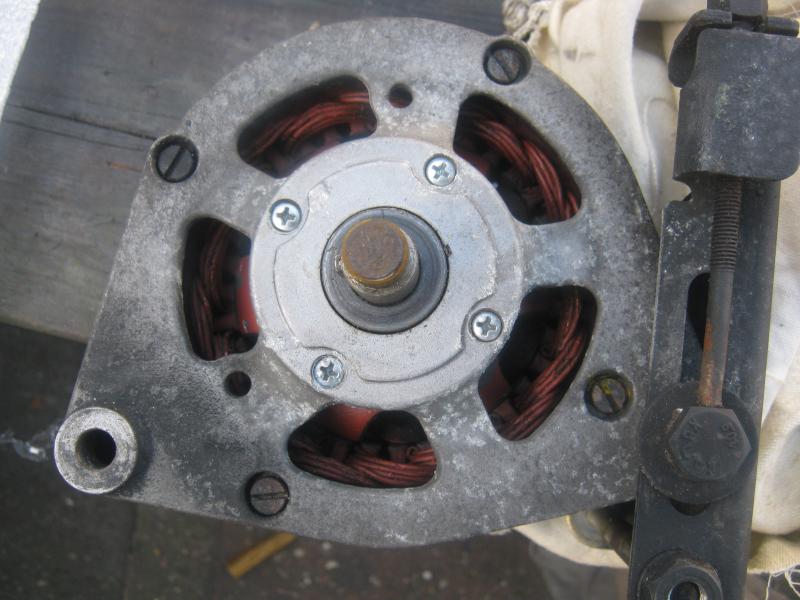

Underneath all of this stuff you'll see that there are two sets of four screws.



The inner set hold a bracket that helps to locate an inner bearing assembly on the rotor, and the outer set (four long screws) hold the two aluminum casings in place on either side of the stator.

Unlike in the OM617 starter motor (An OM617 starter motor is for LIFE not just for Christmas!) the armature in this alternator is a stator – it doesn't turn. Whilst at first glance this alternator seems quite similar to an electric motor / dynamo it is subtly mechanically different as it does not have a commutator. Instead it has a slip ring assembly.

When the rotor is turned an alternating current (AC) is induced. To obtain direct current (DC) the AC is converted to DC through a set of diodes that are positioned in the plastic assembly at the back of the unit – at the opposite end of the pulley.

See http://en.wikipedia.org/wiki/Alternator#Automotive_alternators for more information regarding the workings of alternators.
Attached Thumbnails
Refreshing the alternator on an OM617-alternator-remove-nut-split-washer-pulley.jpg   Refreshing the alternator on an OM617-alternator-remove-thin-space-between-pully-fan.jpg   Refreshing the alternator on an OM617-alternator-under-fan-4-small-screws-4-long-ones.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 04:47 AM.
Reply With Quote
  #3
Old 02-24-2011, 04:36 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Taking it apart (2)

Once you've removed all of the parts off of the pulley shaft, I recommend removing the adjusting mount assembly. Unscrew the V belt tension adjusting captive nut...

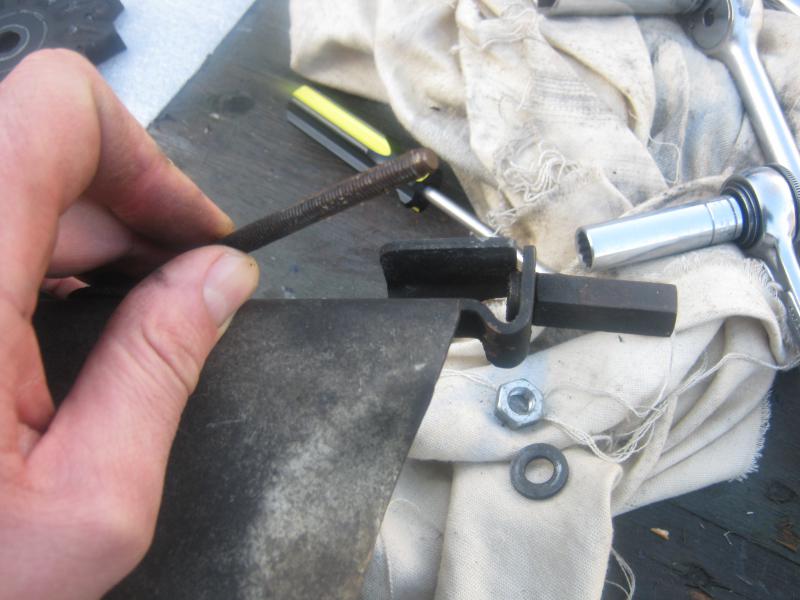

...and pull the adjusting screw thread from the mount.



Here is a picture of the mounting bracket when removed from the alternator.

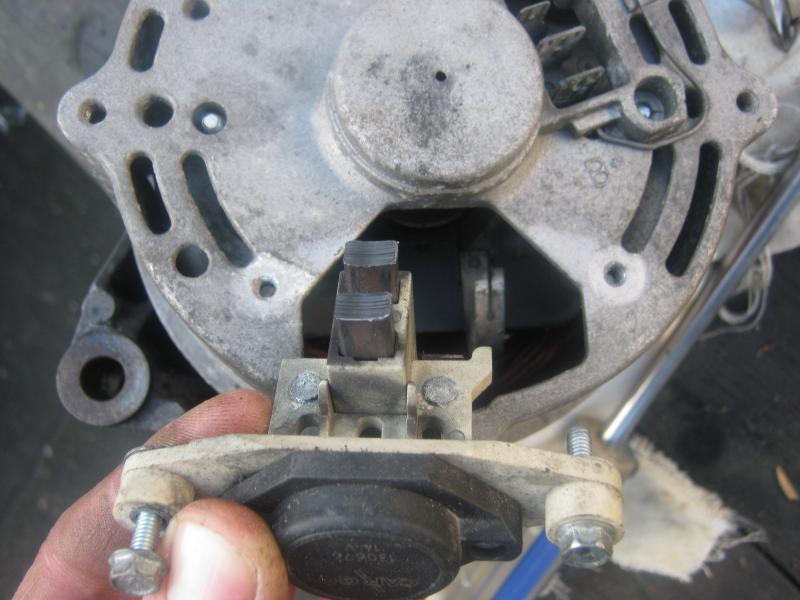

Next I removed the assembly that contains the brushes on the back of the alternator (next to the electrical connector sockets) so that I didn't damage it. You'll need a 7 mm hex socket for this.





I then removed the two sets of four screws mentioned previously, so I could split that casing.



I was lucky in that I only had to drill out one screw!
Attached Thumbnails
Refreshing the alternator on an OM617-alternator-remove-tensioner.jpg   Refreshing the alternator on an OM617-alternator-pull-tensioner-bolt-away.jpg   Refreshing the alternator on an OM617-alternator-mounting-bracket-bits.jpg   Refreshing the alternator on an OM617-alternator-remove-brushes.jpg   Refreshing the alternator on an OM617-alternator-remove-brushes2.jpg

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 10:14 AM. Reason: Brushes not bushes
Reply With Quote
  #4
Old 02-24-2011, 04:37 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Taking it apart (3)

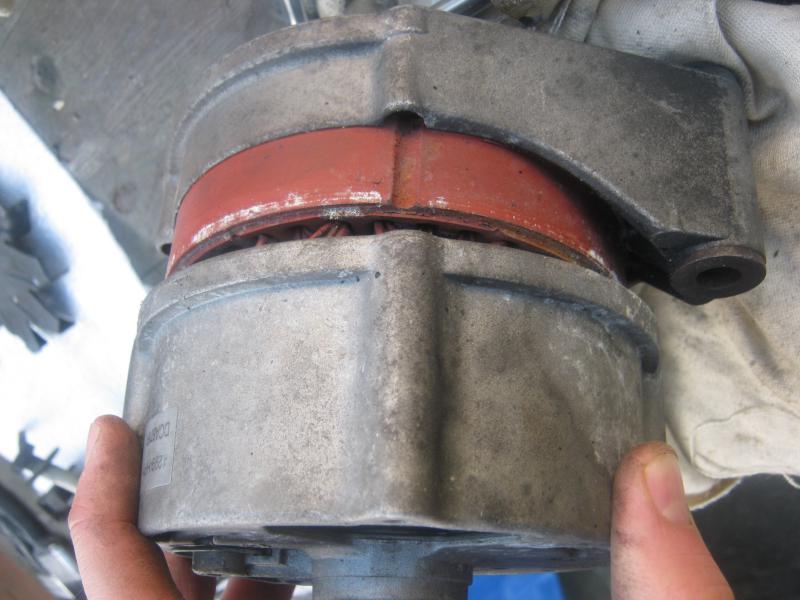

Take your time splitting the casing once you've removed the screws. If you need to pry the casing apart please be careful with how you use your screw drivers! Start by taking off the casing at the front (pulley end)...

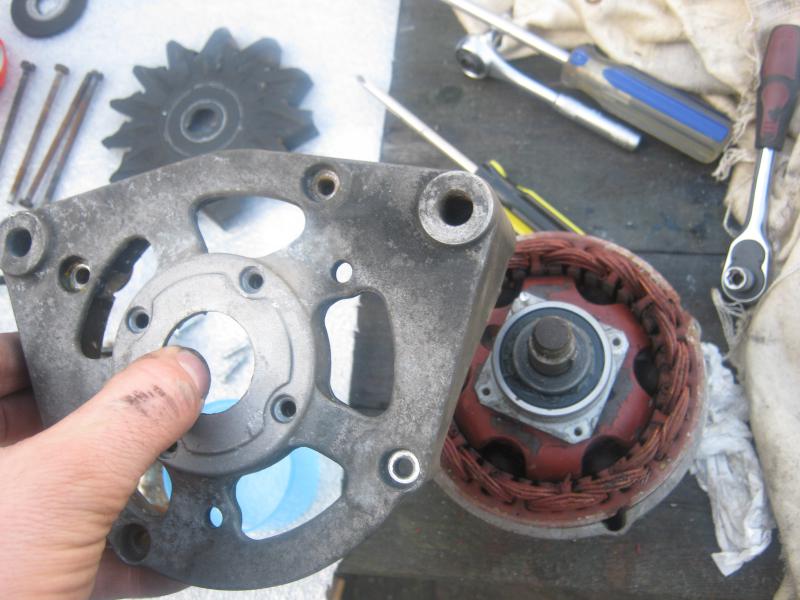

...and you should be able to see the rotor inside. If you can, lift the rotor out. Mine was a bit stuck so I had a little bit more trouble removing the back part of the casing. With care you can “ping” the stator away from the back casing...



...and access four 7mm hex head screws that hold the plastic electrical assembly housing (which contains the diodes etc) in the back cover.



You need to be careful at this stage otherwise you'll have to do some soldering! Three wires run from the armature to this electrical assembly – don't break them!

You should now be able to pull the stator (and rotor if it was stuck) away from the back casing.

Attached Thumbnails
Refreshing the alternator on an OM617-alternator-split-body1.jpg   Refreshing the alternator on an OM617-alternator-split-bidy2.jpg   Refreshing the alternator on an OM617-alternator-gently-pull-up-stator.jpg   Refreshing the alternator on an OM617-alternator-reposition-stator-reach-bolts-underside.jpg   Refreshing the alternator on an OM617-alternator-rotor-stator.jpg

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 04:57 AM.
Reply With Quote
  #5
Old 02-24-2011, 04:37 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Electrical testing

For this you'll need a multimeter that can measure resistance.
I followed the advice in this link (http://ezinearticles.com/?Mercedes-Benz-Alternator-Parts-Replacement&id=345576) under the section “TESTING & REPAIR”.

QUOTE:-
Diode Assembly
1. Place ohmmeter scale on x100 scale connect ohmmeter leads across "B+" terminal and 3 stator terminals one at a time, reverse leads, ohmmeter should indicate continuity in one direction only.
2. Reconnect ohmmeter leads across negative and 3 stator terminals one at a time.
Reverse leads; ohmmeter should indicate continuity in one direction only.
3. Connect ohmmeter leads across "D+" terminal and 3 stator terminals one at a time.
Reverse leads, ohmmeter should indicate continuity in one direction only, if diodes are found to be defective, replace the diode assembly.
Fig. 3: Diode Assembly Test Diode assembly for 55 amp alternator is shown, others are similar.
1. Place ohmmeter on lowest scale, connect ohmmeter across stator leads, resistance between leads should be 14 15 ohms for 55-amp alternator and .09 10 ohms for 65 through 90 amp alternators, if resistance is incorrect, stator has open or shorted windings and must be replaced.
2. Place ohmmeter on X 1000 scale. Connect ohmmeter between stator core and stator lead, no continuity should exist, if continuity exists, stator is grounded and must be replaced.
1. Place ohmmeter on lowest scale, connect ohmmeter across slip rings, resistance should be 3 4-3.75 ohms for 55 amp alternator and 2.8 3.1 ohms for 65 through 90 amp alternators.
2. If resistance is too low, rotor has short circuit and it must be replaced if resistance is infinity no continuity, rotor has open circuit and must be replaced.
3. Place ohmmeter on x1000 scale, reconnect ohmmeter between either the slip ring and rotor core, no continuity should exist, if continuity exists, rotor is grounded and must be replaced.
END QUOTE

To be honest the diode testing went well. Then, when I got past where it says “Fig. 3:...” I got nonsensical readings from my multimeter. I'm not 100% certain that the numbers quoted in this article are correct. The authors conversion from lbs-ft to Nm at the end of the article is incorrect. Anyway if anyone else follows this advice I'd be interested to hear how it went.

As my alternator was working fine before I took it apart, I guessed everything was still OK so I carried on regardless – as I'm sure you can tell I'm not really electrically minded – I don't have the patience for those bloody multimeters!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 04:58 AM.
Reply With Quote
  #6
Old 02-24-2011, 04:38 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Assessing condition

Look for any obvious damage such as evidence that the rotor has been dragging on the stator. Check out the bearings at both ends of the rotor. Make sure that they spin freely. If they don't you'll have to replace them by pulling them off with a puller. If you can, get hold of a proper bearing puller rather than a more common two or three leg puller, as you are more likely to be able to remove the bearings in one piece. Two or three leg pullers tend to just remove the outer races leaving you to find a solution for the inner races! The advice in this link (http://ezinearticles.com/?Mercedes-Benz-Alternator-Parts-Replacement&id=345576) is to fit new bearings with the open side of the seal towards the rear of the alternator – so that is away from the pulley end where muck and debris gets sucked into the unit from the fan.

I was lucky enough not to need new bearings.

Just in case this information is useful - here are the bearing sizes

Back bearing (not the pulley end) OD = 32mm, ID =12mm and thickness =10mm

Front bearing (pulley end) OD =47mm, ID = 17mm and thickness = 14mm
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-26-2011 at 12:00 PM. Reason: Put in bearing sixe information
Reply With Quote
  #7
Old 02-24-2011, 04:38 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Cleaning and finishing

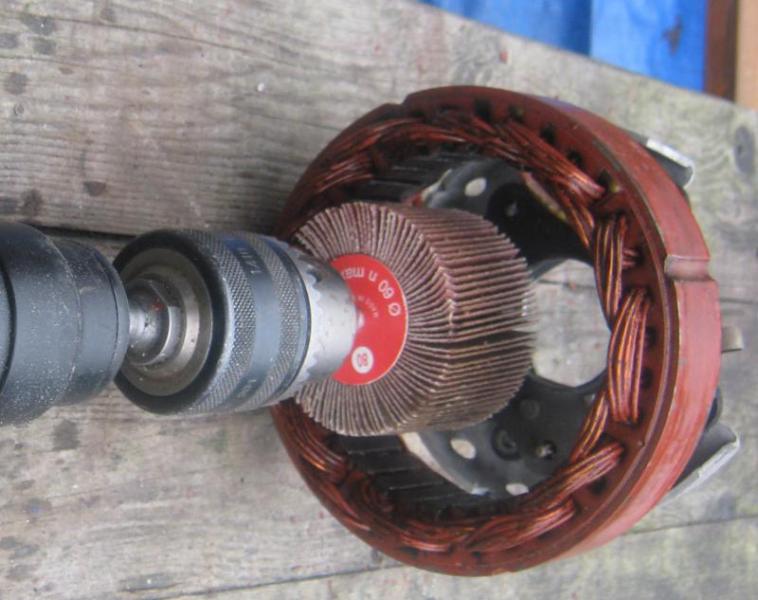

I thought my armature was pretty rusty so I went at it with a flap sanding wheel (bought at great expense).



Try not to remove too much metal here as the clearance between the rotor and the stator needs to remain quite small. If anyone has got the official clearance for this it would be great to know – I couldn't find it.

As for the rest of the alternator, I stripped the mounting bracket and painted it with black POR15, and I cleaned the internals with brake cleaner.

Now is the best time to clean the electric contacts on the back of the alternator.

The stator and rotor in the alternator are treated at point of manufacture to a coating of electrically insulating varnish that I understand is baked onto the surfaces (Bosch alternator varnish / paint experts required!). This is the red oxide paint-like substance you can see in the pictures. I was advised to try and preserve as much of the original varnish as possible as it is better at insulating than the air drying varnish that is readily available to the DIY motor mechanic. Therefore I removed the flaking bits with gentle use of a screw driver and sand paper, then I cleaned up the areas with brake cleaner followed by an application of Eastwood pre-paint solvent.

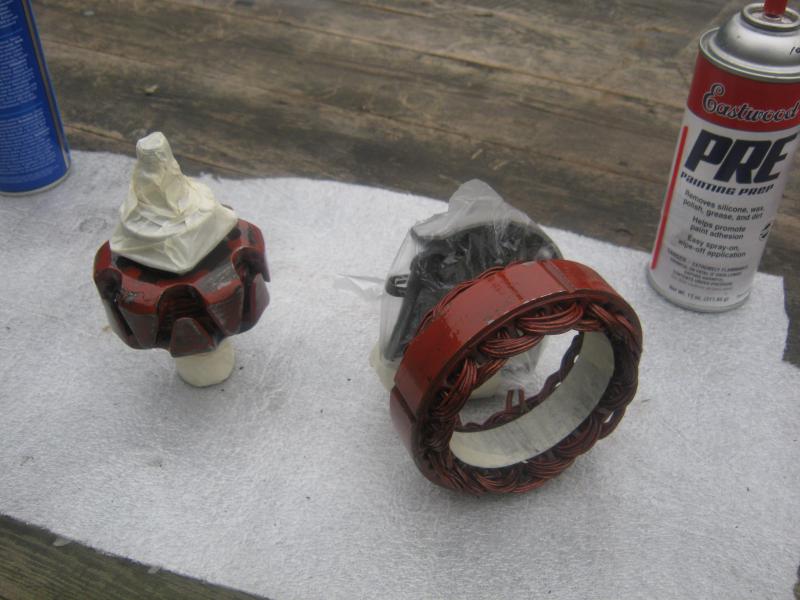

Prior to applying the air drying varnish I masked up the rotor and the stator.



Please note: I masked the armature for when I applied many coats of varnish over the whole stator. Once finished I removed the masking tape and applied two thin coats over the armature so that I didn't mess up the clearance between it and the rotor.

The message is – don't spray on too much varnish on either the rotor or the stator areas where they will be in close contact. If they get too close they can heat up and breakdown the insulating varnish.
Attached Thumbnails
Refreshing the alternator on an OM617-alternator-sanding-stator.jpg   Refreshing the alternator on an OM617-alternator-masked-up-air-drying-varnish.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 05:15 AM.
Reply With Quote
  #8
Old 02-24-2011, 04:39 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Assembly (1)

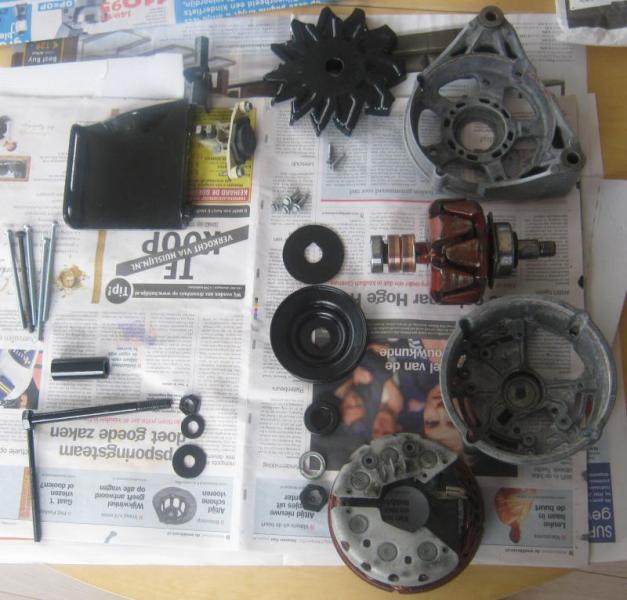

Here's a picture of all of the bits ready to go back together.



You can see that I could only find the clear air drying varnish which is why some parts look a bit patchy.

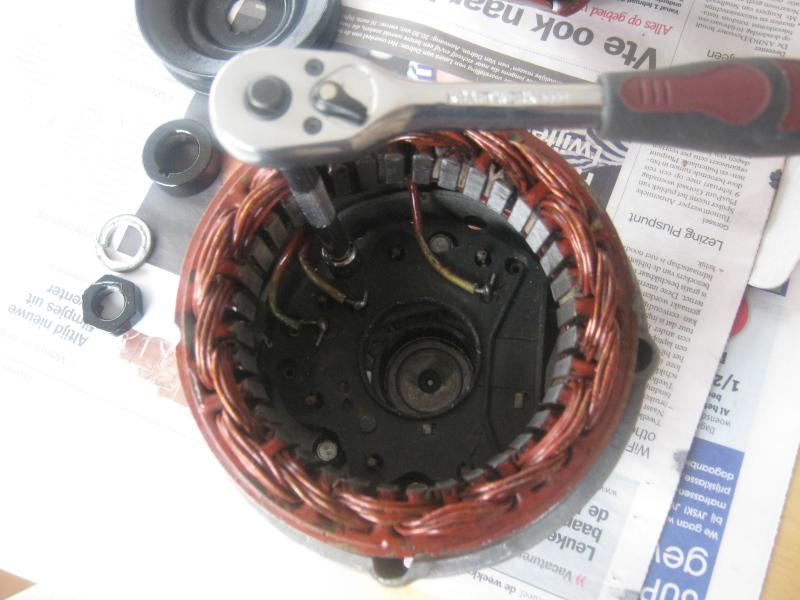

Start by assembling the electrical connection assembly (the bit with the diodes) in the back outer casing.



If your rotor was stuck when you took the alternator apart you'll appreciate how easy it is to reach the four 7mm hex head screws.

Make sure that before you push the stator into the back outer casing that you align the recesses in the stator with the bolt holes in the casing.

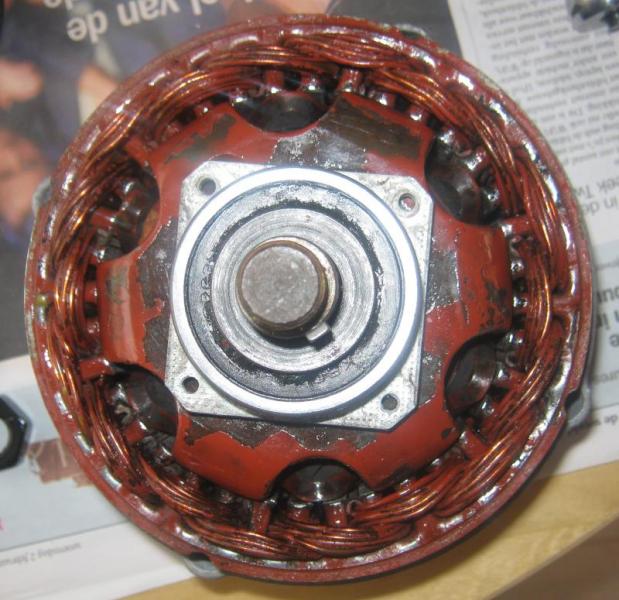

Next fit the rotor – push down so that the bearing sits properly in the back outer casing. The rotor coils should be in line with the armature on the stator.

Attached Thumbnails
Refreshing the alternator on an OM617-alternator-ready-assemble.jpg   Refreshing the alternator on an OM617-alternator-fit-assembly-diodes-connections-casing.jpg   Refreshing the alternator on an OM617-alternator-make-sure-bolt-recesses-casing-stator-match.jpg   Refreshing the alternator on an OM617-alternator-fit-rotor.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 05:04 AM.
Reply With Quote
  #9
Old 02-24-2011, 04:39 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Assembly (2)

You can now fit the other half of the outer casing in position, however, you first need to get the correct orientation. On my alternator, the large hole for the brush assembly on the back cover was positioned to the right hand side of the two mounting lugs on the front casing (viewed from the back of the alternator).



Gently push the front outer casing onto the stator. You may have to adjust the position of the mounting lugs on the front outer casing – so that the bolt holes line up with the recesses in the stator. Gently tap the casing with a rubber mallet.

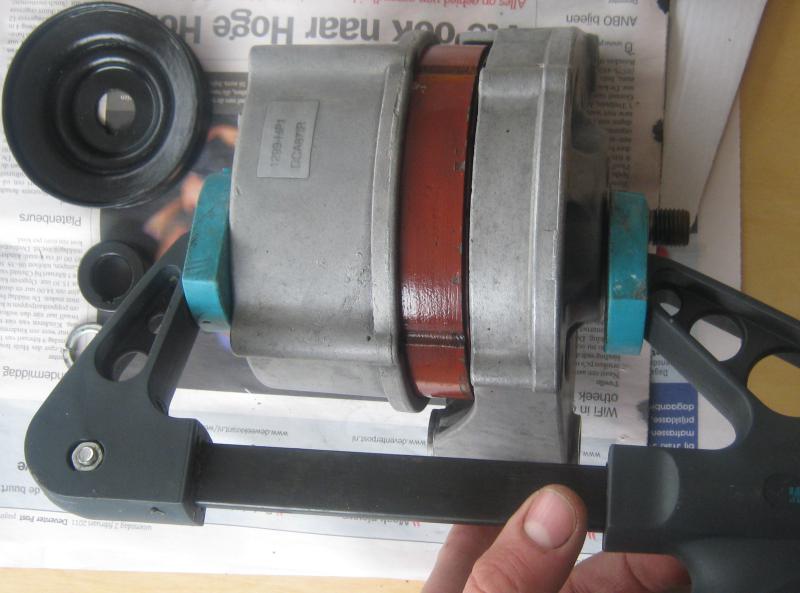

Push the two outer casings firmly onto the stator by applying force from a clamp. Ensure the joining edges of the casings and the stator remain parallel to each other whilst you are applying the clamping force. You will probably have to stop and reposition the clamp several times to make sure that the casings do not go on askew.



When pushing the casings together try to image a force that is less than standing on the alternator and jumping up and down on it! You don't want to be too rough – if you apply too great a force you will unseat or damage the bearings.

At this point it is a good idea to check that the rotor can still turn. It should spin freely – there should NOT BE EVEN A HINT OF ANYTHING AT ALL SCRAPING AGAINST IT!

If this is not the case, now is the time to rectify it; take it all apart again and find out what is wrong.

If all is well, and the rotor spins freely, continue by fitting the two sets of four screws that fix the front outer casing in position. Tighten the long screws down in stages so that you do not skew the two casings together.



Again you need to make sure that the rotor spins freely.

Again, if it does not you need to rectify the problem.

If all goes well the rotor shaft should just sit proud of the front outer casting.



This is important as the fan needs to clear the casing.
Attached Thumbnails
Refreshing the alternator on an OM617-alternator-fit-two-casings-correctly.jpg   Refreshing the alternator on an OM617-alternator-lightly-tap-casing-into-position.jpg   Refreshing the alternator on an OM617-alternator-use-wood-working-clamp-slowly-close-casing.jpg   Refreshing the alternator on an OM617-alternator-fit-four-casing-screws.jpg   Refreshing the alternator on an OM617-alternator-fit-housing-bolts-rotor-bearing-plate.jpg

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 05:10 AM.
Reply With Quote
  #10
Old 02-24-2011, 04:40 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Assembly (3)

You can now fit the alternator brush assembly...



...and the fan, the thin spacer, the pulley, the thick spacer, the split washer and the securing nut.



Tightening the nut can be done by holding the pulley fast with a strap wrench. The quoted torque in this link (http://ezinearticles.com/?Mercedes-Benz-Alternator-Parts-Replacement&id=345576) is 23 – 29 lbs-ft that's about 31 – 39 Nm.

Fitting the mounting assembly is the reverse of removal.

Attached Thumbnails
Refreshing the alternator on an OM617-alternator-fit-brushes.jpg   Refreshing the alternator on an OM617-alternator-done.jpg   Refreshing the alternator on an OM617-alternator-fit-fan-spacers-pulley.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 02-24-2011 at 05:12 AM.
Reply With Quote
  #11
Old 02-24-2011, 04:40 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Final comments

With the exception of the problems I had following the instructions of the electrical testing, I found this to be a very straightforward job.

However, I'm not happy with the standard of finish on the mounting bracket and the alternator fan. POR15 to my mind never looks that good on flat surfaces. If I decide to keep with my planned all in black finish for my engine I will probably redo these bits with a more factory-like black – POR15 is just too shiny. I'm still in two minds whether I should paint the visible side of the stator in black too...

...anyway, the plan is to see if it all works when I get my engine back together – and then perform the rest of the electrical testing procedure in (LINK). Fake cadmium coatings and or factory finish black can wait for now.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #12
Old 02-24-2011, 08:07 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Thanks for the great write up.

I had to use an impact wrench to remove the nut on the pulley.

However, I traded my old alt in when I purchased a re-man unit, now I wish I didn't, oh well.

Hopefully, the attachments will help concerning the electrical tests.
Attached Thumbnails
Refreshing the alternator on an OM617-img_4810.jpg   Refreshing the alternator on an OM617-img_4811.jpg   Refreshing the alternator on an OM617-img_4812.jpg
__________________
83 SD

84 CD
Reply With Quote
  #13
Old 02-24-2011, 09:14 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by toomany MBZ View Post
Thanks for the great write up.

I had to use an impact wrench to remove the nut on the pulley.

However, I traded my old alt in when I purchased a re-man unit, now I wish I didn't, oh well.

Hopefully, the attachments will help concerning the electrical tests.
Thanks for the electrical test information - boy oh boy do I need to find a paper FSM. The CD version is good but not that good.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #14
Old 02-24-2011, 09:46 AM
Registered User

Join Date: Feb 2006
Location: Mountains in South Carolina
Posts: 703
i enjoyed the write up and the pictures were great! For those of you who have not removed your alternator as yet, and to add to this article, the one mounting bolt that gets frozen is the bottom long pivot bolt. The steel bolts gets seized in the aluminum threads. Might be a good idea, if you want to, is to loosen the belts some, see if you can get this bolt to turn, if you can get bolt out lube it up good with some antiseize or i guess some grease on the threads. Then put it back in. This is what I had to do with my car. I have not rebuilt the alternator. Glad there is an good article like this.

Thanks! But now i know all the bolts will come out.
__________________
1982 300SD
Reply With Quote
  #15
Old 02-24-2011, 10:04 AM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,241
"Next I removed the bushing assembly on the back of the alternator (next to the electrical connector sockets) so that I didn't damage it. You'll need a 7 mm hex socket for this."

Did you mean "regulator" and not "bushing assembly" for the pic referenced? Nice set of pics!

__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 05:06 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2020, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
