Anyone have a part number for this??? I had one but it never came home after being loaned...

__________________
Did you just pass my 740 at 200 kmh in a 300SD?????

1978 300SD 'Phil' - 1,315,853 Miles And Counting - 1, 317,885 as of 12/27/2012 - 1,333,000 as of 05/10/2013, 1,337,850 as of July 15, 2013, 1,339,000 as of August 13, 2013



100,000 miles since June 2005 Overhaul - Sold January 25th, 2014 After 1,344,246 Miles & 20 Years of Ownership

The AST tool I have is MB part number equivalent 115 589 08 07 00.

Works great on that flange nut.


.

__________________
1983 123.133 California
- GreaseCar Veg System

That's strange I have nearly the same number

915 589 01 07 00

replaced by

115 589 01 07 00

Found here on startek

amb





722.118 transmission - rear 4 pronged slotted nut - which special tool?


I decided not to buy it in the end 'cos I didn't want to shell out yet another 120 euros on a socket to undo those old nuts. The new ones come in a 12 point form - so why bother with the old?

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

I'm a tool junky. That's why I have it. However I did use it like four times already and I used it on a 716.210 to remove the flange nut couple days ago.

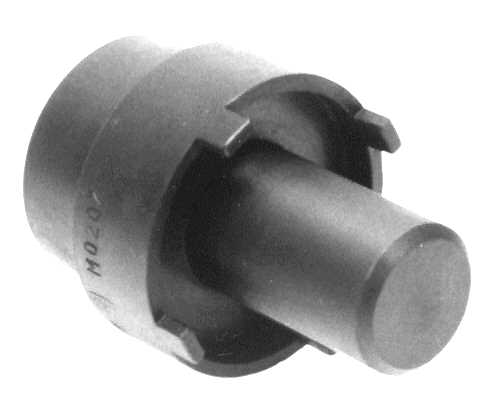

Here's what the 115 589 08 07 00 looks like.


Different look at the body than 115 589 01 07 00 that you posted.

Attached Thumbnails



__________________
1983 123.133 California
- GreaseCar Veg System

Well thanks for the feedback - I'm now unsure if the socket I found on startek is actually the right one...

...the description seems good - I'll put a warning in that thread I started just in case I'm unknowingly steering people in the wrong direction.

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Looking at the samtag website,
Mercedes Tools - Mercedes Benz Special Tools & Repair Information-Tool

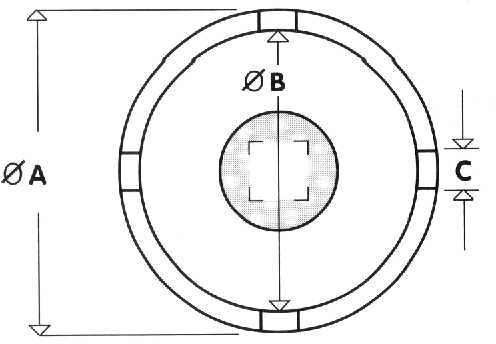

The 115 589 01 07 00 has the dimensions of
A = 41.50mm B = 35.00mm C= 7.50mm

The 115 589 08 07 00 has the dimensions of
A=42.50mm, B=35.25mm , C=5.50mm




They are both pretty close in size.

.


.

Attached Thumbnails



__________________
1983 123.133 California
- GreaseCar Veg System

Wow that's strange - very similar - but obviously not going to fit if you get the wrong one.

It seems as though there were two generations of these slotted nuts...

...unless the information on startekinfo is wrong. For the socket I found it does say

If I remember correctly this slotted socket is nothing like the size on the rear wheel hub (W114/5/6 W123 W126)

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

I think I've worked it out now.

Putting the 115 589 08 07 00 into startekinfo you get this

amb

Which specifies

Definitely for the automatic transmission.

The other one I found must be for manual transmissions. Is that a good assumption?

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Definitely different. 115 589 02 07 00 ---
A=54.75mm, B=48.25mm, C=7.25mm





.

Attached Thumbnails



__________________
1983 123.133 California
- GreaseCar Veg System

Not so sure. I used the 115 589 08 07 00 on a four speed manual couple days ago.


Here is what Samtag states on their ad.

But I've used the 115 589 08 07 00 on a diff also and it works.


.

__________________
1983 123.133 California
- GreaseCar Veg System

Thanks,

That's what I will need to swap out my rear trans seal, which has decided to weep a bit....

__________________
Did you just pass my 740 at 200 kmh in a 300SD?????

1978 300SD 'Phil' - 1,315,853 Miles And Counting - 1, 317,885 as of 12/27/2012 - 1,333,000 as of 05/10/2013, 1,337,850 as of July 15, 2013, 1,339,000 as of August 13, 2013



100,000 miles since June 2005 Overhaul - Sold January 25th, 2014 After 1,344,246 Miles & 20 Years of Ownership

So, the replacement nut comes in simple 12-point???? because I ordered a new nut, washer and seal from my MBZ dealer for only $9.75 USD, but haven't seen it yet. What size 12 point????

__________________
Did you just pass my 740 at 200 kmh in a 300SD?????

1978 300SD 'Phil' - 1,315,853 Miles And Counting - 1, 317,885 as of 12/27/2012 - 1,333,000 as of 05/10/2013, 1,337,850 as of July 15, 2013, 1,339,000 as of August 13, 2013



100,000 miles since June 2005 Overhaul - Sold January 25th, 2014 After 1,344,246 Miles & 20 Years of Ownership

I didn't get mine from the dealer - I bought it for about the same price as you from a transmission re-builder - so I can't say for sure that the MB supplied part will be a 12 point nut...

...however, if it is you'll be scrabbling for your 32mm 12 point socket - then you'll need to go and order a deep 32mm 12 point socket 'cos a short one can't be driven with the output shaft sticking through the back end of the socket!

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

I think this is the same 30mm nut for the differential. I didn't see a difference and it shares the same thread.


Edit: I don't think 32mm is correct. I do know a 30mm socket fits the nut.

__________________
1983 123.133 California
- GreaseCar Veg System

I chisel the old nut off.

The replacement nut is a metric 12-point.

There is no logical reason to buy a tool you will use once to remove a discontinued nut.


.
