#166
|
||||
|
||||
Yessssss! Great work.
__________________
I'm not a doctor, but I'll have a look. '85 300SD 245k '87 300SDL 251k '90 300SEL 326k Six others from BMW, GM, and Ford. Liberty will not descend to a people; a people must raise themselves to liberty.[/IMG] |
#167
|
|||
|
|||
The first pic shows the new o ring installed and everything all lubed up
I have seen write ups on replacing this piston while the trans is in the car..For me, unless the the valve body and divider plate are removed, it is impossible to see if the piston and pin are in place correctly.. I didn't take a picture of the piston installed, or the cover installed..But it is pretty obvious on how it all goes in.. The last pic shows the plastic guide piece in place..It's job is to keep the band moving straight and not going crooked in it's movement..
__________________
1978 300SD 303400 miles 1983 300D 341270 miles 1980 300SD 320456 miles |
#168
|
|||
|
|||
Here is another shot of the plastic guide thing in place..1st pic

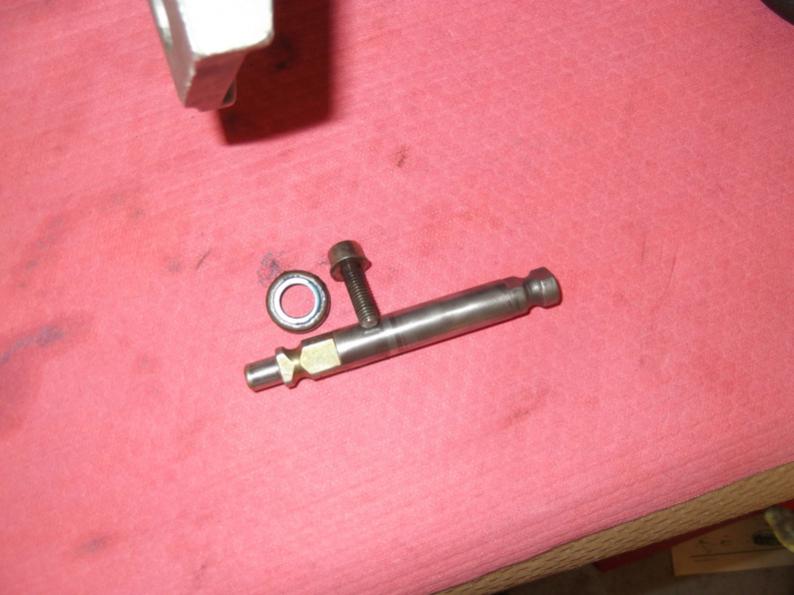

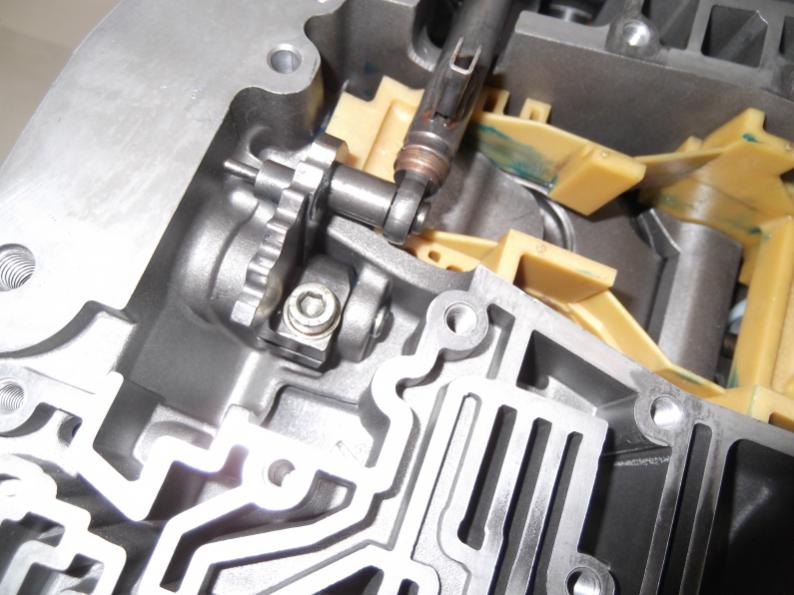

Ready to install the selector shaft ..new seal first install..comes in the master kit.. Then the shaft is installed and locked in place with the bolt..Make sure the system moves smoothly and you should be able to put the tranny in park by rotating the shaft towards the rear.. In the last pic..on the right edge, you can just see the piston and pin in place.
__________________
1978 300SD 303400 miles 1983 300D 341270 miles 1980 300SD 320456 miles |
#169
|
|||
|
|||
The only things that is missing around the outside perimeter are the neutral safety switch and the green modulator valve..I think that is it..
Those are easy and I will pass on showing those..If you have done all of this so far..installing the switch and mod valve are easy..
__________________
1978 300SD 303400 miles 1983 300D 341270 miles 1980 300SD 320456 miles |
#170
|
|||
|
|||
Excellent job and congratulations!
__________________
1981 300TD 310k miles 1970 280sel 172k miles 1966 230 Fintail 162k miles "Where are we going? And why am I in this hand basket?" |
#171
|
||||
|
||||
This thread is amazing and extremely valuable. Thank you so much for all the hours of work that you have put into it.
|
#172
|
|||
|
|||
In post #158 you covered the kickdown solenoid. I had a quick question on how the wire attaches to the solenoid. The insulation on the wiring, for mine, has become extremely brittle and bare in places. I would like to replace the wire but was unsure of how it attaches to the solenoid. Pulling on the boot only produced another bare section in the insulation.
Great write up! I've been studying this as you've gone along, thinking this task was in my near future. Fortunately, I found a sticking kickdown switch, at the pedal, due to carpet interference. I may even buy a used transmission to rebuild and have on hand.
__________________
Sam 84 300SD 350K+ miles ( Blue Belle ) |
#173
|
|||
|
|||
Quote:
I figure at the factory that the car is going down the line..Engine and tranny drop in and someone below hooks all the wires up to the tranny..The neutral safety switch is a plug in and so should the Solenoid.. Here is another close up of my solenoid and a picture of a new one from a online parts house..Looks like it just plugs in..
__________________
1978 300SD 303400 miles 1983 300D 341270 miles 1980 300SD 320456 miles |
#174
|
|||
|
|||
Alright..
Go back to page 3..Posts 33-37 The transmission is on it's back with it's belly facing upwards You will see in those earlier posts all the plastic pieces that need to go back in.. After all that is done, then it is time to open up the lower valve body with the intermediate plate.. Mike
__________________
1978 300SD 303400 miles 1983 300D 341270 miles 1980 300SD 320456 miles |
#175
|
|||
|
|||
now on posts 38-42..I divided the intermediate plate (9) and the lower cover. You can see the 4 bolts that are used to sandwich the mount cover plate(5),the 2 gaskets..The big gasket(8) and the smaller gasket(14) for the lower cover..
Remember when I took the lower cover off, there was no gasket (14)installed there.. It is time to clean all of this up and put it back together.. I will start making some nice pictures of all this..
__________________
1978 300SD 303400 miles 1983 300D 341270 miles 1980 300SD 320456 miles |
#176
|
|||
|
|||
Go back to post 41-42..
We are going to totally disassemble the lower cover piece..There is 2 screen pieces and a special round looking valve that was removed earlier..I had them stored in a plastic Ziploc bag..
__________________
1978 300SD 303400 miles 1983 300D 341270 miles 1980 300SD 320456 miles |
#177
|
|||
|
|||
Here is a great shot from the manual in regards to everything that is involved tearing apart the lower cover..
Parts 27 and 25 are those 2 screens and that round valve.. We are going to take apart the 2 spool assemblies..One at a time.. Hold on tight!!
__________________
1978 300SD 303400 miles 1983 300D 341270 miles 1980 300SD 320456 miles |
#178
|
|||
|
|||
300dmichael:
Wow! This has been a fantastic writeup/walk-through! Thanks for your contribution. I'd now be quite confident in doing this rebuild - if it were to come up. Lou
__________________
'83 300 SD '68 Triumph TR 250 - The only car I ever loved more than the Mercedes; who needs electricity, anyway? - Damn, why did I sell it?! '59 Jaguar 3.4 'Le Chat Noir' - Damn, why did I sell it?! It's difficult to make predictions, especially about the future. - Niels Bohr |
#179
|
|||
|
|||
Quote:
OMG thank you for this very particular fine detail and photos having realized that my 722.315 was missing those two tiny thimble screens nowhere on the internet is there a photo of the original part but I managed to find what I thought was an easy replacement on a parts catalog... only to find out they are totally different, they are about the same size but they have all this exta plastic on the outside that doesnt fit into the little hole on the plate of the 722.315 the original part is of course not available anymore and unless I find someone with a old valve body laying around seems I might be SOL, but at least now I know im not crazy. |
#180
|
||||
|
||||
Threads like this are what make Peach what it is. This even after all these years is simply the best most thought out how to on taking on this project. Thanks for all the time that was put into this.
|
