Finally got another diesel Benz

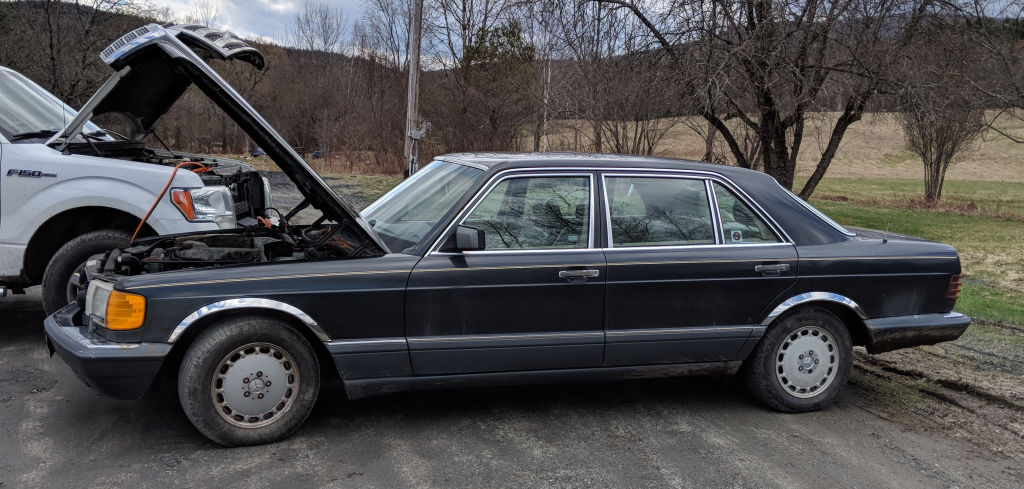

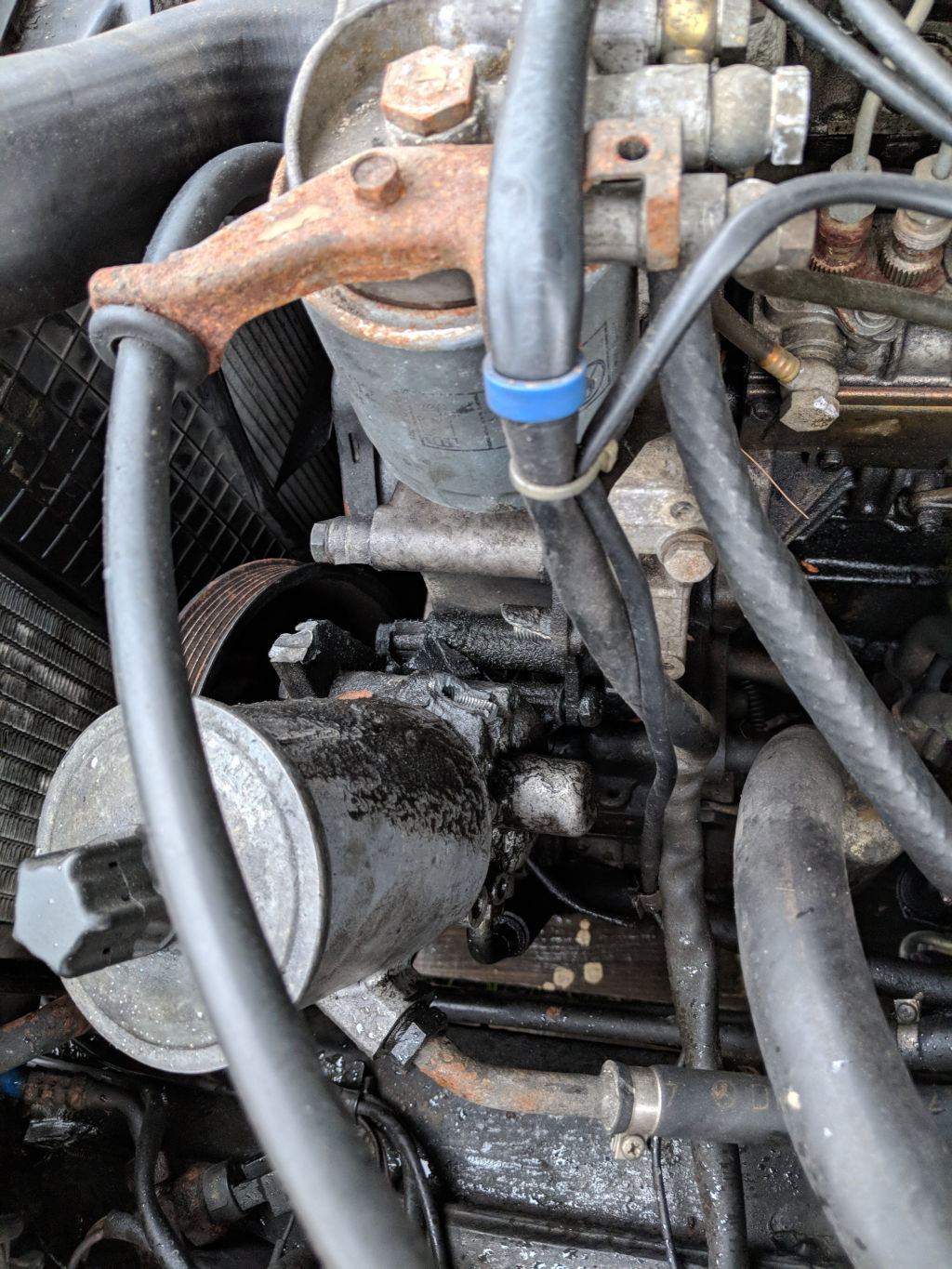

Drove to Vermont (4.5 hours) to get this 350 SDL. My first 603, should be interesting. Bought it knowing it needed a power steering pump, so I got that before I even got the car. Put that in tonight after I got home. Car is still on the trailer, in fact. When I was strapping it down, I got a good look at the underside. Nice and solid. There is some small spots of surface rust, which I will take care of. Rear window is not delaminated. Supposedly everything works except the radio. I will check that out tomorrow, if it's not raining. After I get it home, seller tells me it will probably need a head gasket.. This is not sounding good. I will have to find out what head it is, of course. Hope it's just a gasket. Oh,, anyone got a factory air cleaner? You guessed it, someone put the stupid cone air filter on it, and the overboost control switch has been bypassed.

Attached Thumbnails

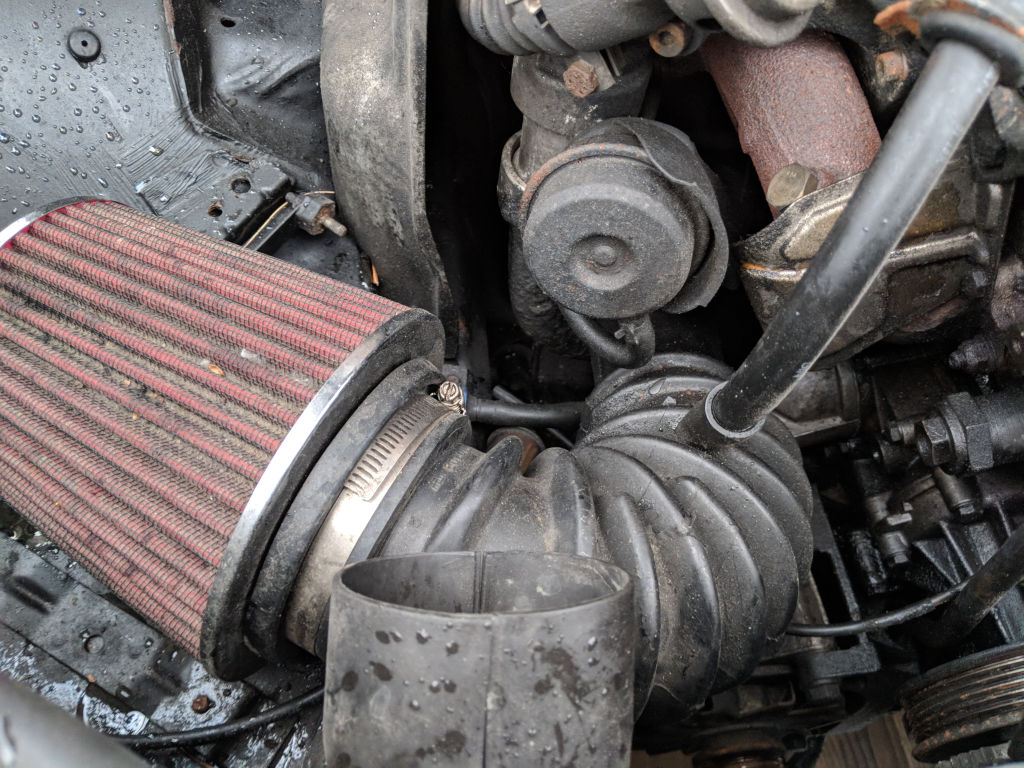

Finally got another diesel Benz-350sdlside.jpg   Finally got another diesel Benz-350-sdl-power-steering-pump.jpg   Finally got another diesel Benz-sdl-air-filter.jpg
__________________
79 MB 280 SEL Euro 133k
77 MB 450SL 154k
05 Mustang GT Vert (3) 104k
12 TSX Wagon Tech (66k) (192k)
06 Subaru Outback base (135k) 164k
16 Acura MDX (109k) 111k
18 Silverado 2500 LTZ Midnight (212) 56k
97 Ford Ranger 163k
11 RAV4 154k
01 Escape 173k
04 Honda Pilot 292k
1967 Mustang (Resto Project)
1968 Mustang (Parts Bin)
00 Ford Ranger 124k

Last edited by ImBroke; 04-29-2018 at 08:09 AM.
Reply With Quote
  #2
Old 04-28-2018, 11:44 PM
dieseldiehard's Avatar
Dieseldiehard

Join Date: Oct 2002
Location: Bay Area No Calif.
Posts: 4,378
congrats on the SDL!
I presume you read up on the rodbender syndrome?
You need to have the head inspected for cracks first then surfaced and pressure checked while its off the engine.
I had a 350SDL and sold it after it was draining my bank account. Until a week ago I had an aircleaner housing but its gone to the dump now.
put a WTB on the parts section and see if David Hendy has one.
GL with the project!
DDH
__________________
'95 E320 Wagon my favorite road car. '99 E300D wolf in sheeps body, '87 300D Sportline suspension, '79 300TD w/ 617.952 engine at 367,750 and counting!
Reply With Quote
  #3
Old 04-29-2018, 12:27 AM
Diseasel300's Avatar
Registered User

Join Date: May 2016
Posts: 6,034
What makes you think it needs a head gasket? The 3.5L doesn't have the head issues that the 3.0L had, but they have issues in the bottom end. As mentioned above, they have a reputation for bending rods and ovaling cylinders.
__________________
Current stable:
1995 E320 149K (Nancy)
1983 500SL 120K (SLoL)

Black Sheep:
1985 524TD 167K (TotalDumpster™)

Gone but not forgotten:
1986 300SDL (RIP)
1991 350SD
1991 560SEL
1990 560SEL
1986 500SEL Euro (Rusted to nothing at 47K!)
Reply With Quote
  #4
Old 04-29-2018, 12:59 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: Eastern TN
Posts: 20,841
Any 602 or 603 is subject to head gasket failure pouring oil into #1. A 603.97 (3.5) should have a #17 head casting so if it needs a head gasket, that could be all it needs. While the head’s off, check piston protrusion above deck fore and aft. Any piston that sits lower in front/higher aft has a bent rod (see my avatar). I haven’t heard of a 603 rod bending aft but I suppose it’s possible.

Sixto
98 E320 sedan and wagon
Reply With Quote
  #5
Old 04-29-2018, 07:16 AM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,686
Welcome back! Hope the new car works our for you.
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #6
Old 04-29-2018, 07:35 AM
ImBroke's Avatar
Diesel way of Life

Join Date: Jun 2004
Location: Cleveland, NY
Posts: 2,230
Quote:
Originally Posted by Diseasel300 View Post
What makes you think it needs a head gasket? The 3.5L doesn't have the head issues that the 3.0L had, but they have issues in the bottom end. As mentioned above, they have a reputation for bending rods and ovaling cylinders.
The guy I got it from says there gets small amounts of oil into the coolant. I know about the ovaling of the cylinders. I will check that if or when I do the head gasket. I didn't buy it for a project car, I have enough of those. I just looked,, #17 head. That's a plus.
Tom, that truck is looking sweet.
__________________
79 MB 280 SEL Euro 133k
77 MB 450SL 154k
05 Mustang GT Vert (3) 104k
12 TSX Wagon Tech (66k) (192k)
06 Subaru Outback base (135k) 164k
16 Acura MDX (109k) 111k
18 Silverado 2500 LTZ Midnight (212) 56k
97 Ford Ranger 163k
11 RAV4 154k
01 Escape 173k
04 Honda Pilot 292k
1967 Mustang (Resto Project)
1968 Mustang (Parts Bin)
00 Ford Ranger 124k

Last edited by ImBroke; 04-29-2018 at 08:10 AM.
Reply With Quote
  #7
Old 04-29-2018, 08:20 AM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,686
Thanks! The 350s if having the bent rod syndrome will have an uneven idle. OTOH if its not bent too much you might replace the gasket and go a lot of miles without much trouble....as long as you don't mind the uneven idle.
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #8
Old 04-29-2018, 10:34 AM
ImBroke's Avatar
Diesel way of Life

Join Date: Jun 2004
Location: Cleveland, NY
Posts: 2,230
Idles rock smooth, and hardly any blowby to speak of. If it quits raining, I am going to do a compression check to see how that looks.
Reply With Quote
  #9
Old 04-29-2018, 05:37 PM
ImBroke's Avatar
Diesel way of Life

Join Date: Jun 2004
Location: Cleveland, NY
Posts: 2,230

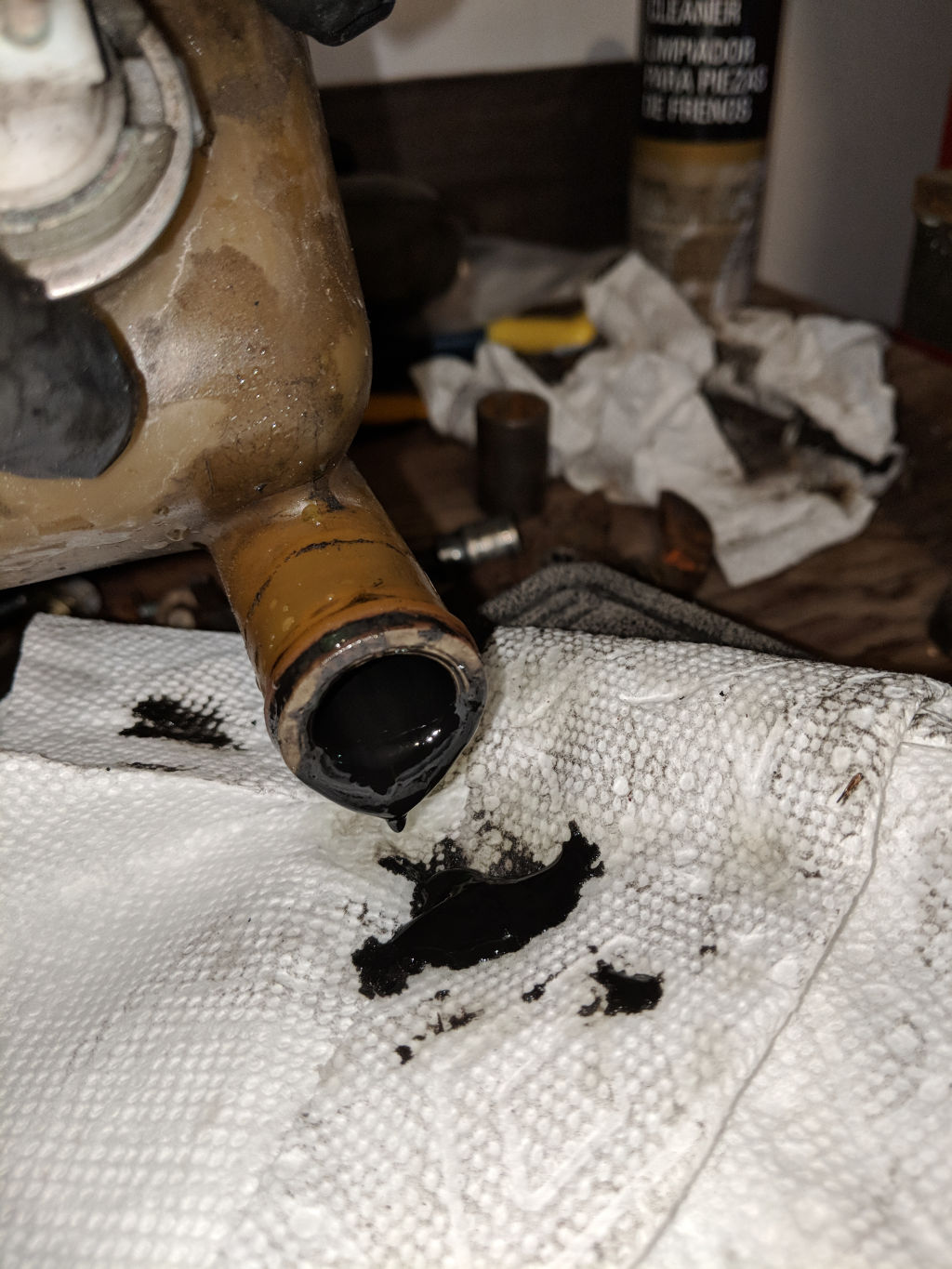

This is why it needs a head gasket. No bubbles, so it's not blowing compression into the coolant, but oil is getting in there somehow. Second pic is after cleaning out the reservoir, and driving about 2 miles.
Attached Thumbnails
Finally got another diesel Benz-benz-1.jpg   Finally got another diesel Benz-benz-2.jpg
Reply With Quote
  #10
Old 04-29-2018, 05:39 PM
okyoureabeast's Avatar
Rogue T Tolerant

Join Date: Jul 2009
Location: North America
Posts: 1,675
Quote:
Originally Posted by ImBroke View Post
The guy I got it from says there gets small amounts of oil into the coolant. I know about the ovaling of the cylinders. I will check that if or when I do the head gasket. I didn't buy it for a project car, I have enough of those. I just looked,, #17 head. That's a plus.
Tom, that truck is looking sweet.
I like how our definitions of "project car" are so wildly different. A car needing a new head gasket to me fits the definition of a project car
__________________
-Typos courtesy of my mobile phone.
Reply With Quote
  #11
Old 04-29-2018, 08:16 PM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,686
Could be a radiator leak, though that looks more like engine oil. No harm in taking a compression test but it might not reveal the problem.

The oil looks gray rather than pitch black...not sure if that is significant or not.
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #12
Old 04-29-2018, 08:39 PM
Registered User

Join Date: Dec 2008
Location: NE Oklahoma
Posts: 568
If it needs a head gasket, that sure seems to fit the definition of a project car to me. Looks like it is leaking oil into the coolant pretty bad. While the head is off, measure how far above the deck the #1 piston is sitting as compared to the rest. It should be just slightly above. If it is flush or below deck level, rod is bent. If that is the case, rotate engine so #1 is at the bottom, you will probably see the cross hatch worn off the front and back of the cylinder, and still visible on the sides. This indicates that its ovaled. You will then need to measure the cylinder to see if it is still within spec or too far out. If its still in spec, replace the rods and you should be good.
Reply With Quote
  #13
Old 04-29-2018, 10:16 PM
ROLLGUY's Avatar
ROLLGUY

Join Date: Oct 2007
Posts: 7,233
I had to replace the head gasket in my 350SDL at about 120,000 miles. It too was getting oil in the coolant. As said above, surface and pressure check the head. After a good cleaning, be sure to check the block deck with a precision straight edge and feeler gauges.
Reply With Quote
  #14
Old 04-29-2018, 11:04 PM
dude99's Avatar
Registered User

Join Date: Nov 2009
Location: Vancouver, BC
Posts: 1,493
Be sure to source the new gasket ONLY FROM MB!!! I have done a lot of reading on this when I was looking into buying one, it seems the aftermarket ones don't have the updated design that the MB ones do. Not a job you want to do twice.
__________________
2004 F150 4.6L -My Daily
2007 Volvo XC70 -Wife's Daily
1998 Ford F150 -Rear ended
1989 J-spec 420SEL -passed onto its new keeper
1982 BMW 733i -fixed and traded for the 420SEL
2003 Volvo V70 5 Speed -scrapped
1997 E290 Turbo Diesel Wagon -traded for above
1992 BMW 525i -traded in
1990 Silver 300TE -hated the M103
1985 Grey 380SE Diesel Conversion, 2.47 rear end, ABS -Sold, really should have kept this one
1979 Silver 300D "The Silver Slug" -Sold
Reply With Quote
  #15
Old 04-30-2018, 12:20 AM
#TRUMP2020

Join Date: Jun 2012
Location: Virginia
Posts: 789
Quote:
Originally Posted by okyoureabeast View Post
I like how our definitions of "project car" are so wildly different. A car needing a new head gasket to me fits the definition of a project car
Ha, was thinking the same thing! Oil in the coolant, bad power steering pump, some rust needs cleaned up, that's a "project car" in my book.

Exterior looks in decent shape, although I would remove those aftermarket chrome wheel arches as they like to trap moisture and hide rust.
