OM616/617 Injection Pump

Does anyone know how to "turn up" the fuel pump on the OM616 and Om617 engines?
Reply With Quote
  #2
Old 07-25-2004, 09:29 AM
TonyFromWestOz's Avatar
"The Wizard of Oz"

Join Date: Jan 2004
Location: Perth, Western Australia
Posts: 834
Black280CE,
I assume you have a NA 300D or 240D. I have 3 8 300Ds with the OM617 engine. Each is very different from the others, reflecting the different treatment they have had since new.

For Turbo 300Ds they turn up the fuel delivery in the ALDA, but this feature is not available on the NA engines.

I also would like to know the IP setup procedure for these engines.

Where in Oz are you?
Tony
ps, PM me if you would prefer to keep this off the forum.
__________________
Tony from West Oz.
Fatmobile 3 84 300D 295kkm Silver grey/Blue int. 2 tank WVO - Recipient of TurboDesel engine.
Josephine '82 300D 390kkm White/Palamino int.
Elizabeth '81 280E, sporting a '79 300D engine.
Lucille '87 W124 300D non-turbo 6 cylinder OM603, Pearl Grey with light grey interior


Various parts cars including 280E, 230C & 300D in various states of disassembly.
Reply With Quote
  #3
Old 07-25-2004, 10:11 AM
coachgeo's Avatar
Registered User

Join Date: Jan 2003
Location: TX between Dallas and OK
Posts: 1,793
for the 617, do a search in here for "drip method" Im not sure if the other pump is done the same or not.

Also there might be a link for a "DIY" in the thread at the top of this forum.

UPDATE: I just took a gander and yes there is a link to a DIY for timing the Injection pump.
__________________
"If anyone knows other lessons I need to learn, please tell me. I'm tired of learning them the hard way".
by JerryBro


The Glow Plug Wait: This waiting period is a moment of silence to pay honor to Rudolph Diesel. The longer you own your diesel the more honor you will give him". by SD Blue

My normal daily life; either SNAFUed- Situation Normal... All Fouled Up, or FUBARed- Fouled Up Beyond All Repair

62 UNIMOG Camper w/617 Turbo, 85 300SD daily driver- both powered by blended UCO fuels

Last edited by coachgeo; 07-25-2004 at 10:17 AM.
Reply With Quote
  #4
Old 07-26-2004, 03:42 AM
Registered User

Join Date: Jan 2003
Location: Australia
Posts: 71
TonyFromWestOz, I'm located in sydney.

I am not after how to time the injection pump, thats in the cd manual.

What i'm after is how to actually increase the volume of fule being injected. I plan to intercool and turbo my OM616 and to gain any performance i need to increase the amount of fuel being injected (as many of you know)

I'd really appreciate any pics of the injection pump behind the rear cover or procedure on how to increase fuel delivery.
Reply With Quote
  #5
Old 07-26-2004, 09:03 AM
TonyFromWestOz's Avatar
"The Wizard of Oz"

Join Date: Jan 2004
Location: Perth, Western Australia
Posts: 834
Black280ce, Do a search on turbocharging, and you will find a lot of reasions for not turbocharging the OM616/617 engines. Although they are basically the same as the turbo diesel engines in the USA, they are not fitted with the oil sprays for cooling the pistons. This could result in damage (melting) to the pistons.

My reason for wanting to adjust the IP, is to optimise the engine power delivery. It seems that it could benefit from increased fuel delivery.
__________________
Tony from West Oz.
Fatmobile 3 84 300D 295kkm Silver grey/Blue int. 2 tank WVO - Recipient of TurboDesel engine.
Josephine '82 300D 390kkm White/Palamino int.
Elizabeth '81 280E, sporting a '79 300D engine.
Lucille '87 W124 300D non-turbo 6 cylinder OM603, Pearl Grey with light grey interior


Various parts cars including 280E, 230C & 300D in various states of disassembly.
Reply With Quote
  #6
Old 07-26-2004, 09:19 AM
Registered User

Join Date: Jan 2003
Location: Australia
Posts: 71
There are many reasons for and againts turbocharging a NA engine. There are plenty of well engineered aftermarket turbocharged 4wd running aroung in australia. I dont want to turn this thread into a pro/con turbo debate.

Lets stick to finding out how to adjust the IP
Reply With Quote
  #7
Old 08-07-2004, 12:47 AM
Registered User

Join Date: Jul 2004
Location: Sydney, Australia
Posts: 197
you need to take the plate off the rear of the injector pump (near the oil filter housing), when you remove it, it will leak a bit of engine oil.

Imagine looking directly at the rear of the pump, looking toward the front of the car. There is a screw with a locknut. loosen the locknut and turn the screw anticlockwise 1/2 at a time, reinstall the plate and test drive it.

don't let you exhaust temps get too high from overfueling
__________________
Alex.

MB Tech
Sydney, Australia
Volvo 122S
W201 190D 2.5 manual
W202 C240
W203 C32
Reply With Quote
  #8
Old 08-07-2004, 01:37 AM
Registered User

Join Date: Jan 2003
Location: Australia
Posts: 71
AusMBTech, thanks, thats exactly what i wanted to know

just to make sure, anticlockwise will richen ?
Reply With Quote
  #9
Old 08-07-2004, 08:22 AM
Registered User

Join Date: Jul 2004
Location: Sydney, Australia
Posts: 197
from memory anticlockwise will richen. I'll double check on monday for you to be sure.
__________________
Alex.

MB Tech
Sydney, Australia
Volvo 122S
W201 190D 2.5 manual
W202 C240
W203 C32
Reply With Quote
  #10
Old 12-17-2004, 08:42 AM
boneheaddoctor's Avatar
Senior Benz fanatic

Join Date: May 2004
Location: Hells half acre (Great Falls, Virginia)
Posts: 16,007
Quote:
Originally Posted by AusMBtech
you need to take the plate off the rear of the injector pump (near the oil filter housing), when you remove it, it will leak a bit of engine oil.

Imagine looking directly at the rear of the pump, looking toward the front of the car. There is a screw with a locknut. loosen the locknut and turn the screw anticlockwise 1/2 at a time, reinstall the plate and test drive it.

don't let you exhaust temps get too high from overfueling
Cool, that is EXACTLY the info that has been asked recently, so this will bump it to where others can read it.
__________________
Proud owner of ....
1971 280SE W108
1979 300SD W116
1983 300D W123
1975 Ironhead Sportster chopper
1987 GMC 3/4 ton 4X4 Diesel
1989 Honda Civic (Heavily modified)
---------------------
Section 609 MVAC Certified
---------------------
"He who fights with monsters might take care lest he thereby become a monster. And if you gaze for long into an abyss, the abyss gazes also into you." - Friedrich Nietzsche
Reply With Quote
  #11
Old 12-17-2004, 05:11 PM
Registered User

Join Date: Jul 2004
Location: Sydney, Australia
Posts: 197
Just a quick note. There are a few adjustments on the back of the pump. The one you are after is the one at the very bottom of the pump which looks similar to the idle speed adjustment screw.
__________________
Alex.

MB Tech
Sydney, Australia
Volvo 122S
W201 190D 2.5 manual
W202 C240
W203 C32
Reply With Quote
  #12
Old 12-17-2004, 06:11 PM
Newbie Benz Dood

Join Date: Dec 2004
Location: Traverse City, Michigan
Posts: 147
boost controller install...
see this thread, member gsxr is almost 100% sure that the circle with question marks is what to turn ccw, but if an experienced MB tech says otherwise....
let me know whats crackin from down unda!

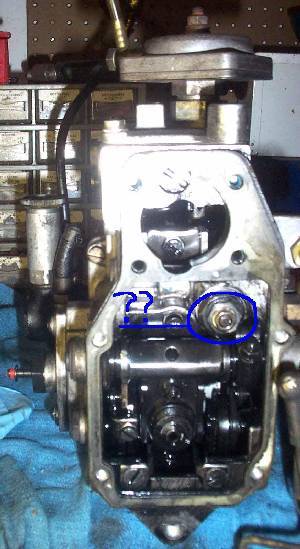

link to picture of a 'rear view' of a 617 injection pump with question as to where full load screw is located:
Attached Thumbnails
OM616/617 Injection Pump-ip2_fdjyh65464fg.jpg

Last edited by whunter; 12-31-2009 at 09:11 PM. Reason: attached picture
Reply With Quote
  #13
Old 12-17-2004, 06:38 PM
Registered User

Join Date: Jan 2003
Location: Australia
Posts: 71
i'm pretty sure thats the injection pump from an OM603 which is apprently different to the one found on the OM616/617
Reply With Quote
  #14
Old 12-17-2004, 06:43 PM
Newbie Benz Dood

Join Date: Dec 2004
Location: Traverse City, Michigan
Posts: 147
I'm told its from a 617, only known picture on the internet lol
__________________
1992 300TE 4matic - Just obtained 12/22/06
1983 300D - SOLD
1997 Dodge 2500 - CTD 400+HP, 1100ft/lbs torque
Reply With Quote
  #15
Old 12-17-2004, 09:56 PM
Registered User

Join Date: Jul 2004
Location: Sydney, Australia
Posts: 197
That picture shows the correct screw for increasing the full load fuel delivery. That screw is the same for the 616/617 and the 601/02/03 pumps.

If you want to change fueling on a turbo then that's a different story.
__________________
Alex.

MB Tech
Sydney, Australia
Volvo 122S
W201 190D 2.5 manual
W202 C240
W203 C32
Reply With Quote
