easily and cheaply increasing the boost E300 turbo diesel W210 606

Here is a simple trick to fool the boost sensor a little. It does make the car more lively as the boost is slightly increased.

It started with a 10K resistor, then an 11K and now I have a 12K in, I'll stop there as I think its enough.
I tried a 9K but I will not recommended as not much gain.

The 10K should be the start, then this is up to you how far you want to go.

how to do it:

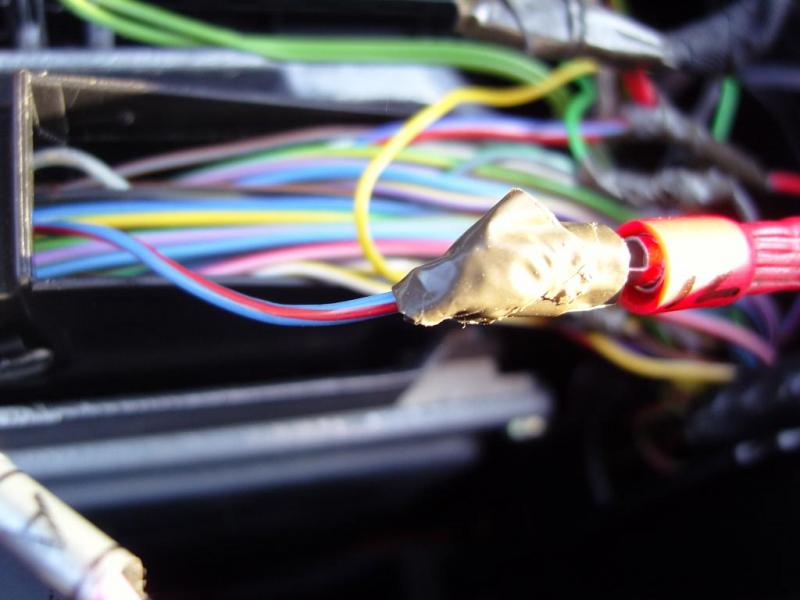

You just need to cut in half the blue/ red wire from the sensor ( as shown in the pictures)and connect the resistor to each ends.
I have attached those red clips fasteners( I have no idea how they are called) as it was easier to test different resistors and also the cable can be re-attach as normal easily, just take the resistor away and clip back the cable.

I have traced the cable under the box, its tidier, but this can be done at the sensor as well. Just make sure you got the right wire.

Attached Thumbnails
easily and cheaply increasing the boost E300 turbo diesel W210 606-cable-sensor.jpg   easily and cheaply increasing the boost E300 turbo diesel W210 606-showing-cable.jpg   easily and cheaply increasing the boost E300 turbo diesel W210 606-whole-assembly.jpg   easily and cheaply increasing the boost E300 turbo diesel W210 606-resistors.jpg
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...
Reply With Quote
  #2
Old 04-15-2010, 08:52 PM
is thinning the herd

Join Date: Mar 2010
Location: Columbus, Ohio
Posts: 3,334
Do you have a boost gauge to see how much gain you're getting? I'm curious as to how much it fools the wastegate.
Reply With Quote
  #3
Old 04-16-2010, 04:27 AM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
I have other mod in as well, this is why I didn't post it.
The MAX is still the same 21 PSI and then the wastegate open and it goes lower.
Without the resistor it reach under 20 PSI MAX then open.
I think its about 2 PSI gain max.
the car feel more alive at the start up tho.
There is also other factors, if I understand the boost work under load, then sometimes if I floor the car the boost does not goes as high and reach 18 or less as the gear box switches gears and rev goes high really fast. Dunno if I am clear here?
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...

Last edited by Olivier; 04-16-2010 at 04:34 AM.
Reply With Quote
  #4
Old 04-19-2010, 03:52 PM
Alastair's Avatar
Registered User

Join Date: Mar 2002
Location: South Wales U.K.
Posts: 1,064
Hmm....

Dunno if adding mkore boost without extra fuel is worth the effort...
--What was your other mod...?

Before your mod, gear-change was normal?

--But After the mod, you're getting flaring when gears change...?
--Well, That was to be expected!

Apart from Re-map, the 'accepted' way for tuning of 606 is use 603 mechanical pump,--maybe with 6.5mm or 7mm elements and alter fuelling, replace exhaust manifold (oem is restrictive design), better turbo, etc...
--All according how fast you wanna go.... Custom manifold will set you back around 700 quid

Then you gotta look at the Trans--More power from engine will affect shift quality-As you've found--Much more power will kill it completely!
__________________
http://i190.photobucket.com/albums/z...0TDnoplate.jpg

Alastair AKA H.C.II South Wales, U.K. based member

W123, 1985 300TD Wagon, 256K,
-Most recent M.B. purchase, Cost-a-plenty, Gulps BioDiesel extravagantly, and I love it like an old dog.

W114, 1975 280E Custard Yellow,
-Great above decks needs chassis welding--Really will do it this year....
Reply With Quote
  #5
Old 04-19-2010, 03:56 PM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
Hi Alastair,
What is flaring?
Gear change is still normal, never said it changed? It just goes highter faster. Is that flaring ?
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...

Last edited by Olivier; 04-19-2010 at 04:10 PM.
Reply With Quote
  #6
Old 04-19-2010, 04:09 PM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
Quote:
Originally Posted by Alastair View Post
Hmm....

Dunno if adding mkore boost without extra fuel is worth the effort...
--What was your other mod...?
Here it is, I think its about it but might be other I forgot:
Pipercross air filter
Modified air box with many holes to increase the air going through
AIT sensor that should increase the fuel as it suppose to tell the ECU or what ever that the air is cold, this will be helping with the extra boost
Different MAF then original
Bloqued the turbo sensor to the max limit possible without triggering any code
Alightly larger and much longer flexi silicone pipe going to the turbo sensor from the manifold ( dunno if this does anything but the idea was to retard slightly the opening of the wastegate as it'll take slightly longer for the sensor to get the reading)
Advanced the timing
got rid of the heat exchanger thermostat to get a better fuel flow as veg is thicker
EGR delete
And the above resistor now.
I forgot, this is the MAF that regulate the fuel flow, the boost sensor only tells the MAF when to open the wastegate, therefore its logic that the more air flow the MAF got, the more fuel it'll put into the cylinders, this of course at the capability of the pump, but all together it make sense. Nope?
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...

Last edited by Olivier; 04-19-2010 at 04:58 PM.
Reply With Quote
  #7
Old 04-20-2010, 11:02 AM
Alastair's Avatar
Registered User

Join Date: Mar 2002
Location: South Wales U.K.
Posts: 1,064
Quote:
Originally Posted by Olivier View Post
Here it is, I think its about it but might be other I forgot:
Pipercross air filter
Modified air box with many holes to increase the air going through
AIT sensor that should increase the fuel as it suppose to tell the ECU or what ever that the air is cold, this will be helping with the extra boost
Different MAF then original
Bloqued the turbo sensor to the max limit possible without triggering any code
Alightly larger and much longer flexi silicone pipe going to the turbo sensor from the manifold ( dunno if this does anything but the idea was to retard slightly the opening of the wastegate as it'll take slightly longer for the sensor to get the reading)
Advanced the timing
got rid of the heat exchanger thermostat to get a better fuel flow as veg is thicker
EGR delete
And the above resistor now.
I forgot, this is the MAF that regulate the fuel flow, the boost sensor only tells the MAF when to open the wastegate, therefore its logic that the more air flow the MAF got, the more fuel it'll put into the cylinders, this of course at the capability of the pump, but all together it make sense. Nope?
Your thinking is impeccable, However it don't Quite work like that....

The ECU takes signals from sensors such as MAF and Boost-pressure sensor and then referrs to Pre-Set Internal Maps which are held in EEPROM inside the ECU.
--From the data obtained via sensors, it refers to a point on the map and this then says how much control-rod position/Fuelling to apply.

Your mods have altered slightly the data into the ECU, so its looking at a slightly different point on the Maps...
You may get some small gains, but nothing in compirason with either a Re-Map or pump/turbo replacement....
__________________
http://i190.photobucket.com/albums/z...0TDnoplate.jpg

Alastair AKA H.C.II South Wales, U.K. based member

W123, 1985 300TD Wagon, 256K,
-Most recent M.B. purchase, Cost-a-plenty, Gulps BioDiesel extravagantly, and I love it like an old dog.

W114, 1975 280E Custard Yellow,
-Great above decks needs chassis welding--Really will do it this year....
Reply With Quote
  #8
Old 04-20-2010, 11:59 AM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
I didn't say the gain were as good as a remap, I know this is nothing compare to a remap (price wise) , but the gains are good, trully, the car is after all a lot more "lively".
Next on line would be a De-Cat. Then if I can put 50 quid all together I might do a dyno to see what is the HP on veg after all. I think I might be around 175 HP, reckon?
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...
Reply With Quote
  #9
Old 04-20-2010, 03:50 PM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
Quote:
Originally Posted by Alastair View Post

--But After the mod, you're getting flaring when gears change...?
Bumping this as I don't know what is Flaring
Can Alastair/ anyone enlight me on this?
Cheers.
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...
Reply With Quote
  #10
Old 04-20-2010, 05:06 PM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,332
Flaring = longer than normal times in between gears, usually due to too much vacuum OR in your case more power from the engine.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1987 300D Sturmmachine
1991 300D Nearly Perfect
1994 E320 Cabriolet
1995 E320 Touring
2001 Eurovan FOR SALE
1985 300D car, sold and missed.
OBK #42
Reply With Quote
  #11
Old 04-21-2010, 05:05 AM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
Hi Winmutt,

thank you for this. I couldn't find anything else with the search beside
" I am not flaring" or " I have a little flaring" without explanation on what was flaring.
Then yes, I do have some flaring as the gears change at a slightly highter revs then when I got the car, making it more "sporty"/ receptif to the throttle.
Is that anything to worry about as Alastair looked worry about it?

Sometimes it seems there is a bigger turbo lag as well or this is me used to the car now kicking in usually right away, not like when I first got it when it was sluggish.

Again thank you for this, its nice to get the meaning .
All the best.
Olivier
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...
Reply With Quote
  #12
Old 04-21-2010, 11:08 AM
oldsinner111's Avatar
once a happy man

Join Date: Nov 2008
Location: bristol,tn
Posts: 5,781
[QUOTE=Alastair;2450988]Hmm....

Dunno if adding mkore boost without extra fuel is worth the effort...

More fuel? I did not add more fuel with almost 11 psi more boost.My best mod to insure fuel was there,was a electric boost pump.I run 23 psi,and she never cuts out
__________________
come on people now,smile on your bro,everybody get together
Reply With Quote
  #13
Old 04-21-2010, 12:14 PM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
23 PSI. woohooo!
This is good
Old Sinner, does it goes down as soon as it reaches 23PSI?
And what happen with high revs? My boost get lower the highter the revs?
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...
Reply With Quote
  #14
Old 04-21-2010, 12:59 PM
oldsinner111's Avatar
once a happy man

Join Date: Nov 2008
Location: bristol,tn
Posts: 5,781
At 23,I'm in another gear.
__________________
come on people now,smile on your bro,everybody get together
Reply With Quote
  #15
Old 04-21-2010, 01:46 PM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
You have a manual do you?
Different set up with the auto compare to yours I think.
