More fluid line questions

Okay, so about half of my fluid connections ended up working relatively according to plan, and the others didn't at all, so I have some more questions...and FYI this is an m117 into w201 swap, so chassis side stuff is 201, where motor side connections are 117 specific

1) Is there any need to retain the little small coil on the high pressure line from the pwr steering pump (the one right next to the steering gearbox), or is that just for geometry so that the line will clear the wider I6 motor?

2) What kind of flare fittings are those on the chassis side of the fuel lines? They are 14 mm but my AN adapters won't fit over the flange part and the threaded part is way to long. Anyone know of a second type of adapter that could adapt the flare fitting back to standard metric thread, from which I could then use my AN metric adapters?

Thanks guys!

__________________
1999 C43 AMG ~~~ 744 on black, mostly stock
1991 190e 2.6 ~~~ m117 5.6 project car
Reply With Quote
  #2
Old 02-27-2008, 12:29 AM
Registered User

Join Date: Apr 2002
Posts: 3,473
did you ask gen3benz? I think the PS line doesnt matter. Mine are all straight connectors.

Which radiator did you use?
__________________
Current Stable:
1994 S500 v140, 210k miles, white with grey.

Former Mercedes in the Stable:
1983 300CD Turbo diesel 515k mi sold (rumor has it, that it has 750k miles on it now)
1984 300CD Turbo Diesel 150 k mi sold
1982 300D Turbo Diesel 225 sold
1987 300D Turbo Diesel 255k mi sold
1988 300 CE AMG Hammer 15k mi sold
1986 "300E" Amg Hammer 88k mi sold (it was really a 200, not even an E (124.020)
1992 500E 156k mi sold
etc.
Reply With Quote
  #3
Old 02-27-2008, 01:14 AM
Registered User

Join Date: Feb 2005
Location: West Coast
Posts: 228
Quote:
Originally Posted by omegabenz View Post
did you ask gen3benz? I think the PS line doesnt matter. Mine are all straight connectors.

Which radiator did you use?
okay, cool, that's kind of what I thought since the w126 doesn't use any bends. I used the 2.6 rad (a new one), and I'm also using an m117 oil cooler as well, and probably some higher flow aftermarket fans. I'm an idiot though, and didn't notice until tonight that the pics I have of the Carlsson 5.0 190e clearly depict how they used a w126 V8 rad, and just cut the center support to go in front of and around the rad (since it is a couple inches taller than the 2.6 rad). Oh well, we'll see how this ends up working
__________________
1999 C43 AMG ~~~ 744 on black, mostly stock
1991 190e 2.6 ~~~ m117 5.6 project car
Reply With Quote
  #4
Old 02-27-2008, 12:24 PM
88Black560SL

Join Date: Oct 2004
Location: CT
Posts: 3,510
Quote:
Originally Posted by FLYNAVY View Post
Okay, so about half of my fluid connections ended up working relatively according to plan, and the others didn't at all, so I have some more questions...and FYI this is an m117 into w201 swap, so chassis side stuff is 201, where motor side connections are 117 specific

1) Is there any need to retain the little small coil on the high pressure line from the pwr steering pump (the one right next to the steering gearbox), or is that just for geometry so that the line will clear the wider I6 motor?

2) What kind of flare fittings are those on the chassis side of the fuel lines? They are 14 mm but my AN adapters won't fit over the flange part and the threaded part is way to long. Anyone know of a second type of adapter that could adapt the flare fitting back to standard metric thread, from which I could then use my AN metric adapters?

Thanks guys!
My 107 had no coil my 129 had a coil. My 107 with the V-12 from the 129 is ending up without a coil.

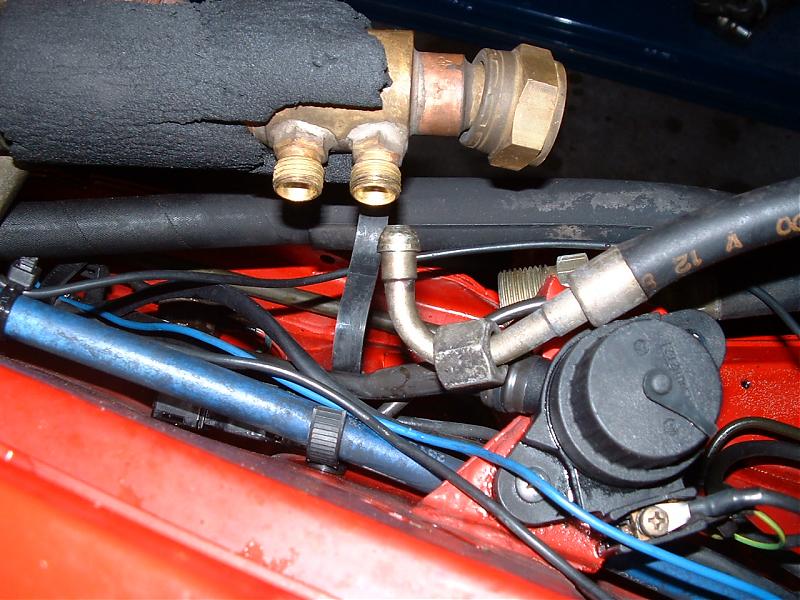

The fuel line fittings should be European DIN bubble flares shown in the picture and fairly easy to make or else the impossible to get DIN kugelbush as shown in the second picture. As far as adapting to standard AN. The metric 8mm tube, overlaps in tolarance with the SAE 5/16 tube.

Be careful. My attempt to flare and install a 45° SAE union would not seal gas perhaps a 35° AN would do better. The DIN bubble works excellent except for the fact that I cant find a union in 8mm.

Do a search for my post on fittings.

John Roncallo
Attached Thumbnails
More fluid line questions-dscf0018.jpg   More fluid line questions-dscf0019.jpg
Reply With Quote
  #5
Old 02-27-2008, 08:01 PM
Registered User

Join Date: Feb 2005
Location: West Coast
Posts: 228
So when using stainless steel braided hose and AN fittings, what is the proper method for stripping the last bit of braid off the hose so that it can fit into the fitting? I have tried a couple different things including hacksaw, wire cutters, and dremel with poor results.....it frays everywhere. How do I get a neat trim so it looks nice around the lip of the fitting?
