  #16
Old 01-05-2010, 09:06 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
Are you reading codes from pin #7 of the 38 pin connector?
IF so, what are the code number?

Pin # 6 is for reading the traction system...traction system turns the ABS lamp on!

PIN #7 is for the Electronic accelerator (EA/CC/ISC) system that turns the ASR lamp on!

I know it may not make sense, but if you want to know why the ASR lamp is on read codes from PIN #7
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #17
Old 01-05-2010, 06:09 PM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
Okay, I understand what you are saying, I will read codes from PIN #7 and report back the findings. Thx
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel
Reply With Quote
  #18
Old 01-13-2010, 07:16 PM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
The codes from pin #7: 6 & 14 Is code 6 for the Neutral Safety Switch? Is 14 for the throttle position switch (CLOSED)? Could the fact the shifter linkage seems to be loose or "off" as in "drive" is between neutral an the actual "drive" indicator, be causing code 6 to be triggered?
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel

Last edited by 300sdlguy; 01-13-2010 at 07:59 PM.
Reply With Quote
  #19
Old 01-14-2010, 09:19 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
Code 6 means that the neutral safety/starter lock-out switch on the trans didn't send a correct signal at some point.

EACH position has a different resistance value...most likely the switch.

The code 14 refers to the position of the GAS pedal VS the position of the idle contact in the drivers side throttle actuator.

A mis-adjusted throttle cable, broken return spring, or bad switch on the gas pedal are the most likely problem(s).
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #20
Old 01-14-2010, 10:24 AM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
Thanks for your valuable input. Spring looks fine, but not sure exactly how to diagnose the other potential causes, any help in how to diagnose further is much appreciated. I'll be glad to get these issues (one-by-one) addressed. I understand the neutral safety switch could be the culprit for code 6, but could a sloppy (bad linkage bushings) cause the switch to trigger a code as well, or not likely?

Next issue will be figuring out why the front sits too low, and the ADS (shock) light that illuminates most times.
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel

Last edited by 300sdlguy; 01-14-2010 at 12:24 PM.
Reply With Quote
  #21
Old 01-14-2010, 12:41 PM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
V-12 throttle has 2 return springs on left throttle motor.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #22
Old 01-19-2010, 08:22 PM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
Are there supposed to be two (2) springs in front of (or near) the Bowden cable on top of the actuator? If so, I only have one at that location, should I have two (2). There is one inside at the pivot point with the Accelerator Pedal Lever, but obviously not at the actuator motor.
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel

Last edited by 300sdlguy; 01-21-2010 at 10:46 PM.
Reply With Quote
  #23
Old 01-21-2010, 11:11 PM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
Now I am getting code 10 on Pin #7.
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel
Reply With Quote
  #24
Old 01-22-2010, 09:09 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
Blink code 10 in the EA/CC/ISC computer suggests that RPM signal from base module is missing OR distorted.

Test is for AC voltage signal from base module to EA computer.
Base module is most likely cause.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #25
Old 03-13-2010, 12:24 PM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
Update

I am getting code 21 (pressure switch). The ASR pump is running, but doesn't seem to be making any pressure, and when I open a line there in no fluid coming out, tore the pump down, it all looks good. So is the Charging pump responsible for getting the fluid to the ASR pump? I have been searching for a schematic to help me see exactly how the system works and what lines supply what, but to no avail.
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel
Reply With Quote
  #26
Old 03-14-2010, 02:44 PM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
ASR/ABS = ESP

I just found that Mercedes calls these pumps: ESP Charging Pump and Brake Fluid Pump, instead of ASR and/or ABS Pump(s).
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel
Reply With Quote
  #27
Old 03-15-2010, 02:46 AM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 757
According to MB, the brake pressure for the ASR comes from the pressure accumulator. https://docs.google.com/fileview?id=0B-WRh0Hf7VdZMmE4MTE4N2EtNDJmYi00YjBjLWEzM2MtNmNkMDUwNzYzNTUz&hl=en See pdf p.10

The Return Pump/Charge Pump (A7/3m1) and the ASR Pressurizing Pump (M15) work at the same time. See pdf p.31. There is also a pressure switch involved (A7/1s1).
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #28
Old 03-15-2010, 02:41 PM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
Yes, it appears thats where things are going. When I clear the codes, it the pressure switch code that I keep getting, and I think its possible that the charge pump-accumulator might be the culprit or maybe some wiring issue, and the Pump itself is spinning well when direct current is applied, but its not pumping any fluid.
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel
Reply With Quote
  #29
Old 03-16-2010, 03:37 AM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 757
According to page 17 of the above pdf, the pressure switch (A7/1s1) is located inside the ASR unit. Have you been able to locate the switch?
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #30
Old 03-16-2010, 01:47 PM
300sdlguy's Avatar
Diesel Poor

Join Date: Dec 2004
Location: Sioux Falls, SD (Dallas Tx)
Posts: 374
Yes, I have taken it all apart. Not sure if the switch itself is available to be purchased separately. First pic is the pump, second is where it came from.
Attached Thumbnails

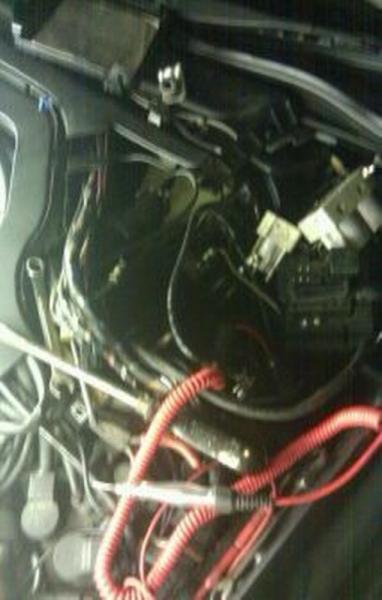

1994 S600 Coupe "Euro"  ASR issue-asrpump1.jpg   1994 S600 Coupe "Euro"  ASR issue-asr-abswiring.jpg
__________________
Mercedes Fleet:
2004 CL600 Designo Espresso SPORT
2004 S600 Designo Espresso SPORT/Lorinser Pkg.
1999 S320
1988 300TE
1972 280SEL 4.5
Diesel Fleet:
2014 GL350 Blutec
1987 300SDL Blk/Blk 4 place seating #18 head
1987 300SDL Smk Slv/Burgangy #17 head
1986 300SDL Blk Pearl/Palomino #14 head w/ 280K
1984 Lincoln Mark VII Fact BMW Turbo Diesel

Last edited by 300sdlguy; 03-16-2010 at 07:25 PM.
Reply With Quote
