Where does this wire go?

I have found a wire that goes from the fusebox to the front of the radiator where it has been cut off. I am holding it in the picture below. Is this the electric fan wire? If so how come I don't have one?
Attached Thumbnails
Where does this wire go?-wire-lost-copy.jpg
__________________
1989 230E, 8v, 166.000 km, updated to 94/95 trunk & hood
2002 Daewoo Nexia 50.000 km
Sold:
1987 VW Jetta GLE 16V, Recaro seats
1982 Volvo 240 DL (lovely car!)
and few more american cars.
Reply With Quote
  #2
Old 09-07-2002, 07:59 AM
Registered User

Join Date: Aug 2002
Location: Central Asia
Posts: 104
a picture of my radiator

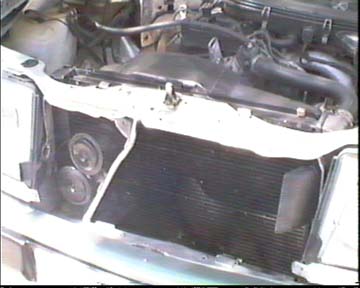

The picture below is showing my car's radiator as you can see there is no electronic fan there. Could this be because I don't have an AC?
Attached Thumbnails
Where does this wire go?-radiator-fan-copy.jpg
__________________
1989 230E, 8v, 166.000 km, updated to 94/95 trunk & hood
2002 Daewoo Nexia 50.000 km
Sold:
1987 VW Jetta GLE 16V, Recaro seats
1982 Volvo 240 DL (lovely car!)
and few more american cars.
Reply With Quote
  #3
Old 09-07-2002, 09:04 AM
Registered User

Join Date: Jun 2002
Location: Cumming Ga.
Posts: 273
What color are the wires inside of the insulating sheath? If the wires are one brown and one green then this would be the cable to the outside temp gauge probe.
__________________
Mercedes Benz Master Tech
Reply With Quote
  #4
Old 09-07-2002, 10:59 AM
Registered User

Join Date: Aug 2002
Location: Central Asia
Posts: 104
You are very correct. The wires inside the insulation are brown and green. Where is the thing you are talking about is located? Does it affect the engine's performance?
__________________
1989 230E, 8v, 166.000 km, updated to 94/95 trunk & hood
2002 Daewoo Nexia 50.000 km
Sold:
1987 VW Jetta GLE 16V, Recaro seats
1982 Volvo 240 DL (lovely car!)
and few more american cars.
Reply With Quote
  #5
Old 09-08-2002, 12:03 AM
Gilly's Avatar
Registered User

Join Date: Mar 2001
Location: Evansville WI
Posts: 9,616
The outside temp sensor is located near the license plate on the front bumper. It won't affect anything other than the outside temp reading in the instrument cluster (small window below the speedometer).

Are you saying the car is not equipped with AC, or it does but it is not working? The outside temp sensor has no bearing on the AC on your car, not the one that wire goes to.
It has no affect on engine performance either.

Gilly
Reply With Quote
  #6
Old 09-08-2002, 12:37 AM
Piotr's Avatar
Registered User

Join Date: Jul 2002
Location: Middletown, DE
Posts: 739
Well, I would not drive without aux fan. It works always with AC but also suppose to start with a very engine temp. I really would install one. By the way, check if the fuse box has a fuse for the auxillary fan. If it does not, you probably do not need it.
__________________
1985 190D 2.2l Sold-to Brother-in-law
1996 Mustang 3.8l -"thinks it's a sports car"
1988 Grand Wagoneer - Sold (good home)
1995 Grand Cherokee Ltd -"What was I thinking??!!"
