Diesel Injection Timing Device

http://www.tooldiscounter.com/ItemDisplay.cfm?lookup=FERV765-01

Anyone have any experience with this kind of timing device? Seems like the drip method is a bit of a pita and not all that precise -thoughts?

Reply With Quote
  #3
Old 05-22-2011, 03:08 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 42,782
The info/threads are somewhere in the below links:
DIY Repair Links
Fast navigation Do It Yourself Links

http://www.peachparts.com/Wikka/DoItYourSelf
__________________
84 300D, 82 Volvo 244Gl Diesel

Last edited by whunter; 05-23-2011 at 02:38 PM. Reason: corrected link
Reply With Quote
  #4
Old 05-23-2011, 12:04 AM
rummur's Avatar
Registered User

Join Date: Nov 2008
Location: western washington
Posts: 131
Has anyone used one of them before? That seems much better.
__________________
-->1971 mercedes 220D; 617 951 engine, 4 speed

Reply With Quote
  #5
Old 05-23-2011, 01:12 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 42,782
The thing with the generic Diesel Timing Devices you need to time your particular Diesel with the Factory approved Method first and hook up the Device. You use that Factory Timing to calibrate your Timing Device. (So it is not going to be more accurate than the Factory Metnod.)

One of the reasons for the above is that on a Mercedes the timing is static. The Dynamic Timing of the Diesel Timing Device will most likely take place at a different Degree number than the Static Timing.

After that you can use your Timing Device for timing with out messing with the Factory Timing Method.

If you use it on anther type of Diesel Engine you need again do as in the first paragraph.

I believe the Diesel Timing Devices I have seen favor a person or business with a lot of the very same Vehicles.

An example of this might be a School Bus Company that has a lot of small Chevy or Ford School Busses.

All of this is spoken of in the several Threads in the DIY section.
__________________
84 300D, 82 Volvo 244Gl Diesel

Last edited by vstech; 05-23-2011 at 08:51 AM.
Reply With Quote
  #6
Old 05-23-2011, 02:41 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
I'm still interested in this sort of approach though I've been spending my time doing other stuff recently...

I think the main trouble with measuring the pressure in the delivery line is that there doesn't seem to be anyway of comparing this measurement with the data in the FSM. The FSM is based on begin of delivery which happens during the power stroke. (EDIT => this is wrong! Begin of delivery occurs during the compression stroke RTFM!) The maximum pressure measured in the delivery line would occur during the compression stroke...

...if anyone has got access to some official data or unofficial data then I for one would be interested in seeing it. (If it has already been posted in the many other threads please say which one 'cos I've missed it)
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Last edited by Stretch; 05-23-2011 at 03:03 PM. Reason: I made a mistake and noted where
Reply With Quote
  #7
Old 05-23-2011, 04:01 AM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,338
Quote:
Originally Posted by warmblood58 View Post
http://www.tooldiscounter.com/ItemDisplay.cfm?lookup=FERV765-01

Anyone have any experience with this kind of timing device? Seems like the drip method is a bit of a pita and not all that precise -thoughts?
If you have an RIV timing port I recommend getting the $30 lock tool. Takes 15-30min to set it that way.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1987 300D Sturmmachine
1991 300D Nearly Perfect
1994 E320 Cabriolet
1995 E320 Touring
2001 Eurovan FOR SALE
1985 300D car, sold and missed.
OBK #42
Reply With Quote
  #8
Old 05-23-2011, 09:20 AM
Registered User

Join Date: Sep 2004
Posts: 8,904
Quote:
Originally Posted by Army View Post
The FSM is based on begin of delivery which happens during the power stroke.
What lead you to that conclusion?
Reply With Quote
  #9
Old 05-23-2011, 01:06 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 42,782
Quote:
Originally Posted by Army View Post
I'm still interested in this sort of approach though I've been spending my time doing other stuff recently...

I think the main trouble with measuring the pressure in the delivery line is that there doesn't seem to be anyway of comparing this measurement with the data in the FSM. The FSM is based on begin of delivery which happens during the power stroke. The maximum pressure measured in the delivery line would occur during the compression stroke...

...if anyone has got access to some official data or unofficial data then I for one would be interested in seeing it. (If it has already been posted in the many other threads please say which one 'cos I've missed it)
Actually with the Drip Method as long as there is any Drips present the Plunger is not yet in position to deliver Fuel.
Give us your best guess as to why they want at least some Drips present
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #10
Old 05-23-2011, 01:12 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 42,782
Quote:
Originally Posted by winmutt View Post
If you have an RIV timing port I recommend getting the $30 lock tool. Takes 15-30min to set it that way.

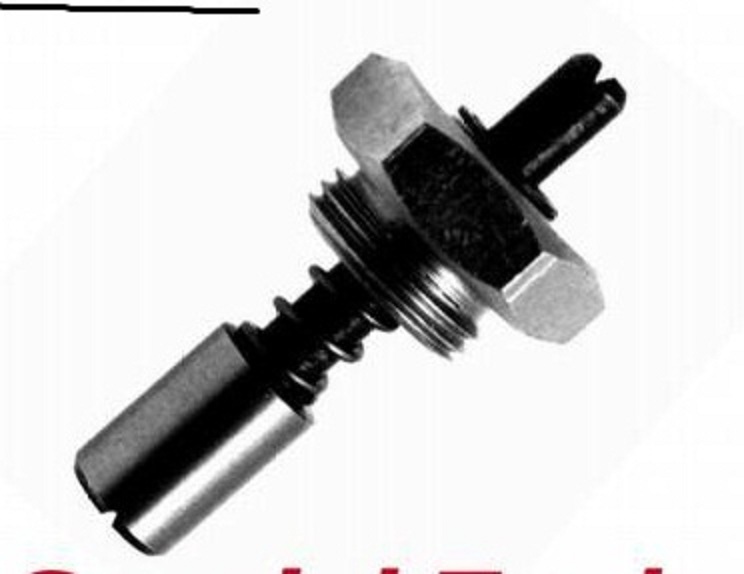

Below is a pic of the tool that works on my 84 300D.

I am not sure that it replaces Drip Timing because I recently purchased and used it.
While there are other causes for it I feel my Injectors are slightly noiser than before I used the Tool.
When I get around to it I will do the Drip Method so I can compare the difference between the 2 methods.

The issue with the Fuel Injection Pump Timing/Locking Pin is that because it uses a certain positon on the Camshaft; just as if the Fuel Injection Pump was brand new; it does not compensate for Fuel injection Pump Camshaft And Roller Wear.

The issue with the Drip Method is that your are only timing off of one of the Elements. It is possible for the other Elements to have their timing off.

But, off timing of the other Elements cannot be changed without going inside of the Fuel Injection Pump.
Attached Thumbnails
Diesel Injection Timing Device-ip-locking-tool.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #11
Old 05-23-2011, 03:01 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by tangofox007 View Post
What lead you to that conclusion?
Now that sent me scuttling off back to the FSM! And errrr I've got that wrong haven't I? The FSM states BTDC for an OM616 / OM617...

How come the OM603 is specified as ATDC in this wiki?

http://www.peachparts.com/Wikka/OM603InjectionPump

That's where I got the idea from...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #12
Old 05-23-2011, 03:14 PM
Registered User

Join Date: Sep 2004
Posts: 8,904
Quote:
Originally Posted by Army View Post
How come the OM603 is specified as ATDC in this wiki?
That (15* ATDC) is an artificial reference point, not a representation of when start of delivery actually occurs.
Reply With Quote
  #13
Old 05-23-2011, 03:16 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by tangofox007 View Post
That (15* ATDC) is an artificial reference point, not a representation of when start of delivery actually occurs.
Thanks - I was really confused!
