Hello All,

Does anyone know what those plastic lines are called? I am not sure how often they fail, but they look like they can. I have a 1985 300DT with 218K and I'm making the rounds maintenance.
Any info will be greatly appreciated.

Thanks

bsdguy

Attached Thumbnails



__________________
_____________________________
1985 300D Turbo CA Fed 223K

Fuel lines

I think you can still buy individual lines for poo loads of cash with the banjo ends fitted from the dealer.

I split the old lines from the old banjo ends and fitted new fuel lines (just standard stuff - has to be fuel grade - from the local motor factors) with help of a heat gun and a fair amount of hard pushing.

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

Those and the plastic oil pressure line give me the willies every time i see them under the hood.

__________________
"NEW" 1984 300D TD needs some love

.

in Germany it is called TECAL-Leitungen or simply Tecal just like the line
from intake to ALDA.

those fuel lines do not see pressure above 4 bar,usually under 3 or 1 at idle.

cheers
ChO

.

__________________
w126 500SEC gen II euro, powered by OM617 turbo stolen from 84 300SD 2.88 diff,EGR blinded
next wish/project: w114 coupe OM603 powered

Seems like I read that Vstech bought a set from the dealer.
Mine are band-aided together and I would like to get new ones, too.
Anyone know part #s and dealer prices for the 617?
Don't see them here on PP.

Jeff

__________________
1984 300SD 300,000 miles--two tank WVO setup
2.88 diff & 500SEL anti-squat rear end

There are identical lines that provide oil to the injection pump though, those are the scary ones.

__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)

This is what I found on EPC:





If you search for those part numbers you'll find them on PP. They range from $15 to $40.

__________________
1979 300D 040 Black on Black - 1985 300D Maaco job (sadly sprayed over 199 Black Pearl Metallic) on Palamino

http://i.imgur.com/LslW733.jpg

The Baja Arizona Oil Burners Send a message if you'd like to join the fun
Left to Right - UberWasser, Iridium, Stuttgart-->Seattle,, mannys9130

Visit the W123 page on iFixit for over 70 helpful DIY guides!

Here is the prices from our local Dealer.

http://www.partswebsite.com/benzpartswholesale/oemparts/mercedes-benz-137/6150705632-6150704032-6150704232.html

Charlie

__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works

I would like to have new clear ones for my ocd habit but I have pulled these, re installed them, bent them and had them shipped in a envelope and they have never broke...now I have broke the vacuum line version before..

__________________

It's just nylon tubing. I've used this stuff from GreaseWorks several times. You heat the nipple until it's good and warm then press this stuff on. Don't heat the tubing, it gets too soft and will bend and kink. It says it's for VW, but its the same size as those lines on the Mercedes as well.

https://www.greaseworks.com/store/index.php?route=product/product&product_id=601

__________________

Most gasoline cars today use nylon fuel line. It does crack and leak, so replacements are common at auto parts stores, though fairly expensive so the GreaseWorks price isn't bad (link above). I don't know if a U.S. size wouldl match the M-B fittings. They don't use hose clamps, you just push the tubing on over the fittings, and suggested to heat the ends in boiling water first. It somehow settles to match the barbs on the fitting and stays tight forever. Most U.S. fittings are nylon and black, as is the tubing. I would be much less worried about a leak w/ diesel than with gasoline, though the later does make itself known by the smell.

Ooooo good tip - hot nipples - kinky

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

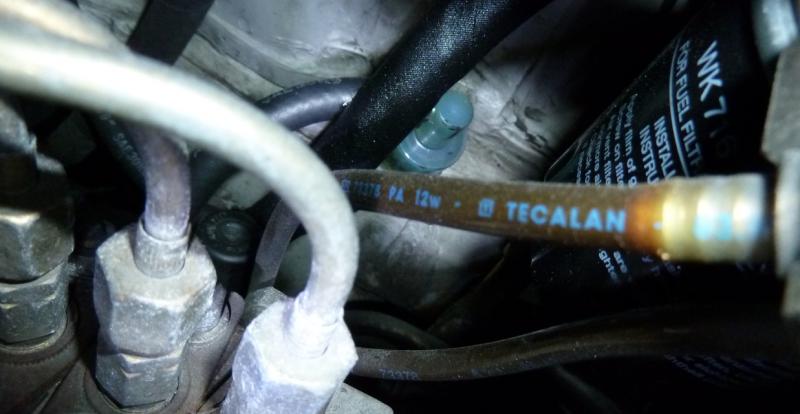

That's my pic.

Here is a shot of that (not the same one) on the car.

Attached Thumbnails



__________________
83 SD

84 CD

I ended up ordering the line Biodiesel300 linked to.
It'll save me $50 and looks just fine.
My wife and I are getting ready for a road trip to Monterey and I want the
SD in good shape. On the way down we're going to take a little detour and
go visit Charlie for a while. Can't wait to see him and his stash of parts!
Should be fun.

Jeff

__________________
1984 300SD 300,000 miles--two tank WVO setup
2.88 diff & 500SEL anti-squat rear end

You should join us on the 26th of April for the Spring Coastal/Canyon Cruise....Rich
