  #31
Old 06-16-2006, 09:39 PM
Registered User

Join Date: Apr 2006
Location: Virginia
Posts: 235
Quote:
Originally Posted by Bob G
I checked with Caliber motors after Phil said the shipping would cost too much and bowed out.
Try Rusty at ***************, he was quite willing to ship me one (the V8 version). Also the dealers don't seem to be charging too much of a premium on them.

Reply With Quote
  #32
Old 06-17-2006, 09:47 PM
Bob G's Avatar
Bob G

Join Date: Dec 2002
Location: Long Beach ,California
Posts: 276
Cool metal replacment for fiber glass belly pan cover

Will I guess I will have to wait till monday to hear if Caliber motors can get me the European metal engine cover that replaces the fiber glass one for my 1992 300E 3.0. I did not think to ask ,but how much does these cover weight? are they armor plated steel? not that bothers me but it the term Panzer tank may well be applied to a Mercedes-Benz fitted with this option.

Since my dealer parts person said he did not see availability in Germany and was wiring Germany to inquiry about this part (no price Quote yet) I am wondering how many spares of these exsist since they seen to be indistructable.

I will keep every one informed as to what I fine out next week.
Singing off.
Bob Geco
COLOR="Blue"][/COLOR]

Last edited by Bob G; 06-17-2006 at 09:54 PM.
Reply With Quote
  #33
Old 05-06-2007, 03:40 PM
C Sean Watts's Avatar
NOCH EIN PILS!!

Join Date: Mar 2006
Location: NC
Posts: 1,318
Maybe a dead end post but

is there any new info on these? I'm still VERY interested as I'm about to replace an RTV repaired oil pan on my W124.
__________________
1987 300D (230,000 mi on a #14 head-watching the temp gauge and keeping the ghost in the machine)
Raleigh NC - Home of deep fried sushi!
Reply With Quote
  #34
Old 05-06-2007, 05:44 PM
dieseldiehard's Avatar
Dieseldiehard

Join Date: Oct 2002
Location: Bay Area No Calif.
Posts: 4,368
I don't believe they offered a belly pan for the 124 Diesels. ke6dcj had one on his 360TE wagon while he drove it on the W Coast, you might ask him if it was custom built.
Does you car have the bottom covers on it? They may help protect to some degree but if your running a sport suspension (lowered chassis) or just plain have a lot of pot holes or ruts where you drive then a steel belly pan might be a good idea and a good shop should be able to fab one out of aluminum diamond plate
__________________
'95 E320 Wagon my favorite road car. '99 E300D wolf in sheeps body, '87 300D Sportline suspension, '79 300TD w/ 617.952 engine at 367,750 and counting!
Reply With Quote
  #35
Old 05-06-2007, 06:43 PM
C Sean Watts's Avatar
NOCH EIN PILS!!

Join Date: Mar 2006
Location: NC
Posts: 1,318
Quote:
Originally Posted by dieseldiehard View Post
I don't believe they offered a belly pan for the 124 Diesels. ke6dcj had one on his 360TE wagon while he drove it on the W Coast, you might ask him if it was custom built.
Does you car have the bottom covers on it? They may help protect to some degree but if your running a sport suspension (lowered chassis) or just plain have a lot of pot holes or ruts where you drive then a steel belly pan might be a good idea and a good shop should be able to fab one out of aluminum diamond plate
I do have the bottom covers. I think the FSM calls them "sound encapsulation panels." They're black plastic with some foam on them. A legit. oil pan plate/shield will be a good project after the paint work is done.
__________________
1987 300D (230,000 mi on a #14 head-watching the temp gauge and keeping the ghost in the machine)
Raleigh NC - Home of deep fried sushi!
Reply With Quote
  #36
Old 05-06-2007, 07:11 PM
dieseldiehard's Avatar
Dieseldiehard

Join Date: Oct 2002
Location: Bay Area No Calif.
Posts: 4,368
Those "sound encapsulation" panels are expensive, like over $500 the set on the 124 diesel. They threw mine out when the shop where I worked was closed for a few months and I won't be running down to buy new ones!
I cleaned one on an SDL once, its a messy job what with all the gunk that builds up on them and the foam deteriorates.
You can drop the pan without having to remove the engine.
If your pan is just mildly cracked it can be welded by a pro that knows his stuff. With the oil level sensor and reservoir off to the sides of the pan its a fairly complex pan and I'm certain a new one won't come cheap. OTOH there are dead engines around that could be a source of a pan if the seller is willing.
__________________
'95 E320 Wagon my favorite road car. '99 E300D wolf in sheeps body, '87 300D Sportline suspension, '79 300TD w/ 617.952 engine at 367,750 and counting!
Reply With Quote
  #37
Old 05-07-2007, 08:57 AM
C Sean Watts's Avatar
NOCH EIN PILS!!

Join Date: Mar 2006
Location: NC
Posts: 1,318
Yikes

Quote:
Originally Posted by dieseldiehard View Post
Those "sound encapsulation" panels are expensive, like over $500 the set on the 124 diesel. They threw mine out when the shop where I worked was closed for a few months and I won't be running down to buy new ones!
I cleaned one on an SDL once, its a messy job what with all the gunk that builds up on them and the foam deteriorates.
You can drop the pan without having to remove the engine.
If your pan is just mildly cracked it can be welded by a pro that knows his stuff. With the oil level sensor and reservoir off to the sides of the pan its a fairly complex pan and I'm certain a new one won't come cheap. OTOH there are dead engines around that could be a source of a pan if the seller is willing.
That's not cheap. My panels are still good, just oily and dirty. I managed to find a NOS pan for about half of retail and I'm thinking a skid plate of some type will stop or lessen any damage in the future. Whatever was hit, once upon a time, cracked both the front of the main pan and the corner of the side sump. The side sump was welded but the main pan was sealed with RTV (it's actually sealing but I don't trust it over the long term). I'm not ready to scrap it just yet. I have a cousin with a couple types of welders and he thinks we could save it.
__________________
1987 300D (230,000 mi on a #14 head-watching the temp gauge and keeping the ghost in the machine)
Raleigh NC - Home of deep fried sushi!
Reply With Quote
  #38
Old 05-07-2007, 12:23 PM
Registered User

Join Date: Jun 2005
Location: UK
Posts: 66
My 1994 E320 came with one.
Here's a picture of it. It weighs 13Kgs (29Lbs)
Attached Thumbnails
Steel belly pan for W124-sumpguard.jpg
Reply With Quote
  #39
Old 05-07-2007, 02:56 PM
Registered User

Join Date: Apr 2001
Location: Jacksonville Florida
Posts: 724
Do You have a Part Number for the METAL Skid Plate from the EPC?..also it MAY Take Different hardware to secure it ...Like 8mm Bolts instead of the self tapping screws...As I Have a Source in EUROPE that CAN Get ANYTHING from MB
and He ships to me several times a year

I Have Installed the METAL plates on my W209/210 and W211 Its Worth the cost!

All it takes is One Carrier landing to damage the oil pan....The Metal plate pays for itself!
__________________
MBENZNL.com
Reply With Quote
  #40
Old 05-07-2007, 03:31 PM
C Sean Watts's Avatar
NOCH EIN PILS!!

Join Date: Mar 2006
Location: NC
Posts: 1,318
Yes, two actually

Quote:
Originally Posted by mark cummins View Post
Do You have a Part Number for the METAL Skid Plate from the EPC?..also it MAY Take Different hardware to secure it ...Like 8mm Bolts instead of the self tapping screws...As I Have a Source in EUROPE that CAN Get ANYTHING from MB
and He ships to me several times a year

I Have Installed the METAL plates on my W209/210 and W211 Its Worth the cost!

All it takes is One Carrier landing to damage the oil pan....The Metal plate pays for itself!
124 520 31 42 references 124 520 09 42.

I'm not sure when or why the change.
__________________
1987 300D (230,000 mi on a #14 head-watching the temp gauge and keeping the ghost in the machine)
Raleigh NC - Home of deep fried sushi!
Reply With Quote
  #41
Old 08-06-2012, 03:20 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,390
Recycled

for forum member
Reply With Quote
  #42
Old 08-06-2012, 07:47 PM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Protective Plate,Oil Pan

124 520 31 42 is the correct part number for the 124.128 chassis.
(And a whole bunch of other W124 s)

Models:
300 CE 88-89, 300 D TURBODIESEL USA 86-87, 300 E 2.6 USA 87-92, 300 E USA 86-06, 300 TD TURBODIESEL 87-87, 300 TD TURBODIESEL USA 87-87, 300 TE 4 MATIC 90-93, 300 TE 88-92, 300 TE USA 88-92
==========
Chassis:
124026/576, 124030/576, 124050/508, 124090/15U, 124090/578, 124133/576, 124193/15U, 124193/578, 124290/15U
==========

BUT...MB of South Atlanta shows retail @ $274.00 USD
[Which puts it just above "UnObtainium" in cost.]

(Anon) "They" say it's Steel.
Attached Thumbnails

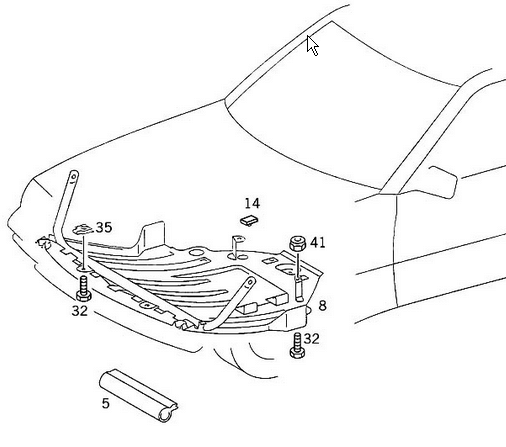

Steel belly pan for W124-screenhunter_05-aug.-06-20.31.gif
__________________
'84 300SD sold
124.128

Last edited by compress ignite; 08-07-2012 at 11:31 AM.
Reply With Quote
  #43
Old 08-07-2012, 01:27 PM
Registered User

Join Date: Jul 2001
Posts: 902
I'd be curious about the mounting method for the metal plate. My stock plastic panel barely hangs in there with the current system of a small springy female insert which is put in a small square opening in what appears to be a non structural bracket under the car, using a screw with a built-in wide washer.

I would not want to try to mount a panel weighing 29 lbs on those same screws!

(I think there is a business opportunity for someone who can come up with some sort of improved panel mounting system, like a Dzus fastener or something...)

Rgds,
Chris W.
'95 E300D, 374K
__________________
Objects in closer are mirror than they appear.
Reply With Quote
  #44
Old 08-07-2012, 06:38 PM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
If you'll BUT look @ reply #42 above

The Pictogram details that the Protective Plate(Belly Pan) is BOLTED to
the Chassis.

__________________
'84 300SD sold
124.128
Reply With Quote
