Sprinter 3500 DIY rear brake job

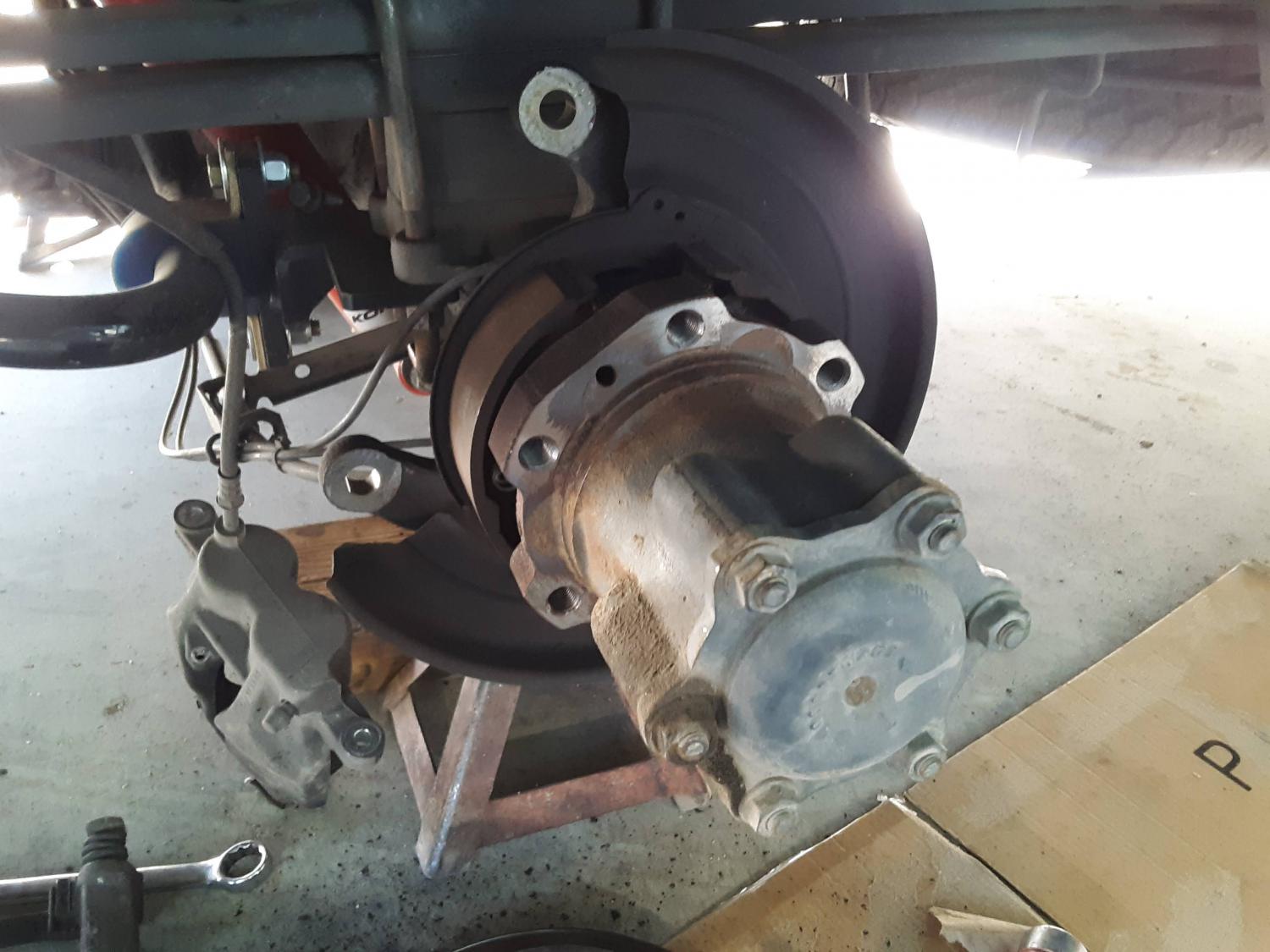

I mostly hang out in Diesel Discussion. I usually post there, but a friend asked me to work on his Sprinter chassis motor home, so I figured I would post here. The rear brakes were down to the sensors. New parts (Zimmerman) were procured, and I did the job today. After removing the rear dual wheels, I loosened the bolts (19mm) holding the rotor and wheel mounting flange. I then removed the caliper bolts (15mm) and mounting bracket bolts (24mm). I removed the sensor wire so the caliper could hang out of the way. A little hammering on the rotor loosened it enough to be able to remove it and the flange.
__________________
All Diesel Fleet 1985 R107 300SLD TURBODIESEL 2005 E320 CDI (daily) LOTS of parts for sale! EGR block kit http://www.peachparts.com/shopforum/diesel-discussion/355250-sale-egr-delete-block-off-plate-kit.html 1985 CA emissions 617 owners- You Need This! Sanden style A/C Compressor Mounting Kit for your 616/ 617 For Sale + Install Inst. Sanden Instalation Guide (post 11): http://www.peachparts.com/shopforum/diesel-discussion/367883-sanden-retrofit-installation-guide.html |
#2
|
||||
|
||||
Part 2
I then slid on the new rotor and wheel bolt flange, and tightened the bolts. The caliper bracket went on next. I used a C clamp to compress the pistons into their bores. The pads went next, and then the caliper was installed. The kit came with new parts, so I used them (bolts, pad guides etc.). Next the wear sensor got inserted in the slot, and plugged into the connector.
__________________
All Diesel Fleet 1985 R107 300SLD TURBODIESEL 2005 E320 CDI (daily) LOTS of parts for sale! EGR block kit http://www.peachparts.com/shopforum/diesel-discussion/355250-sale-egr-delete-block-off-plate-kit.html 1985 CA emissions 617 owners- You Need This! Sanden style A/C Compressor Mounting Kit for your 616/ 617 For Sale + Install Inst. Sanden Instalation Guide (post 11): http://www.peachparts.com/shopforum/diesel-discussion/367883-sanden-retrofit-installation-guide.html |
#3
|
||||
|
||||
Part 3

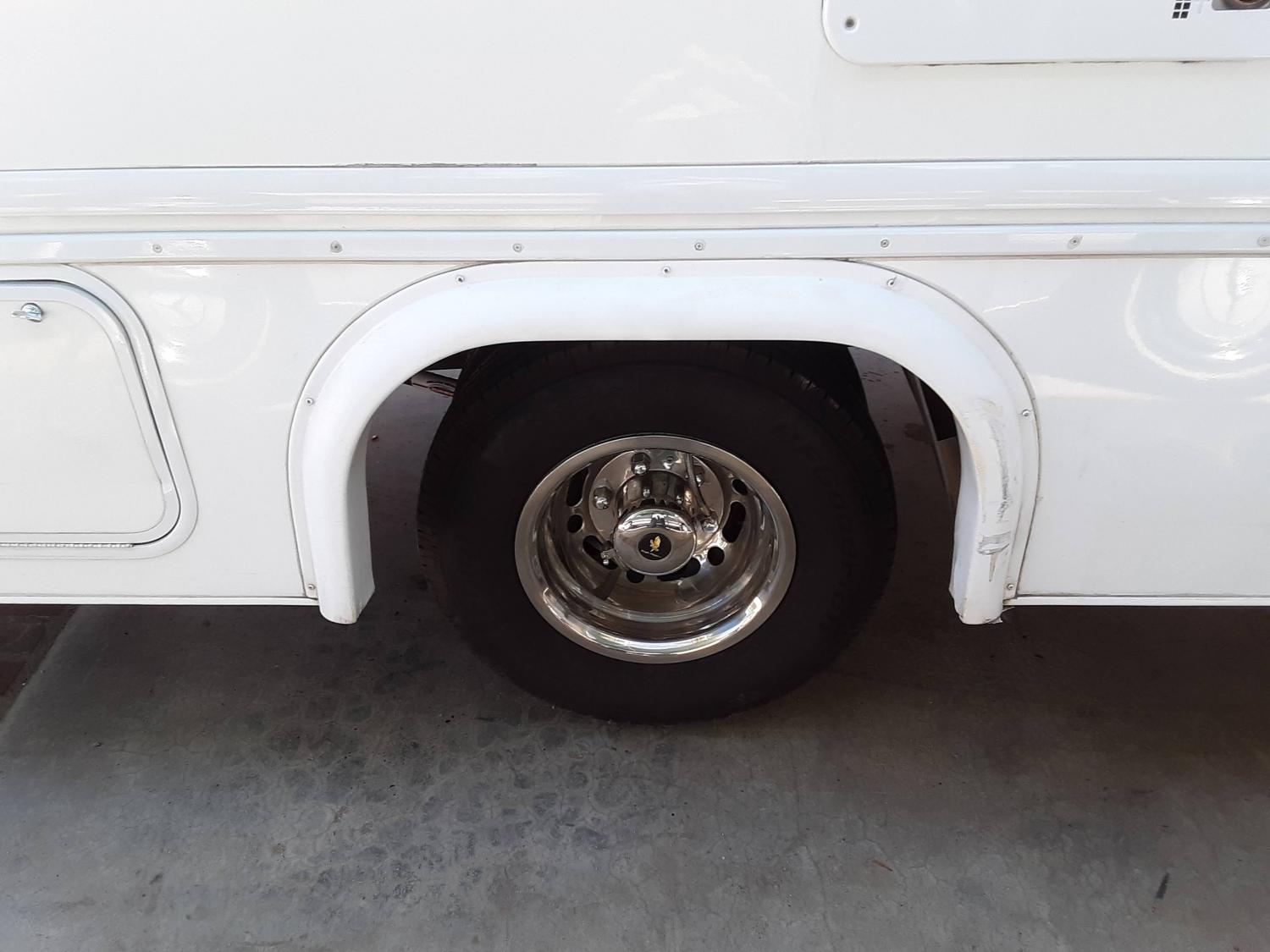

I then torqued the flange/rotor bolts and installed the wheels. It took about an hour per side, not working hard or fast. It is one of the easiest brake jobs I have ever done!
