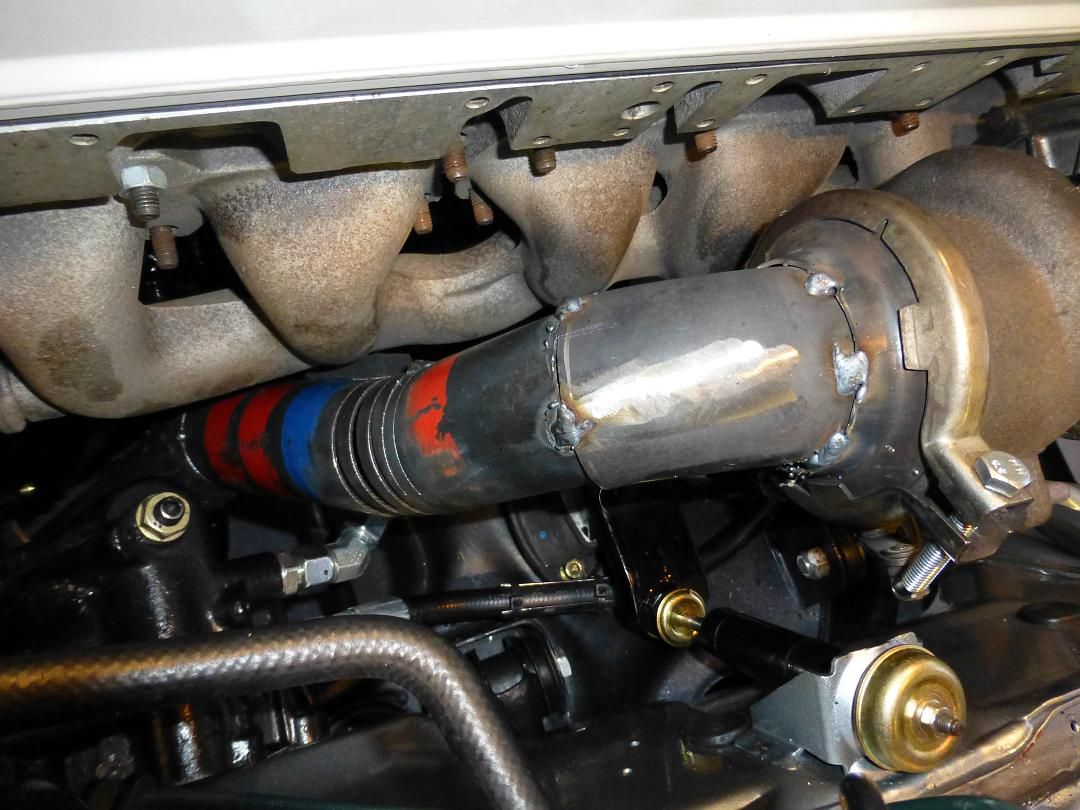

Turbo time. The new engine feet obstructed the original fitting place of the turbo so made up a 90deg adaptor that lifted it up and away from the manifold. Two flanges and a pre-bend pipe.

That works but had the side effect of moving the turbo oil return away from its connection on the crankcase.

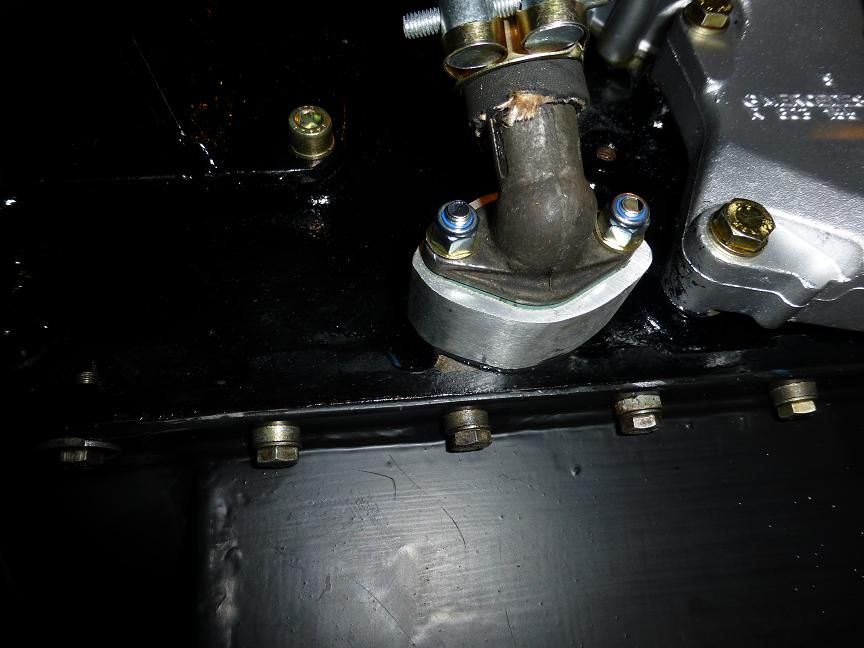

So an ally spacer is made and the rigid pipe cut and joined with a flexible section.

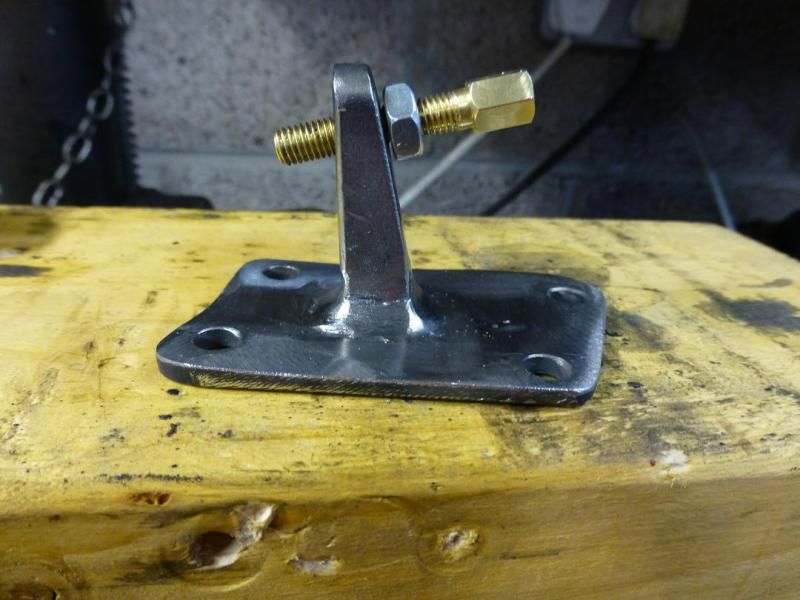

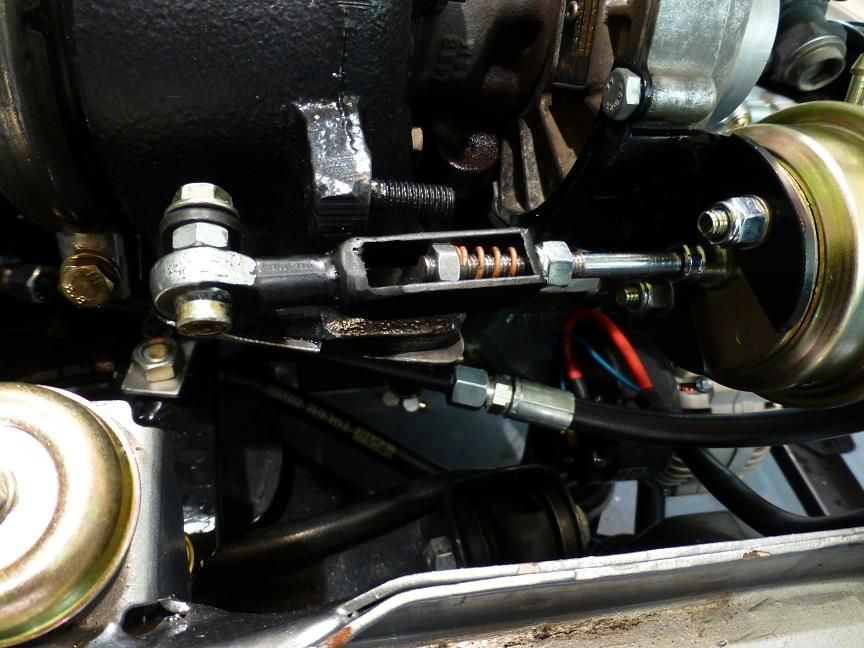

Wastegate. Original has vacuum operated unit. Since this car now has no vacuum operated anything (door locks are converted to remote electric) the wastegate is changed to pressure type. Make new bracket to mount this and sliding box with spring to ensure wastegate valve holds shut. Rose joint end to allow for slight arc of operating arm.

The two nuts allow for very fine adjustment of the gate flap.

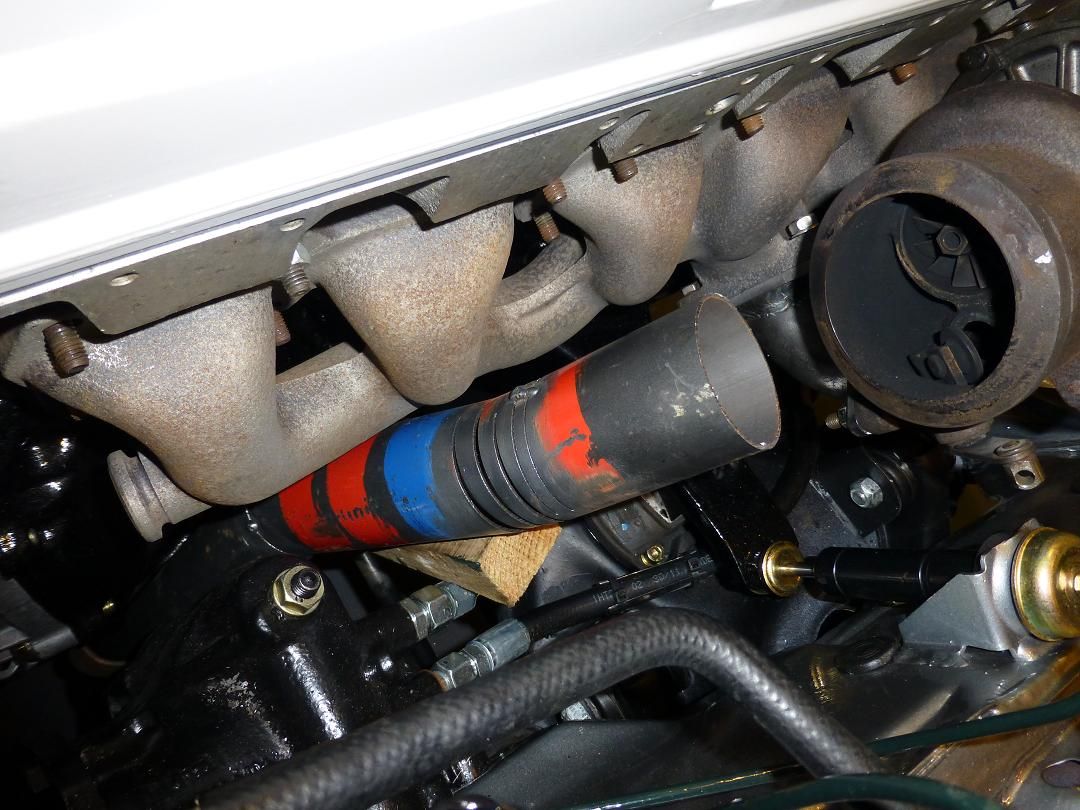

Exhaust time. As some of the guys over on STD have discovered the biggest problem converting right-hand-drive cars can be the steering box interfering with the downpipe. The original 280 version had its pipe coming down in front of the subframe then under the center crossmember. That’s not an option here and to run it down between the ‘box and bulkhead was very tight for space. Using a tight bend where the pipe exits the turbo there is just room in front of the ‘box between it and the engine foot.

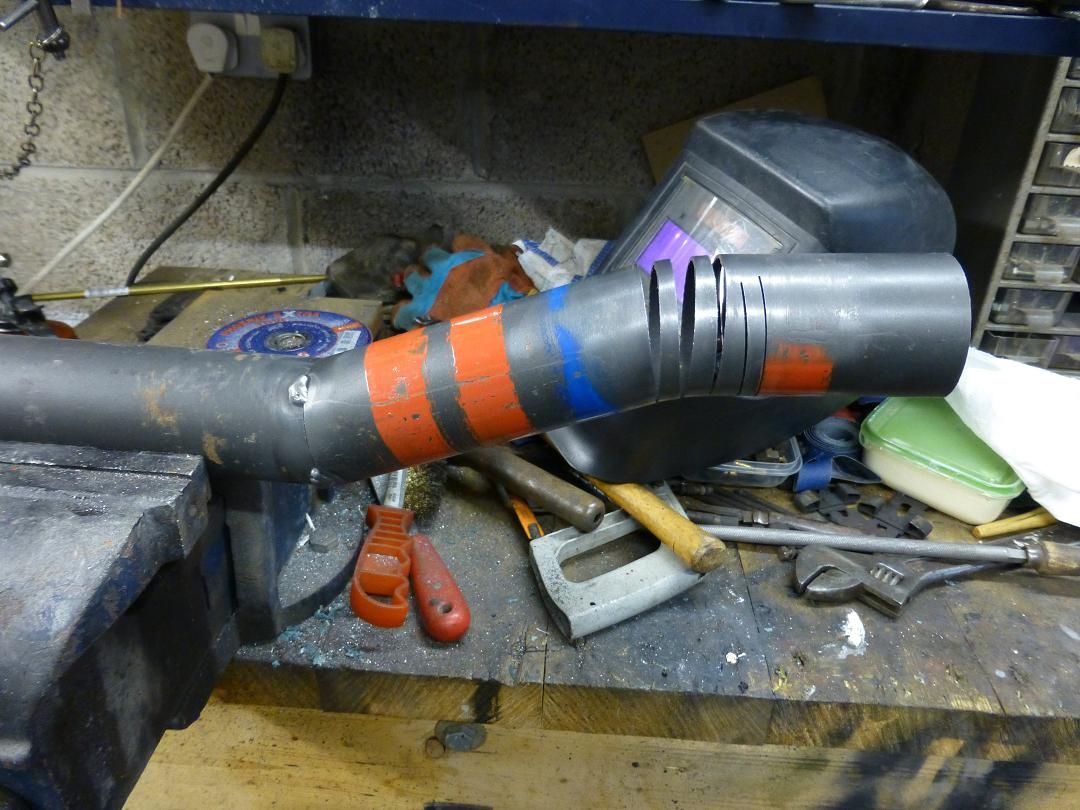

Cut slots in spare length of driveshaft tube to allow shallow bending. Wedge it in place and weld to off-cut from 210 downpipe.

Remove pipe, manifold, and strip turbo casing and send them off for ceramic coating. Meanwhile, graft new flexible oil supply pipe onto stub at crankcase.

Where it joins main system under car, and bracket onto bellhousing.

Happen upon local supplier of 60mm pre-formed piping bends in 316 grade stainless steel.

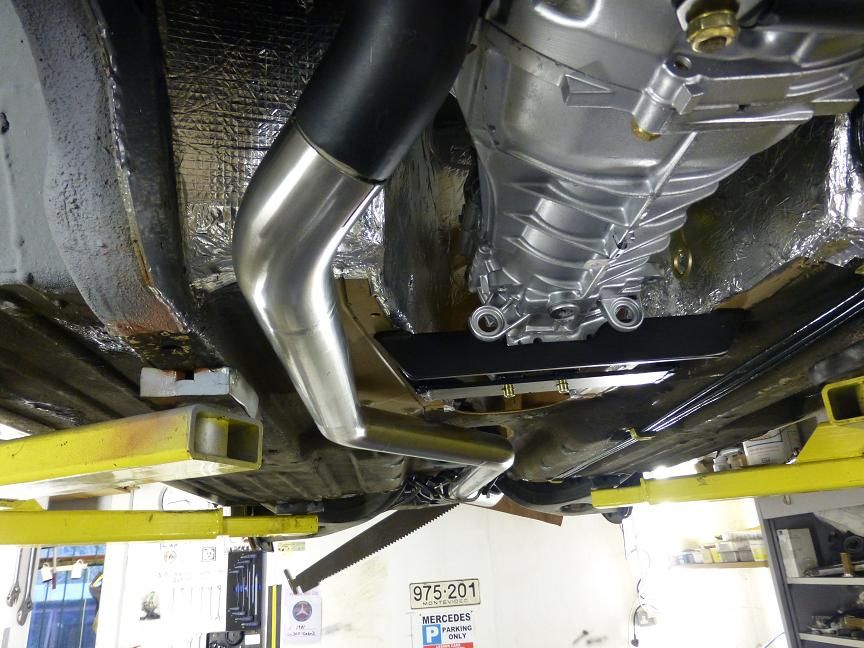

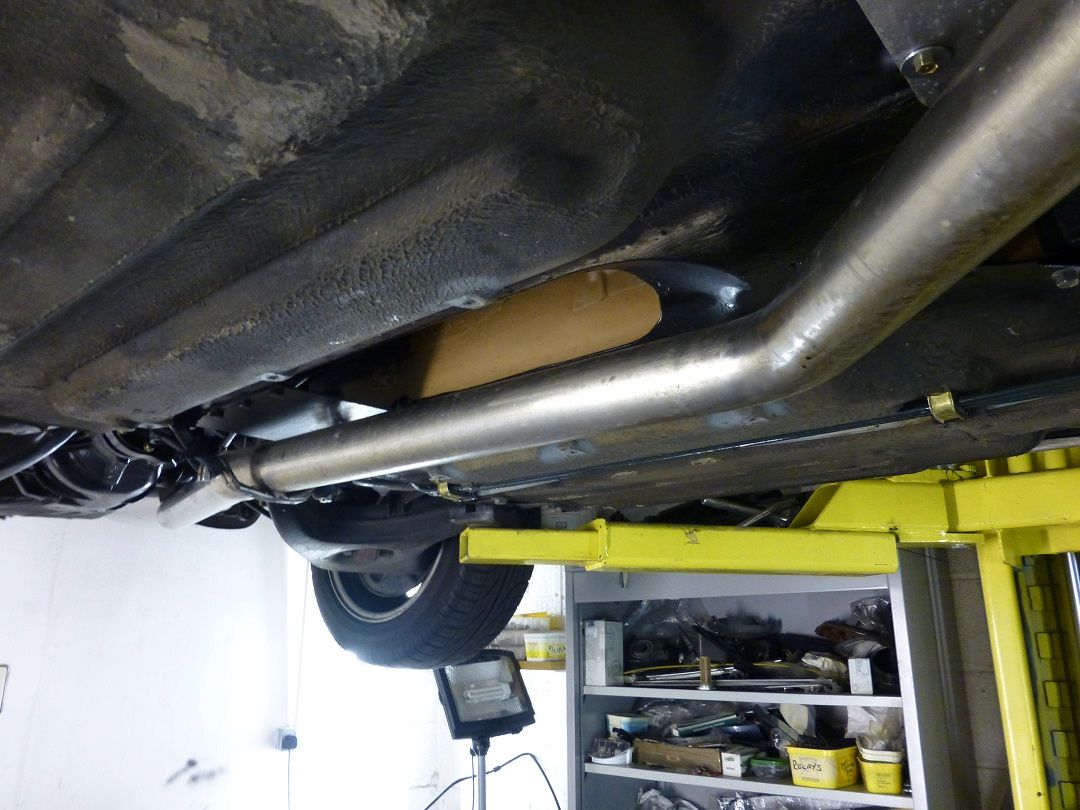

Tack these together and send off to be Tig welded. Then grind and polish welds so it looks one-piece. Attach to 80mm straight through stainless silencer off RangeRover donated by pal.

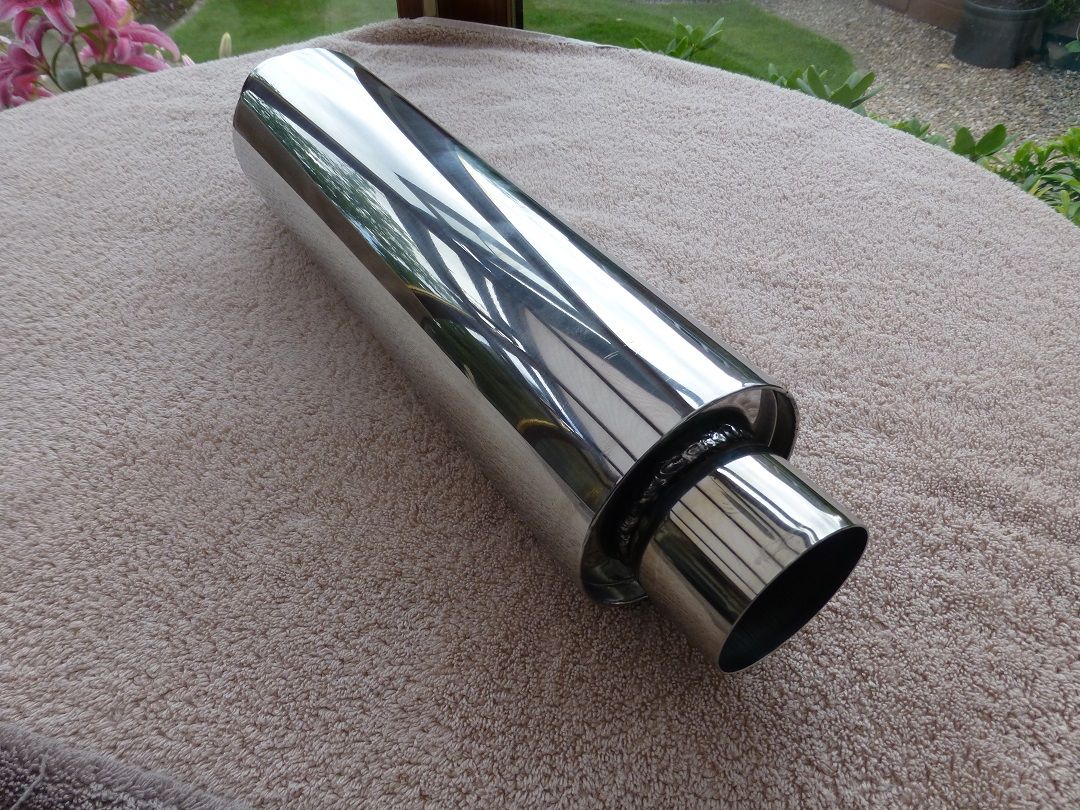

Jumping ahead a few months this was found to be too noisy on hard acceleration and cruise so cut and add Cherry Bomb to middle section. That small silencer has a huge effect on the noise but little on the performance.

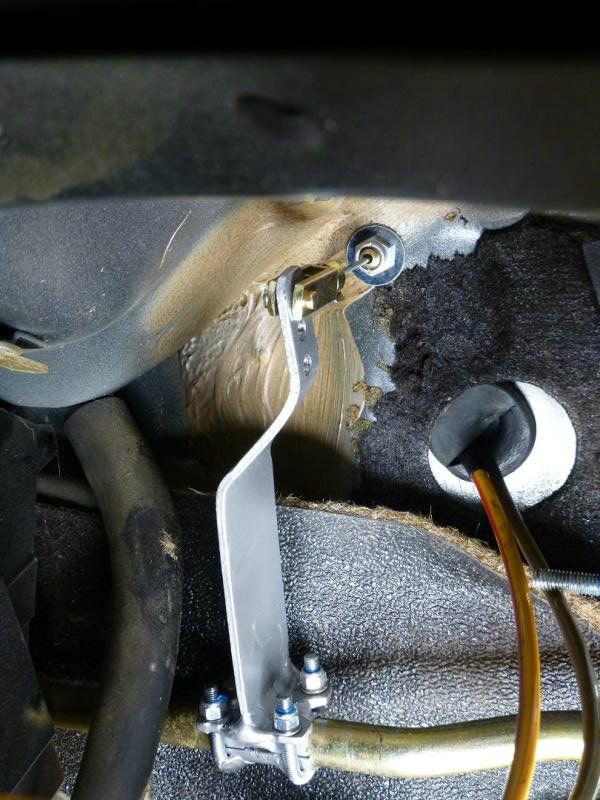

Throttle. The oil filter housing blanked any real chance of utilising the existing rod and crank system so decided to go for cable system. Make new lever and attach this to throttle cross-shaft up above drivers footwell.

Since this will be essentially a summer car there is no need for the fuel pre-heater on the cyl head. Remove this and make blanking plate incorporating throttle cable stop.

.
