  #16
Old 03-11-2014, 04:22 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Quote:
Originally Posted by DeliveryValve View Post
I don't quite understand the purpose of this press. Did you complete the other side yet? If no, then you need to make a video of how you used it!


.
Both the axles are done - video - moving pictures - out of comfort zone - hmmm (!)

The point of the press is to save having a bad day.

If you are persistent and butch and manly you could probably shout at those bloody boots until they do what they are told.

The press is total over kill and not really really needed it just makes for a pleasant experience rather than one when you feel compelled to go and kick some defenceless animal or object because you have had a bad day.

The original clips have those catches that need to be positioned so that you have a slightly larger diameter than the rubber.



You can't easily compress the rubber boot and the axle shaft to fit the small ones.


If you are using different clips - say something like a jubilee clip - then you wouldn't have this problem because you can open the clip and place it around a boot when fitted in position. Even I can push the rubber boots (without a clip in place) over the end of the axle shaft and not feel like frustration and pain dominates...



This press business is only really for this particular type of clip - the ones where you crimp them tight by deforming the square bit on the clip



If it wasn't for this style of clip I wouldn't have been cutting up wood.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #17
Old 03-11-2014, 04:35 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Quote:
Originally Posted by DeliveryValve View Post
...
This must be a record to have 12 consecutive posts in one thread. (Could of had more, but I messed you up buddy!)


.
I think I might have done more that 12 in a row before - being in a different time zone helps the big uploads of course. For these pre-prepared DIYs the post count is proportional to the number of pictures - limited to five attachments per post (as I'm sure you know).

I could have an off site picture account of course but as whunter has sometimes asked for certain pictures to be saved on the forum server I figure I may as well cut to the chase.

Sometimes the many posts help as often 5 pictures or fewer are all that is needed to explain a step - for a specific job a quick link to that section can easily be made.

However, I have had the odd thread where I feel like that teacher at the front of the class repeating "Bueller" "Bueller"!!!!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #18
Old 03-11-2014, 04:38 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Quote:
Originally Posted by vstech View Post
For the end cap I recommend loctite anaerobic sealant with activator on the cap.
5203?

LoctiteŽ Anaerobic Flange Sealants - Henkel North America
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #19
Old 04-05-2014, 05:20 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Ahhh I see the thread title has changed - it wasn't vary PC - sorry about that
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #20
Old 06-12-2014, 12:06 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Note for the unwary.

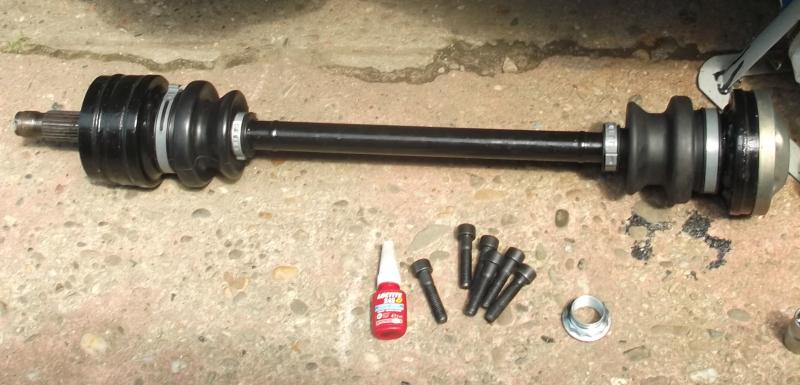

When you come to fit the clamps



make sure the bit you need to squash isn't obstructing a bolt hole on the inboard side! You need to fit the axle to the axle flange on the differential soon



(Again - don't forget the thread lock on those bolts)
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #21
Old 06-12-2014, 07:33 AM
1985 190d

Join Date: Nov 2006
Location: canadian border vermont
Posts: 489
Does the RW outer bearing need to be set by a runout dial as the last step?
Reply With Quote
  #22
Old 06-12-2014, 10:28 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Quote:
Originally Posted by vtmbz View Post
Does the RW outer bearing need to be set by a runout dial as the last step?
Not in this case because the rear wheel bearings are a double row of ball bearings not tapered roller bearings like on the front.

I've put pictures of the rear wheel bearings being changed here =>

Achtung - Das schweinhund baby benz thread

I'm not 100% sure why they specify such a mega torque to the nut on the axle - I'll think about that one.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #23
Old 06-12-2014, 12:24 PM
Bio240D's Avatar
Turbocharged OM616 Diesel

Join Date: Apr 2006
Location: Albuquerque,NM
Posts: 120
Hi Stretch!
Thank You Thank You Thank You for this exellent post!! I'm facing this project on a friend 201 very soon, I'll be referencing your post for guidence!
Cheers!
Chris
__________________
1983 Turbocharged 240D
1982 Mazda RX-7
1974 Mazda Rotary Pickup Converted to an EV
Reply With Quote
  #24
Old 06-12-2014, 01:47 PM
Registered User

Join Date: Dec 2006
Posts: 3,459
Stretch:

When I did this on my car, I filled the cans with solvent to wash out the grease...and quickly regretted it, because there's no easy way to put fresh grease in. I ended up with a very large gauge needle on a glue syringe and injected grease in as I could, but I think I'll eventually have a problem with it.

I see no need to press the boots on. Mine went on with very little manual persuasion, a little grease and some time.

Interesting that your clamps were too large...the ones that came with my boots were too small. I think mine were Lemfoerder, not sure. You'd think that finding the right clamp would be the easy part, but no.
Reply With Quote
  #25
Old 06-12-2014, 04:44 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Quote:
Originally Posted by Bio240D View Post
Hi Stretch!
Thank You Thank You Thank You for this exellent post!! I'm facing this project on a friend 201 very soon, I'll be referencing your post for guidence!
Cheers!
Chris
Ahh good a guinea pig! Please let me know if anything isn't clear - I'll do my best to make good.

Quote:
Originally Posted by Mxfrank View Post
Stretch:

When I did this on my car, I filled the cans with solvent to wash out the grease...and quickly regretted it, because there's no easy way to put fresh grease in. I ended up with a very large gauge needle on a glue syringe and injected grease in as I could, but I think I'll eventually have a problem with it.
...
Oh dear. I did that just a little bit with my W123 homokinetic axles - not too much but it was enough to cause a whole lot of stamping of feet, swearing and bad behaviour up and down the garden path for a bit...

...it seems like such a good idea at the time - but if you are not careful you always end up with very liquid grease. To make things worse the W123 axle cans start out in life with oil - this has a grease watering effect as well. It isn't easy to be sure that you have enough grease all the way at the back of the can.

Quote:
Originally Posted by Mxfrank View Post
...
I see no need to press the boots on. Mine went on with very little manual persuasion, a little grease and some time.
...
I've been traumatised by W123 homokinetic axles a boot gun and so called flex boots - never again - I will not go back to those dark days of frustration

Quote:
Originally Posted by Mxfrank View Post
...
Interesting that your clamps were too large...the ones that came with my boots were too small. I think mine were Lemfoerder, not sure. You'd think that finding the right clamp would be the easy part, but no.
Yet another example of why this seemingly simple job can turn into a 'king nightmare. I still can not believe how bad it was trying to do those sodding W123 ones - at the time I'd have happily paid the two thousand euros or what ever it was at the dealer to buy new axles than go through that again!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #26
Old 09-04-2014, 02:23 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,302
as always, very nice writeup Stretch!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
